弄完了梅老师的verilog例程,想要改成VHDL,做如下记录:
8位数据转16位源码
----------------------------------------------------------------------------------
-- Company:
-- Engineer:
--
-- Create Date: 16:55:08 04/09/2018
-- Design Name:
-- Module Name: cmos_8bit_to_16bit - Behavioral
-- Project Name:
-- Target Devices:
-- Tool versions:
-- Description:
--
-- Dependencies:
--
-- Revision:
-- Revision 0.01 - File Created
-- Additional Comments:
--
----------------------------------------------------------------------------------
library ieee;
use ieee.std_logic_1164.all;
use ieee.std_logic_unsigned.all;
use ieee.std_logic_arith.all;
-- Uncomment the following librarydeclaration if using
-- arithmetic functions with Signed orUnsigned values
--use IEEE.NUMERIC_STD.ALL;
-- Uncomment the following librarydeclaration if instantiating
-- any Xilinx primitives in this code.
--library UNISIM;
--use UNISIM.VComponents.all;
entity cmos_8bit_to_16bit is
Port( rst :in STD_LOGIC;
clk :in STD_LOGIC; --cmoscamera pixclk
pdata_i :in STD_LOGIC_VECTOR (7 downto 0);--cmoscamera ouput 8bit data
de_i :in STD_LOGIC; --cmoscamera output a enable signal(HREF)
de_v_i :in STD_LOGIC; --cmoscamera output VSYNC
pdata_o :out STD_LOGIC_VECTOR (15 downto 0);
hblank :out STD_LOGIC;
de_o :out STD_LOGIC;
de_v_o :out STD_LOGIC);
end cmos_8bit_to_16bit;
architecture Behavioral ofcmos_8bit_to_16bit is
signalcnt :STD_LOGIC;
signalpdata_i_d0 :STD_LOGIC_VECTOR (7 downto 0);
begin
process(rst,clk)
begin
if('1' = rst) then
cnt<= '0';
elsif(rising_edge(clk)) then
if('1' = de_i) then
cnt<= NOT cnt;
else
cnt<= '0';
endif;
endif;
endprocess;
process(clk)
begin
if('1' = de_i AND '1' = cnt) then
de_o<= '1';
else
de_o<= '0';
endif;
endprocess;
process(clk)
begin
if(rising_edge(clk)) then
de_v_o<= de_v_i;
endif;
endprocess;
process(clk)
begin
if(rising_edge(clk)) then
pdata_i_d0<= pdata_i;
endif;
endprocess;
process(clk,rst)
begin
if('1' = rst) then
pdata_o<= (others=>'0');
elsif('1'= de_i AND '1' = cnt) then
pdata_o<= pdata_i_d0&pdata_i;
else
pdata_o<= (others=>'1');
endif;
endprocess;
end Behavioral;
仿真文件
--------------------------------------------------------------------------------
-- Company:
-- Engineer:
--
-- Create Date: 15:27:38 04/27/2018
-- Design Name:
-- Module Name: E:/XilinxDic/ov7670_VHDL/ov7670/src/cmos8to16test.vhd
-- Project Name: ov7670
-- Target Device:
-- Tool versions:
-- Description:
--
-- VHDL Test Bench Created by ISE formodule: cmos_8bit_to_16bit
--
-- Dependencies:
--
-- Revision:
-- Revision 0.01 - File Created
-- Additional Comments:
--
-- Notes:
-- This testbench has been automaticallygenerated using types std_logic and
-- std_logic_vector for the ports of theunit under test. Xilinx recommends
-- that these types always be used for thetop-level I/O of a design in order
-- to guarantee that the testbench willbind correctly to the post-implementation
-- simulation model.
--------------------------------------------------------------------------------
LIBRARY ieee;
USE ieee.std_logic_1164.ALL;
-- Uncomment the following librarydeclaration if using
-- arithmetic functions with Signed orUnsigned values
--USE ieee.numeric_std.ALL;
ENTITY cmos8to16test IS
END cmos8to16test;
ARCHITECTURE behavior OF cmos8to16test IS
-- Component Declaration for the Unit Under Test (UUT)
COMPONENT cmos_8bit_to_16bit
PORT(
rst : IN std_logic;
clk : IN std_logic;
pdata_i : IN std_logic_vector(7downto 0);
de_i : IN std_logic;
de_v_i : IN std_logic;
pdata_o : OUT std_logic_vector(15downto 0);
hblank : OUT std_logic;
de_o : OUT std_logic;
de_v_o : OUT std_logic
);
END COMPONENT;
--Inputs
signal rst : std_logic := '0';
signal clk : std_logic := '0';
signal pdata_i : std_logic_vector(7 downto 0) := (others => '0');
signal de_i : std_logic := '0';
signal de_v_i : std_logic := '0';
--Outputs
signal pdata_o : std_logic_vector(15 downto 0);
signal hblank : std_logic;
signal de_o : std_logic;
signal de_v_o : std_logic;
--Clock period definitions
constant clk_period : time := 10 ns;
BEGIN
--Instantiate the Unit Under Test (UUT)
uut: cmos_8bit_to_16bit PORT MAP (
rst => rst,
clk => clk,
pdata_i => pdata_i,
de_i => de_i,
de_v_i => de_v_i,
pdata_o => pdata_o,
hblank => hblank,
de_o => de_o,
de_v_o => de_v_o
);
--Clock process definitions
clk_process :process
begin
clk<= '0';
waitfor clk_period/2;
clk<= '1';
waitfor clk_period/2;
end process;
--Stimulus process
stim_proc: process
begin
-- hold reset state for 100 ns.
wait for clk_period*1;
rst<= '1';
waitfor clk_period*3;
rst<= '0';
de_i<= '0';
de_v_i<= '0';
waitfor clk_period*3;
de_i<= '1';
pdata_i<= b"0101_0101";
waitfor clk_period;
pdata_i<= b"1100_0011";
waitfor clk_period;
pdata_i<= b"0011_1100";
waitfor clk_period;
pdata_i<= b"1100_0011";
waitfor clk_period*2;
de_i<= '0';
wait;
-- insert stimulus here
end process;
END;

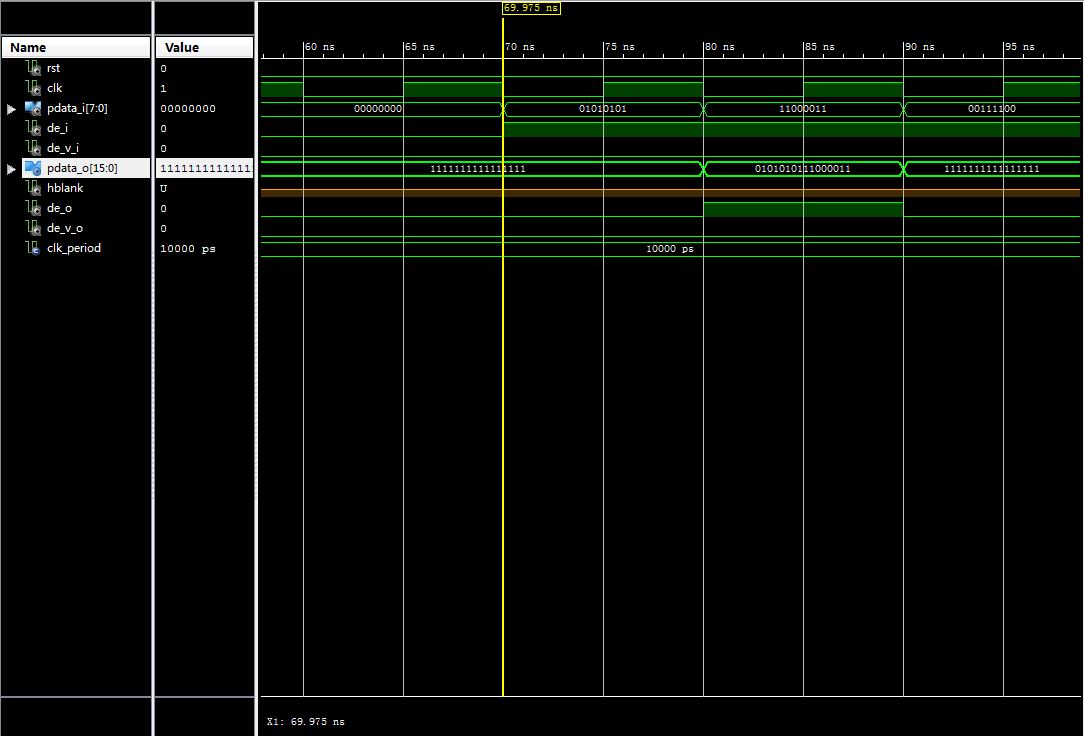

时序图
