基于DTW算法的命令字识别

DTW算法介绍

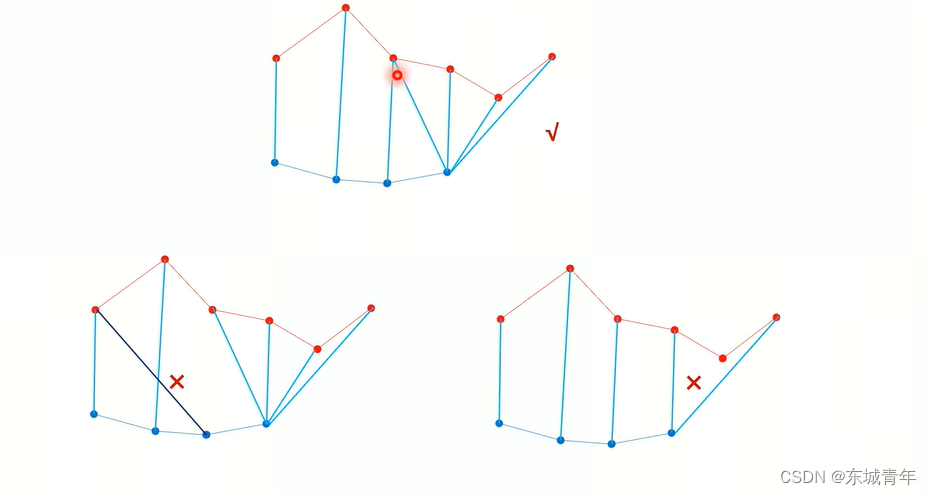

DTW(Dynamic Time Warping)：按距离最近原则，构建两序列之间对应关系，评估两序列相似性。相当于对一条时间序列进行拉伸或弯曲，使得两序列长度一致且距离最短。拉伸弯曲的过程中需满足如下条件：

• 单向对应，不能回头；
• 一 一对应，不能有空；
• 对应之后，距离最近。

具体步骤如下：

• 提取某一类模型中所有样本的mfcc值得到列表mfccs[样本1的mfcc, 样本2的mfcc, ...]；

• 提取所有类模型的mfccs得到列表models[类别1的mfccs, 类别2的mfccs, ...];

• 提取测试样本的test_mfcc，计算test_mfcc与每一类mfccs的平均DTW距离得到列表scores[与类别1的DTW距离, 与类别2的DTW距离, ...]；

• 统计scores最小的索引，即得到匹配的类别。

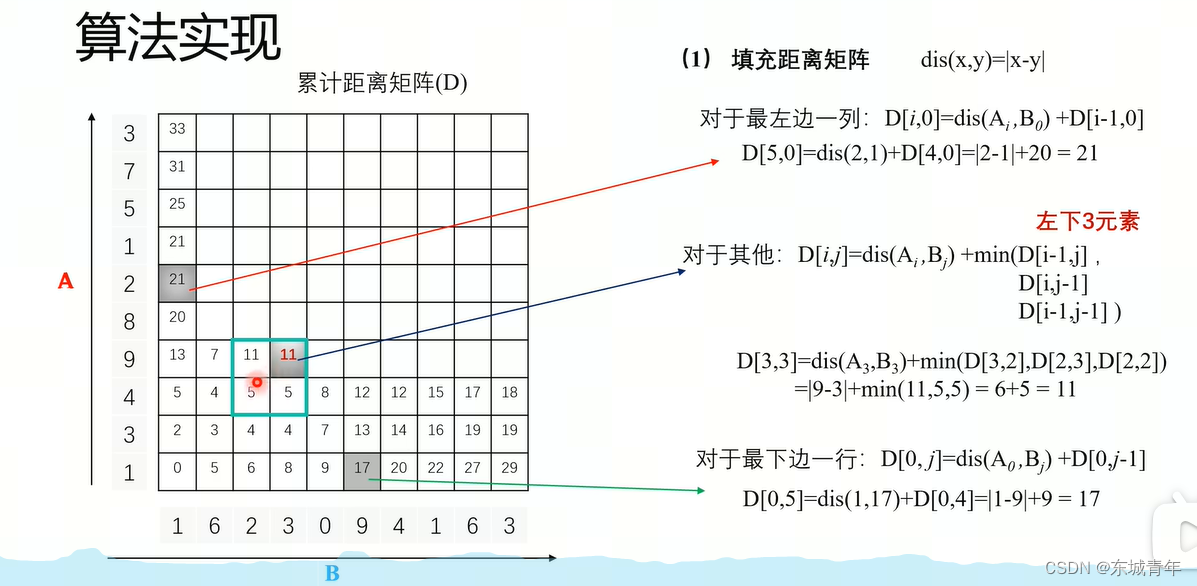

DTW算法实现

import numpy as np

def dis_abs(x, y):
    return abs(x - y)

def accu_dis_matrix(A, B, dis_fun=dis_abs):
    M = len(A)
    N = len(B)

    # 创建累计距离矩阵
    D = np.zeros([M, N])
    for i in range(M):
        D[i, 0] = dis_fun(A[i], B[0]) + D[max(i - 1, 0), 0]
    for j in range(1, N):
        D[0, j] = dis_fun(B[j], A[0]) + D[0, j - 1]
    for i in range(1, M):
        for j in range(1, N):
            D[i, j] = dis_fun(A[i], B[j]) + min(D[i - 1, j], D[i, j - 1], D[i - 1, j - 1])

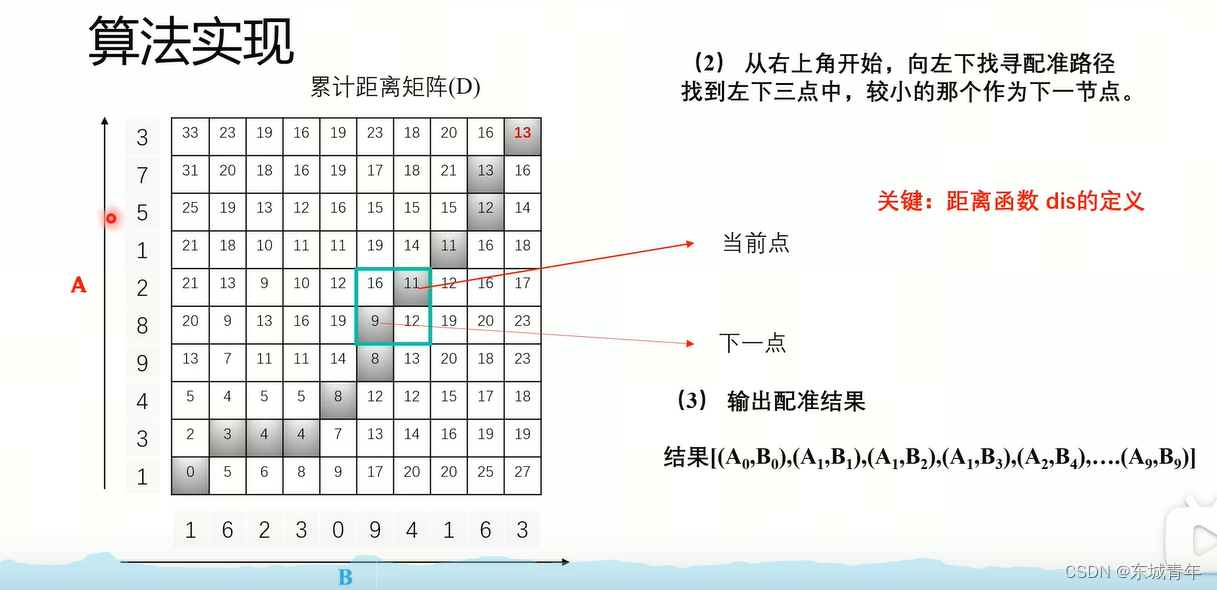

    # 最短路径回溯
    dis = []
    path = []
    i = M - 1
    j = N - 1
    path.append((i, j))
    dis.append(D[i, j])
    while not(i == 0 and j == 0):
        if i - 1 < 0:
            i = 0
            j -= 1
        elif j - 1 < 0:
            j = 0
            i -= 1
        else:
            idx = [(i - 1, j), (i, j -1), (i - 1, j - 1)]
            min_idx = idx[np.argmin([D[i - 1, j], D[i, j -1], D[i - 1, j - 1]])]
            i = min_idx[0]
            j = min_idx[1]
        path.append((i, j))
        dis.append(D[i, j])
    mean_dis = np.sum(np.diff(dis[::-1])) / (len(dis) )
    return  mean_dis, path, D

*********************************测试***************************************************
a = np.array([1,3,4,9,8,2,1,5,7,3])
b = np.array([1,6,2,3,0,9,4,1,6,3])
# a = np.array([1,2,3,2,8,2,1,5,7,3])
# b = np.array([1,1,2,3,0,9,4,1,6,3])
a = a.reshape(len(a), -1)
b = b.reshape(len(a), -1)
mean_dis, path, D = accu_dis_matrix(a, b, dis_abs)
print(D, path[::-1], mean_dis)

>>>
[[ 0.  5.  6.  8.  9. 17. 20. 20. 25. 27.]
 [ 2.  3.  4.  4.  7. 13. 14. 16. 19. 19.]
 [ 5.  4.  5.  5.  8. 12. 12. 15. 17. 18.]
 [13.  7. 11. 11. 14.  8. 13. 20. 18. 23.]
 [20.  9. 13. 16. 19.  9. 12. 19. 20. 23.]
 [21. 13.  9. 10. 12. 16. 11. 12. 16. 17.]
 [21. 18. 10. 11. 11. 19. 14. 11. 16. 18.]
 [25. 19. 13. 12. 16. 15. 15. 15. 12. 14.]
 [31. 20. 18. 16. 19. 17. 18. 21. 13. 16.]
 [33. 23. 19. 16. 19. 23. 18. 20. 16. 13.]]
[(0, 0), (1, 1), (1, 2), (1, 3), (2, 4), (3, 5), (4, 5), (5, 6), (6, 7), (7, 8), (8, 8), (9, 9)] 1.0833333333333333

基于DTW的命令字识别

import librosa
import os

# 采用MFCC特征使用mcd距离
def euclideanDistance(a, b):
    diff = a - b
    mcd = 10.0 / np.log(10) * np.sqrt(2.0 * np.sum(diff ** 2))
    return mcd

# DTW计算两时间序列之间的相似度
def accu_dis_matrix(A, B, dis_fun=dis_abs):
    M = len(A)
    N = len(B)
    # 创建累计距离矩阵
    D = np.zeros([M, N])
    for i in range(M):
        D[i, 0] = dis_fun(A[i], B[0]) + D[max(i - 1, 0), 0]
    for j in range(1, N):
        D[0, j] = dis_fun(B[j], A[0]) + D[0, j - 1]
    for i in range(1, M):
        for j in range(1, N):
            D[i, j] = dis_fun(A[i], B[j]) + min(D[i - 1, j], D[i, j - 1], D[i - 1, j - 1])
    dis = D[-1, -1] / (A.shape[0] + B.shape[0])
    return dis, D

# 提取mfcc特征
def getmfcc(audio, isfile=True):
    if isfile:
        y, fs = librosa.load(audio, sr=8000)
    else:
        y = np.array(audio)
    # 端点检测(去除静音)
    intervals = librosa.effects.split(y, top_db=20)
    y = librosa.effects.remix(y, intervals)
    # 预加重
    y = librosa.effects.preemphasis(y)
    sr = 8000
    win_length = 256
    hop_length = 128
    n_fft = 256
    n_mels = 23
    n_mfcc = 14
    mfcc = librosa.feature.mfcc(y=y, sr=sr, win_length=win_length, hop_length=hop_length, n_fft=n_fft, n_mels=n_mels, n_mfcc=n_mfcc)
    mfcc_delta = librosa.feature.delta(mfcc)
    mfcc_delta2 = librosa.feature.delta(mfcc, order=2)
    mfcc_d1_d2 = np.concatenate([mfcc, mfcc_delta, mfcc_delta2], axis=0)
    return mfcc_d1_d2.T

# 获取训练集中某一类文件夹中所有样本的mfcc特征
def get_train_mfcc_list(path):
    mfccs = []
    for root, dirs, files in os.walk(path):
        for file in files:
            if file.endswith('wav'):
                audio_file = os.path.join(path, file)
                mfcc = getmfcc(audio_file)
                mfccs.append(mfcc)
    return mfccs

# 模型生成
def model_gen(path):
    idx = 0
    dic_labs = {}
    models = []
    for root, dirs, files in os.walk(path):
        for dir in dirs:
            dic_labs[idx] = dir
            model_mfccs = get_train_mfcc_list(os.path.join(root, dir))
            models.append(model_mfccs)
            idx += 1
    return dic_labs, models

# 测试样本在每一类模型中的DTW距离
def get_score(test_mfcc, mfccs):
    N = len(mfccs)
    scores = 0
    for i in range(N):
        dis, D = accu_dis_matrix(test_mfcc, mfccs[i], euclideanDistance)
        scores += dis
    return scores / N


***********************************测试**************************************
dic_labs, models = model_load('data')
print(dic_labs)
for root, dirs, files in os.walk('data'):
    for dir in dirs:
        print('测试样本************:', dir)
        for file in os.listdir(os.path.join(root, dir)):
            test_mfcc = getmfcc(os.path.join(root, dir, file))
            score = [get_score(test_mfcc, model_mfccs) for model_mfccs in models]
            print('识别结果：',dic_labs[np.argmin(score)])

>>>
{0: '向上', 1: '向下', 2: '向右', 3: '向左'}
测试样本************: 向上
识别结果： 向上
识别结果： 向上
识别结果： 向上
测试样本************: 向下
识别结果： 向下
识别结果： 向下
识别结果： 向下
测试样本************: 向右
识别结果： 向右
识别结果： 向右
识别结果： 向右
测试样本************: 向左
识别结果： 向左
识别结果： 向左
识别结果： 向左

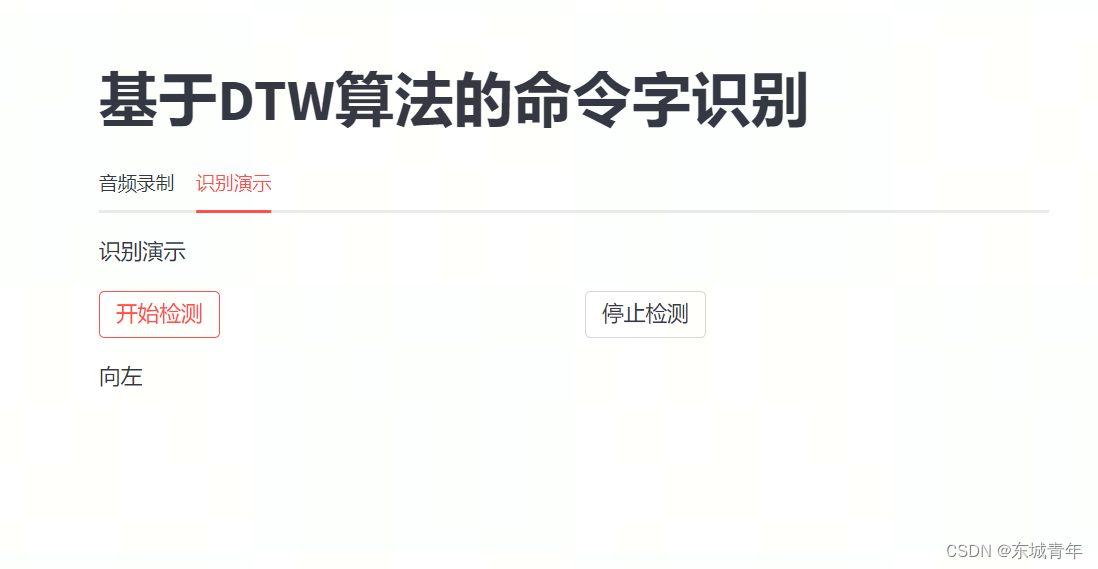

基于DTW算法的命令字识别(streamlit UI)

utils.py:

# -*- coding:UTF-8 -*-
import streamlit as st
import pyaudio
import wave
import librosa
import soundfile as sf
import numpy as np
import os
import time


# 采用MFCC特征使用mcd距离
def euclideanDistance(a, b):
    diff = a - b
    mcd = 10.0 / np.log(10) * np.sqrt(2.0 * np.sum(diff ** 2))
    return mcd


# DTW算法匹配距离
class DTW:
    def __init__(self, disFunc=euclideanDistance):
        self.disFunc = disFunc

    def compute_distance(self, reference, test):
        DTW_matrix = np.empty([reference.shape[0], test.shape[0]])
        DTW_matrix[:] = np.inf
        DTW_matrix[0, 0] = 0

        for i in range(reference.shape[0]):
            for j in range(test.shape[0]):
                cost = self.disFunc(reference[i, :], test[j, :])
                r_index = i - 1
                c_index = j - 1
                if r_index < 0:
                    r_index = 0
                if c_index < 0:
                    c_index = 0
                DTW_matrix[i, j] = cost + min(DTW_matrix[r_index, j], DTW_matrix[i, c_index],
                                              DTW_matrix[r_index, c_index])
        return DTW_matrix[-1, -1] / (test.shape[0] + reference.shape[0])


# 语音录制
class wordRecorder:
    def __init__(self, samplingFrequency=8000, threshold=20):
        self.samplingFrequency = samplingFrequency
        self.threshold = threshold

    def record(self):
        p = pyaudio.PyAudio()
        stream = p.open(format=pyaudio.paInt16, channels=1, rate=self.samplingFrequency, input=True, output=False,
                        frames_per_buffer=1024)
        frames = []
        for i in range(int(self.samplingFrequency * 4 / 1024)):
            data = stream.read(1024)
            frames.append(data)
        stream.stop_stream()
        stream.close()
        p.terminate()
        return frames

    def record2File(self, path):
        frames = self.record()
        p = pyaudio.PyAudio()
        with wave.open(path, 'wb') as wf:
            wf.setnchannels(1)
            wf.setsampwidth(p.get_sample_size(pyaudio.paInt16))
            wf.setframerate(self.samplingFrequency)
            wf.writeframes(b''.join(frames))
            print('record finished!')


# 提取mfcc特征
def getmfcc(audio, isfile=True):
    if isfile:
        # 读取音频文件
        y, fs = librosa.load(audio, sr=8000)
    else:
        # 音频数据，需要去除静音
        y = np.array(audio)

    intervals = librosa.effects.split(y, top_db=20)
    y = librosa.effects.remix(y, intervals)
    # 预加重
    y = librosa.effects.preemphasis(y)

    fs = 8000
    N_fft = 256
    win_length = 256
    hop_length = 128
    n_mels = 23
    n_mfcc = 14
    # mfcc提取
    mfcc = librosa.feature.mfcc(y=y, sr=fs, n_mfcc=n_mfcc, n_mels=n_mels, n_fft=N_fft, win_length=win_length,
                                hop_length=hop_length)
    mfcc = mfcc[1:, :]
    # 添加差分量
    mfcc_deta = librosa.feature.delta(mfcc)
    mfcc_deta2 = librosa.feature.delta(mfcc, order=2)
    # 特征拼接
    mfcc_d1_d2 = np.concatenate([mfcc, mfcc_deta, mfcc_deta2], axis=0)
    return mfcc_d1_d2.T


# 指定文件夹下文件个数
def check_file(name):
    os.makedirs('data', exist_ok=True)
    save_dir = os.path.join('data', name)
    os.makedirs(save_dir, exist_ok=True)

    n_files = 0
    for roots, dirs, files in os.walk(save_dir):
        for file in files:
            if file.endswith('.wav'):
                n_files += 1
    return n_files


@st.cache_resource  # 防止重载
def model_load():
    model1 = ModelHotWord(os.path.join('data', '向上'))
    model2 = ModelHotWord(os.path.join('data', '向下'))
    model3 = ModelHotWord(os.path.join('data', '向左'))
    model4 = ModelHotWord(os.path.join('data', '向右'))
    models = [model1, model2, model3, model4]
    return models

class ModelHotWord(object):
    def __init__(self, path):
        self.mfccs = get_train_mfcc_list(path)

    def get_score(self, ref_mfcc):
        return get_score(ref_mfcc, self.mfccs)


def get_train_mfcc_list(data_path):
    mfccs = []
    for roots, dirs, files in os.walk(data_path):
        for file in files:
            if file.endswith('wav'):
                file_audio = os.path.join(data_path, file)
                mfcc = getmfcc(file_audio)
                mfccs.append(mfcc)
    return mfccs


def get_score(ref_mfcc, list_mfccs):
    m_dtw = DTW()
    N = len(list_mfccs)
    scores = 0
    for i in range(N):
        dis = m_dtw.compute_distance(ref_mfcc, list_mfccs[i])
        scores = scores + dis
    return scores / N

DTW.py:

# -*- coding:UTF-8 -*-
from utils import *


st.title('基于DTW算法的命令字识别')
tab1, tab2 = st.tabs(['音频录制', '识别演示'])

with tab1:
    list_labs = ['向上', '向下', '向左', '向右']
    col1, col2, col3, col4 = st.columns(4)
    with col1:
        name = st.selectbox('模型选择', list_labs)
    with col2:
        st.write('命令字录制')
        flag_record = st.button(label='录音')
    with col3:
        st.write('命令字重录')
        flag_cancel = st.button(label='撤销')
    with col4:
        st.write('试听')
        flag_show_audios = st.button(label='试听')

    info_file_number = st.empty()
    info_file_number.write('命令字---%s--已有%d个样本'%(name, check_file(name)))


info_audios = st.empty()
info_success = st.empty()
if flag_record:
    info_audios.info('')
    info_success.success('')
    n_files = check_file(name)
    info_audios.info('开始录制---第%d个命令字---%s--请在2s内完成录制.....'%(n_files + 1, name))
    save_dir = os.path.join('data', name)
    audio_name = os.path.join(save_dir, '%d.wav'%(n_files + 1))
    wRec = wordRecorder()
    wRec.record2File(audio_name)
    info_success.success('录制完成，保存为' + audio_name)

if flag_cancel:
    n_files = check_file(name)
    save_dir = os.path.join('data', name)
    file_del = os.path.join(save_dir, str(n_files)+'.wav')
    os.remove(file_del)
    info_file_number.write('命令字--%s--已有%d个样本'%(name, check_file(name)))

if flag_show_audios:
    n_files = check_file(name)
    save_dir = os.path.join('data', name)
    if n_files > 0:
        for i in range(n_files):
            audio_file = open(os.path.join(save_dir, '%d.wav'%(i+1)), 'rb')
            audio_bytes = audio_file.read()
            st.audio(audio_bytes, format='audio/')


with tab2:
    th = 125
    st.write('识别演示')
    if 'run' not in st.session_state:
        st.session_state['run'] = False
    def start_listening():
        st.session_state['run'] = True
    def stop_listening():
        st.session_state['run'] = False

    col1, col2 = st.columns(2)
    with col1:
        st.button('开始检测', on_click=start_listening)
    with col2:
        st.button('停止检测', on_click=stop_listening)

    det_word = st.empty()
    def init_up():
        det_word.write('向上')
    def init_down():
        det_word.write('向下')
    def init_left():
        det_word.write('向左')
    def init_right():
        det_word.write('向右')
    callbacks = [init_up, init_down, init_left, init_right]

    # 加载预测模型，提取好的一些mfcc特征
    models = model_load()
    dic_labs = {'0': '向上', '1': '向下', '2': '向左', '3': '向右', '-1': ''}

    while st.session_state['run']:  # 循环进行检测
        wRec = wordRecorder()
        wRec.record2File('data/test.wav')
        ref_mfcc = getmfcc('data/test.wav', True)
        # 在每个模型上进行打分，扎到最小分数作为检测结果
        scores = [model.get_score(ref_mfcc) for model in models]
        i_word = np.argmin(scores)
        score = np.min(scores)
        print(i_word, score)
        if score < th:
            i_det_word = i_word
            callback = callbacks[i_det_word]
            if callback is not None:
                callback()
            print('---------det word---------', dic_labs[str(i_det_word)])
        else:
            continue

python命令行运行streamlit run DTW.py即会出现web网页ui，结果如下图所示：

参考DTW关键字检测-代码实现_哔哩哔哩_bilibili
