scrapy本身是不支持分布式爬取的，但和组件scrapy-redis一起使用，则支持分布式爬取。

分布式爬取原理：所有爬虫端共享redis里面的request请求，然后从这里面获取请求，再去爬取，直至队列为空。

本例共使用了3个系统，win10和ubuntu作为爬虫客户端，另外一个ubuntu存放redis数据库用来保存爬取的数据 请求及去重指纹。

目的：通过简单分布式爬取腾讯社招每个分页的职位相关信息，明白使用scrapy及scrapy-redis组件搭建分布式爬虫的思路。可在使用crawlspider类爬虫的基础上修改，进而搭建分布式。

重点：在settings.py设置文件里面的添加的修改，主要是把爬取时的数据 请求 去重指纹保存到redis里面，因为scrapy默认不支持分布式，而scrapy-redis组件使用redis才支持分布式；爬虫文件主要是进行分布式爬取，注意每个爬虫端都要保证可以使用redis-cli来连接服务端的redis;把爬取到的数据可以从redis里面读取出来保存到mysql和mongodb里面。当然，也可以直接书写分布式爬虫，主要是保存数据到redis和爬虫文件，这和修改的用法一样。

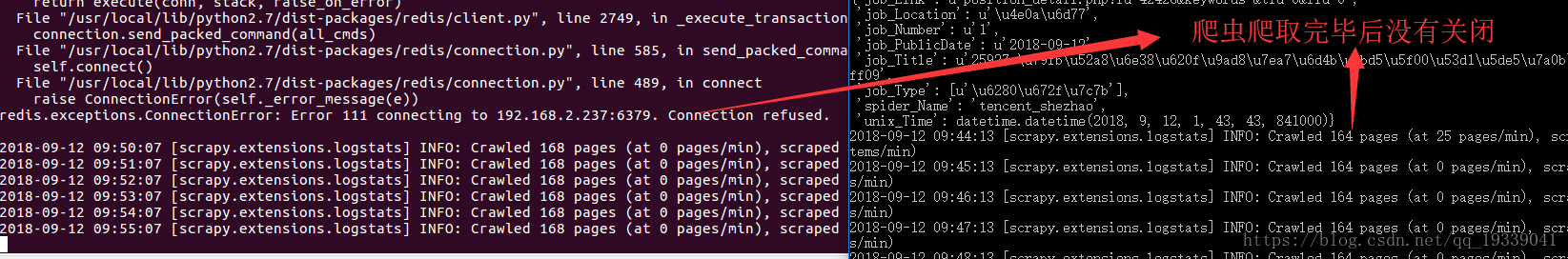

遇到的问题：爬取时有一个爬虫端不能爬取数据，另外一个爬取完爬虫端没有关闭

解决的方法：经过测试发现，是由于异步请求的个数设置过大导致一个爬虫端就可以完成，把settings.py文件里面的CONCURRENT_REQUESTS 设置一个合适的数就可以。关于爬取完关闭爬虫，则采用超时方法解决，可参考scrapy_redis 解决空跑问题,自动关闭爬虫，主要在项目的设置文件settings.py及同级目录再添加一个文件解决。

  1. 要爬取的目标内容items.py


# -*- coding: utf-8 -*-


import scrapy

class TencentItem(scrapy.Item):


# 职位名称

job_Title = scrapy.Field()


# 详细链接

job_Link = scrapy.Field()


# 职位类型

job_Type = scrapy.Field()


# 职位人数

job_Number = scrapy.Field()


# 工作位置

job_Location = scrapy.Field()


# 发布日期

job_PublicDate = scrapy.Field()


# utc时间

unix_Time = scrapy.Field()


# 爬虫名

spider_Name = scrapy.Field()

  2. 爬虫文件tc.py


#!/usr/bin/env python


# -*- coding: utf-8 -*-


import scrapy
from scrapy.linkextractors import LinkExtractor

# from scrapy.spiders import CrawlSpider, Rule

from scrapy_redis.spiders import RedisCrawlSpider
from scrapy.spiders import Rule
from tencent.items import TencentItem



# class TencentShezhaoSpider(CrawlSpider):

class TencentXiaozhaoSpider(RedisCrawlSpider):
    name = 'tencent_shezhao'
    # allowed_domains = ['tencent.com']
    # start_urls = ['https://hr.tencent.com/position.php?&start=0#a']
    redis_key = 'TencentXiaozhaoSpider:start_urls'

    def __init__(self, *args, **kwargs):
        domain = kwargs.pop('domain', '')
        self.allowed_domains = filter(None, domain.split(','))
        super(TencentXiaozhaoSpider, self).__init__(*args, **kwargs)

    # 获取匹配分页页码的链接的正则表达式
    page_link = LinkExtractor(allow='start=\d+')

    rules = (
        Rule(page_link, callback='parse_item',follow=True),
    )

    def parse_item(self, response):
        # print '='*60
        # print response.url
        # print '='*60
        job_list = response.xpath('//tr[@class="odd"] | //tr[@class="even"]')
        item = TencentItem()
        for each in job_list:
            item['job_Title'] = each.xpath('./td[1]/a/text()')[0].extract()
            item['job_Link'] = each.xpath('./td[1]/a/@href')[0].extract()
            item['job_Type'] = each.xpath('./td[2]/text()').extract()
            item['job_Number'] = each.xpath('./td[3]/text()')[0].extract()
            item['job_Location'] = each.xpath('./td[4]/text()')[0].extract()
            item['job_PublicDate'] = each.xpath('./td[5]/text()')[0].extract()
            yield item

  3. 管道文件piplines.py内容


# -*- coding: utf-8 -*-





# Define your item pipelines here


#


# Don't forget to add your pipeline to the ITEM_PIPELINES setting




# See: https://doc.scrapy.org/en/latest/topics/item-pipeline.html


import json
from datetime import datetime

class TencentPipeline(object):
    def process_item(self, item, spider):
        # self.filename = open('tencent.json','a')
        # jsontext = json.dumps(dict(item),ensure_ascii = False).encode('utf-8') + '\n'
        # self.filename.write(jsontext)
        # self.filename.close()
        item['unix_Time'] = datetime.utcnow()
        item['spider_Name'] = spider.name
        return item

  4. 设置settings.py文件内容


# -*- coding: utf-8 -*-



# Scrapy settings for tencent project

#

# For simplicity, this file contains only settings considered important or


# commonly used. You can find more settings consulting the documentation:

#

#     https://doc.scrapy.org/en/latest/topics/settings.html


#     https://doc.scrapy.org/en/latest/topics/downloader-middleware.html


#     https://doc.scrapy.org/en/latest/topics/spider-middleware.html


BOT_NAME = 'tencent'

SPIDER_MODULES = ['tencent.spiders']
NEWSPIDER_MODULE = 'tencent.spiders'



# 使用scrapy_redis的去重组件，不使用scrapy默认的去重组件

DUPEFILTER_CLASS = "scrapy_redis.dupefilter.RFPDupeFilter"

# 使用scrapy_redis的调度器，不使用scrapy默认的调度器


# SCHEDULER = 'scrapy_redis.scheduler.Scheduler'


# SCHEDULER = 'scrapy_redis.scheduler.Scheduler'

SCHEDULER = "scrapy_redis.scheduler.Scheduler"


# 实测发现，redis数据库没有存放request，只有去重队列指纹集合和item数据列表，缺少个request请求列表。


# 实测发现2，启用下面的请求顺序，发现报错NameError: Module 'scrapy_redis.scheduler' doesn't define any object named 'SpiderPriorityQueue'



# 默认的scrapy请求(按优先级顺序 )队列形式


# SCHEDULER_QUEUE_CLASS = 'scrapy_redis.scheduler.SpiderPriorityQueue'


# SCHEDULER_QUEUE_CLASS = 'scrapy_redis.queue.PriorityQueue'



# 使用队列形式


# SCHEDULER_QUEUE_CLASS = "scrapy_redis.queue.SpiderQueue"



# 队列形式，先进先出


# SCHEDULER_QUEUE_CLASS = 'scrapy_redis.scheduler.SpiderQueue'


# 栈形式，后进先出


# SCHEDULER_QUEUE_CLASS = 'scrapy_redis.scheduler.SpiderStack'



# 允许暂停，redis请求记录不丢失（就是断点续爬开启）

SCHEDULER_PERSIST = True


ITEM_PIPELINES = {
   'tencent.pipelines.TencentPipeline': 300,
   'scrapy_redis.pipelines.RedisPipeline': 400,
}

REDIS_HOST = '192.168.2.237'
REDIS_PORT = 6379


# Crawl responsibly by identifying yourself (and your website) on the user-agent


#USER_AGENT = 'tencent (+http://www.yourdomain.com)'



# Obey robots.txt rules


# ROBOTSTXT_OBEY = True



# Configure maximum concurrent requests performed by Scrapy (default: 16)

CONCURRENT_REQUESTS = 3


# Configure a delay for requests for the same website (default: 0)


# See https://doc.scrapy.org/en/latest/topics/settings.html#download-delay


# See also autothrottle settings and docs

DOWNLOAD_DELAY = 1

# The download delay setting will honor only one of:


#CONCURRENT_REQUESTS_PER_DOMAIN = 16


#CONCURRENT_REQUESTS_PER_IP = 16



# Disable cookies (enabled by default)

COOKIES_ENABLED = False


# Disable Telnet Console (enabled by default)


# TELNETCONSOLE_ENABLED = False



# Override the default request headers:


#DEFAULT_REQUEST_HEADERS = {


#   'Accept': 'text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8',


#   'Accept-Language': 'en',


#}



# Enable or disable spider middlewares


# See https://doc.scrapy.org/en/latest/topics/spider-middleware.html


#SPIDER_MIDDLEWARES = {


#    'tencent.middlewares.TencentSpiderMiddleware': 543,


#}



# Enable or disable downloader middlewares


# See https://doc.scrapy.org/en/latest/topics/downloader-middleware.html


#DOWNLOADER_MIDDLEWARES = {


#    'tencent.middlewares.TencentDownloaderMiddleware': 543,


#}



# Enable or disable extensions


# See https://doc.scrapy.org/en/latest/topics/extensions.html


#EXTENSIONS = {


#    'scrapy.extensions.telnet.TelnetConsole': None,


#}



# Configure item pipelines


# See https://doc.scrapy.org/en/latest/topics/item-pipeline.html


#ITEM_PIPELINES = {


#    'tencent.pipelines.TencentPipeline': 300,


#}



# Enable and configure the AutoThrottle extension (disabled by default)


# See https://doc.scrapy.org/en/latest/topics/autothrottle.html


#AUTOTHROTTLE_ENABLED = True


# The initial download delay


#AUTOTHROTTLE_START_DELAY = 5


# The maximum download delay to be set in case of high latencies


#AUTOTHROTTLE_MAX_DELAY = 60


# The average number of requests Scrapy should be sending in parallel to


# each remote server


#AUTOTHROTTLE_TARGET_CONCURRENCY = 1.0


# Enable showing throttling stats for every response received:


#AUTOTHROTTLE_DEBUG = False



# Enable and configure HTTP caching (disabled by default)


# See https://doc.scrapy.org/en/latest/topics/downloader-middleware.html#httpcache-middleware-settings


#HTTPCACHE_ENABLED = True


#HTTPCACHE_EXPIRATION_SECS = 0


#HTTPCACHE_DIR = 'httpcache'


#HTTPCACHE_IGNORE_HTTP_CODES = []


#HTTPCACHE_STORAGE = 'scrapy.extensions.httpcache.FilesystemCacheStorage'

  5. 保存数据到mysql的process_item_for_mysql.py文件内容


#!/usr/bin/env python


# -*- coding:utf-8 -*-

import redis
import MySQLdb
import json


def process_item():
    rediscli = redis.Redis(host = '192.168.2.189', port = 6379, db = 0)
    mysqlcli = MySQLdb.connect(host = '192.168.2.189', port = 3306, user = 'root', password = 'mysql', db = 'tencent',charset = 'utf-8')
    offset = 0
    while True:
        source,data = rediscli.blpop(['tc:items'])
        item = json.loads(data)
        try:
            cursor = mysqlcli.cursor()
            cursor.execute('INSERT INTO tencent (job_Title,job_Link,job_Type,job_Number,job_Location,job_PublicDate,unix_Time,spider_Name) VALUES (%s,%s,%s,%s,%s,%s,%s,%s)',[item['job_Title'],item['job_Link'],item['job_Type'],item['job_Number'],item['job_Location'],item['job_PublicDate'],item['unix_Time'],item['spider_Name']])
            cursor.commit()
            cursor.close()
            offset += 1
            print offset
        except MySQLdb.Error,e:
            print 'mysql.error:%d,%s'%(e.args[0],e.args[1])

if __name__ == '__main__':
    process_item()

  6. 把数据保存到mongodb里面，文件process_item_for_mongodb.py内容


# -*- coding:utf-8 -*-

import pymongo
import redis
import json


def main():
    # 连接redis数据库
    rediscli = redis.Redis(host = '192.168.2.237', port = 6379, db = 0)
    # 连接mongodb数据库
    mongocli = pymongo.MongoClient(host = 'localhost', port = 27017)
    #　在mongodb里面创建数据库tencent
    db = mongocli['tencent']
    # 创建表shezhao
    sheet = db['shezhao']
    while True:
        #　从redis里面获取数据
        source,data = rediscli.blpop('tencent_shezhao:items')
        # 处理数据
        item = json.loads(data)
        # 往表里面添加数据
        sheet.insert(item)
        try:
            print u"Processing: %(name)s <%(link)s>" % item
        except KeyError:
            print u"Error procesing: %r" % item

if __name__ == '__main__':
    main()

  7. 开始测试

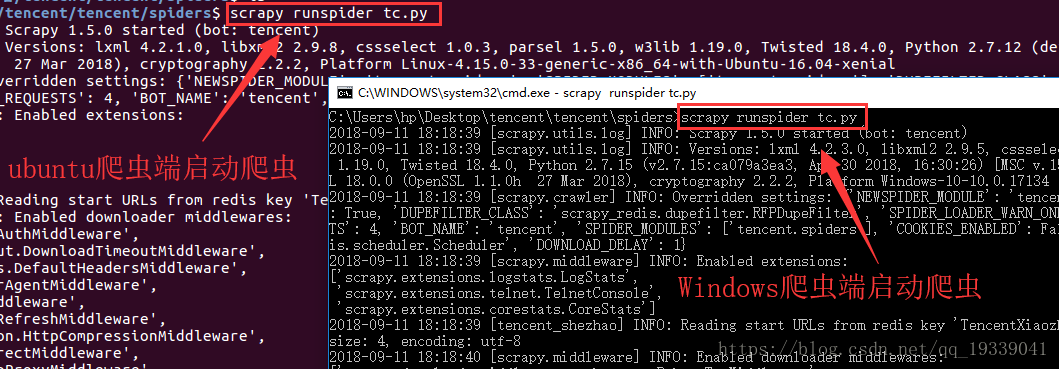

    启动爬虫端：windows和ubuntu上的2个爬虫文件，可以将同一份代码复制到另外一个爬虫端系统上
    这里写图片描述

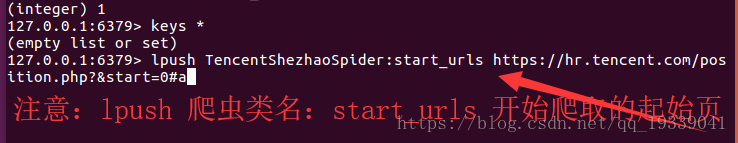

    在redis服务端（另一个ubuntu，启动redis-server，用来存放爬取的数据），进入redis-cli，发出爬取指令
    这里写图片描述

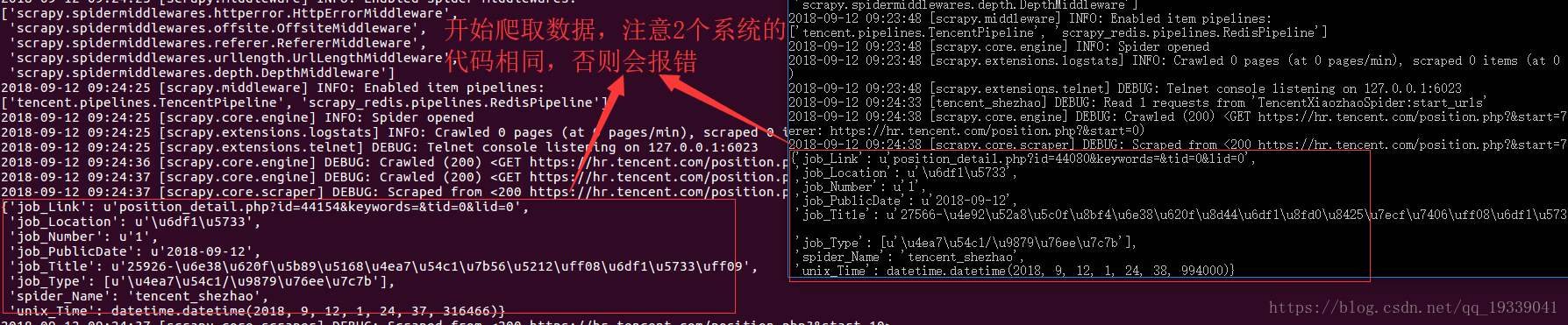

    开始爬取

    这里写图片描述

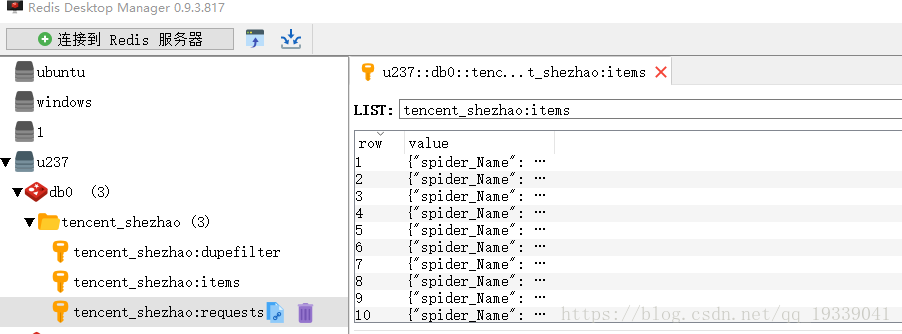

    爬取结果，如下，使用redis desktop manager桌面管理工具查看redis存储的数据

    这里写图片描述

    这里写图片描述

    分别运行python process_item_for_mysql.py，python process_item_for_mongodb.py，把数据保存到mysql和mongodb数据库里面。

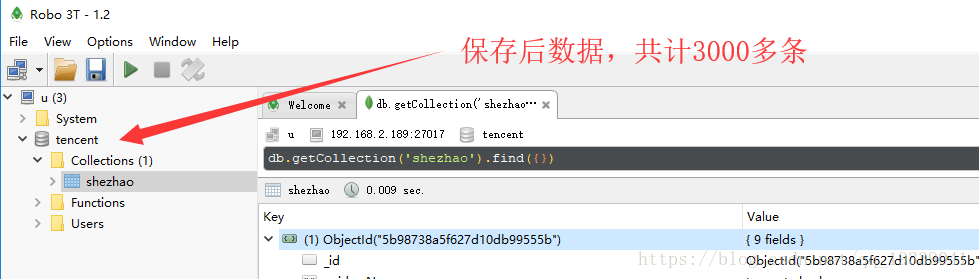

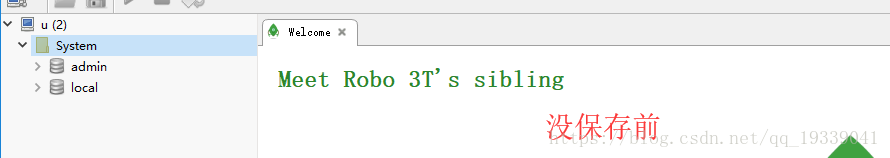

    保存到mongodb里面，首先要把mongodb的服务端运行起来，使用sudo mongod，
    然后运行 python process_item_for_mongodb.py 保存数据到mongodb里面
    这里写图片描述

    这里写图片描述

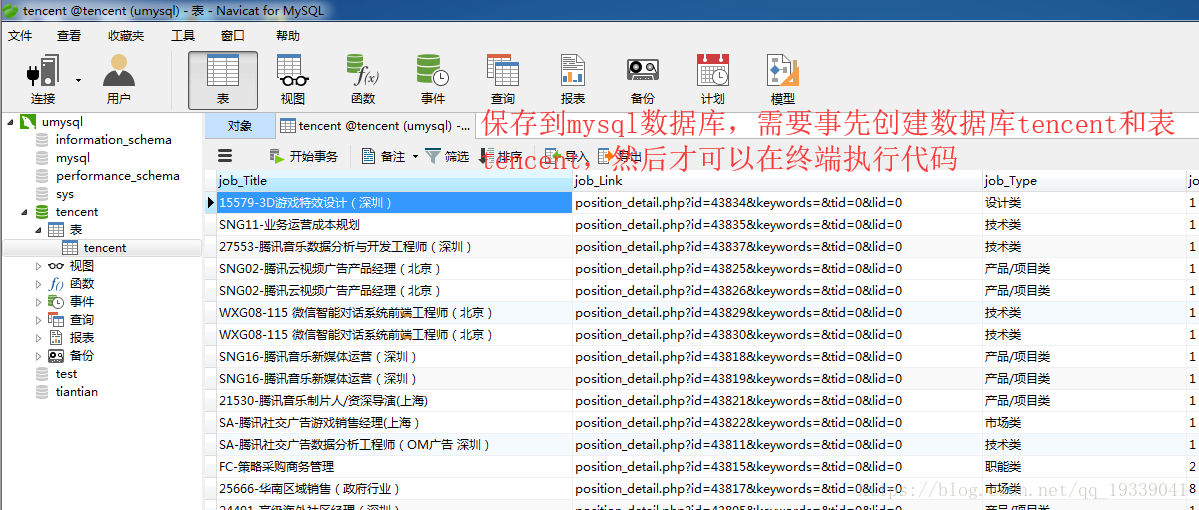

    保存到mysql里面的数据

    这里写图片描述

备注：

  1. 想让爬虫爬取完后，要关闭爬虫，本例才用超时方法来解决，只需要在settings.py项目设置文件添加以下代码

         # 设置关于爬虫爬完后关闭，防止空跑
    MYEXT_ENABLED=True      # 开启扩展
    IDLE_NUMBER= 100           # 配置允许的空闲时长，每5秒会增加一次IDLE_NUMBER，直到增加到100，就是等待１００秒后程序才会close

    # 在 EXTENSIONS 配置，激活扩展
    EXTENSIONS = {
                'tencent.extensions.RedisSpiderSmartIdleClosedExensions': 500,
            }
 ```
 2. 和settings.py文件同级的增加一个文件extensions.py,代码如下
 ```
 # -*- coding: utf-8 -*-


# Define here the models for your scraped Extensions



from scrapy import signals
from scrapy.exceptions import NotConfigured


class RedisSpiderSmartIdleClosedExensions(object):

    def __init__(self, idle_number, crawler):
        self.crawler = crawler
        self.idle_number = idle_number
        self.idle_list = []
        self.idle_count = 0

    @classmethod
    def from_crawler(cls, crawler):
        # first check if the extension should be enabled and raise

        # NotConfigured otherwise

        if not crawler.settings.getbool('MYEXT_ENABLED'):

            raise NotConfigured

        if not 'redis_key' in crawler.spidercls.__dict__.keys():

            raise NotConfigured('Only supports RedisSpider')

        # get the number of items from settings

        idle_number = crawler.settings.getint('IDLE_NUMBER', 360)

        # instantiate the extension object

        ext = cls(idle_number, crawler)

        # connect the extension object to signals

        crawler.signals.connect(ext.spider_opened, signal=signals.spider_opened)

        crawler.signals.connect(ext.spider_closed, signal=signals.spider_closed)

        crawler.signals.connect(ext.spider_idle, signal=signals.spider_idle)

        return ext

    def spider_opened(self, spider):
        spider.logger.info("opened spider {}, Allow waiting time:{} second".format(spider.name, self.idle_number*5))

    def spider_closed(self, spider):
        spider.logger.info("closed spider {}, Waiting time exceeded {} second".format(spider.name, self.idle_number*5))

    def spider_idle(self, spider):
        # 程序启动的时候会调用这个方法一次，之后每隔5秒再请求一次
        # 当持续半个小时都没有spider.redis_key，就关闭爬虫
        # 判断是否存在 redis_key
        if not spider.server.exists(spider.redis_key):
            self.idle_count += 1
        else:
            self.idle_count = 0

        if self.idle_count > self.idle_number:
            # 执行关闭爬虫操作
            self.crawler.engine.close_spider(spider, 'Waiting time exceeded')

    结果发现：

    1. 总是有爬虫端系统报错 (error) LOADING Redis is loading the dataset in
      memory，解决方法： [root@masterA RedisTest]# redis-cli flushall

    2. 有一个爬虫端超过500秒才关闭爬虫，而另一个没超过100秒就关闭爬虫。

评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
