当我们搭建起来服务器之后，我们就开始尝试着去构建一个简单的聊天室的功能

WsServer的实现

服务器实现与第一节的实现基本相一致

public static void main(String[] args) {
        //主线程组
        EventLoopGroup mainGroup = new NioEventLoopGroup();
        //子线程组
        EventLoopGroup sonGroup = new NioEventLoopGroup();
        //服务器启动组件
        ServerBootstrap server = new ServerBootstrap();
        //把两个线程组加入到启动组件中
        server.group(mainGroup, sonGroup)
                //设置channel为NioServerSocketChannel
                .channel(NioServerSocketChannel.class)
                //自定义channelHandler
                .childHandler(new WsServerIntializer());
        try {
            ChannelFuture channelFuture =
                    //绑定端口为8088
                    server.bind(8088)
                            //同步
                    .sync();
            //关闭
            channelFuture.channel().closeFuture().sync();
        } catch (InterruptedException e) {
            e.printStackTrace();
        } finally {
            //优雅关闭主线程组，子线程组
            mainGroup.shutdownGracefully();
            sonGroup.shutdownGracefully();

        }

    }

WsServerInititalizer的实现

public class WsServerIntializer extends ChannelInitializer<SocketChannel> {
    @Override
    protected void initChannel(SocketChannel ch) throws Exception {

        ChannelPipeline channelPipeline = ch.pipeline();
        //============================Http 协议的支持=================================
        channelPipeline.addLast("HttpServerCodec", new HttpServerCodec());
        //支持写入大数据流
        channelPipeline.addLast("ChunkedWriteHandler", new ChunkedWriteHandler());
        //对Http进行聚合，聚合为FullHttpRequest或FullHttpResponse
        //几乎所有对netty的编程都会用到此handler
        channelPipeline.addLast("HttpObjectAggregator", new HttpObjectAggregator(1024 * 64));
        //============================WebSocket 协议的支持=================================
        //ws服务器处理的协议并且用于客户端访问服务器的路由
        channelPipeline.addLast("WebSocketServerProtocolHandler", new WebSocketServerProtocolHandler("/ws"));
        channelPipeline.addLast(new ChatHandler());
    }
}

ChatHandler(自定义Handler)的实现

public class ChatHandler extends SimpleChannelInboundHandler<TextWebSocketFrame> {
	//ChannelGroup 多个channel的集中聚合
    public static ChannelGroup clients = new DefaultChannelGroup(GlobalEventExecutor.INSTANCE);
    @Override
    protected void channelRead0(ChannelHandlerContext ctx, TextWebSocketFrame msg) throws Exception {
		//接收到的msg
        String content = msg.text();
        System.out.println("接收到的消息:" + content);
        for (Channel channel : clients) {
            channel.writeAndFlush(
            //注意，writeAndFlush只能用Object类型的参数，不能传String类型，所以我们现在传的是TextWebSocketFrame
                    new TextWebSocketFrame("[服务器接收消息]" + LocalDate.now() + ",消息为:" + content));
        }
    }

    /**
     * 当浏览器关闭之后，客户端将该channel移除出组
     *
     * @param ctx
     * @throws Exception
     */
    @Override
    public void handlerRemoved(ChannelHandlerContext ctx) throws Exception {
        clients.remove(ctx.channel());

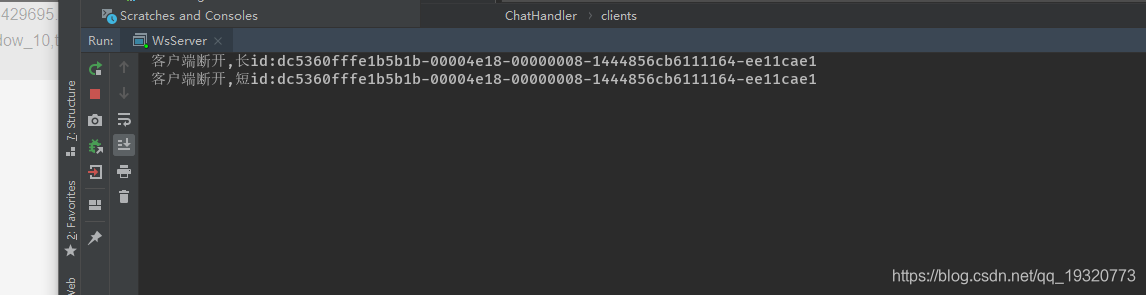

        System.out.println("客户端断开,长id:" + ctx.channel().id().asLongText());
        System.out.println("客户端断开,短id:" + ctx.channel().id().asLongText());
    }

    /**
     * 当浏览器连接之后，客户端获取这个channel加入组中进行管理
     *
     * @param ctx
     * @throws Exception
     */
    @Override
    public void handlerAdded(ChannelHandlerContext ctx) throws Exception {
        clients.add(ctx.channel());

    }
}

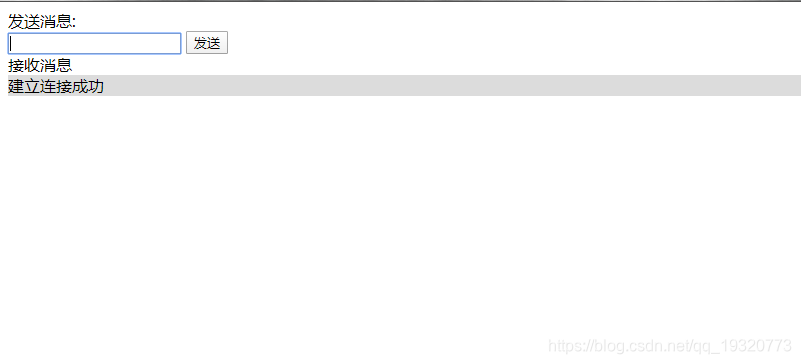

我们编写相应的Html5文件

<!DOCTYPE html>
<html>
	<head>
		<meta charset="utf-8" />
		<meta name="viewport" content="width=device-width, initial-scale=1">
		<title></title>
	</head>
	<body>
		<div>发送消息:</div>
		<input type="text"  id="msgContent"  />
		<button type="button" onclick="CHAT.chat()">发送</button>
		<div>接收消息</div>
		<div id="receiveMsg" style="background-color: gainsboro;"></div>
	</body>
	<script type="application/javascript">
		//定义一个CHAT对象
		window.CHAT={
			//socket为null
			socket:null,
			//初始化方法
			init:function(){
			//判断浏览器是否支持webSocket,因为有些浏览器不支持。
				if(window.WebSocket){
					//Socket一个方法
					CHAT.socket=new WebSocket("ws://127.0.0.1:8088/ws")
					//开启socket状态
					CHAT.socket.onopen=function(){
						document.getElementById("receiveMsg").innerHTML="建立连接成功"
					},
					//关闭socket状态
					CHAT.socket.onclose=function(){
						document.getElementById("receiveMsg").innerHTML="连接建立关闭"
					},
					//发生错误状态
					CHAT.socket.onerror=function(){
				document.getElementById("receiveMsg").innerHTML="发生错误"
					},
					//接受消息
					CHAT.socket.onmessage=function(e){
						console.log("接受到消息:"+e.data)
						//接受消息div里面的内容
						var receiveMsg=document.getElementById("receiveMsg");
						var html=receiveMsg.innerHTML;
						//websocket返回的内容与receiver的内容进行合并
						receiveMsg.innerHTML=html+"</br>"+e.data
					}
				}else{
					alert("不支持websocketx协议")
				}
			},
			//发送
			chat:function(){
				var msg=document.getElementById("msgContent")
				CHAT.socket.send(msg.value)
			}

		}
		//初始化
		CHAT.init()
	</script>
</html>
