Dinky 整库同步至 Paimon 数据湖

胖胖胖胖胖虎

已于 2023-12-04 10:49:07 修改

阅读量1.3k

点赞数 8

分类专栏：数据湖大数据组件文章标签： dinky paimon

于 2023-11-30 10:59:36 首次发布

本文链接：https://blog.youkuaiyun.com/qq_15138049/article/details/134706884

版权

大数据组件同时被 2 个专栏收录

31 篇文章

订阅专栏

数据湖

2 篇文章

订阅专栏

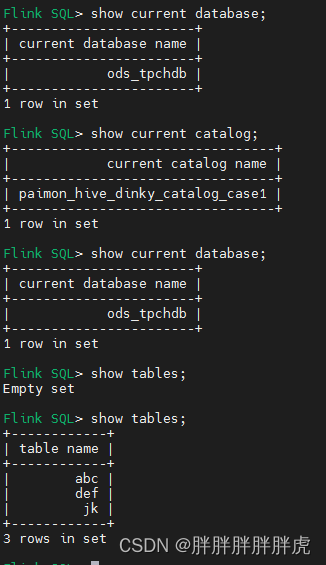

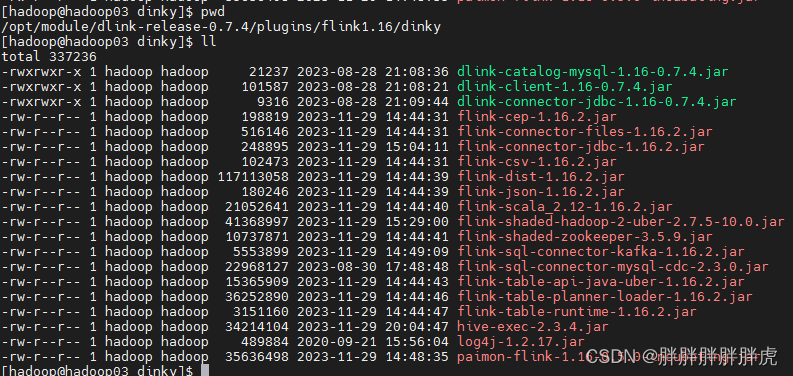

在这里插入图片描述

EXECUTE CDCSOURCE cdc_demo WITH (
    'connector' = 'mysql-cdc',
    'hostname' = 'hadoop02',
    'port' = '3307',
    'username' = 'root',
    'password' = '123456',
    'scan.startup.mode' = 'initial',
    'source.server-time-zone' = 'Asia/Shanghai',
    -- 'source.server-time-zone' = 'UTC',
    'parallelism' = '1',
    'database-name' = 'tpchdb',
    'sink.connector' = 'sql-catalog',
    -- 'sink.connector' = 'paimon',
    'sink.catalog.name' = 'paimon_hive_dinky_catalog',
    'sink.catalog.metastore' = 'hive',
    'sink.catalog.type' = 'paimon',
    'sink.catalog.hive-conf-dir' = '/opt/module/hive/conf',
    'sink.catalog.uri' = 'thrift://hadoop02:9083',
    -- 'sink.auto-create' = 'true',
    'sink.bucket' = '1',
    'sink.snapshot.time-retained' = '24h',
    'sink.changelog-producer' = 'input',
    'sink.catalog.warehouse' = 'hdfs://hadoop03:9000/paimon/test',
    'sink.sink.db' = 'tpchdb'
);

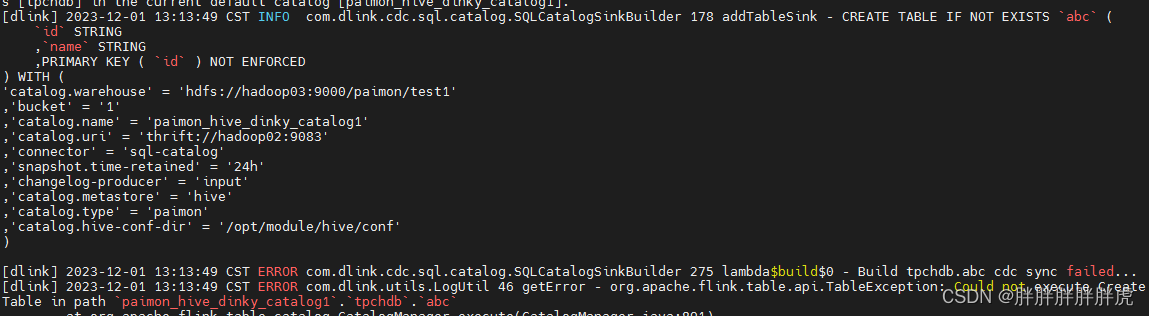

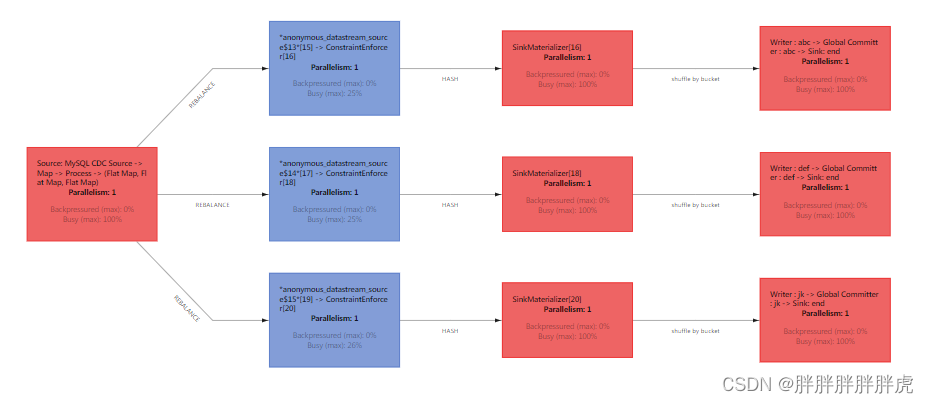

在这里插入图片描述

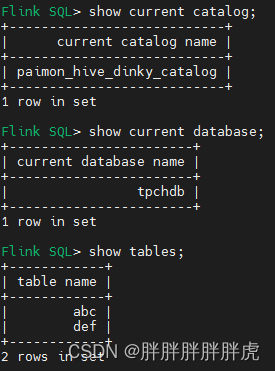

我自己的测试实践是目前需要提前建 paimon 表
在这里插入图片描述

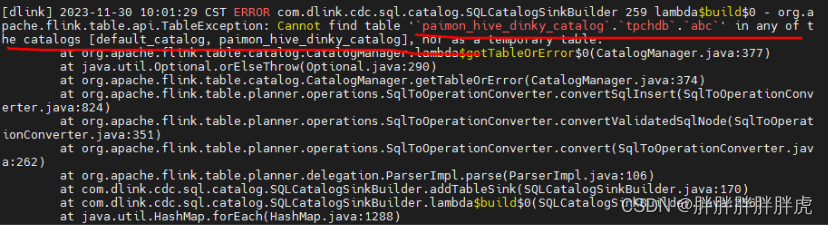

问题记录：

Cannot find table ‘`paimon_hive_dinky_catalog`.`tpchdb`.`abc`’ in any of t he catalogs [default_catalog, paimon_hive_dinky_catalog], nor as a temporary table.

参考：巴别时代基于 Apache Paimon 的 Streaming Lakehouse 的探索与实践

----------------------------------- 分割线 -----------------------------------

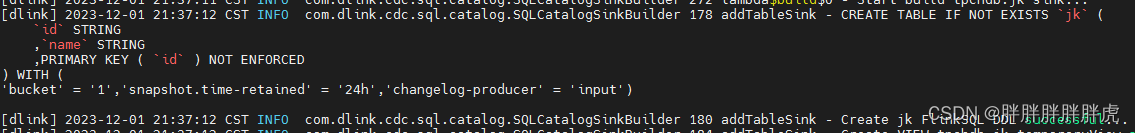

添加以下：实现自动建表

自动建表

com.dlink.cdc.sql.catalog.SQLCatalogSinkBuilder.addTableSink

		// 切换catalog database
        customTableEnvironment.executeSql("use catalog " + catalogName);
        customTableEnvironment.executeSql("create database if not exists " + sinkSchemaName);
		customTableEnvironment.executeSql("use " + sinkSchemaName);
        // 创建目标表
        String flinkDDL = FlinkBaseUtil.getFlinkDDL(table, tableName, config, sinkSchemaName, sinkTableName,
                pkList);
        logger.info(flinkDDL);
        customTableEnvironment.executeSql(flinkDDL);
        logger.info("Create " + tableName + " FlinkSQL DDL successful...");

com.dlink.utils.FlinkBaseUtil.getSinkConfigurationString

		if(StringUtils.contains(configurationString, "sql-catalog")){
            StringBuilder sb = new StringBuilder();
            String[] optStrSplit = configurationString.split("\n,");
            for(String optStr : optStrSplit){
                if(StringUtils.contains(optStr,"catalog") || StringUtils.contains(optStr,"connector") ){

                }else{
                    sb.append("," + optStr);
                }
            }

            return sb.deleteCharAt(0).toString();
        }else{
            return configurationString;
        }
