gRPC 示例记录

一.gRPC 是个啥，能干啥？

在java的世界里，gRPC就类似于微服务中的@FeignClient一样，调用另一台机器上的服务接口，就像调用本地方法一样的效果。but grpc 有这独有的优势：1.跨语言 2.由于使用Protocol Buffers（使用二进制流传输）通过序列化和反序列化，提升传输效率。

截取官网上的图，可形象得看出来grpc的好处。

二.使用java spring 示例：

1.新建spring工程，添加pom依赖

    <dependency>
          <groupId>org.slf4j</groupId>
          <artifactId>slf4j-api</artifactId>
     </dependency>
     <dependency>
          <groupId>com.google.protobuf</groupId>
          <artifactId>protobuf-java</artifactId>
         <version>3.5.1</version>
     </dependency>
    <dependency>
          <groupId>io.grpc</groupId>
          <artifactId>grpc-all</artifactId>
          <version>1.12.0</version>
   </dependency>

2.引入打包插件

<build>
        <extensions>
            <extension>
                <groupId>kr.motd.maven</groupId>
                <artifactId>os-maven-plugin</artifactId>
                <version>1.4.1.Final</version>
            </extension>
        </extensions>
        <plugins>
            <plugin>
                <groupId>org.xolstice.maven.plugins</groupId>
                <artifactId>protobuf-maven-plugin</artifactId>
                <version>0.5.0</version>
                <configuration>
                    <protocArtifact>com.google.protobuf:protoc:3.0.0:exe:${os.detected.classifier}</protocArtifact>
                    <pluginId>grpc-java</pluginId>
                    <pluginArtifact>io.grpc:protoc-gen-grpc-java:1.0.0:exe:${os.detected.classifier}</pluginArtifact>
                </configuration>
                <executions>
                    <execution>
                        <goals>
                            <goal>compile</goal>
                            <goal>compile-custom</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>

3.新建proto文件，定义交换数据的接口，请求参数，相应参数

syntax = "proto3";

option java_multiple_files = true;
option java_package = "com.grpc";
option java_outer_classname = "MyGrpc";
option objc_class_prefix = "QB";

package grpc;

//定义服务接口
service Greeter {
  //注意：这里是returns 不是return
  rpc remoteMethod (Request) returns (Response) {
  }
}
//定义参数类型
message Request {
  string sendMessage = 1;
}
message Response {
  string backMessage = 1;
}

备注：proto文件需要在java同级目录下

4.客户端代码（模拟请求）

package com.grpc;

import io.grpc.ManagedChannel;
import io.grpc.ManagedChannelBuilder;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import java.util.concurrent.TimeUnit;


public class Client {
    private static final Logger logger = LoggerFactory.getLogger(Client.class);
    private final ManagedChannel channel;
    private final GreeterGrpc.GreeterBlockingStub greeterBlockingStub;
    private static final String IP = "127.0.0.1";
    private static final int PORT = 13000;

    public static void main(String[] args) throws Exception {
        Client client = new Client(IP, PORT);
        for (int i = 0; i <= 10; i++) {
            client.requestServer("client->" + i);
            logger.info("我是客户端，我正在发送第【 {} 】条消息", i);
            Thread.sleep(3000);
        }
        client.shutdown();
    }

    public Client(String ip, int port) {
        //channel  表示通信通道
        channel = ManagedChannelBuilder.forAddress(ip, port).usePlaintext().build();
        greeterBlockingStub = GreeterGrpc.newBlockingStub(channel);
    }

    public void shutdown() throws InterruptedException {
        channel.shutdown().awaitTermination(10, TimeUnit.SECONDS);
    }

    public void requestServer(String sendMessage) {
        Request request = Request.newBuilder().setSendMessage(sendMessage).build();
        Response response = greeterBlockingStub.remoteMethod(request);
        logger.info("服务端返回消息:{}", response.getBackMessage());
    }


}

 5.服务端代码（模拟相应）

package com.grpc;

import io.grpc.ServerBuilder;
import io.grpc.stub.StreamObserver;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import java.io.IOException;


public class Server {
    private static final Logger logger = LoggerFactory.getLogger(Server.class);
    private static final int PORT = 13000;
    private io.grpc.Server grpcServer;

    public static void main(String[] args) throws IOException, InterruptedException {
        final Server server = new Server();
        server.start();
        server.blockUntilShutdown();
    }


    //启动服务
    private void start() throws IOException {
        grpcServer = ServerBuilder.forPort(PORT).addService(new MyGrpcImpl()).build().start();
        System.out.println("--------gRPC 服务启动完毕-------");
        Runtime.getRuntime().addShutdownHook(new Thread() {
            @Override
            public void run() {
                System.err.println("------ gRPC 服务器正在关闭 -------");
                Server.this.stop();
                System.err.println("------ gRPC 已经关闭 ------");
            }
        });
    }

    //stop服务
    private void stop() {
        if (grpcServer != null) {
            grpcServer.shutdown();
        }
    }

    //阻塞到程序退出
    private void blockUntilShutdown() throws InterruptedException {
        if (grpcServer != null) {
            grpcServer.awaitTermination();
        }
    }

    //服务接口
    private class MyGrpcImpl extends GreeterGrpc.GreeterImplBase {
        @Override
        public void remoteMethod(Request request, StreamObserver<Response> responseObserver) {
            String backMsg = "服务端已经收到消息:" + request.getSendMessage();
            Response build = Response.newBuilder().setBackMessage(backMsg).build();
            logger.info("服务端接受消息 : {} ", request.getSendMessage());
            logger.info("服务端返回消息: {}", backMsg);
            //客户端返回结果
            responseObserver.onNext(build);
            //结束本次调用
            responseObserver.onCompleted();
        }
    }


}

6.idea 装protobuf插件

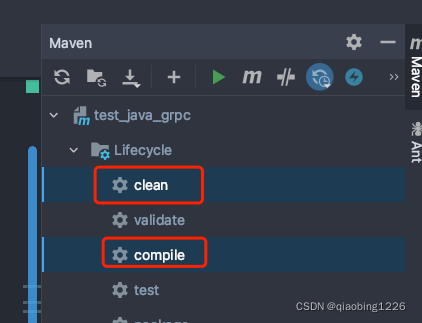

7.maven 编译工程。

8.先启动服务端，再启动客户端，进行通信

客户端：

服务端：
