ArgoCd
Argo是一组k8s原生工具集,用于运行和管理k8s上的作业和应用程序.Argo提供了一种在k8s上创建工作和应用的三种计算模式:服务模式,工作流模式和基于事件模式.所有的Argo工具都实现为了创建控制器和自定义资源.

为什么选ArgoCD

应用程序的定义,配置和环境都应该是声明性的,并授权版本控制.应用程序部署和生命周期管理应该是自动化的,可审计的,易于理解的.

1. 安装ArgoCd
1.1 创建命名空间

kubectl create ns argocd

1.2 修改安装文件

wget https://raw.githubusercontent.com/argoproj/argo-cd/v2.4.11/manifests/install.yaml
vi install.yaml
## 略
      containers:
      - command:
        - argocd-server
        ## 追加这行
        - --insecure
        env:
        - name: ARGOCD_SERVER_INSECURE

创建资源

kubectl apply -f install.yaml -n argocd

确认服务正常

root@master-01:/opt/argocd# kubectl get pods,svc -n argocd
NAME                                                    READY   STATUS    RESTARTS   AGE
pod/argocd-application-controller-0                     1/1     Running   0          2m3s
pod/argocd-applicationset-controller-78b8b554f9-7d6xn   1/1     Running   0          2m3s
pod/argocd-dex-server-86947f7b-t8447                    1/1     Running   1          2m3s
pod/argocd-notifications-controller-775d9954cb-922wb    1/1     Running   0          2m3s
pod/argocd-redis-599b855497-tmqn8                       1/1     Running   0          2m3s
pod/argocd-repo-server-54785f99fd-k956p                 1/1     Running   0          2m3s
pod/argocd-server-d7b97c76d-cwgrb                       1/1     Running   0          2m3s

NAME                                              TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)                      AGE
service/argocd-applicationset-controller          ClusterIP   10.200.31.42     <none>        7000/TCP,8080/TCP            2m3s
service/argocd-dex-server                         ClusterIP   10.200.102.68    <none>        5556/TCP,5557/TCP,5558/TCP   2m3s
service/argocd-metrics                            ClusterIP   10.200.191.92    <none>        8082/TCP                     2m3s
service/argocd-notifications-controller-metrics   ClusterIP   10.200.149.16    <none>        9001/TCP                     2m3s
service/argocd-redis                              ClusterIP   10.200.150.231   <none>        6379/TCP                     2m3s
service/argocd-repo-server                        ClusterIP   10.200.122.178   <none>        8081/TCP,8084/TCP            2m3s
service/argocd-server                             ClusterIP   10.200.164.173   <none>        80/TCP,443/TCP               2m3s
service/argocd-server-metrics                     ClusterIP   10.200.133.227   <none>        8083/TCP                     2m3s

1.3 创建ingress

ingress-argocd.yaml

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: argocd-ingress
  namespace: argocd
  annotations:
    kubernetes.io/ingress.class: nginx
spec:
  rules:
  - host: argocd.intra.com
    http:
      paths:
      - path: "/"
        pathType: Prefix
        backend:
          service:
            name: argocd-server
            port:
              number: 80

创建ingress

kubectl apply -f ingress-argocd.yaml -n argocd

当ingress正常后,添加hosts进行解析或者配置dns

# kubectl get ingress -n argocd
NAME             CLASS    HOSTS              ADDRESS         PORTS   AGE
argocd-ingress   <none>   argocd.intra.com   192.168.31.52   80      103s
# kubectl get svc -n ingress-nginx
NAME                                 TYPE           CLUSTER-IP     EXTERNAL-IP      PORT(S)                      AGE
ingress-nginx-controller             LoadBalancer   10.200.77.80   192.168.31.230   80:30363/TCP,443:30914/TCP   5h14m
ingress-nginx-controller-admission   ClusterIP      10.200.42.99   <none>           443/TCP                      105d

hosts中追加

192.168.31.230 argocd.intra.com

1.4 获取登录密码

kubectl get secret -n argocd argocd-initial-admin-secret -o yaml

获取到password为:

MG5vdnVtY05MR1V4d2xxVw==

解密

echo MG5vdnVtY05MR1V4d2xxVw==|base64 -d

结果为

0novumcNLGUxwlqW

默认用户名为admin,密码就是刚才解密出来的

2. 下载argocd客户端

wget https://github.com/argoproj/argo-cd/releases/download/v2.4.11/argocd-linux-amd64
chmod +x argocd-linux-amd64
mv argocd-linux-amd64 /usr/local/bin/argocd

查看版本

argocd version
argocd: v2.4.11+3d9e9f2
  BuildDate: 2022-08-22T09:35:38Z
  GitCommit: 3d9e9f2f95b7801b90377ecfc4073e5f0f07205b
  GitTreeState: clean
  GoVersion: go1.18.5
  Compiler: gc
  Platform: linux/amd64
FATA[0000] Argo CD server address unspecified

3. 登录Argocd

3.1 域名解析

192.168.31.230 argocd.intra.com

argocd login argocd.intra.com

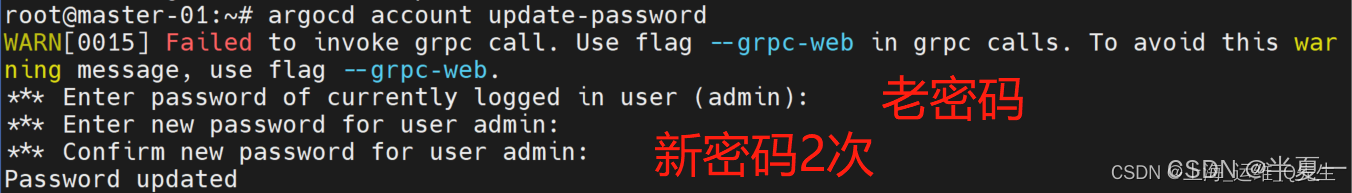

3.2 更新密码

argocd account update-password

4. Kustomize安装
当开发者push代码以后,gitlab-runner会在gitlab-ce服务器执行流水线里定义具体的操作,流水线步骤里定义了gitlab-runner通过kustomize客户端工具修改应用部署资源清单文件里的容器镜像版本,并重新push代码到代码仓库,所以需要在gitlab-ce服务器中安装Kustomize

wget https://github.com/kubernetes-sigs/kustomize/releases/download/kustomize%2Fv4.5.7/kustomize_v4.5.7_linux_amd64.tar.gz
tar xf kustomize_v4.5.7_linux_amd64.tar.gz
mv kustomize /usr/bin/

确认版本

# kustomize version
{Version:kustomize/v4.5.7 GitCommit:56d82a8378dfc8dc3b3b1085e5a6e67b82966bd7 BuildDate:2022-08-02T16:35:54Z GoOs:linux GoArch:amd64}

5. Gitlab runner安装

Gitlab Runner是一个开源项目,用于运行作业并将结果发送给Gitlab,他与Gitlab CI一起使用,Gitlab CI是Gitlab的持续集成服务,用于协调作业.相当于流水线工人.

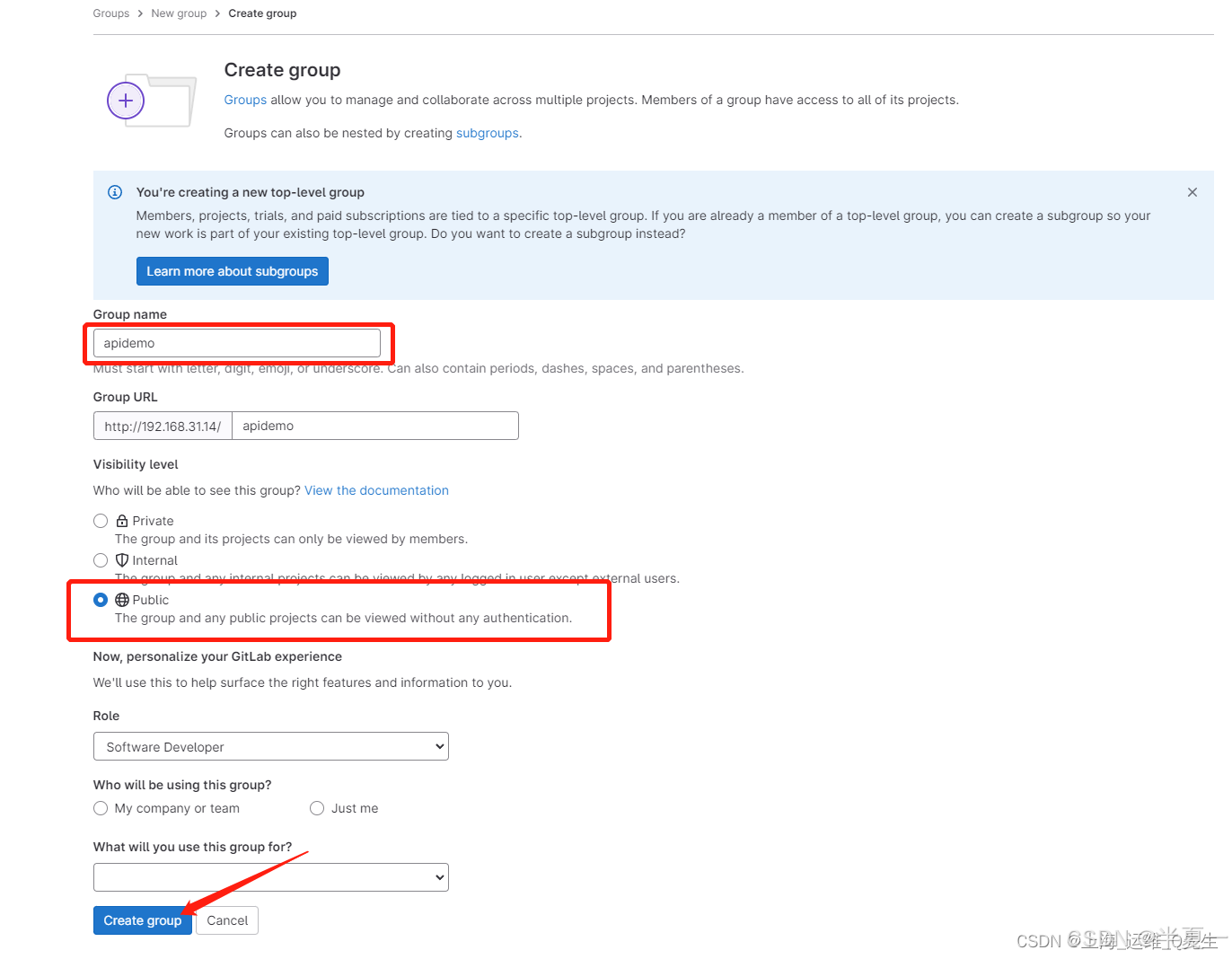

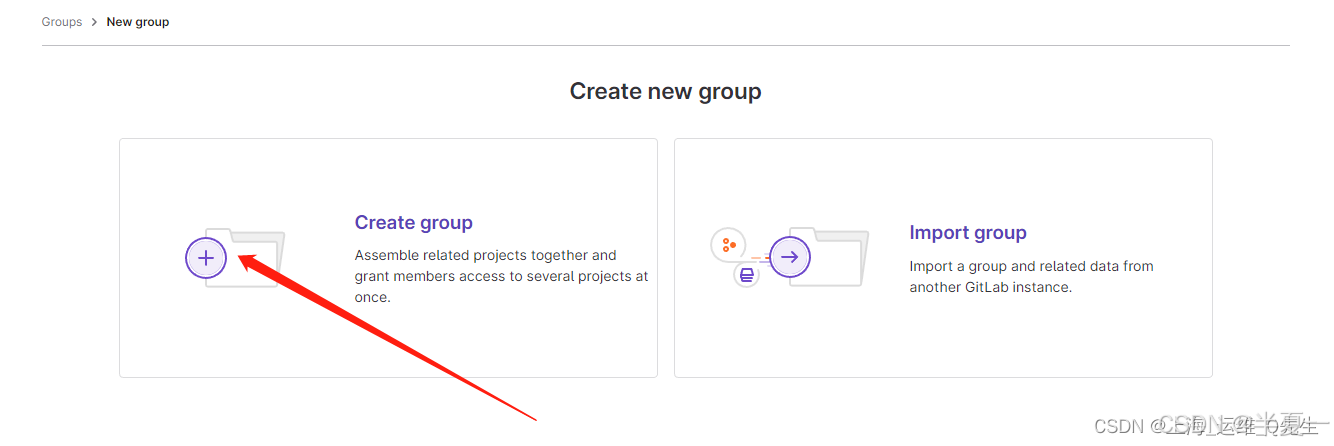

5.1 创建组

选择创建组

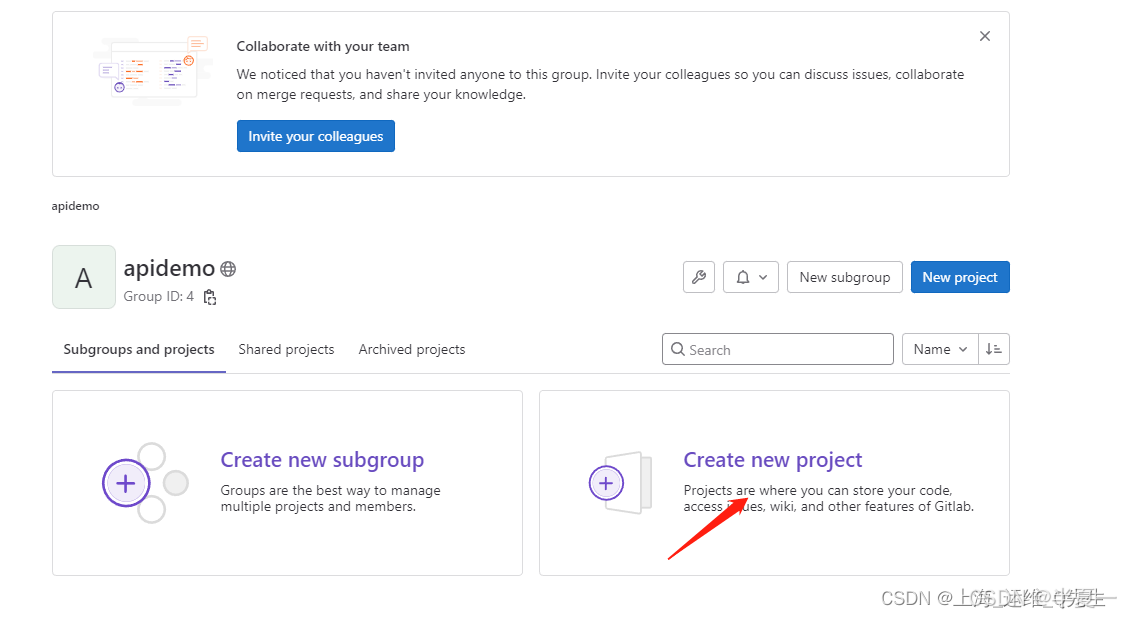

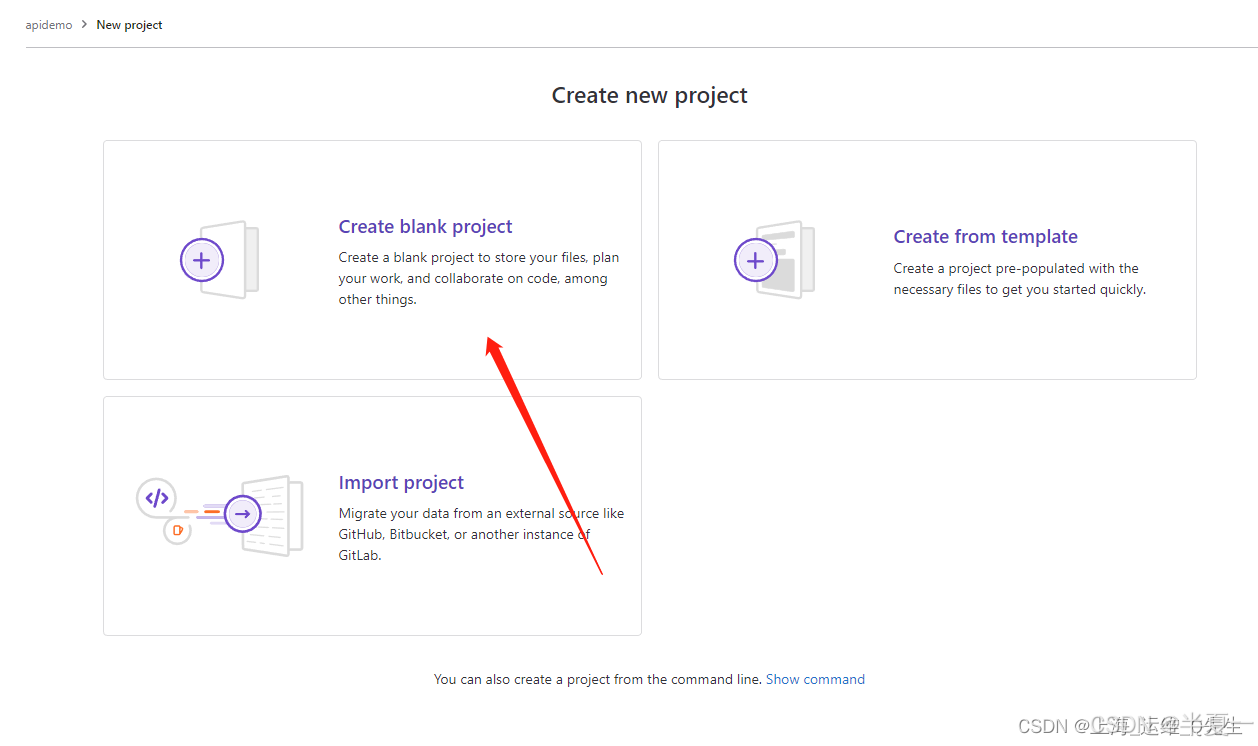

5.2 创建项目

5.3 安装runnner

在gitlab服务器上操作

wget https://gitlab-runner-downloads.s3.amazonaws.com/latest/binaries/gitlab-runner-linux-amd64 -O /usr/bin/gitlab-runner
chmod +x /usr/bin/gitlan-runner

5.4 配置gitlab-runner

创建gitlab-runner用户

useradd --comment 'GitLab Runner' --create-home gitlab-runner --shell /bin/bash

配置工作目录

gitlab-runner install --user=gitlab-runner --working-directory=/home/gitlab-runner

启动gitlab-runner

gitlab-runner start

查看gitlab-runner状态

root@gitlab-ce:~# ps -aux |grep gitlab-runner
root     102988  0.0  1.0 765700 42680 ?        Ssl  04:32   0:00 /usr/bin/gitlab-runner run --working-directory /home/gitlab-runner --config /etc/gitlab-runner/config.toml --service gitlab-runner --user gitlab-runner
root     103030  0.0  0.0  13140  1060 pts/2    S+   04:33   0:00 grep --color=auto gitlab-runner

5.4 添加gitlab-runner实例

gitlab-runner register

依次填入
- url(来自上图)
- token(上图)
- 项目名称
- 执行方式

调整配置文件

cat /etc/gitlab-runner/config.toml
concurrent = 1
check_interval = 0
shutdown_timeout = 0

[session_server]
  session_timeout = 1800

[[runners]]
  name = "apidemo"
  url = "http://192.168.31.14/"
  id = 1
  token = "EZwQzJkSVhCcBEXUU4Ds"
  token_obtained_at = 2023-03-29T04:37:36Z
  token_expires_at = 0001-01-01T00:00:00Z
  executor = "shell"
  [runners.custom_build_dir]
  ## 添加这行来固定日志文件位置
    enabled=true
  [runners.cache]
    MaxUploadedArchiveSize = 0

5.5 启动gitlab-runner

gitlab-runner run &

输出

arch=amd64 os=linux pid=103251 revision=456e3482 version=15.10.0
Starting multi-runner from /etc/gitlab-runner/config.toml...  builds=0
Running in system-mode.

Configuration loaded                                builds=0
listen_address not defined, metrics & debug endpoints disabled  builds=0
[session_server].listen_address not defined, session endpoints disabled  builds=0
Initializing executor providers                     builds=0

5.6 gitlab-runner Docker配置

授权gitlab-runner用户使用docker

usermod -G docker gitlab-runner

# id gitlab-runner
uid=1001(gitlab-runner) gid=1001(gitlab-runner) groups=1001(gitlab-runner),994(docker)

5.7 项目配置gitlab-runner

去掉 □ Lock to current projects的选中

至此argocd和gitlab-runner安装配置完毕
