GNN-Transformer 时间序列预测数据代码-完整数据代码可直接运行

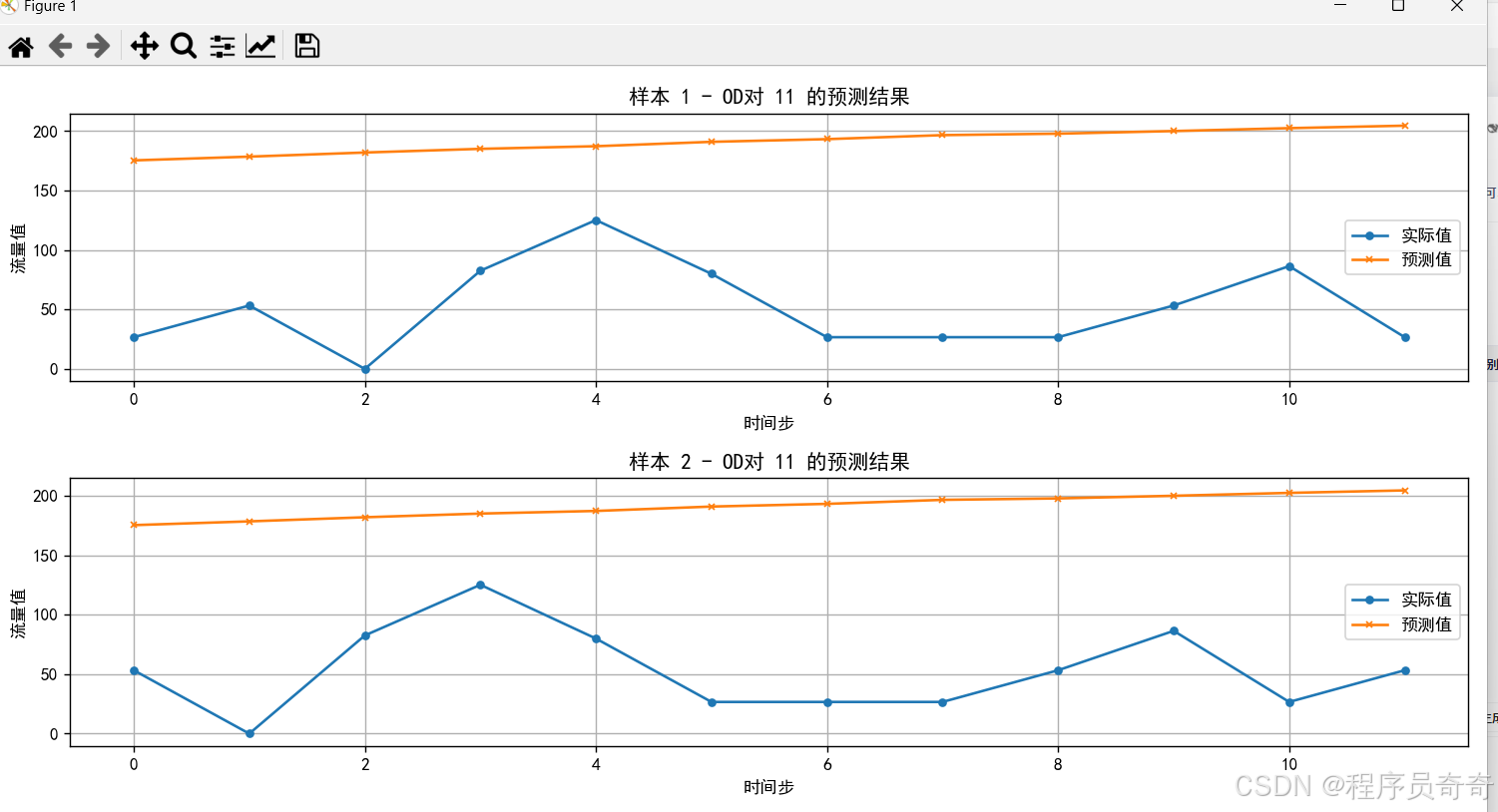

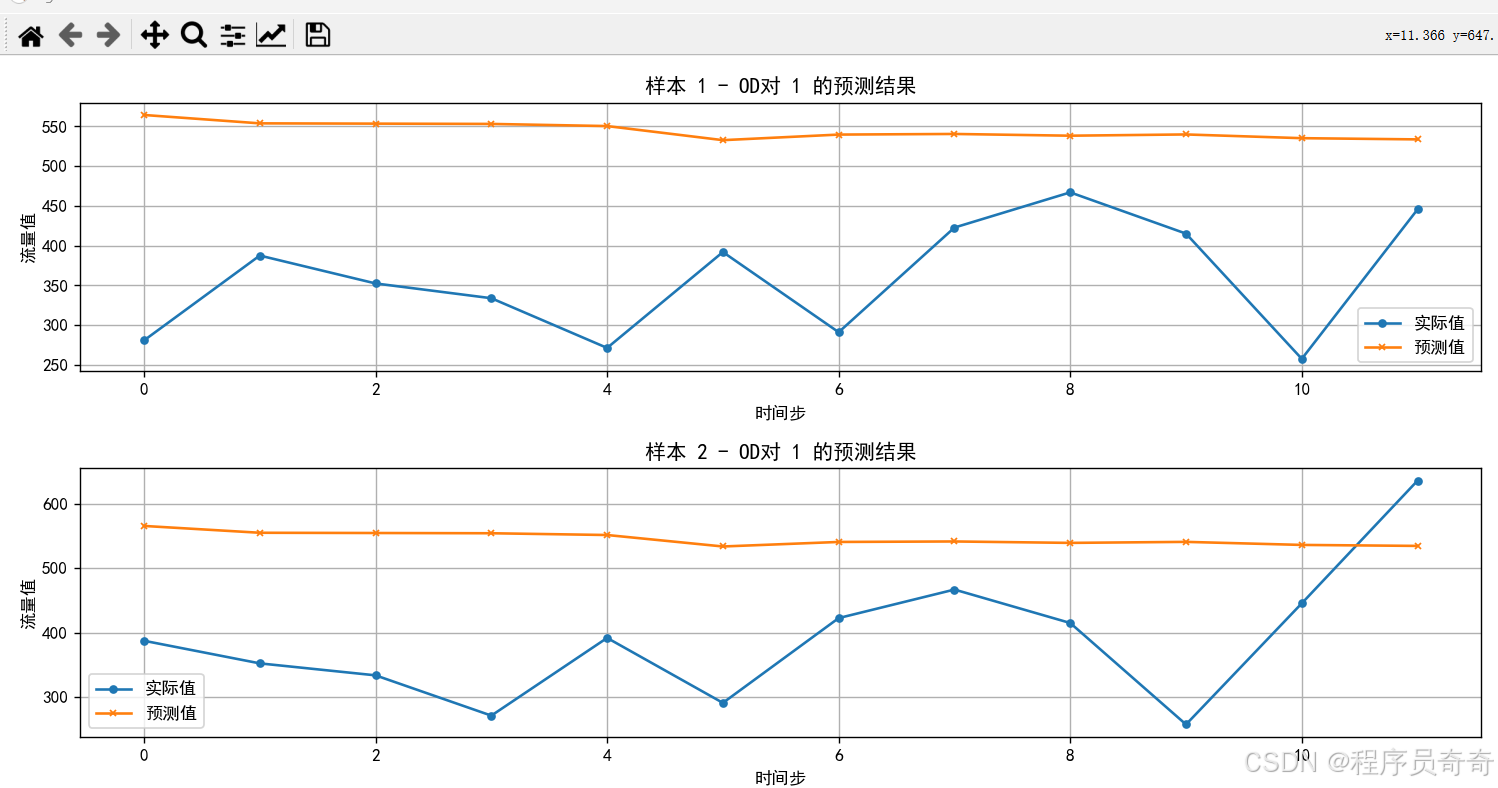

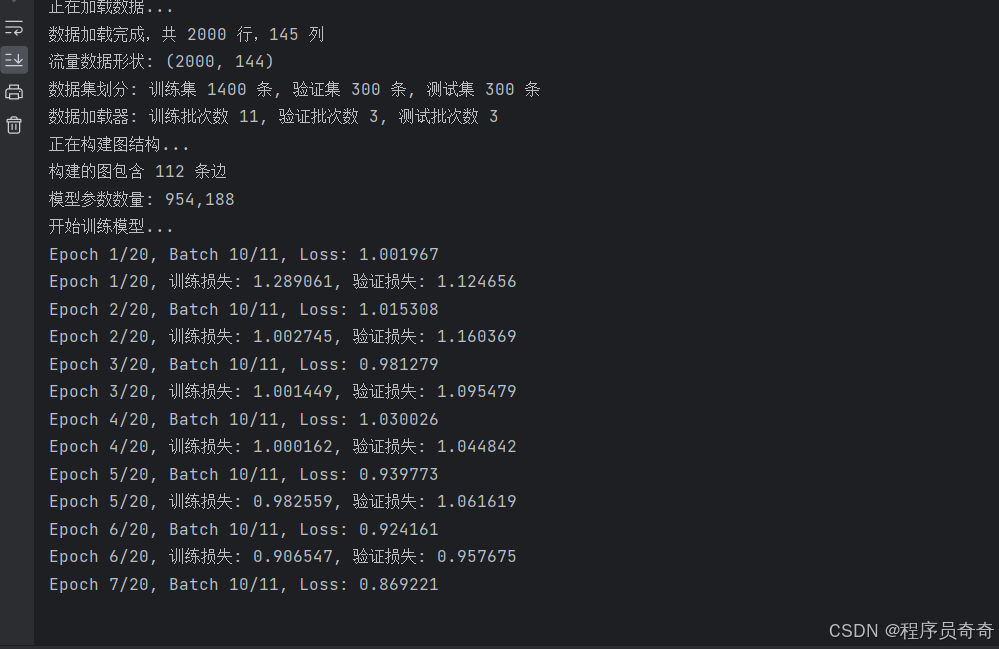

运行截图：

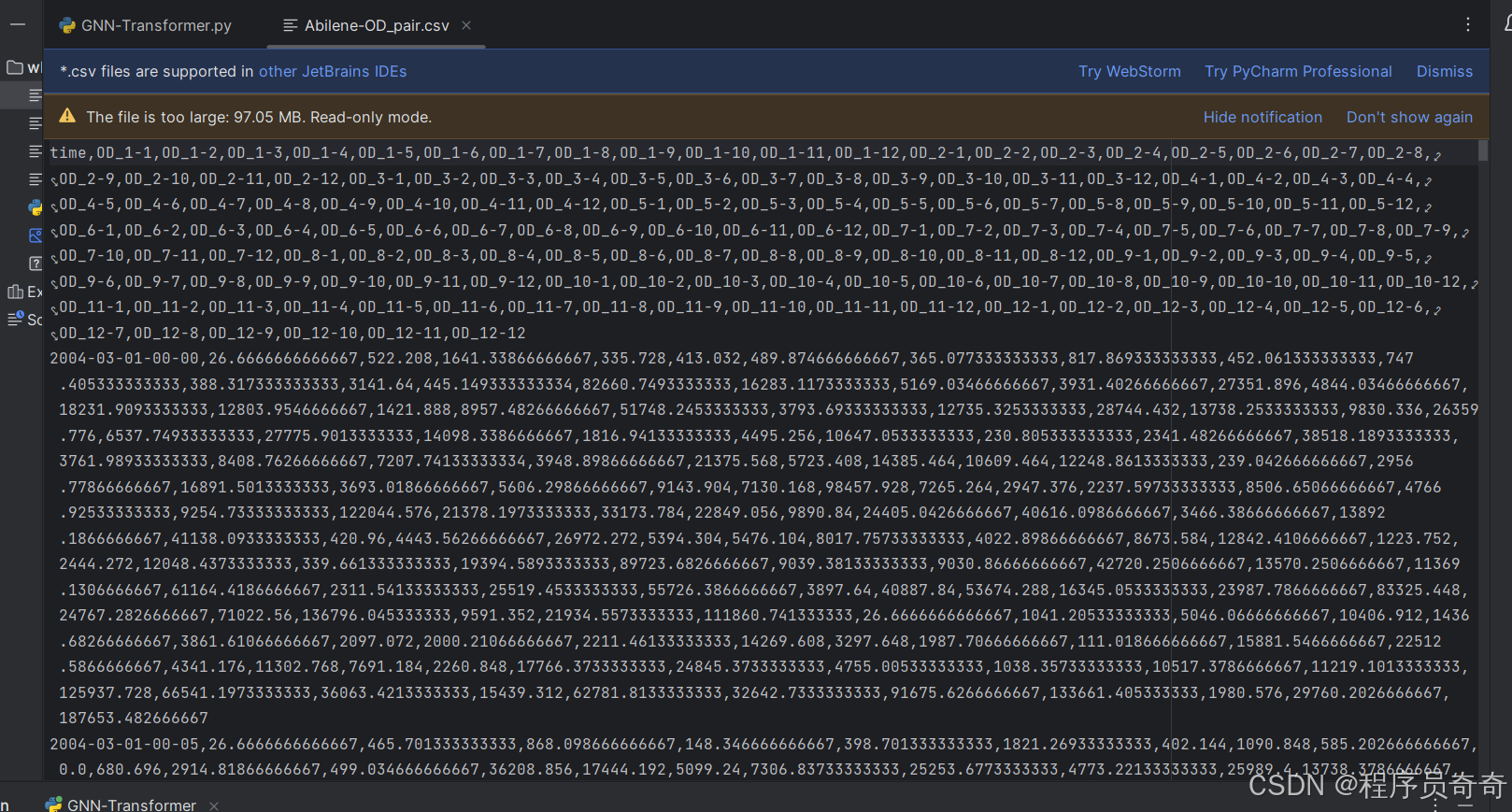

数据

import os
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns
import torch
import torch.nn as nn
import torch.nn.functional as F
from torch.utils.data import Dataset, DataLoader
from torch_geometric.nn import GATv2Conv
from sklearn.preprocessing import StandardScaler
from sklearn.metrics import mean_squared_error, mean_absolute_error, r2_score
import warnings

# 设置中文字体支持
plt.rcParams["font.family"] = ["SimHei"]
warnings.filterwarnings('ignore')


# 设置随机种子以确保可重复性
def set_seed(seed=42):
    np.random.seed(seed)
    torch.manual_seed(seed)
    torch.cuda.manual_seed_all(seed)
    torch.backends.cudnn.deterministic = True
    torch.backends.cudnn.benchmark = False


set_seed()

# 设备配置
device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
print(f"使用设备: {device}")


# 配置参数
class Config:
    def __init__(self):
        self.window_size = 24  # 输入窗口大小（历史数据长度）
        self.pred_size = 12  # 预测窗口大小（未来预测长度）
        self.batch_size = 128  # 批次大小
        self.epochs = 20  # 训练轮数
        self.learning_rate = 0.01  # 学习率
        self.hidden_dim = 64  # 隐藏层维度
        self.num_heads = 4  # 注意力头数
        self.num_layers = 2  # GNN层数
        self.dropout = 0.2  # dropout率
        self.train_ratio = 0.7  # 训练集比例
        self.val_ratio = 0.15  # 验证集比例
        self.test_ratio = 0.15  # 测试集比例



# 数据加载和预处理
class TrafficDataset(Dataset):
    def __init__(self, data, window_size, pred_size):
        """
        交通流量数据集
        data: 标准化后的流量数据，形状为 [时间步, 节点数]
        window_size: 输入窗口大小
        pred_size: 预测窗口大小
        """
        self.data = data
        self.window_size = window_size
        self.pred_size = pred_size

    def __len__(self):
        return len(self.data) - self.window_size - self.pred_size + 1

    def __getitem__(self, idx):
        # 输入: [window_size, num_nodes]
        x = self.data[idx:idx + self.window_size]
        # 输出: [pred_size, num_nodes]
        y = self.data[idx + self.window_size:idx + self.window_size + self.pred_size]
        return torch.FloatTensor(x), torch.FloatTensor(y)


# 构建图结构（基于OD对的相关性）
def build_od_graph(data, threshold=0.6):
    """
    基于OD对之间的相关性构建图结构
    data: 形状为 [时间步, 节点数] 的流量数据
    threshold: 相关性阈值
    """
    # 计算节点间的相关性
    corr_matrix = np.corrcoef(data.T)  # [num_nodes, num_nodes]
    edge_index = []

    # 根据相关性阈值构建边
    for i in range(corr_matrix.shape[0]):
        for j in range(i + 1, corr_matrix.shape[1]):
            if abs(corr_matrix[i, j]) > threshold:
                edge_index.append([i, j])
                edge_index.append([j, i])  # 无向图

    # 如果没有足够的边，创建最小生成树确保图连通
    if len(edge_index) < corr_matrix.shape[0]:
        print(f"相关性阈值 {threshold} 过高，边数不足，创建最小生成树...")
        from scipy.sparse.csgraph import minimum_spanning_tree
        from scipy.sparse import csr_matrix

        # 转换相关系数为距离
        dist_matrix = 1 - np.abs(corr_matrix)
        mst = minimum_spanning_tree(csr_matrix(dist_matrix))
        mst = mst.toarray()

        for i in range(mst.shape[0]):
            for j in range(mst.shape[1]):
                if mst[i, j] != 0:
                    edge_index.append([i, j])
                    edge_index.append([j, i])

    # 转换为PyTorch张量并转置
    edge_index = torch.LongTensor(edge_index).t().contiguous()
    print(f"构建的图包含 {edge_index.shape[1] // 2} 条边")
    return edge_index


# GNN-Transformer模型
class GNNTransformer(nn.Module):
    def __init__(self, config):
        super(GNNTransformer, self).__init__()
        self.config = config

        # GNN层
        self.gnn_layers = nn.ModuleList()
        # 输入层：window_size -> hidden_dim * num_heads
        self.gnn_layers.append(
            GATv2Conv(config.window_size, config.hidden_dim,
                      heads=config.num_heads, dropout=config.dropout)
        )

        # 后续GNN层
        for _ in range(config.num_layers - 1):
            self.gnn_layers.append(
                GATv2Conv(config.hidden_dim * config.num_heads, config.hidden_dim,
                          heads=config.num_heads, dropout=config.dropout)
            )

        # Transformer编码器层
        encoder_layer = nn.TransformerEncoderLayer(
            d_model=config.hidden_dim * config.num_heads,
            nhead=config.num_heads,
            dim_feedforward=config.hidden_dim * 4,
            dropout=config.dropout,
            batch_first=True
        )
        self.transformer_encoder = nn.TransformerEncoder(encoder_layer, num_layers=2)

        # 输出层：将隐藏维度映射到预测长度
        self.output_layer = nn.Sequential(
            nn.Linear(config.hidden_dim * config.num_heads, config.hidden_dim),
            nn.ReLU(),
            nn.Dropout(config.dropout),
            nn.Linear(config.hidden_dim, config.pred_size)
        )

    def forward(self, x, edge_index, batch=None):
        """
        x: 输入特征，形状为 [batch_size * num_nodes, window_size]
        edge_index: 边索引，形状为 [2, num_edges]
        batch: 批次索引，形状为 [batch_size * num_nodes]
        """
        # GNN处理
        for i, gnn_layer in enumerate(self.gnn_layers):
            x = gnn_layer(x, edge_index)
            if i < len(self.gnn_layers) - 1:
                x = F.elu(x)
                x = F.dropout(x, p=self.config.dropout, training=self.training)

        # 重塑为 [batch_size, num_nodes, hidden_dim*num_heads]
        batch_size = len(torch.unique(batch)) if batch is not None else 1
        x = x.view(batch_size, self.config.num_nodes, -1)

        # Transformer处理
        x = self.transformer_encoder(x)

        # 输出层，预测未来pred_size个时间步
        x = self.output_layer(x)  # [batch_size, num_nodes, pred_size]

        # 转置为 [batch_size, pred_size, num_nodes] 以匹配目标形状
        return x.permute(0, 2, 1)


# 训练函数
def train_model(model, train_loader, val_loader, edge_index, optimizer, criterion, config, device):
    train_losses = []
    val_losses = []
    best_val_loss = float('inf')
    best_model = None

    edge_index = edge_index.to(device)

    for epoch in range(config.epochs):
        # 训练阶段
        model.train()
        train_loss = 0
        for batch_idx, (data, target) in enumerate(train_loader):
            data, target = data.to(device), target.to(device)  # [batch, window, nodes]

            # 重塑数据以适应GNN输入
            batch_size, window_size, num_nodes = data.shape
            data = data.permute(0, 2, 1).reshape(-1, window_size)  # [batch*nodes, window]

            # 创建批次索引
            batch_indices = torch.arange(batch_size, device=device).repeat_interleave(num_nodes)

            optimizer.zero_grad()
            output = model(data, edge_index, batch_indices)  # [batch, pred, nodes]

            loss = criterion(output, target)
            loss.backward()

            # 梯度裁剪防止梯度爆炸
            torch.nn.utils.clip_grad_norm_(model.parameters(), max_norm=1.0)
            optimizer.step()

            train_loss += loss.item()

            # 每10个批次打印一次信息
            if (batch_idx + 1) % 10 == 0:
                print(
                    f'Epoch {epoch + 1}/{config.epochs}, Batch {batch_idx + 1}/{len(train_loader)}, Loss: {loss.item():.6f}')

        avg_train_loss = train_loss / len(train_loader)
        train_losses.append(avg_train_loss)

        # 验证阶段
        model.eval()
        val_loss = 0
        with torch.no_grad():
            for data, target in val_loader:
                data, target = data.to(device), target.to(device)

                batch_size, window_size, num_nodes = data.shape
                data = data.permute(0, 2, 1).reshape(-1, window_size)
                batch_indices = torch.arange(batch_size, device=device).repeat_interleave(num_nodes)

                output = model(data, edge_index, batch_indices)
                loss = criterion(output, target)
                val_loss += loss.item()

        avg_val_loss = val_loss / len(val_loader)
        val_losses.append(avg_val_loss)

        # 保存最佳模型
        if avg_val_loss < best_val_loss:
            best_val_loss = avg_val_loss
            best_model = model.state_dict().copy()
            torch.save(best_model, 'best_model.pth')

        print(f'Epoch {epoch + 1}/{config.epochs}, 训练损失: {avg_train_loss:.6f}, 验证损失: {avg_val_loss:.6f}')

    # 加载最佳模型
    model.load_state_dict(best_model)
    return model, train_losses, val_losses


# 反标准化函数
def inverse_transform(data, mean, std):
    """
    反标准化数据
    data: 标准化后的数据，形状为 [batch, pred, nodes]
    mean: 均值，形状为 [nodes]
    std: 标准差，形状为 [nodes]
    """
    # 调整mean和std的形状以匹配data的形状 [1, 1, nodes]
    mean_reshaped = mean.reshape(1, 1, -1)
    std_reshaped = std.reshape(1, 1, -1)
    return data * std_reshaped + mean_reshaped


# 评估函数
def evaluate_model(model, test_loader, edge_index, scaler, config, device):
    model.eval()
    predictions = []
    actuals = []

    edge_index = edge_index.to(device)

    with torch.no_grad():
        for data, target in test_loader:
            data, target = data.to(device), target.to(device)

            batch_size, window_size, num_nodes = data.shape
            data = data.permute(0, 2, 1).reshape(-1, window_size)
            batch_indices = torch.arange(batch_size, device=device).repeat_interleave(num_nodes)

            output = model(data, edge_index, batch_indices)  # [batch, pred, nodes]

            predictions.append(output.cpu().numpy())
            actuals.append(target.cpu().numpy())

    # 合并所有批次
    predictions = np.concatenate(predictions, axis=0)
    actuals = np.concatenate(actuals, axis=0)

    # 反标准化
    mean = scaler.mean_
    std = scaler.scale_
    predictions = inverse_transform(predictions, mean, std)
    actuals = inverse_transform(actuals, mean, std)

    # 计算评估指标
    mse = mean_squared_error(actuals.flatten(), predictions.flatten())
    mae = mean_absolute_error(actuals.flatten(), predictions.flatten())
    rmse = np.sqrt(mse)
    r2 = r2_score(actuals.flatten(), predictions.flatten())

    print(f'\n测试集评估指标:')
    print(f'MSE: {mse:.6f}')
    print(f'MAE: {mae:.6f}')
    print(f'RMSE: {rmse:.6f}')
    print(f'R²: {r2:.6f}')

    return predictions, actuals, {'mse': mse, 'mae': mae, 'rmse': rmse, 'r2': r2}

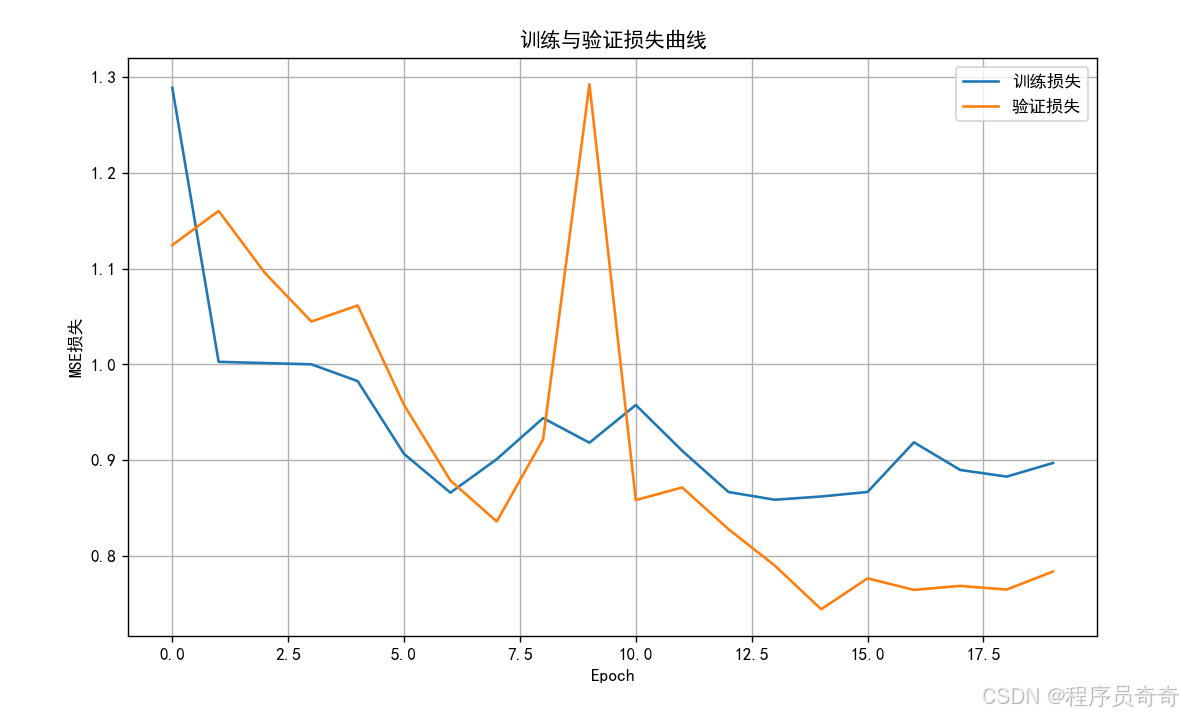

# 绘制损失曲线
def plot_loss_curve(train_losses, val_losses):
    plt.figure(figsize=(10, 6))
    plt.plot(train_losses, label='训练损失')
    plt.plot(val_losses, label='验证损失')
    plt.title('训练与验证损失曲线')
    plt.xlabel('Epoch')
    plt.ylabel('MSE损失')
    plt.legend()
    plt.grid(True)
    plt.savefig('loss_curve.png', dpi=300)
    plt.show()


# 绘制预测结果
def plot_predictions(predictions, actuals, node_indices=None, num_samples=3):
    """
    绘制预测结果与实际值对比
    predictions: 预测结果，形状为 [samples, pred, nodes]
    actuals: 实际值，形状为 [samples, pred, nodes]
    node_indices: 要绘制的节点索引列表
    num_samples: 要绘制的样本数量
    """
    # 如果未指定节点，选择前3个节点
    if node_indices is None:
        node_indices = [0, 1, 2]

    # 创建输出目录
    os.makedirs('prediction_plots', exist_ok=True)

    # 绘制每个节点的预测结果
    for node_idx in node_indices:
        plt.figure(figsize=(12, 6))

        # 绘制多个样本
        for i in range(min(num_samples, len(predictions))):
            time_steps = range(actuals[i].shape[0])
            plt.subplot(min(num_samples, len(predictions)), 1, i + 1)
            plt.plot(time_steps, actuals[i, :, node_idx], label='实际值', marker='o', markersize=4)
            plt.plot(time_steps, predictions[i, :, node_idx], label='预测值', marker='x', markersize=4)
            plt.title(f'样本 {i + 1} - OD对 {node_idx + 1} 的预测结果')
            plt.xlabel('时间步')
            plt.ylabel('流量值')
            plt.legend()
            plt.grid(True)

        plt.tight_layout()
        plt.savefig(f'prediction_plots/node_{node_idx + 1}_predictions.png', dpi=300)
        plt.show()


# 主函数
def main():
    # 初始化配置
    config = Config()

    # 加载数据
    print("正在加载数据...")
    df = pd.read_csv('Abilene-OD_pair.csv',nrows=2000)
    print(f"数据加载完成，共 {len(df)} 行，{len(df.columns)} 列")

    # 提取时间序列数据（跳过时间列）
    time_stamps = df['time'].values
    traffic_data = df.iloc[:, 1:].values  # 形状为 [时间步, 节点数]
    config.num_nodes = traffic_data.shape[1]  # 设置节点数量
    print(f"流量数据形状: {traffic_data.shape}")

    # 数据标准化
    scaler = StandardScaler()
    scaled_data = scaler.fit_transform(traffic_data)

    # 划分数据集
    n = len(scaled_data)
    train_size = int(n * config.train_ratio)
    val_size = int(n * config.val_ratio)

    train_data = scaled_data[:train_size]
    val_data = scaled_data[train_size:train_size + val_size]
    test_data = scaled_data[train_size + val_size:]

    print(f"数据集划分: 训练集 {len(train_data)} 条, 验证集 {len(val_data)} 条, 测试集 {len(test_data)} 条")

    # 创建数据加载器
    train_dataset = TrafficDataset(train_data, config.window_size, config.pred_size)
    val_dataset = TrafficDataset(val_data, config.window_size, config.pred_size)
    test_dataset = TrafficDataset(test_data, config.window_size, config.pred_size)

    train_loader = DataLoader(train_dataset, batch_size=config.batch_size, shuffle=True)
    val_loader = DataLoader(val_dataset, batch_size=config.batch_size, shuffle=False)
    test_loader = DataLoader(test_dataset, batch_size=config.batch_size, shuffle=False)

    print(f"数据加载器: 训练批次数 {len(train_loader)}, 验证批次数 {len(val_loader)}, 测试批次数 {len(test_loader)}")

    # 构建图结构（使用训练数据）
    print("正在构建图结构...")
    # 使用部分训练数据来构建图，提高效率
    sample_data = train_data[:1000]  # 使用前1000个时间步
    edge_index = build_od_graph(sample_data)

    # 初始化模型、优化器和损失函数
    model = GNNTransformer(config).to(device)
    optimizer = torch.optim.Adam(model.parameters(), lr=config.learning_rate)
    criterion = nn.MSELoss()

    print(f"模型参数数量: {sum(p.numel() for p in model.parameters()):,}")

    # 训练模型
    print("开始训练模型...")
    model, train_losses, val_losses = train_model(
        model, train_loader, val_loader, edge_index,
        optimizer, criterion, config, device
    )

    # 绘制损失曲线
    plot_loss_curve(train_losses, val_losses)

    # 评估模型
    print("开始评估模型...")
    predictions, actuals, metrics = evaluate_model(
        model, test_loader, edge_index, scaler, config, device
    )

    # 绘制预测结果（选择几个有代表性的OD对）
    # 可以根据需要修改要显示的节点索引
    plot_predictions(predictions, actuals, node_indices=[0, 10, 50], num_samples=2)

    # 保存最终模型
    torch.save(model.state_dict(), 'final_model.pth')
    print("模型已保存为 'final_model.pth'")

    # 保存评估结果
    with open('evaluation_results.txt', 'w', encoding='utf-8') as f:
        f.write("评估指标:\n")
        for key, value in metrics.items():
            f.write(f"{key}: {value:.6f}\n")
    print("评估结果已保存为 'evaluation_results.txt'")


if __name__ == "__main__":
    main()

完整代码：

https://download.youkuaiyun.com/download/qq_38735017/91763492
