路由器的作用是：打通不同网络（局域网）的网络。

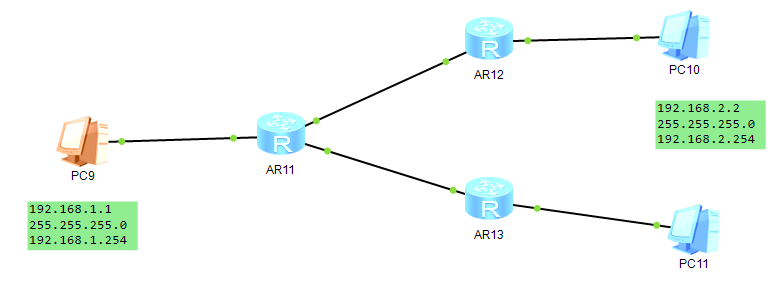

直连路由设置

路由表

[Huawei]dis ip routint-table 192.168.2.2
[Huawei]
[Huawei]ip route-static 192.168.2.0 255.255.255.0 10.1.1.2
                        //目的地                   //下一跳
[Huawei]dis ip routint-table 192.168.2.2
[Huawei] 此时能够查到信息

但是现在还是ping不通，需要做一套回程的信息
此时就可以ping通过了

关于路由表

第一个交换机的配置

<Huawei>system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]int g0/0/0
[Huawei-GigabitEthernet0/0/0]ip add 192.168.1.254 255.255.255.0

[Huawei-GigabitEthernet0/0/0]int g0/0/1
[Huawei-GigabitEthernet0/0/1]ip add 10.1.1.1 255.255.255.0

[Huawei-GigabitEthernet0/0/1]int g0/0/2
[Huawei-GigabitEthernet0/0/2]ip add 10.2.2.1 255.255.255.0

[Huawei-GigabitEthernet0/0/2]quit

[Huawei]dis ip routing-table 192.168.2.2
[Huawei]
[Huawei]ip route-static 192.168.2.0 255.255.255.0 10.1.1.2

[Huawei]dis ip routing-table 192.168.2.2
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Table : Public
Summary Count : 1
Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

   192.168.2.0/24  Static  60   0          RD   10.1.1.2        GigabitEthernet0/0/1

第二个交换机的配置

<Huawei>system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]int g0/0/0
[Huawei-GigabitEthernet0/0/0]ip add 10.1.1.1 255.255.255.0


[Huawei-GigabitEthernet0/0/0]int g0/0/1
[Huawei-GigabitEthernet0/0/1]ip add 192.168.2.254 255.255.255.0

[Huawei]ip route-static 192.168.1.1 255.255.255.0 10.1.1.1

[Huawei-GigabitEthernet0/0/1]dis ip routing-table 192.168.1.1
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Table : Public
Summary Count : 1
Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

    192.168.1.0/24  Static  60   0          RD   10.1.1.1        GigabitEthernet0/0/0

在第一台和第二台电脑上配置网关，补齐子网掩码，即可ping通

PC>ping 192.168.2.2

Ping 192.168.2.2: 32 data bytes, Press Ctrl_C to break
Request timeout!
Request timeout!
From 192.168.2.2: bytes=32 seq=3 ttl=126 time=31 ms
From 192.168.2.2: bytes=32 seq=4 ttl=126 time<1 ms
From 192.168.2.2: bytes=32 seq=5 ttl=126 time<1 ms

--- 192.168.2.2 ping statistics ---
  5 packet(s) transmitted
  3 packet(s) received
  40.00% packet loss
  round-trip min/avg/max = 0/10/31 ms

路由优先级

NAT网络地址转换器，用在私网到公网的IP转换

取消第二个交换机的路由


[Huawei]undo ip route-static 192.168.1.1 255.255.255.0 10.1.1.1
Warning: The destination address and the mask do not match, and thus the static
route 192.168.1.0/24 will be deleted. Continue?[Y/N]:Y
[Huawei]
[Huawei]acl 2000
[Huawei-acl-basic-2000]rule permit source 192.168.1.0 0.0.0.255//注意此处为反相掩码
[Huawei-acl-basic-2000]
[Huawei-acl-basic-2000]int g0/0/1
[Huawei-GigabitEthernet0/0/1]nat out 2000
[Huawei-GigabitEthernet0/0/1]

也能ｐｉｎｇ通

PC>ping 192.168.2.2

Ping 192.168.2.2: 32 data bytes, Press Ctrl_C to break
Request timeout!
From 192.168.2.2: bytes=32 seq=2 ttl=126 time=15 ms
From 192.168.2.2: bytes=32 seq=3 ttl=126 time=16 ms
From 192.168.2.2: bytes=32 seq=4 ttl=126 time=15 ms
From 192.168.2.2: bytes=32 seq=5 ttl=126 time=16 ms

--- 192.168.2.2 ping statistics ---
  5 packet(s) transmitted
  4 packet(s) received
  20.00% packet loss
  round-trip min/avg/max = 0/15/16 ms

PC>

用在私网到公网的IP转换
