vitis2023.2添加头文件路径include path(新版vitis)

vitis新版的操作逻辑和之前的版本变化很大,记录一下添加include path的方法。

通过 UserConfig.cmake UI界面

  • 在 Vitis IDE 的 "Component" 视图中,找到你的应用组件(例如 app_component)。

  • 展开该组件,然后展开 "Settings" 目录。

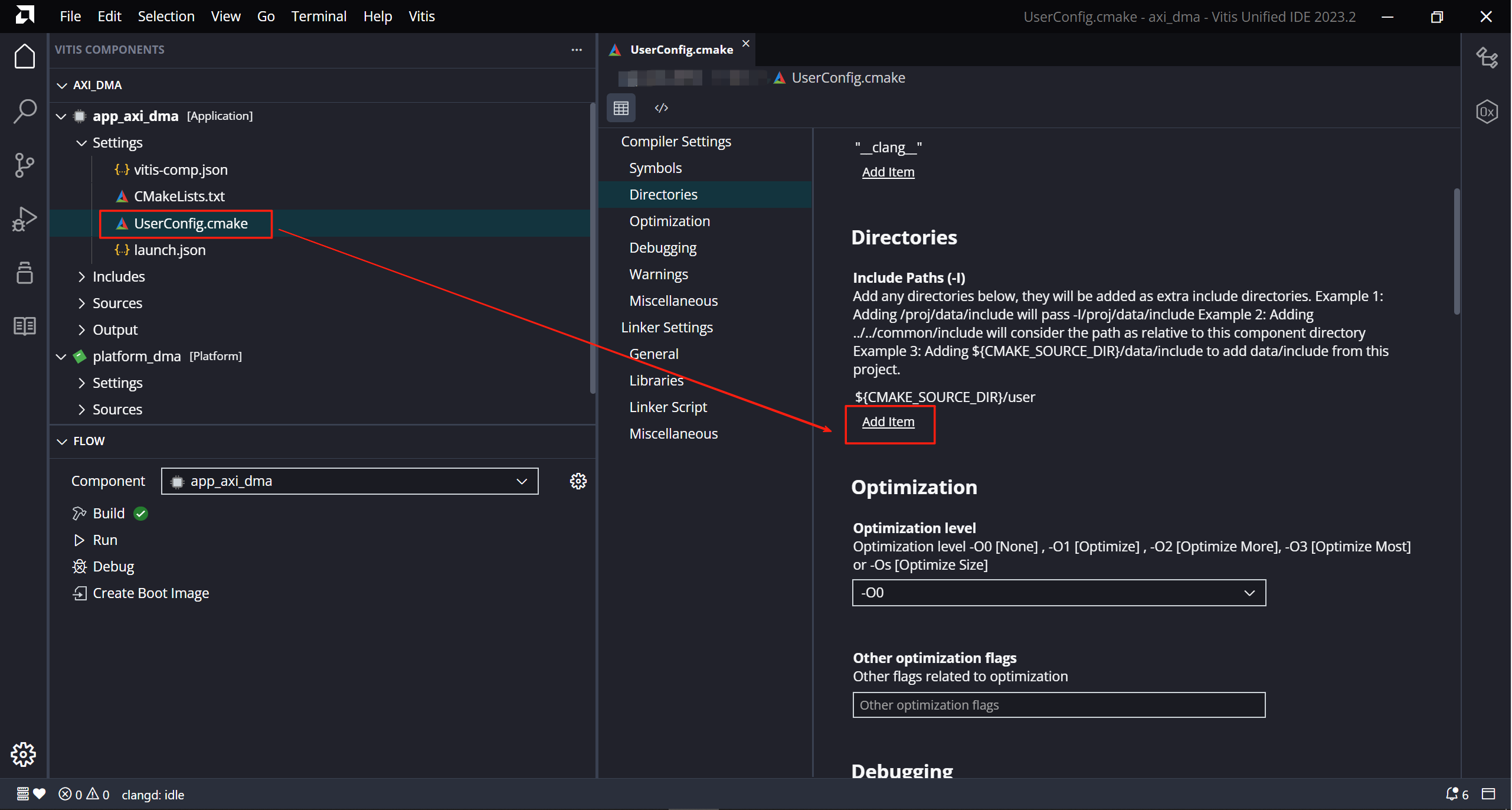

  • 点击 UserConfig.cmake 打开UI界面

  • 找到 Directories 选项中的Add item 即可在此处添加头文件路径

可以看到这里vitis给了3种路径示例,可以添加绝对路径或者相对路径,我这里添加的是

${CMAKE_SOURCE_DIR}/user

表示当前UserConfig.cmake文件目录下的user文件夹。
