双机热备旁挂组网实验

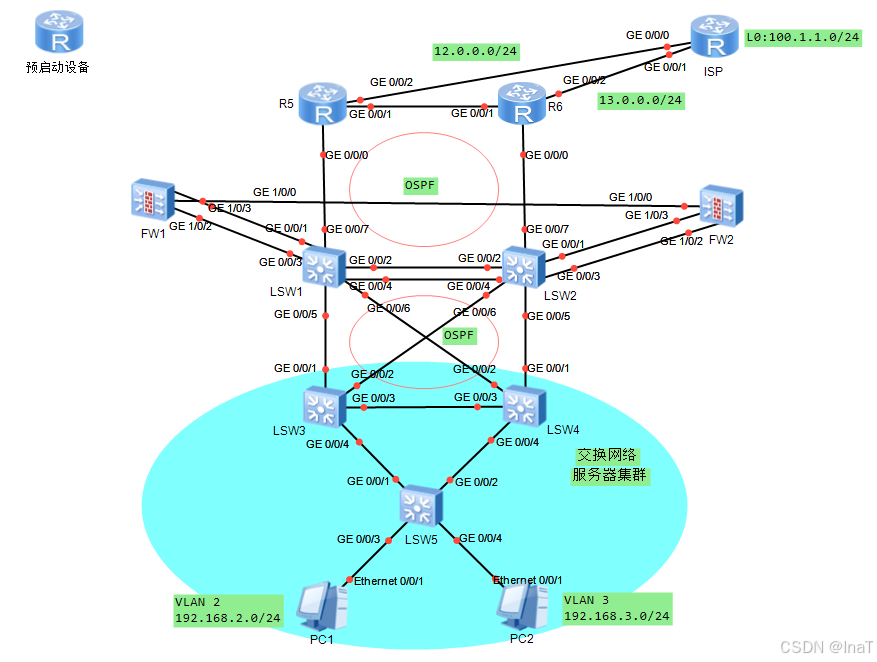

一、实验拓扑

二、实验需求

1、SW3的流量
正常情况下：SW1_VRF-->FW1--->SW1_Public--->R5
故障情况下：SW2_VRF-->FW2--->SW2_Public--->R6
2、SW4的流量
正常情况下：SW2_VRF-->FW2--->SW2_Public--->R6
故障情况下：SW1_VRF-->FW1--->SW1_Public--->R5
3、交换网络负载均衡

三、操作过程

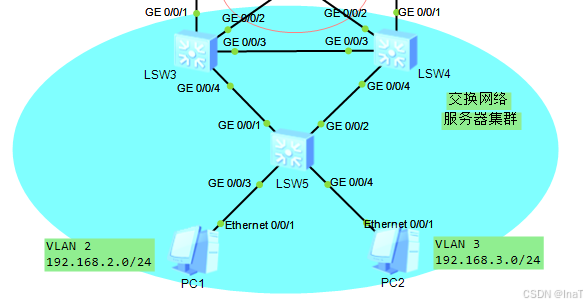

1、二层交换配置

使用传统三层架构中MSTP+VRRP组网形式
        VLAN 2--->SW3,SW4作为备份
        VLAN 3--->SW4,SW3作为备份

MSTP设计--->SW3、4、5运行
        实例1：VLAN 2
        实例2：VLAN 3
                SW3是实例1的主根，实例2的备份根；SW4是实例2的主根，实例1的备份根

IP地址规划：
SW3：
        VLAN 2:192.168.2.1/24
        VLAN 3:192.168.3.1/24
SW4：
        VLAN 2:192.168.2.2/24
        VLAN 3:192.168.3.2/24

虚拟IP：
        VLAN 2:192.168.2.254/24
        VLAN 3:192.168.3.254/24

配置

（1）SW3

[SW3]vlan batch 2 3
Info: This operation may take a few seconds. Please wait for a moment...done.
[SW3]interface GigabitEthernet 0/0/3
[SW3-GigabitEthernet0/0/3]port link-type trunk
[SW3-GigabitEthernet0/0/3]port trunk allow-pass vlan 2 3
[SW3-GigabitEthernet0/0/3]interface GigabitEthernet 0/0/4
[SW3-GigabitEthernet0/0/4]port link-type trunk
[SW3-GigabitEthernet0/0/4]port trunk allow-pass vlan 2 to 3
[SW3-GigabitEthernet0/0/4]
[SW3]stp enable
[SW3]stp mode mstp
[SW3]stp region-configuration
[SW3-mst-region]region-name aa
[SW3-mst-region]instance 1 vlan 2
[SW3-mst-region]instance 2 vlan 3
[SW3-mst-region]active region-configuration      激活
Info: This operation may take a few seconds. Please wait for a moment....done.
[SW3]stp instance 1 root primary
[SW3]stp instance 2 root secondary
[SW3]stp instance 0 root primary
[SW3]
[SW3]interface Vlanif 2
[SW3-Vlanif2]ip address 192.168.2.1 24
[SW3-Vlanif2]vrrp vrid 1 virtual-ip 192.168.2.254
[SW3-Vlanif2]vrrp vrid 1 priority 120
[SW3-Vlanif2]vrrp vrid 1 preempt-mode timer delay 20
[SW3-Vlanif2]vrrp vrid 1 track interface GigabitEthernet 0/0/1 reduced 15
[SW3-Vlanif2]vrrp vrid 1 track interface GigabitEthernet 0/0/2 reduced 15
[SW3-Vlanif2]
[SW3]interface Vlanif 3
[SW3-Vlanif3]ip add 192.168.3.1 24
[SW3-Vlanif3]vrrp vrid 1 virtual-ip 192.168.3.254
[SW3-Vlanif3]

（2）SW4

[SW4]vlan batch 2 3
Info: This operation may take a few seconds. Please wait for a moment...done.
[SW4]interface GigabitEthernet 0/0/3
[SW4-GigabitEthernet0/0/3]port link-type trunk
[SW4-GigabitEthernet0/0/3]port trunk allow-pass vlan 2 3
[SW4-GigabitEthernet0/0/3]interface GigabitEthernet 0/0/4
[SW4-GigabitEthernet0/0/4]port link-type trunk
[SW4-GigabitEthernet0/0/4]port trunk allow-pass vlan 2 to 3
[SW4-GigabitEthernet0/0/4]
[SW4]stp enable
[SW4]stp mode mstp
[SW4]stp region-configuration
[SW4-mst-region]region-name aa
[SW4-mst-region]instance 1 vlan 2
[SW4-mst-region]instance 2 vlan 3
[SW4-mst-region]active region-configuration
[SW4-mst-region]q
[SW4]stp instance 1 root secondary
[SW4]stp instance 2 root primary
[SW4]stp instance 0 root secondary
[SW4]
[SW4]interface Vlanif 2
[SW4-Vlanif2]ip add 192.168.2.2 24
[SW4-Vlanif2]vrrp vrid 1 virtual-ip 192.168.2.254
[SW4-Vlanif2]
[SW4-Vlanif2]interface Vlanif3
[SW4-Vlanif3]ip address 192.168.3.2 255.255.255.0
[SW4-Vlanif3]vrrp vrid 1 virtual-ip 192.168.3.254
[SW4-Vlanif3]vrrp vrid 1 priority 120
[SW4-Vlanif3]vrrp vrid 1 preempt-mode timer delay 20
[SW4-Vlanif3]vrrp vrid 1 track interface GigabitEthernet0/0/1 reduced 15
[SW4-Vlanif3]vrrp vrid 1 track interface GigabitEthernet0/0/2 reduced 15
[SW4-Vlanif3]

（3）SW5

[SW5]vlan batch 2 3
[SW5]interface GigabitEthernet 0/0/3
[SW5-GigabitEthernet0/0/3]port link-type access
[SW5-GigabitEthernet0/0/3]port default vlan 2
[SW5-GigabitEthernet0/0/3]interface GigabitEthernet 0/0/4
[SW5-GigabitEthernet0/0/4]port link-type access
[SW5-GigabitEthernet0/0/4]port default vlan 3
[SW5-GigabitEthernet0/0/4]interface GigabitEthernet 0/0/1
[SW5-GigabitEthernet0/0/1]port link-type trunk
[SW5-GigabitEthernet0/0/1]port trunk allow-pass vlan 2 3
[SW5-GigabitEthernet0/0/1]interface GigabitEthernet 0/0/2
[SW5-GigabitEthernet0/0/2]port link-type trunk
[SW5-GigabitEthernet0/0/2]port trunk allow-pass vlan 2 to 3
[SW5-GigabitEthernet0/0/2]
[SW5]stp enable
[SW5]stp mode mstp
[SW5]stp region-configuration
[SW5-mst-region]region-name aa
[SW5-mst-region]instance 1 vlan 2
[SW5-mst-region]instance 2 vlan 3
[SW5-mst-region]active region-configuration
[SW5-mst-region]

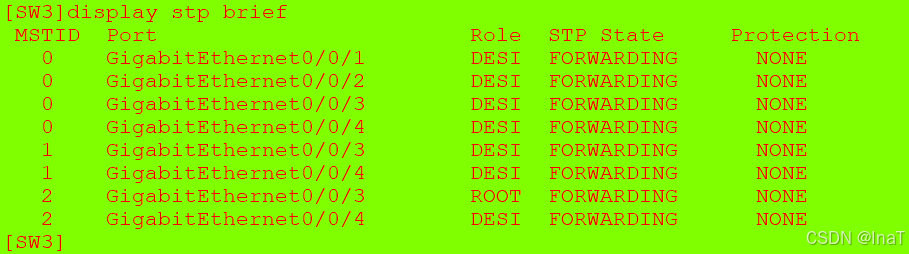

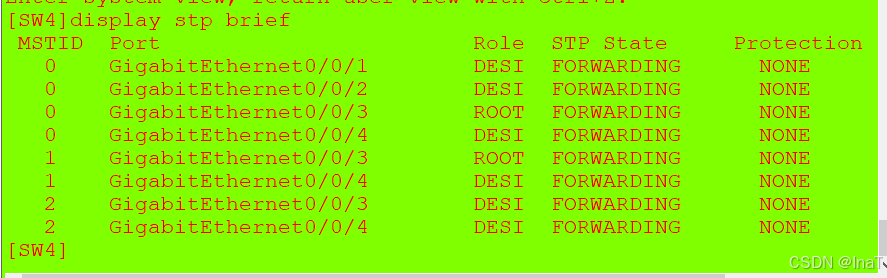

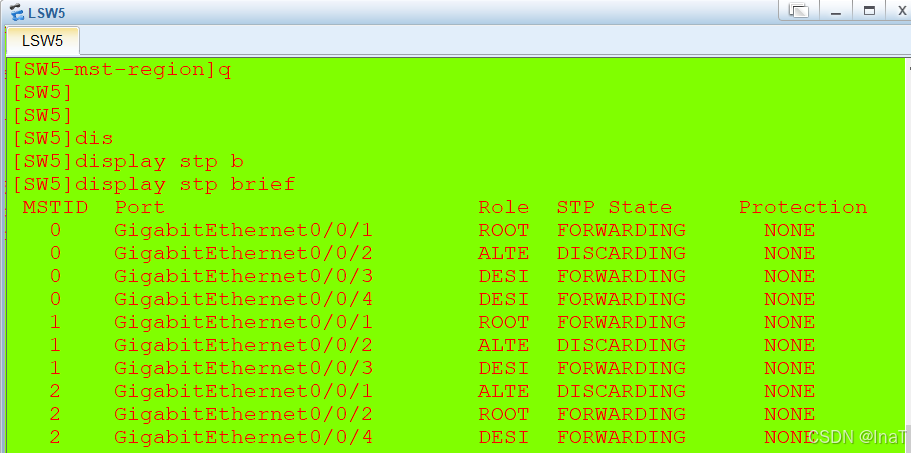

（4）查看STP

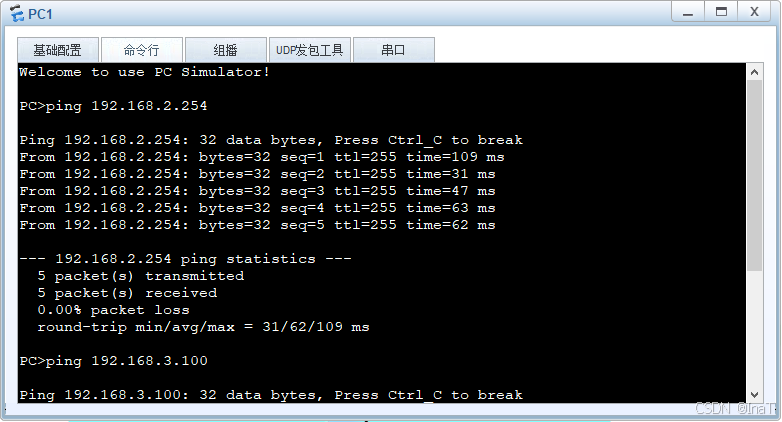

测试

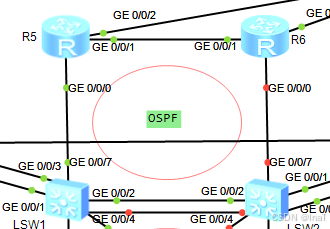

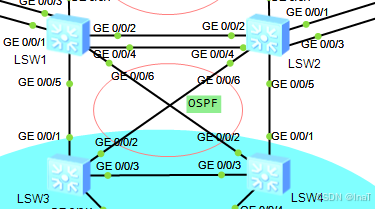

2、汇聚到核心层路由配置

SW1-SW2：VLAN 102---10.10.2.0/24
SW1-SW3：VLAN 103---10.10.3.0/24
SW1-SW4：VLAN 104---10.10.4.0/24
SW2-SW3：VLAN 203---10.20.3.0/24
SW2-SW4：VLAN 204---10.20.4.0/24

（1）SW3

[SW3]vlan batch 103 203
[SW3]interface GigabitEthernet 0/0/1
[SW3-GigabitEthernet0/0/1]port link-type access
[SW3-GigabitEthernet0/0/1]port default vlan 103
[SW3-GigabitEthernet0/0/1]undo stp enable
[SW3]interface GigabitEthernet 0/0/2
[SW3-GigabitEthernet0/0/2]port link-type access
[SW3-GigabitEthernet0/0/2]port default vlan 203
[SW3-GigabitEthernet0/0/2]undo stp enable
[SW3]interface Vlanif 103
[SW3-Vlanif103]ip add 10.10.3.3 24
[SW3]interface Vlanif 203
[SW3-Vlanif203]ip add 10.20.3.3 24
[SW3]ospf 1 router-id 3.3.3.3
[SW3-ospf-1]area 0
[SW3-ospf-1-area-0.0.0.0]network 10.10.3.3 0.0.0.0
[SW3-ospf-1-area-0.0.0.0]network 10.20.3.3 0.0.0.0
[SW3-ospf-1-area-0.0.0.0]network 192.168.2.1 0.0.0.0
[SW3-ospf-1-area-0.0.0.0]network 192.168.3.1 0.0.0.0
[SW3-ospf-1]silent-interface Vlanif 2
[SW3-ospf-1]silent-interface Vlanif 3

（2）SW4

[SW4]vlan batch 104 204
[SW4]interface GigabitEthernet 0/0/1
[SW4-GigabitEthernet0/0/1]port link-type access
[SW4-GigabitEthernet0/0/1]port default vlan 204
[SW4-GigabitEthernet0/0/1]undo stp enable
[SW4]interface GigabitEthernet 0/0/2
[SW4-GigabitEthernet0/0/2]port link-type access
[SW4-GigabitEthernet0/0/2]port default vlan 104
[SW4-GigabitEthernet0/0/2]undo stp enable
[SW4]interface Vlanif 104
[SW4-Vlanif104]ip address 10.10.4.4 24
[SW4]interface Vlanif 204
[SW4-Vlanif204]ip add 10.20.4.4 24
[SW4]ospf 1 router-id 4.4.4.4
[SW4-ospf-1]area 0.0.0.0
[SW4-ospf-1-area-0.0.0.0]network 10.10.4.4 0.0.0.0
[SW4-ospf-1-area-0.0.0.0]network 10.20.4.4 0.0.0.0
[SW4-ospf-1-area-0.0.0.0]network 192.168.2.2 0.0.0.0
[SW4-ospf-1-area-0.0.0.0]network 192.168.3.2 0.0.0.0
[SW4-ospf-1]silent-interface Vlanif 2
[SW4-ospf-1]silent-interface Vlanif 3

创建VRF空间并配置VRF信息

        因为SW1和SW2需要被分割为两台设备，分别与上下行设备连接，故需要先创建VRF空间，其中GE0/0/3-GE0/0/6属于该空间接口。

VRF空间配置信息：
名称：VRF
RD：100:1
RT：100:1

[SW1]ip vpn-instance VRF
[SW1-vpn-instance-VRF]route-distinguisher 100:1
[SW1-vpn-instance-VRF-af-ipv4]vpn-target 100:1 both

<Huawei>system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]sysname SW2
[SW2]ip vpn-instance VRF
[SW2-vpn-instance-VRF]route-distinguisher 100:1
[SW2-vpn-instance-VRF-af-ipv4]vpn-target 100:1 both

配置VLAN信息

（1）SW1

[SW1]vlan batch 102 103 104
[SW1]interface GigabitEthernet 0/0/6
[SW1-GigabitEthernet0/0/6]port link-type access
[SW1-GigabitEthernet0/0/6]port default vlan 103
[SW1-GigabitEthernet0/0/6]undo stp enable
[SW1]interface GigabitEthernet 0/0/5
[SW1-GigabitEthernet0/0/5]port link-type trunk
[SW1-GigabitEthernet0/0/5]undo port trunk allow-pass vlan 1
[SW1-GigabitEthernet0/0/5]port trunk allow-pass vlan 102
[SW1-GigabitEthernet0/0/5]undo stp enable
[SW1]interface GigabitEthernet 0/0/7
[SW1-GigabitEthernet0/0/7]port link-type access
[SW1-GigabitEthernet0/0/7]port default vlan 104
[SW1-GigabitEthernet0/0/7]undo stp enable

（2）SW2

[SW2]vlan batch 102 203 204
[SW2]interface GigabitEthernet 0/0/6
[SW2-GigabitEthernet0/0/6]port link-type access
[SW2-GigabitEthernet0/0/6]port default vlan 204
[SW2-GigabitEthernet0/0/6]undo stp enable

[SW2]interface GigabitEthernet 0/0/7
[SW2-GigabitEthernet0/0/7]port link-type access
[SW2-GigabitEthernet0/0/7]port default vlan 203
[SW2-GigabitEthernet0/0/7]undo stp enable

[SW2]interface GigabitEthernet 0/0/5
[SW2-GigabitEthernet0/0/5]port link-type trunk
[SW2-GigabitEthernet0/0/5]port trunk allow-pass vlan 102
[SW2-GigabitEthernet0/0/5]undo port trunk allow-pass vlan 1
[SW2-GigabitEthernet0/0/5]undo stp enable

创建Vlanif接口，并将接口划入VRF空间

SW1：
[SW1]interface Vlanif 102
[SW1-Vlanif102]ip binding vpn-instance VRF
[SW1-Vlanif102]ip address 10.10.2.1 24
[SW1]interface Vlanif 103
[SW1-Vlanif103]ip binding vpn-instance VRF
[SW1-Vlanif103]ip add 10.10.3.1 24
[SW1]interface Vlanif 104
[SW1-Vlanif104]ip binding vpn-instance VRF
[SW1-Vlanif104]ip add 10.10.4.1 24

SW2：
[SW2]interface Vlanif 102
[SW2-Vlanif102]ip binding vpn-instance VRF
[SW2-Vlanif102]ip address 10.10.2.2 24
[SW2]interface Vlanif 203
[SW2-Vlanif203]ip binding vpn-instance VRF
[SW2-Vlanif203]ip address 10.20.3.2 24
[SW2]interface Vlanif 204
[SW2-Vlanif204]ip binding vpn-instance VRF
[SW2-Vlanif204]ip add 10.20.4.2 24

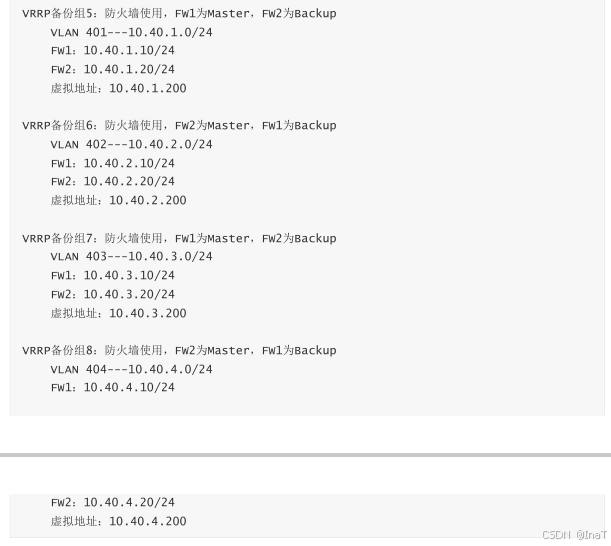

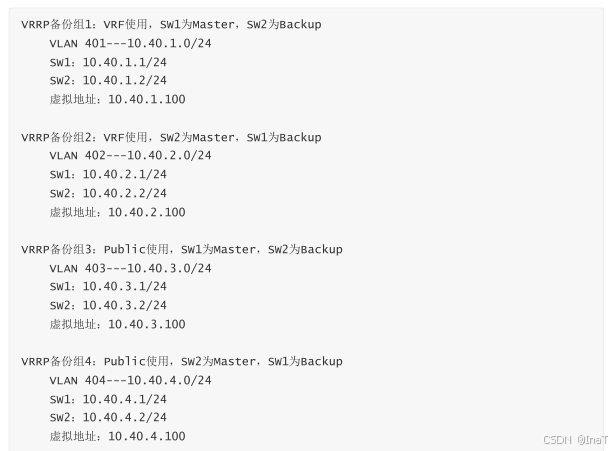

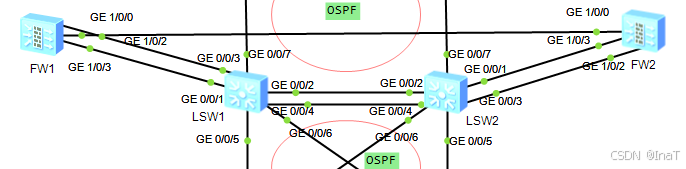

3、VRF交换机和防火墙的路由交互

FW1为主
VRRP备份组1---VRRP备份组5
VRRP备份组3---VRRP备份组7
FW2为主
VRRP备份组2---VRRP备份组6
VRRP备份组4---VRRP备份组8

VRF区域配置

（1）SW1

[SW1]vlan batch 401 402
[SW1]interface GigabitEthernet 0/0/2
[SW1-GigabitEthernet0/0/2]port link-type trunk
[SW1-GigabitEthernet0/0/2]port trunk allow-pass vlan 401 402
[SW1]interface GigabitEthernet 0/0/5
[SW1-GigabitEthernet0/0/5]port link-type trunk
[SW1-GigabitEthernet0/0/5]port trunk allow-pass vlan 401 402
[SW1]interface Vlanif 401
[SW1-Vlanif401]ip binding vpn-instance VRF
[SW1-Vlanif401]ip address 10.40.1.1 24
[SW1-Vlanif401]vrrp vrid 1 virtual-ip 10.40.1.100
[SW1-Vlanif401]vrrp vrid 1 priority 120
[SW1-Vlanif401]vrrp vrid 1 preempt-mode timer delay 60
[SW1-Vlanif401]vrrp vrid 1 track interface GigabitEthernet 0/0/2 reduced 30
[SW1]interface Vlanif 402
[SW1-Vlanif402]ip binding vpn-instance VRF
[SW1-Vlanif402]ip address 10.40.2.1 24
[SW1-Vlanif402]vrrp vrid 2 virtual-ip 10.40.2.100

（2）SW2

[SW2]vlan batch 401 402
[SW2]interface GigabitEthernet 0/0/3
[SW2-GigabitEthernet0/0/3]port link-type trunk
[SW2-GigabitEthernet0/0/3]port trunk allow-pass vlan 401 402
[SW2]interface GigabitEthernet 0/0/5
[SW2-GigabitEthernet0/0/5]port link-type trunk
[SW2-GigabitEthernet0/0/5]port trunk allow-pass vlan 401 402
[SW2]interface Vlanif 401
[SW2-Vlanif401]ip binding vpn-instance VRF
[SW2-Vlanif401]ip address 10.40.1.2 24
[SW2-Vlanif401]vrrp vrid 1 virtual-ip 10.40.1.100
[SW2]interface Vlanif 402
[SW2-Vlanif402]ip binding vpn-instance VRF
[SW2-Vlanif402]ip address 10.40.2.2 24
[SW2-Vlanif402]vrrp vrid 2 virtual-ip 10.40.2.100
[SW2-Vlanif402]vrrp vrid 2 priority 120
[SW2-Vlanif402]vrrp vrid 2 preempt-mode timer delay 60
[SW2-Vlanif402]vrrp vrid 2 track interface GigabitEthernet 0/0/3 reduced 30

（3）FW1

[FW1]vlan batch 401 402 403 404
[FW1]interface GigabitEthernet 1/0/0
[FW1-GigabitEthernet1/0/0]ip add 10.10.10.1 30
[FW1]interface GigabitEthernet 1/0/1.401
[FW1-GigabitEthernet1/0/1.401]ip add 10.40.1.10 24
[FW1-GigabitEthernet1/0/1.401]vlan-type dot1q 401
[FW1]interface GigabitEthernet 1/0/1.402
[FW1-GigabitEthernet1/0/1.402]ip address 10.40.2.10 24
[FW1-GigabitEthernet1/0/1.402]vlan-type dot1q 402
[FW1]interface GigabitEthernet 1/0/2.403
[FW1-GigabitEthernet1/0/2.403]ip address 10.40.3.10 24
[FW1-GigabitEthernet1/0/2.403]vlan-type dot1q 403
[FW1]interface GigabitEthernet 1/0/2.404
[FW1-GigabitEthernet1/0/2.404]ip add 10.40.4.10 24
[FW1-GigabitEthernet1/0/2.404]vlan-type dot1q 404

（4）FW2

[FW2]vlan batch 401 402 403 404
[FW2]interface GigabitEthernet 1/0/0
[FW2-GigabitEthernet1/0/0]ip add 10.10.10.2 30
[FW2]interface GigabitEthernet 1/0/2.401
[FW2-GigabitEthernet1/0/2.401]ip address 10.40.1.20 24
[FW2-GigabitEthernet1/0/2.401]vlan-type dot1q 401
[FW2]interface GigabitEthernet 1/0/2.402
[FW2-GigabitEthernet1/0/2.402]ip add 10.40.2.20 24
[FW2-GigabitEthernet1/0/2.402]vlan-type dot1q 402
[FW2]interface GigabitEthernet 1/0/1.403
[FW2-GigabitEthernet1/0/1.403]ip add 10.40.3.20 24
[FW2-GigabitEthernet1/0/1.403]vlan-type dot1q 403
[FW2]interface GigabitEthernet 1/0/1.404
[FW2-GigabitEthernet1/0/1.404]ip add 10.40.4.20 24
[FW2-GigabitEthernet1/0/1.404]vlan-type dot1q 404

安全区域划分

（1）FW1

[FW1]firewall zone trust
[FW1-zone-trust]add interface GigabitEthernet 1/0/1.401
[FW1-zone-trust]add interface GigabitEthernet 1/0/1.402
[FW1]firewall zone untrust
[FW1-zone-untrust]add interface GigabitEthernet 1/0/2.403
[FW1-zone-untrust]add interface GigabitEthernet 1/0/2.404
[FW1]firewall zone dmz
[FW1-zone-dmz]add interface GigabitEthernet 1/0/0

（2）FW2

[FW2]firewall zone trust
[FW2-zone-trust]add interface GigabitEthernet 1/0/2.401
[FW2-zone-trust]add interface GigabitEthernet 1/0/2.402
[FW2]firewall zone untrust
[FW2-zone-untrust]add interface GigabitEthernet 1/0/1.403
[FW2-zone-untrust]add interface GigabitEthernet 1/0/1.404
[FW2]firewall zone dmz
[FW2-zone-dmz]add interface GigabitEthernet 1/0/0

SW1、SW2的Public区域配置

（1）SW1

[SW1]vlan batch 403 404
[SW1]interface GigabitEthernet 0/0/3
[SW1-GigabitEthernet0/0/3]port link-type trunk
[SW1-GigabitEthernet0/0/3]port trunk allow-pass vlan 403 404
[SW1]interface GigabitEthernet 0/0/4
[SW1-GigabitEthernet0/0/4]port link-type trunk
[SW1-GigabitEthernet0/0/4]port trunk allow-pass vlan 403 404
[SW1]interface Vlanif 403
[SW1-Vlanif403]ip address 10.40.3.1 24
[SW1-Vlanif403]vrrp vrid 3 virtual-ip 10.40.3.100
[SW1-Vlanif403]vrrp vrid 3 priority 120
[SW1-Vlanif403]vrrp vrid 3 preempt-mode timer delay 60
[SW1-Vlanif403]vrrp vrid 3 track interface GigabitEthernet 0/0/3 reduced 30
[SW1]interface Vlanif 404
[SW1-Vlanif404]ip add 10.40.4.1 24
[SW1-Vlanif404]vrrp vrid 4 virtual-ip 10.40.4.100

（2）SW2

[SW2]vlan batch 403 404
[SW2]interface GigabitEthernet 0/0/2
[SW2-GigabitEthernet0/0/2]port link-type trunk
[SW2-GigabitEthernet0/0/2]port trunk allow-pass vlan 403 404
[SW2]interface GigabitEthernet 0/0/4
[SW2-GigabitEthernet0/0/4]port link-type trunk
[SW2-GigabitEthernet0/0/4]port trunk allow-pass vlan 403 404
[SW2]interface  Vlanif 403
[SW2-Vlanif403]ip address 10.40.3.2 24
[SW2-Vlanif403]vrrp vrid 3 virtual-ip 10.40.3.100
[SW2]interface Vlanif 404
[SW2-Vlanif404]ip address 10.40.4.2 24
[SW2-Vlanif404]vrrp vrid 4 virtual-ip 10.40.4.100
[SW2-Vlanif404]vrrp vrid 4 priority 120
[SW2-Vlanif404]vrrp vrid 4 preempt-mode timer delay 60
[SW2-Vlanif404]vrrp vrid 4 track interface GigabitEthernet 0/0/2 reduced 30

路由补充

SW1上行路由：（VRF）
[SW1]ip route-static vpn-instance VRF 0.0.0.0 0 10.40.1.200
[SW1]ip route-static vpn-instance VRF 0.0.0.0 0 10.40.2.200 preference 70
SW1下行路由：（Public）
[SW1]ip route-static 192.168.0.0 16 10.40.3.200
[SW1]ip route-static 192.168.0.0 16 10.40.4.200 preference 70

SW2上行路由：（VRF）
[SW2]ip route-static vpn-instance VRF 0.0.0.0 0 10.40.2.200
[SW2]ip route-static vpn-instance VRF 0.0.0.0 0 10.40.1.200 preference 70
SW2下行路由：（Public）
[SW2]ip route-static 192.168.0.0 16 10.40.4.200
[SW2]ip route-static 192.168.0.0 16 10.40.3.200 preference 70

防火墙双机热备配置

（1）FW1

下行接口：（VRF）
[FW1]interface GigabitEthernet 1/0/1.401
[FW1-GigabitEthernet1/0/1.401]vrrp vrid 5 virtual-ip 10.40.1.200 active
[FW1]interface GigabitEthernet 1/0/1.402
[FW1-GigabitEthernet1/0/1.402]vrrp vrid 6 virtual-ip 10.40.2.200 standby
上行接口：（Public）
[FW1]interface GigabitEthernet 1/0/2.403
[FW1-GigabitEthernet1/0/2.403]vrrp vrid 7 virtual-ip 10.40.3.200 active
[FW1]interface GigabitEthernet 1/0/2.404
[FW1-GigabitEthernet1/0/2.404]vrrp vrid 8 virtual-ip 10.40.4.200 standby

[FW1]hrp mirror session enable      开启快速备份功能
[FW1]hrp interface GigabitEthernet 1/0/0 remote 10.10.10.2    定义心跳线和对端IP
[FW1]hrp enable    启动HRP协议

上行路由配置：
[FW1]ip route-static 0.0.0.0 0 10.40.3.100
[FW1]ip route-static 0.0.0.0 0 10.40.4.100 preference 70
下行路由配置：
[FW1]ip route-static 192.168.0.0 16 10.40.1.100
[FW1]ip route-static 192.168.0.0 16 10.40.2.100 preference 70

（2）FW2

下行接口：（VRF）
[FW2]interface GigabitEthernet 1/0/2.401
[FW2-GigabitEthernet1/0/2.401]vrrp vrid 5 virtual-ip 10.40.1.200 standby
[FW2]interface GigabitEthernet 1/0/2.402
[FW2-GigabitEthernet1/0/2.402]vrrp vrid 6 virtual-ip 10.40.2.200 active
上行接口：（Pubilc）
[FW2]interface GigabitEthernet 1/0/1.403
[FW2-GigabitEthernet1/0/1.403]vrrp vrid 7 virtual-ip 10.40.3.200 standby
[FW2]interface GigabitEthernet 1/0/1.404
[FW2-GigabitEthernet1/0/1.404]vrrp vrid 8 virtual-ip 10.40.4.200 active

[FW2]hrp mirror session enable
[FW2]hrp interface GigabitEthernet 1/0/0 remote 10.10.10.1
[FW2]hrp enable

上行路由配置：
[FW2]ip route-static 0.0.0.0 0 10.40.4.100
[FW2]ip route-static 0.0.0.0 0 10.40.3.100 preference 70
下行路由配置：
[FW2]ip route-static 192.168.0.0 16 10.40.2.100
[FW2]ip route-static 192.168.0.0 16 10.40.1.100 preference 70

4、核心到边界配置

SW1-SW2：VLAN 201 --- 10.20.1.0/24
SW1-R5：VLAN 105 ---- 10.10.5.0/24
SW2-R6：VLAN 206 ---- 10.20.6.0/24
           R5-R6：         ---- 10.56.0.0/24

 配置

（1）SW1

[SW1]vlan batch 11 12
[SW1]interface GigabitEthernet 0/0/1
[SW1-GigabitEthernet0/0/1]port link-type access
[SW1-GigabitEthernet0/0/1]port default vlan 11
[SW1-GigabitEthernet0/0/1]undo stp enable
[SW1]interface GigabitEthernet 0/0/4
[SW1-GigabitEthernet0/0/4]port trunk allow-pass vlan 12
[SW1-GigabitEthernet0/0/4]undo stp enable
[SW1]interface Vlanif 11
[SW1-Vlanif11]ip address 10.11.1.1 24
[SW1]interface Vlanif 12
[SW1-Vlanif12]ip add 10.12.1.1 24
[SW1]ospf 2 router-id 1.1.1.1
[SW1-ospf-2]area 0。0.0.0
[SW1-ospf-2-area-0.0.0.0]network 10.11.1.1 0.0.0.0
[SW1-ospf-2-area-0.0.0.0]network 10.12.1.1 0.0.0.0

（2）SW2

[SW2]vlan batch 12 22
[SW2]interface GigabitEthernet 0/0/1
[SW2-GigabitEthernet0/0/1]port link-type access
[SW2-GigabitEthernet0/0/1]port default vlan 22
[SW2-GigabitEthernet0/0/1]undo stp enable
[SW2]interface GigabitEthernet 0/0/4
[SW2-GigabitEthernet0/0/4]port trunk allow-pass vlan 12
[SW2-GigabitEthernet0/0/4]undo stp enable
[SW2]interface Vlanif 12
[SW2-Vlanif12]ip address 10.12.1.2 24
[SW2]interface Vlanif 22
[SW2-Vlanif22]ip address 10.22.2.1 24
[SW2]ospf 2 router-id 2.2.2.2
[SW2-ospf-2]area 0.0.0.0
[SW2-ospf-2-area-0.0.0.0]network 10.12.1.2 0.0.0.0
[SW2-ospf-2-area-0.0.0.0]network 10.22.2.1 0.0.0.0

（3）R1

[R1]interface GigabitEthernet 0/0/0
[R1-GigabitEthernet0/0/0]ip add 10.11.1.2 24
[R1]interface GigabitEthernet 0/0/1
[R1-GigabitEthernet0/0/1]ip address 10.12.2.1 24

[R1]ospf 1 router-id 3.3.3.3
[R1-ospf-1]area 0.0.0.0
[R1-ospf-1-area-0.0.0.0]network 10.11.1.2 0.0.0.0
[R1-ospf-1-area-0.0.0.0]network 10.12.2.1 0.0.0.0

（4）R2

[R2]interface GigabitEthernet 0/0/0
[R2-GigabitEthernet0/0/0]ip add 10.22.2.2 24
[R2]interface GigabitEthernet 0/0/1
[R2-GigabitEthernet0/0/1]ip add 10.12.2.2 14

[R2]ospf 1 router-id 4.4.4.4
[R2-ospf-1]area 0.0.0.0
[R2-ospf-1-area-0.0.0.0]network 10.22.2.2 0.0.0.0
[R2-ospf-1-area-0.0.0.0]network 10.12.2.2 0.0.0.0

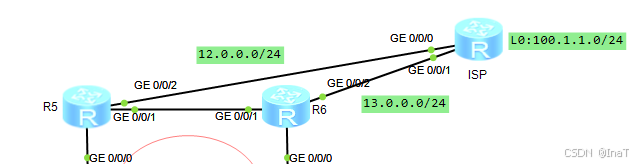

5、最外层网络

（1）R1

[R1]interface GigabitEthernet 0/0/2
[R1-GigabitEthernet0/0/2]ip add 12.0.0.1 24
[R1]ip route-static 0.0.0.0 0 12.0.0.100
[R1-ospf-1]default-route-advertise
[R1]acl 2000
[R1-acl-basic-2000]rule permit source 192.168.0.0 0.0.255.255
[R1]interface GigabitEthernet 0/0/2
[R1-GigabitEthernet0/0/2]nat outbound 2000

（2）R2

[R2]interface GigabitEthernet 0/0/2
[R2-GigabitEthernet0/0/2]ip add 13.0.0.1 24
[R2]ip route-static 0.0.0.0 0 13.0.0.100
[R2-ospf-1]default-route-advertise
[R2]acl 2000
[R2-acl-basic-2000]rule permit source 192.168.0.0 0.0.255.255
[R2]int g 0/0/2
[R2-GigabitEthernet0/0/2]nat outbound 2000

（3）ISP

[ISP]interface GigabitEthernet 0/0/0
[ISP-GigabitEthernet0/0/0]ip add 12.0.0.100 24
[ISP]interface GigabitEthernet 0/0/1
[ISP-GigabitEthernet0/0/1]ip add 13.0.0.100 24
[ISP]interface LoopBack 0
[ISP-LoopBack0]ip add 100.1.1.1 24

（4）引入静态路由

[SW1-ospf-2]import-route static

[SW2-ospf-2]import-route static

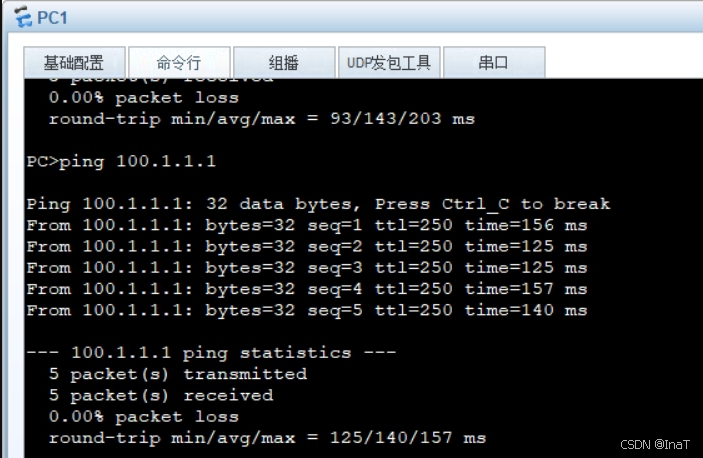

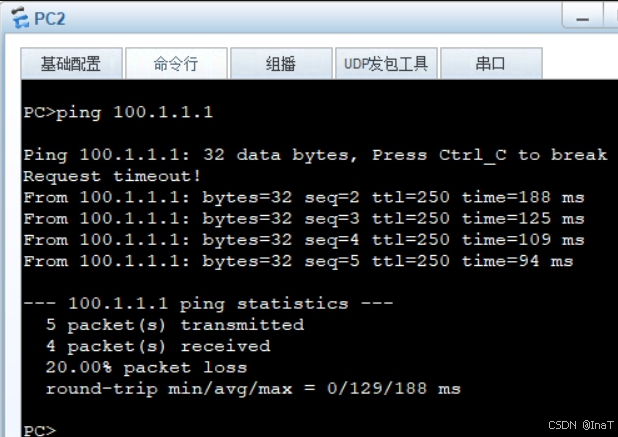

四、测试
