本文介绍了一次面向对象与多线程的综合实验，详细讲解了基于TCP的Java Socket连接过程和多线程编程在档案管理系统中的应用。系统采用Java SE开发，集成Window Builder和MySQL数据库，实现档案的网络管理和查询功能。服务器端通过ServerSocket监听客户端连接，客户端通过Socket发起请求，使用ObjectInputStream和ObjectOutputStream进行序列化通信。为了处理并发连接，引入多线程，确保服务器能高效处理多个客户端请求。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

第四次验收：面向对象与多线程综合实验之网络编程与多线程版本

面向对象与多线程综合实验是一次大项目，总共分为4个部分进行验收，我将分成四个部分展示4个版本的项目工程。希望看到本文章的你，对你有所收获。

档案管理系统简介

档案管理系统：用于规范档案文件管理，构建档案资源信息共享服务平台，为用户提供完整的档案管理和网络查询功能。
• 系统是一个基于C/S的GUI应用程序
• 使用Java SE开发
• 综合运用面向对象编程的相关知识

系统环境

 系统开发环境：JavaSE-12
 集成开发工具：Eclipse Java 2019-06
 GUI开发插件：Window Builder
数据库：MySQL Server 8.0.22+Navicat Premium 12

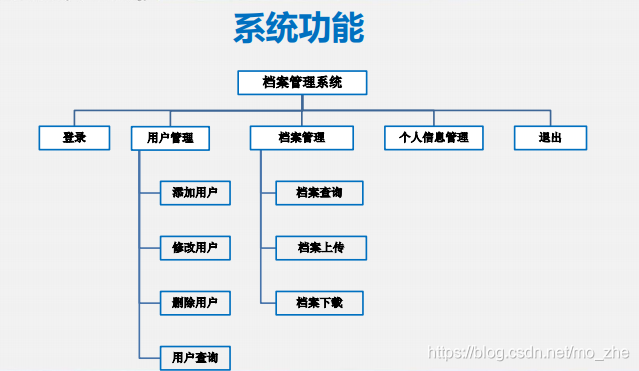

系统功能

在这里插入图片描述

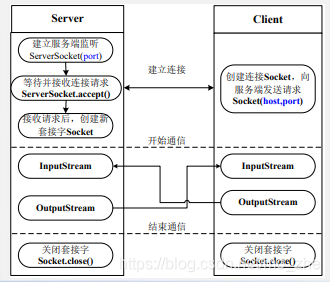

基于TCP的Java Socket连接过程

建立连接的过程
• 服务器端生成一个ServerSocket实例对象，随时监听客户端的连接请求
• 客户端生成一个Socket实例对象，并发出连接请求
• 服务器端通过accept()方法接收到客户端的请求后，新建一个Socket与之进行连接
• 通信都是通过一对InputStream和OutputStream进行的
• 通信结束后，两端分别关闭对应的Socket

在这里插入图片描述

基于TCP的Socket编程

• 由Socket获得的输入流与输出流，可设为ObjectInputStream和
ObjectOutputStream
• 需要设计客户端与服务器端的通信规则，让通信双方明白将要发送的是什么。例如收到>>>CLIENT_FILE_UP，表明客户端要上传档案文件
• 可设计相应的类传送文件的相关属性信息，该类必须可序列化
• 客户端可以直连数据库；也可将所有请求都提交服务器，由服务器连接
数据库，处理相关操作，把结果返还给客户端

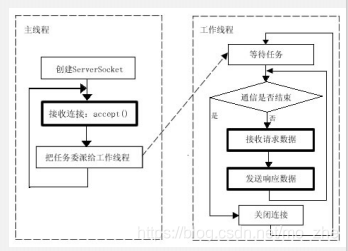

多线程Socket编程

 解决方案
• 引入多线程
• 将与Client通信的任务为派给另一个线程

在这里插入图片描述

以下是本篇文章正文内容，下面案例可供参考

具体实现

1.服务器端

Server.java

数据库加载放在服务器端。
代码如下（示例）：

package Internet1;

import java.io.File;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.IOException;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.net.ServerSocket;
import java.net.Socket;
import java.sql.SQLException;
import java.sql.Timestamp;
import java.util.Enumeration;
import javax.swing.JTextArea;

import MSystem.DataProcessing;
import MSystem.Doc;
import MSystem.User;

public class Server extends ServerSocket
{

  private static JTextArea displayArea; // display information to user
   private static ObjectOutputStream output; // output stream to client
   private static ObjectInputStream input; // input stream from client
   private static Socket connection; // connection to client
   String uploadpath="..\\ManagementSystem-v4(Server)\\uploadfile\\";
   Timestamp timestamp=new Timestamp(System.currentTimeMillis());
   // set up GUI
   private static final int SERVER_PORT =12345;
   public Server()throws IOException, SQLException
   {

     // super( "Server" );
          super(SERVER_PORT);
          try {

              while (true) {

                  Socket socket = accept();
                  System.out.println("Connection "+ " received from: "+socket.getInetAddress().getHostName() );
                  CreateServerThread a=new CreateServerThread();
                  a. ServerThread(socket);//当有请求时，启一个线程处理
              }
          }catch (IOException e) {

          }finally {

              close();
          }
   }

     /* enterField = new JTextField(); // create enterField
      enterField.setEditable( false );
      enterField.addActionListener(
         new ActionListener()
         {
            // send message to client
            public void actionPerformed( ActionEvent event )
            {
               sendData( event.getActionCommand() );
               enterField.setText( "" );
            } // end method actionPerformed
         } // end anonymous inner class
      ); // end call to addActionListener

     /* getContentPane().add( enterField, BorderLayout.NORTH );

      displayArea = new JTextArea(); // create displayArea
      getContentPane().add( new JScrollPane( displayArea ), BorderLayout.CENTER );

      setSize( 300, 150 ); // set size of window
      setVisible( true ); // show window
    // end Server constructor*/

   class CreateServerThread extends Thread {

       //private Socket client;
     /*  private BufferedReader bufferedReader;
       private PrintWriter printWriter;*/

       public void ServerThread(Socket s)throws IOException {

           connection = s;
           output = new ObjectOutputStream(connection.getOutputStream());
           input  =  new ObjectInputStream(connection.getInputStream());
           output.flush();
           //printWriter =new PrintWriter(client.getOutputStream(),true);
           System.out.println("\nGot I/O streams\n");
           System.out.println("Client(" + getName() +") come in...");
           start();
       }
   // set up and run server
  /* public void run()
   {
      try // set up server to receive connections; process connections
      {
         server = new ServerSocket( 12345, 100 ); // create ServerSocket

         while ( true )
         {
            try
            {
               waitForConnection(); // wait for a connection
               getStreams(); // get input & output streams
               processConnection(); // process connection
            } // end try
            catch ( EOFException eofException )
            {
               displayMessage( "\nServer terminated connection" );
            } // end catch
            finally
            {
               closeConnection(); //  close connection
               counter++;
            } // end finally
         } // end while
      } // end try
      catch ( IOException ioException )
      {
         ioException.printStackTrace();
      } // end catch
   } // end method runServer

   // wait for connection to arrive, then display connection info
   private void waitForConnection() throws IOException
   {
      displayMessage( "Waiting for connection\n" );
      connection = server.accept(); // allow server to accept connection
      displayMessage( "Connection " + counter + " received from: " +
         connection.getInetAddress().getHostName() );
   } // end method waitForConnection

   // get streams to send and receive data
   private void getStreams() throws IOException
   {
      // set up output stream for objects
      output = new ObjectOutputStream( connection.getOutputStream() );
      output.flush(); // flush output buffer to send header information

      // set up input stream for objects
      input = new ObjectInputStream( connection.getInputStream() );

      displayMessage( "\nGot I/O streams\n" );
   } // end method getStreams

   // process connection with client*/
   public void run()
   {

      String message = "Connection successful";
      System.out.println( message ); // send connection successful message

      // enable enterField so server user can send messages
     // setTextFieldEditable( true );

      do // process messages sent from client
      {

    	try {

			message =  (String)input.readObject();
			//displayMessage( "\n" + message ); // display message
             System.out.println("Client(" + getName() +") say: " + message);
            if(message.equals("CLIENT>>> CLIENT_LOGIN")) {

            	String name = null;
            	name = (String)input.readObject();
            	String password = null;
				password = (String)input.readObject();
            	if(DataProcessing.search(name, password)!=null) {

            		sendData("CLIENT_LOGIN_TRUE");
            		String role=DataProcessing.getrole(name);
            		output.writeObject(role);
            		 output.flush();
            	}
            	else {

            		sendData("CLIENT_LOGIN_FALSE");

            	}
            } else if(message.equals("CLIENT>>> CLIENT_CHANGESELF")) {

        	 String name=(String)input.readObject();
        	 String password=(String)input.readObject();
        	 String role=(String)input.readObject();
        	 try {

				if(DataProcessing.updateUser(name, password, role))
				 {

					sendData("CLIENT_CHANGESELF_TRUE");
					 output.writeObject(password);
					 output.flush();

				 }
				else sendData("CLIENT_CHANGESELF_FAlSE");

			} catch (SQLException e) {

				// TODO Auto-generated catch block
				e.printStackTrace();
			}
         }

 		else if(message.equals("CLIENT>>> CLIENT_DELETEUSER")) {

			String name=(String)input.readObject();
			try {

				if(DataProcessing.deleteUser(name))
					sendData("CLIENT_DELETEUSER_TRUE");
				else
					sendData("CLIENT_DELETEUSER_FALSE");
			} catch (SQLException e) {

				// TODO Auto-generated catch block
				e.printStackTrace();
			}
		}
		else if(message.equals("CLIENT>>> CLIENT_INSERTUSER")) {

			String name=(String)input.readObject();
			String password=(String)input.readObject();
			String role=(String)input.readObject();
			try {

				if(DataProcessing.insertUser(name, password, role))
					sendData("CLIENT_INSERTUSER_TRUE");
				else
					sendData("CLIENT_INSERTUSER_FALSE");
			} catch (SQLException e) {

				// TODO Auto-generated catch block
				e.printStackTrace();
			}
		}
		else if(message.equals("CLIENT>>> CLIENT_UPDATEUSER")) {

			String name=(String)input.readObject();
			String password=(String)input.readObject();
			String role=(String)input.readObject();
			try {

				if(DataProcessing.updateUser(name, password, role))
					sendData("CLIENT_UPDATEUSER_TRUE");
				else
					sendData("CLIENT_UPDATEUSER_FALSE");
			} catch (SQLException e) {

				// TODO Auto-generated catch block
				e.printStackTrace();
			}
		}
		else if(message.equals("CLIENT>>> CLIENT_UPLOADFILE")) {

			String ID=(String)input.readObject();
			String creator=(String)input.readObject();
			String description=(String)input.readObject();
			String filename=(String)input.readObject();
			Long filelength=input.readLong();
			byte[] buffer=new byte[1024];
			int l=0;
			FileOutputStream out=new FileOutputStream(new File(uploadpath+filename));
			System.out.println("开始接收文件<"+filename+">,文件大小为<"+filelength+">");
			while(true) {

				int read=input.read(buffer,0,buffer.length);
				if(read==-1) break;
				l+=read;
				System.out.println("接收文件的进度"+100.0*l/filelength+"%...");
				out.write(buffer,0,read);
				out.flush();
				if(l>=filelength)break;
			}
			out.close();
			System.out.println("接收文件<"+filename+">成功");
			try {

				if(DataProcessing.insertDoc(ID, creator, timestamp, description, filename))
					sendData("CLIENT_UPLOADFILE_TRUE");
				else
					sendData("CLIENT_UPLOADFILE_FALSE");
			} catch (SQLException e) {

				// TODO Auto-generated catch block
				e.printStackTrace();
			}
		}
		else if(message.equals("CLIENT>>> CLIENT_DOWNLOADFILE")) {

			sendData("CLIENT_DOWNLOADFILEING");
			String ID=(String)input.readObject();
			String filename = DataProcessing.searchDoc(ID).getFilename();
			File file=new File(uploadpath+filename);
			long fileLength=file.length();
			output.writeObject(filename);
			output.flush();
			output.writeLong(fileLength);
		    output.flush();
			FileInputStream in=new FileInputStream(file);
		    byte[] buffer=new byte[1024];
		    int length=in.read(buffer,0,buffer.length);
		    while(length>0) {

			    output.write(buffer,0,length);
			    output.flush();
		    }
		    in.close();
		}else if(message.equals("CLIENT>>> CLIENT_LISTUSER")) {

			Enumeration<User> e=DataProcessing.getAllUser();
			String[][] rowData=new String[50][3];
			User user=null;
			int x=0;
			while(e.hasMoreElements()) {

				user=e.nextElement();
				rowData[x][0]=user.getName();
				rowData[x][1]=user.getPassword();
				rowData[x][2]=user.getRole();
				x++;
			}
			sendData("CLIENT_LISTUSER");
			output.writeInt(x);
			output.flush();
			for(int j=0;j<x;j++) {

				for(int a=0;a<3;a++) {

				output.writeObject(rowData[j][a]);
				output.flush();
				}
			}
		}
		else if(message.equals("CLIENT>>> CLIENT_LISTDOC")) {

			Enumeration<Doc> e=DataProcessing.getAllDocs();
			String[][] rowData=new String[50][5];
			Doc doc=null;
			int i=0;
			while(e.hasMoreElements()) {

				doc=e.nextElement();
				rowData[i][0]=doc.getID();
				rowData[i][1]=doc.getCreator();
				rowData[i][2]=doc.getTimestamp().toString();
				rowData[i][3]=doc.getFilename();
				rowData[i][4]=doc.getDescription();
				i++;
			}
			sendData("CLIENT_LISTDOC");
			output.writeInt(i);
			output.flush();
			for(int j=0;j<i;j++) {

				for(int i1=0;i1<=4;i1++) {

				output.writeObject(rowData[j][i1]);
				output.flush();
			}
			}
		}

         // end try
         }catch (SQLException e) {

			// TODO Auto-generated catch block
			e.printStackTrace();
		} catch (ClassNotFoundException e) {

			// TODO Auto-generated catch block
			e.printStackTrace();
		} catch (IOException e) {

			// TODO Auto-generated catch block
			e.printStackTrace();
		}
      } while ( !message.equals( "CLIENT>>> TERMINATE" ) );
      System.out.println("Client(" + getName() +") exit!");
   }
   // close streams and socket
@SuppressWarnings("unused")
private void closeConnection()
   {

      //displayMessage( "\nTerminating connection\n" );
     // setTextFieldEditable( false ); // disable enterField

      try
      {

         output.close(); // close output stream
         input.close(); // close input stream
         connection.close(); // close socket
      } // end try
      catch ( IOException ioException )
      {

         ioException.printStackTrace();
      } // end catch
   } // end method closeConnection

   // send message to client
   private void sendData( String message )
   {

      try // send object to client
      {

         output.writeObject( "SERVER>>> " + message );
         output.flush(); // flush output to client
         System.out.println(  "\nSERVER>>> "+"Client(" + getName() +"): " +  message );
      } // end try
      catch ( IOException ioException )
      {

         displayArea.append( "\nError writing object" );
      } // end catch
   } // end method sendData

   // manipulates displayArea in the event-dispatch thread
   /*private void di

最低0.47元/天解锁文章
