最近因项目需要,需将Qt工具测试到的数据通过Excel文件存储,在Qt下以前没弄过对Excel的操作,网上铺天盖地的一顿好找,终于,皇天不负有心人,Excel方面已经能满足项目需求了,现将代码整理,方便坛友与自己后续使用。。。

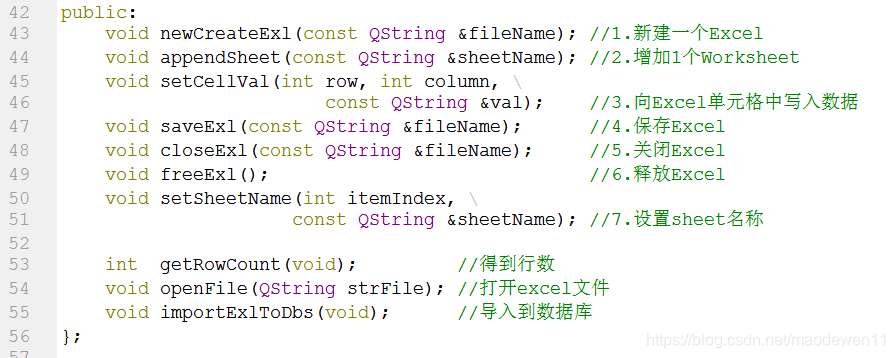

接口方法
截图如下:
其中导入到数据库还需完善,其它功能都测试通过,今天实在有点乏了!

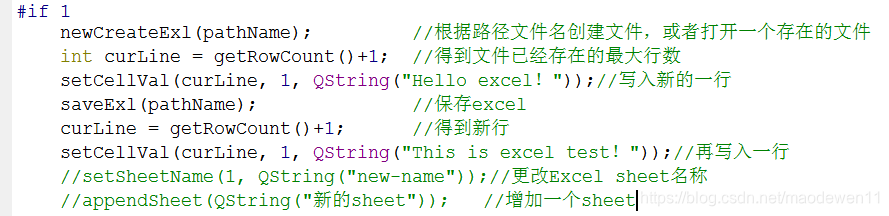

测试代码
创建或者打开一个Excel文件,然后在新行写入字符串!

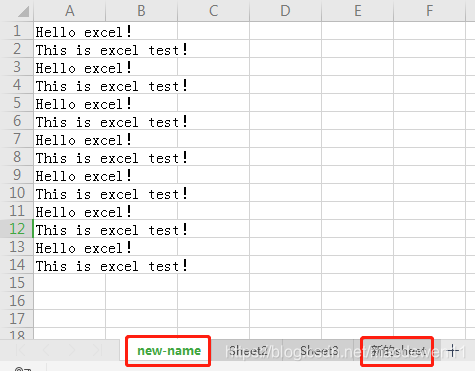

测试结果
结果显示可以按行累加写入字符串,可以增加sheet,也可以对sheet重命名!
详细代码
widget.h文件
#ifndef WIDGET_H
#define WIDGET_H
#include <QWidget>
#include <QAxObject>
#include <QDebug>
namespace Ui {
class Widget;
}
class Widget : public QWidget
{
Q_OBJECT
public:
explicit Widget(QWidget *parent = 0);
~Widget();
private:
Ui::Widget *ui;
QAxObject* m_pApplication;
QAxObject* m_pWorkBooks;
QAxObject* m_pWorkBook;
QAxObject* m_pSheets;
QAxObject* m_pSheet;
int m_totalRowCnt;
public:
void newCreateExl(const QString &fileName); //1.新建一个Excel
void appendSheet(const QString &sheetName); //2.增加1个Worksheet
void setCellVal(int row, int column, \
const QString &val); //3.向Excel单元格中写入数据
void saveExl(const QString &fileName); //4.保存Excel
void closeExl(const QString &fileName); //5.关闭Excel
void freeExl(); //6.释放Excel
void setSheetName(int itemIndex, \
const QString &sheetName); //7.设置sheet名称
int getRowCount(void); //得到行数
void openFile(QString strFile); //打开excel文件
void importExlToDbs(void); //导入到数据库
};
#endif
widget.c文件代码
#include "widget.h"
#include "ui_widget.h"
#include <QFileDialog>
#include <QVariant>
#include <QFile>
#include <QDir>
QString pathName = "E:/last.xlsx";
Widget::Widget(QWidget *parent) : QWidget(parent), ui(new Ui::Widget)
{
ui->setupUi(this);
m_pApplication = NULL;
m_pWorkBooks = NULL;
m_pWorkBook = NULL;
m_pSheets = NULL;
m_pSheet = NULL;
#if 1
newCreateExl(pathName); //根据路径文件名创建文件,或者打开一个存在的文件
int curLine = getRowCount()+1; //得到文件已经存在的最大行数
setCellVal(curLine, 1, QString("Hello excel!"));//写入新的一行
saveExl(pathName); //保存excel
curLine = getRowCount()+1; //得到新行
setCellVal(curLine, 1, QString("This is excel test!"));//再写入一行
//setSheetName(1, QString("new-name"));//更改Excel sheet名称
//appendSheet(QString("新的sheet")); //增加一个sheet
#else
//获取Excel文件
QString strFile = QFileDialog::getOpenFileName(this,\
QStringLiteral("选择Exl文件"),"",tr("Exel file(*.xls *.xlsx *.xlsm)"));
if (strFile.isEmpty()){
qDebug("File is empty!\n");
return;
}
qDebug() << strFile;
openFile(strFile);
#endif
}
Widget::~Widget()
{
delete ui;
saveExl(pathName);
closeExl(pathName);
freeExl();
}
void Widget::saveExl(const QString &fileName)
{
if(m_pWorkBook != NULL) {
m_pWorkBook->dynamicCall("SaveAs(const QString &)", QDir::toNativeSeparators(fileName));
}
}
void Widget::closeExl(const QString &fileName)
{
if(m_pWorkBook != NULL) {
m_pWorkBook->dynamicCall("Close(const QString &)", QDir::toNativeSeparators(fileName));
}
}
void Widget::freeExl()
{
if (m_pApplication != NULL) {
m_pApplication->dynamicCall("Quit()");
delete m_pApplication;
m_pApplication = NULL;
}
}
void Widget::newCreateExl(const QString &fileName)
{
m_pApplication = new QAxObject(this);
m_pApplication->setControl("Excel.Application");//连接Exl控件
m_pApplication->dynamicCall("SetVisible(bool)", false);//false不显示窗体
m_pApplication->setProperty("DisplayAlerts", false);//不显示任何警告信息。
m_pWorkBooks = m_pApplication->querySubObject("Workbooks");
QFile file(fileName);
if (file.exists()){
qDebug("%s file exists\n", fileName.toStdString().c_str());
m_pWorkBook = m_pWorkBooks->querySubObject("Open(const QString &)", fileName);
}
else {
qDebug("%s file not exists\n", fileName.toStdString().c_str());
m_pWorkBooks->dynamicCall("Add");
m_pWorkBook = m_pApplication->querySubObject("ActiveWorkBook");
}
m_pSheets = m_pWorkBook->querySubObject("Sheets");
m_pSheet = m_pSheets->querySubObject("Item(int)", 1);
}
void Widget::appendSheet(const QString &sheetName)
{
int nCount = m_pSheets->property("Count").toInt();
QAxObject *pLastSheet = m_pSheets->querySubObject("Item(int)", nCount);
m_pSheets->querySubObject("Add(QVariant)", pLastSheet->asVariant());
m_pSheet = m_pSheets->querySubObject("Item(int)", nCount);
pLastSheet->dynamicCall("Move(QVariant)", m_pSheet->asVariant());
m_pSheet->setProperty("Name", sheetName);
}
int Widget::getRowCount(void)
{
QAxObject* range = m_pSheet->querySubObject("UsedRange"); //获取该sheet的使用范围对象
QVariant var = range->dynamicCall("Value");
delete range;
QVariantList varRows = var.toList(); //得到表格中的所有数据
if(varRows.isEmpty()){
m_totalRowCnt = 0;
qDebug("varRows is empty\n");
return 0;
}
m_totalRowCnt = varRows.size();
qDebug("rowCount:%d\n", m_totalRowCnt);
return m_totalRowCnt;
}
void Widget::setCellVal(int row, int column, const QString &value)
{
row = (row < 1)? 1 : row;
column = (column < 1)? 1 : column;
QAxObject *pRange = m_pSheet->querySubObject("Cells(int,int)", row, column);
pRange->dynamicCall("Value", value);
}
void Widget::setSheetName(int itemIndex, const QString &sheetName)
{
int nCount = m_pSheets->property("Count").toInt();
if(itemIndex <= nCount) {
QAxObject *pCurSheet = m_pSheets->querySubObject("Item(int)", itemIndex);
pCurSheet->setProperty("Name", sheetName);
}
}
完整工程地址
因文档无法将有些文件全部贴出来,需要完整工程的朋友可通过如下链接下载,我所用的开发环境是win7+Qt 5.9,
链接:https://download.youkuaiyun.com/download/maodewen11/13287709
