python画3d公式图

画一个z=x+y

import math
from typing import Union

import pyecharts.options as opts
from pyecharts.charts import Surface3D


def float_range(start: int, end: int, step: Union[int, float], round_number: int = 2):
    """
    浮点数 range
    :param start: 起始值
    :param end: 结束值
    :param step: 步长
    :param round_number: 精度
    :return: 返回一个 list
    """
    temp = []
    while True:
        if start < end:
            temp.append(round(start, round_number))
            start += step
        else:
            break
    return temp


def surface3d_data():
    for t0 in float_range(-3, 3, 0.05):#z轴范围
        y = t0
        for t1 in float_range(-3, 3, 0.05):
            x = t1
            z = x+y#自己需要画的式子
            yield [x, y, z]


(
    Surface3D(init_opts=opts.InitOpts(width="1600px", height="800px"))
    .add(
        series_name="",
        shading="color",
        data=list(surface3d_data()),
        xaxis3d_opts=opts.Axis3DOpts(type_="value"),
        yaxis3d_opts=opts.Axis3DOpts(type_="value"),
        grid3d_opts=opts.Grid3DOpts(width=100, height=40, depth=100),
    )
    .set_global_opts(
        visualmap_opts=opts.VisualMapOpts(
            dimension=2,
            max_=1,
            min_=-1,
            range_color=[
                "#313695",
                "#4575b4",
                "#74add1",
                "#abd9e9",
                "#e0f3f8",
                "#ffffbf",
                "#fee090",
                "#fdae61",
                "#f46d43",
                "#d73027",
                "#a50026",
            ],
        )
    )
    .render("surface_wave.html")
)

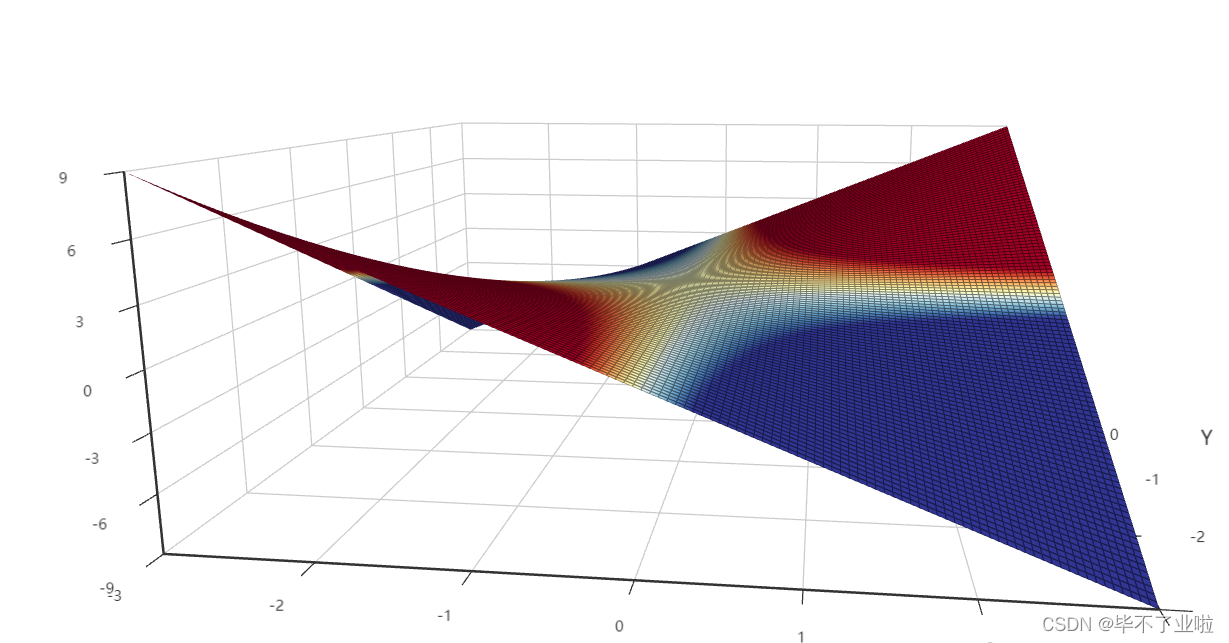

画z=X*y,在代码z=X+y改成z=X*y即可
