segdec-net
https://paperswithcode.com/paper/segmentation-based-deep-learning-approach-for论文模型解读复现。（自用）
代码详细解释在注释中。
目录
环境：python=3.6 tensorflow=1.4.0
环境搭建：
由于源代码适用tensorflow版本过低，Intel没有合适的cpu/gpu优化。
对于2.x以上的tensorflow / pytorch， Intel可以使用 oneAPI 优化。
使用jupyter搭建虚拟环境，至于tensorflow低版本可以在阿里云镜像源找到。（本人查找了清华源豆瓣源，反正是没有找到）。还有就是虚拟环境python版本不要过低，会导致pip旧包警告，可以使用python -m pip~~~解决部分问题，不过还是不建议过低，使用3.5/3.6即可。
使用3.x会有print问题，简单修改一下代码就可以。

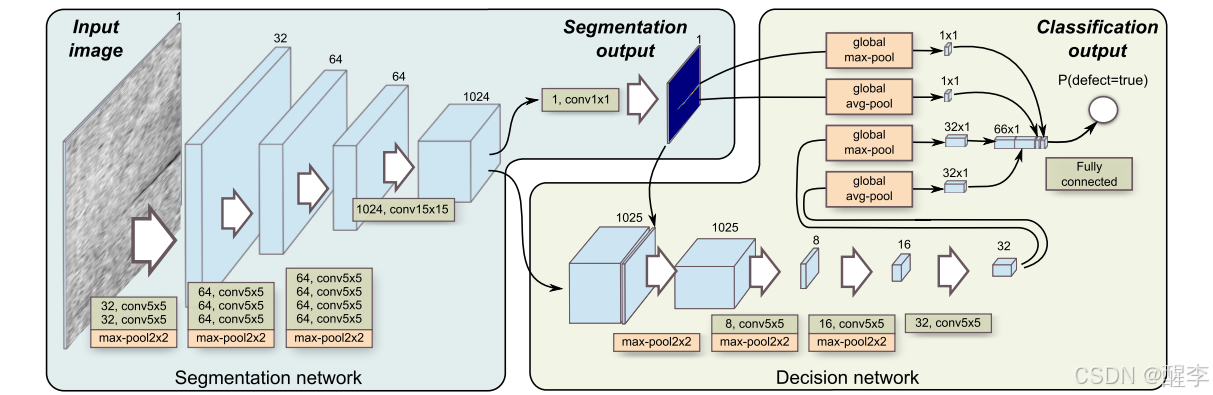

模型架构：
决策网络paper中提供了012三种选择（逐渐复杂）
代码解读：
对于分割网络和决策网络分开训练，决策网络又有
segdec_model.py:
定义了一个SegDecModel类。封装了模型的构建、推理、损失计算以及权重加载（预训练）等。
核心功能：分割网络、决策网络、灵活配置（决策网络的012复杂程度）
BATCHNORM_MOVING_AVERAGE_DECAY = 0.9997
#用于批量归一化中的移动平均
MOVING_AVERAGE_DECAY = 0.9999
#用于模型参数的全局移动平均
DECISION_NET_NONE = 0 #表示不使用决策网络
DECISION_NET_LOGISTIC = 1 #表示使用逻辑回归作为决策网络get_decsion_net_simple
DECISION_NET_FULL = 2 #表示使用完整的决策网络get_decision_net
批量归一化：是一种常用的正则化技术，通过在每个批次的数据上
计算均值和方差来标准化输入数据，加速训练并提高模型稳定性。
批量归一化过程中，使用移动平均估计全局的均值和方差。__init__
参数初始化
def __init__(self,
use_corss_entropy_seg_net=True,
positive_weight=1,
decision_net=DECISION_NET_NONE,
decision_positive_weight=1,
load_from_seg_only_net=False):
#设置模型参数，是否使用交叉熵，正样本权重，
#决策网络类型以及是否从分割网络的预训练模型中加载权重等等
# weight for positive samples in segmentation net
self.positive_weight = positive_weight
# weight for positive samples in decision net
self.decision_positive_weight = decision_positive_weight
if decision_net == SegDecModel.DECISION_NET_NONE:
self.decision_net_fn = lambda net, net_prob_mat: None
elif decision_net == SegDecModel.DECISION_NET_LOGISTIC:
self.decision_net_fn = self.get_decision_net_simple
elif decision_net == SegDecModel.DECISION_NET_FULL:
self.decision_net_fn = self.get_decision_net
self.use_corss_entropy_seg_net = use_corss_entropy_seg_net
# this is only when loading from pre-trained network of segmetnation that did not have decision net layers
# present at the same time
self.load_from_seg_only_net = load_from_seg_only_netget_inference
构建模型的推理部分，返回分割网络的输出和决策网络的输出。
使用卷积层和池化层构建分割网络。调用了decision_net_fn函数生成决策网络输出。
返回分割网络输出和决策网络输出以及中间端点（方便可视化）。
#构造推理模型，卷积池化等等，调用决策网络输出结果
# inputs:输入的图片
# num_classes:类别数量
# for_training:是否是训练模式
# restore_logits:是否恢复logits
# scope:前缀
def get_inference(self, inputs, num_classes, for_training=False, restore_logits=True, scope=None):
""" Build model
Args:
images: Images returned from inputs() or distorted_inputs().
num_classes: number of classes
for_training: If set to `True`, build the inference model for training.
Kernels that operate differently for inference during training
e.g. dropout, are appropriately configured.
restore_logits: whether or not the logits layers should be restored.
Useful for fine-tuning a model with different num_classes.
scope: optional prefix string identifying the ImageNet tower.
Returns:
Logits. 2-D float Tensor.
Auxiliary Logits. 2-D float Tensor of side-head. Used for training only.
"""
with variable_scope.variable_scope(scope, 'SegDecNet', [inputs]) as sc:
end_points_collection = sc.original_name_scope + '_end_points'
# Collect outputs for conv2d, max_pool2d
with arg_scope(
[layers.conv2d, layers.fully_connected, layers_lib.max_pool2d, layers.batch_norm],
outputs_collections=end_points_collection):
# Apply specific parameters to all conv2d layers (to use batch norm and relu - relu is by default)
with arg_scope([layers.conv2d, layers.fully_connected],
weights_initializer= lambda shape,dtype=tf.float32, partition_info=None: tf.random_normal(shape, mean=0,stddev=0.01, dtype=dtype),
biases_initializer=None,
normalizer_fn=layers.batch_norm,
normalizer_params={'center': True,
'scale': True,
#'is_training': for_training, # we disable this to do feature normalization (but requires batch size=1)
'decay': self.BATCHNORM_MOVING_AVERAGE_DECAY, # Decay for the moving averages.
'epsilon': 0.001, # epsilon to prevent 0s in variance.
}):
net = layers_lib.repeat(inputs, 2, layers.conv2d, 32, [5, 5], scope='conv1')
net = layers_lib.max_pool2d(net, [2, 2], scope='pool1')
net = layers_lib.repeat(net, 3, layers.conv2d, 64, [5, 5], scope='conv2')
net = layers_lib.max_pool2d(net, [2, 2], scope='pool2')
net = layers_lib.repeat(net, 4, layers.conv2d, 64, [5, 5], scope='conv3')
net = layers_lib.max_pool2d(net, [2, 2], scope='pool3')
net = layers.conv2d(net, 1024, [15, 15], padding='SAME', scope='conv4')
net_prob_mat = layers.conv2d(net, 1, [1, 1], scope='conv5',
activation_fn=None)
decision_net = self.decision_net_fn(net, tf.nn.relu(net_prob_mat))
# Convert end_points_collection into a end_point dict.
endpoints = utils.convert_collection_to_dict(end_points_collection)
# Add summaries for viewing model statistics on TensorBoard.
self._activation_summaries(endpoints)
return net_prob_mat, decision_net, endpointsget_decision_net_simple
实现简单的逻辑回归作为决策网络。
使用全局平均池化和全局最大池化提取特征。
将池化结果拼接后通过一个卷积层生成最终的决策输出。
#简单的决策网络：全连接和最大池化然后卷积
def get_decision_net_simple(self, net, net_prob_mat):
avg_output = keras.layers.GlobalAveragePooling2D()(net_prob_mat)
max_output = keras.layers.GlobalMaxPooling2D()(net_prob_mat)
decision_net = tf.concat([avg_output, max_output], 3)
decision_net = layers.conv2d(decision_net, 1, [1, 1], scope='decision6',
normalizer_fn=None,
weights_initializer=initializers.xavier_initializer_conv2d(False),
biases_initializer=tf.constant_initializer(0),
activation_fn=None)
return decision_netget_decision_net
复杂的决策网络
包含多个卷积层和池化层，逐步提取高层次特征。
最后使用全局平均池化和全局最大池化提取最终特征，并通过全连接层生成决策输出。
# 复杂的决策网络：卷积池化然后卷积
def get_decision_net(self, net, net_prob_mat):
with tf.name_scope('decision'):
decision_net = tf.concat([net, net_prob_mat],axis=3)
decision_net = layers_lib.max_pool2d(decision_net, [2, 2], scope='decision/pool4')
decision_net = layers.conv2d(decision_net, 8, [5, 5], padding='SAME', scope='decision/conv6')
decision_net = layers_lib.max_pool2d(decision_net, [2, 2], scope='decision/pool5')
decision_net = layers.conv2d(decision_net, 16, [5, 5], padding='SAME', scope='decision/conv7')
decision_net = layers_lib.max_pool2d(decision_net, [2, 2], scope='decision/pool6')
decision_net = layers.conv2d(decision_net, 32, [5, 5], scope='decision/conv8')
with tf.name_scope('decision/global_avg_pool'):
avg_decision_net = keras.layers.GlobalAveragePooling2D()(decision_net)
with tf.name_scope('decision/global_max_pool'):
max_decision_net = keras.layers.GlobalMaxPooling2D()(decision_net)
with tf.name_scope('decision/global_avg_pool'):
avg_prob_net = keras.layers.GlobalAveragePooling2D()(net_prob_mat)
with tf.name_scope('decision/global_max_pool'):
max_prob_net = keras.layers.GlobalMaxPooling2D()(net_prob_mat)
# adding avg_prob_net and max_prob_net may not be needed, but it doesen't hurt
decision_net = tf.concat([avg_decision_net, max_decision_net, avg_prob_net, max_prob_net], axis=1)
decision_net = layers.fully_connected(decision_net, 1, scope='decision/FC9',
normalizer_fn=None,
biases_initializer=tf.constant_initializer(0),
activation_fn=None)
return decision_net
get_loss
计算分割网络和决策网络的损失
根据use_cross_entropy_seg_net参数选择分割网络的损失函数（MSE/Cross）
决策网络使用sigmoid交叉熵损失函数。
#计算损失函数
def get_loss(self, net_model, masks, batch_size=None, return_segmentation_net=True, return_decision_net=True, output_resolution_reduction=8):
"""Adds all losses for the model.
Note the final loss is not returned. Instead, the list of losses are collected
by slim.losses. The losses are accumulated in tower_loss() and summed to
calculate the total loss.
Args:
logits: List of logits from inference(). Each entry is a 2-D float Tensor.
labels: Labels from distorted_inputs or inputs(). 1-D tensor
of shape [batch_size]
batch_size: integer
"""
#检查批次大小参数
if not batch_size:
raise Exception("Missing batch_size")
#解包输入，将net_momdel,分为分割网络输出、决策网络输出、中间端点
net, decision_net, endpoints = net_model
#处理掩码分辨率，处理后有助于减少计算量并适应不同分辨率的输入
if output_resolution_reduction > 1:
mask_blur_kernel = [output_resolution_reduction*2+1, output_resolution_reduction*2+1]
masks = layers_lib.avg_pool2d(masks, mask_blur_kernel, stride=output_resolution_reduction, padding='SAME', scope='pool_mask',outputs_collections='tower_0/_end_points')
#转换掩码格式，如果不使用交叉熵损失函数，就将masks转换成布尔值，表示像素是否大于0.5
if self.use_corss_entropy_seg_net is False:
masks = tf.greater(masks, tf.constant(0.5))
#记录预测结果，将分割网络的输出net记录为预测结果
predictions = net
tf.summary.image('prediction', predictions)
#分别记录分割网络和决策网络的损失
l1 = None
l2 = None
#计算分割网络的损失
#若positive_weight>1，动态调整正负样本的数量，应对类别不平衡问题。
#归一化权重，确保权重总和等于元素数量
#损失函数MSE/交叉熵
if return_segmentation_net:
if self.positive_weight > 1:
pos_pixels = tf.less(tf.constant(0.0), masks)
neg_pixels = tf.greater_equal(tf.constant(0.0), masks)
num_pos_pixels = tf.cast(tf.count_nonzero(pos_pixels), dtype=tf.float32)
num_neg_pixels = tf.cast(tf.count_nonzero(neg_pixels), dtype=tf.float32)
pos_pixels = tf.cast(pos_pixels, dtype=tf.float32)
neg_pixels = tf.cast(neg_pixels, dtype=tf.float32)
positive_weight = tf.cond(num_pos_pixels > tf.constant(0,dtype=tf.float32),
lambda: tf.multiply(tf.div(num_neg_pixels, num_pos_pixels),
tf.constant(self.positive_weight,dtype=tf.float32)),
lambda: tf.constant(self.positive_weight, dtype=tf.float32))
positive_weight = tf.reshape(positive_weight, [1])
# weight positive samples more !!
weights = tf.add(neg_pixels, tf.multiply(pos_pixels, positive_weight))
# noramlize weights so that the sum of weights is always equal to the num of elements
N = tf.constant(weights.shape[1]._value * weights.shape[2]._value, dtype=tf.float32)
factor = tf.reduce_sum(weights,axis=[1,2])
factor = tf.divide(N, factor)
weights = tf.multiply(weights, tf.reshape(factor,[-1,1,1,1]))
if self.use_corss_entropy_seg_net is False:
l1 = tf.losses.mean_squared_error(masks, predictions, weights=weights)
else:
l1 = tf.losses.sigmoid_cross_entropy(logits=predictions, multi_class_labels=masks, weights=weights) # NOTE: weights were added but not tested yet !!
else:
if self.use_corss_entropy_seg_net is False:
l1 = tf.losses.mean_squared_error(masks, predictions)
else:
l1 = tf.losses.sigmoid_cross_entropy(logits=predictions,multi_class_labels=masks)
#计算决策网络的损失
#这里将masks转换为浮点数，并计算每张图像的正样本比例作为决策网络的标签。
#根据decision_net的维度，进行适当的压缩，使形状符合要求
#损失利用交叉熵损失函数计算，并应用decision_positive_weight来调整正样本的权重
if return_decision_net:
with tf.name_scope('decision'):
masks = tf.cast(masks, tf.float32)
label = tf.minimum(tf.reduce_sum(masks, [1, 2, 3]), tf.constant(1.0))
if len(decision_net.shape) == 2:
decision_net = tf.squeeze(decision_net, [1])
elif len(decision_net.shape) == 4:
decision_net = tf.squeeze(decision_net, [1, 2, 3])
else:
raise Exception("Only 2 or 4 dimensional output expected for decision_net")
decision_net = tf.reshape(decision_net,[-1,1])
label = tf.reshape(label, [-1, 1])
l2 = tf.losses.sigmoid_cross_entropy(logits=decision_net,multi_class_labels=label, weights=self.decision_positive_weight)
return [l1,l2]restore
权重加载，这与 init 中的是否从预训练的网络中加载权重对应。
如果 load_from_seg_only_net 为 true，就过滤掉决策网络相关的变量。恢复权重。
def restore(self, session, model_checkpoint_path, variables_to_restore = None, load_from_seg_only_net=False):
if variables_to_restore is None:
variables_to_restore = tf.trainable_variables()# + tf.moving_average_variables() # tf.moving_average_variables is required only in TF r1.1
# this is only when loading from pre-trained network of segmetnation that did not have decision net layers
# present at the same time
if load_from_seg_only_net:
variables_to_restore = [v for v in variables_to_restore if v.name.count('decision') == 0]
saver = tf.train.Saver(variables_to_restore)
try:
saver.restore(session, model_checkpoint_path)
except:
# remove decision variables if cannot load them
if type(variables_to_restore) is dict:
variables_to_restore = [variables_to_restore[v] for v in variables_to_restore.keys() if v.find('decision') < 0]
else:
variables_to_restore = [v for v in variables_to_restore if v.name.find('decision') < 0]
saver = tf.train.Saver(variables_to_restore)
saver.restore(session, model_checkpoint_path)
_activation_summary
用于生成 TensorBoard 中的激活统计信息（直方图和稀疏性）
#为张量x创建两个类型的摘要
#直方图摘要：记录激活值的分布情况
#稀疏性摘要：记录激活值中0的比例
def _activation_summary(self, x):
"""Helper to create summaries for activations.
Creates a summary that provides a histogram of activations.
Creates a summary that measure the sparsity of activations.
Args:
x: Tensor
"""
# Remove 'tower_[0-9]/' from the name in case this is a multi-GPU training
# session. This helps the clarity of presentation on tensorboard.
#清理操作，清理掉GPU训练时的GPU名次
tensor_name = re.sub('%s_[0-9]*/' % self.TOWER_NAME, '', x.op.name)
#创建直方图摘要
tf.summary.histogram(tensor_name + '/activations', x)
#创建稀疏性摘要
tf.summary.scalar(tensor_name + '/sparsity', tf.nn.zero_fraction(x))_activation_summaries
遍历所有的中间端点，调用_activation_summary方法生成统计信息。
def _activation_summaries(self, endpoints):
with tf.name_scope('summaries'):
for act in endpoints.values():
self._activation_summary(act)
segdec_train.py
用于训练和评估分割决策网络，定义了一个SegDecTrain的类。
封装了模型训练、评估、权重加载以及可视化等等。
核心功能：
模型训练：支持GPU并行训练（这个我没有实现），提供学习率调度、梯度裁剪、权重初始化
模型评估：在测试数据集上评估模型性能，生成PRC、ROC曲线等
权重管理：支持从预训练的模型加载权重，并可以选择性冻结某些层的参数
可视化：通过TesorBoard 提供可视化，包括激活值分布、权重可视化、损失曲线等
__init__
参数初始化，数据预处理（NetInputProcessing 随机旋转、正负样本平衡）
def __init__(self, model, storage_dir, run_string, image_size, batch_size,
learning_rate = 0.01,
max_epochs = 1000,
max_steps = 10000000,
num_gpus = 1,
visible_device_list = None,
num_preprocess_threads = 1,
pretrained_model_checkpoint_path = None,
train_segmentation_net = True,
train_decision_net = False,
use_random_rotation=False,
ensure_posneg_balance=True):
self.model = model
run_train_string = run_string[0] if type(run_string) is tuple else run_string
run_eval_string = run_string[1] if type(run_string) is tuple else run_string
self.visible_device_list = visible_device_list
self.batch_size = batch_size
self.train_dir = os.path.join(storage_dir, 'segdec_train', run_train_string) # Directory where to write event logs and checkpoint.
self.eval_dir = os.path.join(storage_dir, 'segdec_eval', run_eval_string)
# Takes number of learning batch iterations based on min(self.max_steps, self.max_epoch * num_batches_per_epoch)
self.max_steps = max_steps # Number of batches to run.
self.max_epochs = max_epochs # Number of epochs to run
# Flags governing the hardware employed for running TensorFlow.
self.num_gpus = num_gpus # How many GPUs to use.
self.log_device_placement = False # Whether to log device placement
self.num_preprocess_threads = num_preprocess_threads
# Flags governing the type of training.
self.fine_tune = False # If set, randomly initialize the final layer of weights in order to train the network on a new task.
self.pretrained_model_checkpoint_path = pretrained_model_checkpoint_path # If specified, restore this pretrained model before beginning any training.
self.initial_learning_rate = learning_rate # Initial learning rate.
self.decay_steps = 0 # no decay by default
self.learning_rate_decay_factor = 1
self.TOWER_NAME = "tower"
# Batch normalization. Constant governing the exponential moving average of
# the 'global' mean and variance for all activations.
self.BATCHNORM_MOVING_AVERAGE_DECAY = 0.9997
# The decay to use for the moving average.
self.MOVING_AVERAGE_DECAY = 0.9999
# Override the number of preprocessing threads to account for the increased
# number of GPU towers.
input_num_preprocess_threads = self.num_preprocess_threads * self.num_gpus
self.input = NetInputProcessing(batch_size=self.batch_size,
num_preprocess_threads=input_num_preprocess_threads,
input_size=image_size,
mask_size=(image_size[0],image_size[1],1),
use_random_rotation=use_random_rotation,
ensure_posneg_balance=ensure_posneg_balance)
self.train_segmentation_net = train_segmentation_net
self.train_decision_net = train_decision_net
assert self.batch_size == 1, "Only batch_size=1 is allowed due to the way the batch_norm is used to normalize features in testing !!!"
self.loss_print_step = 11
self.summary_step = 110
self.checkpoint_step = 10007
model: 分割决策网络模型实例（如 SegDecModel）。
storage_dir: 存储训练日志和评估结果的目录路径。
run_string: 运行标识符，用于区分不同的实验。
image_size: 输入图像的尺寸（高度、宽度、通道数）。
batch_size: 批次大小，默认为 1。
learning_rate: 初始学习率，默认为 0.01。
max_epochs: 最大训练轮数，默认为 1000。
max_steps: 最大训练步数，默认为 10000000。
num_gpus: 使用的 GPU 数量，默认为 1。
visible_device_list: 可见的 GPU 设备列表。
num_preprocess_threads: 数据预处理线程数，默认为 1。
pretrained_model_checkpoint_path: 预训练模型的检查点路径。
train_segmentation_net: 是否训练分割网络，默认为 True。
train_decision_net: 是否训练决策网络，默认为 False。
use_random_rotation: 是否对输入数据进行随机旋转增强，默认为 False。
ensure_posneg_balance: 是否确保正负样本平衡，默认为 True。_tower_loss
计算单个GPU塔上的总损失。
调用get_inference构建计算图。调用get_loss计算损失。
def _tower_loss(self, images, masks, num_classes, scope, reuse_variables=None):
# When fine-tuning a model, we do not restore the logits but instead we
# randomly initialize the logits. The number of classes in the output of the
# logit is the number of classes in specified Dataset.
restore_logits = not self.fine_tune
# Build inference Graph.
#构建推理图，restore_logits决定是否加载模型的分类层(logits)
#reuse_variables控制变量复用，确保多塔共享权重
with tf.variable_scope(tf.get_variable_scope(), reuse=reuse_variables):
net_model = self.model.get_inference(images, num_classes, for_training=True,
restore_logits=restore_logits,
scope=scope)
#分割批量大小，也就是当前塔处理的批量大小，被分割到多个塔上
#计算损失
# Build the portion of the Graph calculating the losses. Note that we will
# assemble the total_loss using a custom function below.
split_batch_size = images.get_shape().as_list()[0]
self.model.get_loss(net_model, masks,
batch_size=split_batch_size,
return_segmentation_net=self.train_segmentation_net,
return_decision_net=self.train_decision_net)
#收集损失，从当前塔的命名空间中手机所有的损失项
#收集正则化损失
# Assemble all of the losses for the current tower only.
losses = tf.get_collection(tf.GraphKeys.LOSSES, scope)
#将所有的损失项相加，得到总的损失
# Calculate the total loss for the current tower.
regularization_losses = tf.get_collection(tf.GraphKeys.REGULARIZATION_LOSSES)
total_loss = tf.add_n(losses + regularization_losses, name='total_loss')
#使用指数移动平均平滑损失值，将EMA应用于所有的损失项和总损失
# Compute the moving average of all individual losses and the total loss.
loss_averages = tf.train.ExponentialMovingAverage(0.9, name='avg')
loss_averages_op = loss_averages.apply(losses + [total_loss])
#添加摘要记录
# Attach a scalar summmary to all individual losses and the total loss; do the
# same for the averaged version of the losses.
for l in losses + [total_loss]:
# Remove 'tower_[0-9]/' from the name in case this is a multi-GPU training
# session. This helps the clarity of presentation on TensorBoard.
loss_name = re.sub('%s_[0-9]*/' % self.TOWER_NAME, '', l.op.name)
# Name each loss as '(raw)' and name the moving average version of the loss
# as the original loss name.
tf.summary.scalar(loss_name +' (raw)', l)
tf.summary.scalar(loss_name, loss_averages.average(l))
#确保在计算总损失之前完成EMA更新操作
with tf.control_dependencies([loss_averages_op]):
total_loss = tf.identity(total_loss)
return total_loss_average_gradients
计算每个共享变量的梯度平均值（相同变量在不同塔上的梯度的平均值）
def _average_gradients(self, tower_grads):
"""Calculate the average gradient for each shared variable across all towers.
Note that this function provides a synchronization point across all towers.
Args:
tower_grads: List of lists of (gradient, variable) tuples. The outer list
is over individual gradients. The inner list is over the gradient
calculation for each tower.
Returns:
List of pairs of (gradient, variable) where the gradient has been averaged
across all towers.
"""
average_grads = []
for grad_and_vars in zip(*tower_grads):
# Note that each grad_and_vars looks like the following:
# ((grad0_gpu0, var0_gpu0), ... , (grad0_gpuN, var0_gpuN))
grads = []
for g, _ in grad_and_vars:
# Add 0 dimension to the gradients to represent the tower.
expanded_g = tf.expand_dims(g, 0)
# Append on a 'tower' dimension which we will average over below.
grads.append(expanded_g)
# Average over the 'tower' dimension.
grad = tf.concat(axis=0, values=grads)
grad = tf.reduce_mean(grad, 0)
# Keep in mind that the Variables are redundant because they are shared
# across towers. So .. we will just return the first tower's pointer to
# the Variable.
v = grad_and_vars[0][1]
grad_and_var = (grad, v)
average_grads.append(grad_and_var)
return average_gradstrain
定义学习率调度器、优化器等等
构建计算图：将输入数据分发多塔、计算损失、计算梯度
训练循环：按批次运行训练操作，更新模型参数
权重加载：如果有提供预训练模型路径，加载权重
def train(self, dataset):
"""Train on input_data for a number of steps."""
#创建新的计算图，默认在cpu上执行
with tf.Graph().as_default(), tf.device('/cpu:0'):
# Create a variable to count the number of train() calls. This equals the
# number of batches processed * FLAGS.num_gpus.
global_step = tf.Variable(
'global_step', [],
initializer=tf.constant_initializer(0), trainable=False)
# Calculate the learning rate schedule.
#学习率调度，指数衰减/固定
# Decay the learning rate exponentially based on the number of steps.
if self.decay_steps > 0:
lr = tf.train.exponential_decay(self.initial_learning_rate,
global_step,
self.decay_steps,
self.learning_rate_decay_factor,
staircase=True)
else:
lr = self.initial_learning_rate
#优化器，使用梯度下降优化器更新参数
# Create an optimizer that performs gradient descent.
opt = tf.train.GradientDescentOptimizer(lr)
#获取输入数据，图像和掩码
#需要确保批量大小是GPU数量的整数倍
# Get images and labels for ImageNet and split the batch across GPUs.
assert self.batch_size % self.num_gpus == 0, (
'Batch size must be divisible by number of GPUs')
images, masks, _ = self.input.add_inputs_nodes(dataset, True)
input_summaries = copy.copy(tf.get_collection(tf.GraphKeys.SUMMARIES))
#类别数+1，其中0类别通常是用于背景
# Number of classes in the Dataset label set plus 1.
# Label 0 is reserved for an (unused) background class.
num_classes = dataset.num_classes() + 1
#分发数据
# Split the batch of images and labels for towers.
images_splits = tf.split(axis=0, num_or_size_splits=self.num_gpus, value=images)
masks_splits = tf.split(axis=0, num_or_size_splits=self.num_gpus, value=masks)
#计算每个塔的梯度
#循环每个 GPU：
#设备设置：将操作分配到指定的 GPU。
#命名空间：为每个塔设置唯一的命名空间（如 'tower_0'）。
#变量作用域：强制所有变量在 CPU 上创建，以避免 GPU 内存问题。
#计算损失：调用 _tower_loss 计算当前塔的损失。
#变量复用：设置 reuse_variables 为 True，以便后续塔复用变量。
#收集摘要：收集当前塔的摘要信息。
#批归一化更新：收集批归一化的更新操作。
#计算梯度：使用优化器计算梯度。
#存储梯度：将梯度存储在 tower_grads 列表中。
# Calculate the gradients for each model tower.
tower_grads = []
reuse_variables = None
for i in range(self.num_gpus):
with tf.device('/gpu:%d' % i):
with tf.name_scope('%s_%d' % (self.TOWER_NAME, i)) as scope:
# Force all Variables to reside on the CPU.
with slim.arg_scope([slim.variable], device='/cpu:0'):
# Calculate the loss for one tower of the ImageNet model. This
# function constructs the entire ImageNet model but shares the
# variables across all towers.
loss = self._tower_loss(images_splits[i], masks_splits[i], num_classes,
scope, reuse_variables)
# Reuse variables for the next tower.
reuse_variables = True
# Retain the summaries from the final tower.
summaries = tf.get_collection(tf.GraphKeys.SUMMARIES, scope)
# Retain the Batch Normalization updates operations only from the
# final tower. Ideally, we should grab the updates from all towers
# but these stats accumulate extremely fast so we can ignore the
# other stats from the other towers without significant detriment.
batchnorm_updates = tf.get_collection(tf.GraphKeys.UPDATE_OPS, scope)
# Calculate the gradients for the batch of data on this ImageNet
# tower.
grads = opt.compute_gradients(loss)
# Keep track of the gradients across all towers.
tower_grads.append(grads)
#选择过滤决策网络梯度，这是为了先后训练分割网络和决策网络
variables_to_average = (tf.trainable_variables() +
tf.moving_average_variables())
# if decision_net is not trained then remove all gradients for decision
if self.train_decision_net is False:
tower_grads = [[g for g in tg if g[1].name.find('decision') < 0] for tg in tower_grads]
variables_to_average = [v for v in variables_to_average if v.name.find('decision') < 0]
# if segmentation_net is not trained then remove all gradients for segmentation net
# i.e. we assume all variables NOT flaged as decision net are segmentation net
if self.train_segmentation_net is False:
tower_grads = [[g for g in tg if g[1].name.find('decision') >= 0] for tg in tower_grads]
# We must calculate the mean of each gradient. Note that this is the
# synchronization point across all towers.
grads = self._average_gradients(tower_grads)
# Apply the gradients to adjust the shared variables.
apply_gradient_op = opt.apply_gradients(grads, global_step=global_step)
# Track the moving averages of all trainable variables.
# Note that we maintain a "double-average" of the BatchNormalization
# global statistics. This is more complicated then need be but we employ
# this for backward-compatibility with our previous models.
variable_averages = tf.train.ExponentialMovingAverage(self.MOVING_AVERAGE_DECAY, global_step)
# Another possibility is to use tf.slim.get_variables().
variables_averages_op = variable_averages.apply(variables_to_average)
# Group all updates to into a single train op.
batchnorm_updates_op = tf.group(*batchnorm_updates)
train_op = tf.group(apply_gradient_op, variables_averages_op,
batchnorm_updates_op)
# Add summaries and visualization
# Add histograms for trainable variables.
for var in tf.trainable_variables():
summaries.append(tf.summary.histogram(var.op.name, var))
# Add weight visualization
weight_variables = [v for v in tf.global_variables() if v.name.find('/weights') >= 0]
for c in ['conv1_1','conv1_2',
'conv2_1', 'conv2_2', 'conv2_3',
'conv3_1', 'conv3_2', 'conv3_3', 'conv3_4']:
with tf.name_scope(c):
w = [v for v in weight_variables if v.name.find('/' + c + '/') >= 0]
w = w[0]
x_min = tf.reduce_min(w)
x_max = tf.reduce_max(w)
ww = (w - x_min) / (x_max - x_min)
ww_t = tf.transpose(ww, [3, 0, 1, 2])
ww_t = tf.reshape(ww_t[:,:,:,0], [int(ww_t.shape[0]), int(ww_t.shape[1]), int(ww_t.shape[2]), 1])
tf.summary.image(c, ww_t, max_outputs=10)
summaries.extend(tf.get_collection(tf.GraphKeys.SUMMARIES, c))
# Add a summaries for the input processing and global_step.
summaries.extend(input_summaries)
# Add a summary to track the learning rate.
summaries.append(tf.summary.scalar('learning_rate', lr))
# Add histograms for gradients.
for grad, var in grads:
if grad is not None:
summaries.append(
tf.summary.histogram(var.op.name + '/gradients', grad))
summaries = tf.get_collection(tf.GraphKeys.SUMMARIES)
# Create a saver.
saver = tf.train.Saver(tf.global_variables())
# Build the summary operation from the last tower summaries.
summary_op = tf.summary.merge(summaries)
# Build an initialization operation to run below.
init = tf.global_variables_initializer()
# Start running operations on the Graph. allow_soft_placement must be set to
# True to build towers on GPU, as some of the ops do not have GPU
# implementations.
c = tf.ConfigProto(allow_soft_placement=True,
log_device_placement=self.log_device_placement)
if self.visible_device_list is not None:
c.gpu_options.visible_device_list = self.visible_device_list
c.gpu_options.allow_growth = True
sess = tf.Session(config=c)
sess.run(init)
# restore weights from previous model
if self.pretrained_model_checkpoint_path is not None:
ckpt = tf.train.get_checkpoint_state(self.pretrained_model_checkpoint_path)
if ckpt is None:
raise Exception('No valid saved model found in ' + self.pretrained_model_checkpoint_path)
self.model.restore(sess, ckpt.model_checkpoint_path)
# Start the queue runners.
tf.train.start_queue_runners(sess=sess)
summary_writer = tf.summary.FileWriter(
self.train_dir,
graph=sess.graph)
num_steps = min(int(self.max_epochs * dataset.num_examples_per_epoch() / self.batch_size),
self.max_steps)
prev_duration = None
for step in range(num_steps):
run_nodes = [train_op, loss]
if step % self.summary_step == 0:
run_nodes = [train_op, loss, summary_op]
start_time = time.time()
output_vals = sess.run(run_nodes)
duration = time.time() - start_time
if prev_duration is None:
prev_duration = duration
loss_value = output_vals[1]
assert not np.isnan(loss_value), 'Model diverged with loss = NaN'
if step % self.loss_print_step == 0:
examples_per_sec = self.batch_size / float(prev_duration)
format_str = ('%s: step %d, loss = %.5f (%.1f examples/sec; %.3f '
'sec/batch)')
print(format_str % (datetime.now(), step, loss_value,
examples_per_sec, prev_duration))
if step % self.summary_step == 0:
summary_str = output_vals[2]
summary_writer.add_summary(summary_str, step)
# Save the model checkpoint periodically.
if step % self.checkpoint_step == 0 or (step + 1) == num_steps:
checkpoint_path = os.path.join(self.train_dir, 'model.ckpt')
saver.save(sess, checkpoint_path, global_step=step)
prev_duration = duration
train 方法的主要步骤包括：
构建计算图：创建计算图并设置设备。
定义全局步数：定义全局步数变量。
学习率调度：设置学习率衰减策略。
优化器：选择优化器。梯度下降
获取输入数据：从数据集中获取训练数据。
收集输入摘要：收集输入数据的摘要信息。
计算类别数量：确定数据集中的类别数量。类别数+1
分割批量数据：将数据按 GPU 数量分割。
计算每个塔的梯度：为每个 GPU 计算梯度。
过滤梯度：根据训练配置过滤梯度。
计算平均梯度：计算所有塔的平均梯度。
应用梯度：应用平均梯度更新模型参数。
移动平均：计算变量的移动平均值。
批归一化更新：更新批归一化的统计信息。
组合训练操作：将所有训练操作组合成一个操作。
添加摘要：为变量、权重、输入处理、学习率和梯度添加摘要。
创建保存器和摘要写入器：创建保存器和摘要写入器。
初始化会话：初始化会话并配置会话。
恢复预训练模型：如果需要，恢复预训练模型。
启动队列运行器：启动数据输入管道。
创建摘要写入器：创建摘要写入器。
训练循环：执行训练循环，包括运行操作、记录时间、检查损失、打印日志、写入摘要和保存模型。_eval_once
在测试数据集上运行一次评估，生成预测结果并计算性能指标。
加载模型权重，遍历测试数据集，生成预测，计算PR,ROC,AUC,AP等。
def _eval_once(self, eval_dir, variables_to_restore, net_op, decision_op, images_op, labels_op, img_names_op, num_examples, plot_results=True):
"""Runs Eval once.
Args:
saver: Saver.
summary_writer: Summary writer.
net_op: net operation with prediction
summary_op: Summary op.
"""
c = tf.ConfigProto()
if self.visible_device_list is not None:
c.gpu_options.visible_device_list = self.visible_device_list
c.gpu_options.allow_growth = True
with tf.Session(config=c) as sess:
ckpt = tf.train.get_checkpoint_state(self.train_dir)
if ckpt and ckpt.model_checkpoint_path:
model_checkpoint_path = ckpt.model_checkpoint_path
# Restores from checkpoint with relative path.
if os.path.isabs(model_checkpoint_path):
model_checkpoint_path = os.path.join(self.train_dir, model_checkpoint_path)
self.model.restore(sess, model_checkpoint_path, variables_to_restore)
# Assuming model_checkpoint_path looks something like:
# /my-favorite-path/imagenet_train/model.ckpt-0,
# extract global_step from it.
global_step = ckpt.model_checkpoint_path.split('/')[-1].split('-')[-1]
print('Successfully loaded model from %s at step=%s.' %
(ckpt.model_checkpoint_path, global_step))
else:
print('No checkpoint file found')
return
# Start the queue runners.
coord = tf.train.Coordinator()
try:
threads = []
for qr in tf.get_collection(tf.GraphKeys.QUEUE_RUNNERS):
threads.extend(qr.create_threads(sess, coord=coord, daemon=True,
start=True))
num_iter = int(math.ceil(num_examples / self.batch_size))
# Counts the number of correct predictions.
samples_outcome = []
samples_names = []
samples_speed_eval = []
total_sample_count = num_iter * self.batch_size
step = 0
print('%s: starting evaluation on (%s).' % (datetime.now(), ''))
start_time = time.time()
while step < num_iter and not coord.should_stop():
start_time_run = time.time()
if decision_op is None:
predictions, image, label, img_name = sess.run([net_op, images_op, labels_op, img_names_op])
else:
predictions, decision, image, label, img_name = sess.run([net_op, decision_op, images_op, labels_op, img_names_op])
decision = 1.0/(1+np.exp(-np.squeeze(decision)))
# if we use sigmoid cross-correlation loss, then we need to add sigmoid to predictions
# since this is usually handled by loss which we do not use in inference
if self.model.use_corss_entropy_seg_net:
predictions = 1.0/(1+np.exp(-predictions))
end_time_run = time.time()
name = str(img_name[0]).replace("/", "_")
samples_names.append(name)
np.save(str.format("{0}/result_{2}.npy", eval_dir, step, name), predictions)
np.save(str.format("{0}/result_{2}_gt.npy", eval_dir, step, name), label)
if plot_results:
plt.figure(1)
plt.clf()
plt.subplot(1, 3, 1)
plt.title('Input image')
plt.imshow(image[0, :, :, 0], cmap="gray")
plt.subplot(1, 3, 2)
plt.title('Groundtruth')
plt.imshow(label[0, :, :, 0], cmap="gray")
plt.subplot(1, 3, 3)
if decision_op is None:
plt.title('Output/prediction')
else:
plt.title(str.format('Output/prediction: {0}',decision))
# display max
vmax_value = max(1, predictions.max())
plt.imshow((predictions[0, :, :, 0] > 0) * predictions[0, :, :, 0], cmap="jet", vmax=vmax_value)
plt.suptitle(str(img_name[0]))
plt.show(block=0)
out_prefix = ''
if decision_op is not None:
out_prefix = '%.3f_' % decision
plt.savefig(str.format("{0}/{1}result_{2}.pdf", eval_dir, out_prefix, name), bbox_inches='tight')
samples_speed_eval.append(end_time_run - start_time_run)
if decision_op is None:
pass
else:
samples_outcome.append((decision, np.max(label)))
step += 1
if step % 20 == 0:
duration = time.time() - start_time
sec_per_batch = duration / 20.0
examples_per_sec = self.batch_size / sec_per_batch
print('%s: [%d batches out of %d] (%.1f examples/sec; %.3f'
'sec/batch)' % (datetime.now(), step, num_iter,
examples_per_sec, sec_per_batch))
start_time = time.time()
if len(samples_outcome) > 0:
from sklearn.metrics import precision_recall_curve, roc_curve, auc
samples_outcome = np.matrix(np.array(samples_outcome))
idx = np.argsort(samples_outcome[:,0],axis=0)
idx = idx[::-1]
samples_outcome = np.squeeze(samples_outcome[idx, :])
samples_names = np.array(samples_names)
samples_names = samples_names[idx]
np.save(str.format("{0}/samples_outcome.npy", eval_dir), samples_outcome)
np.save(str.format("{0}/samples_names.npy", eval_dir), samples_names)
P = np.sum(samples_outcome[:, 1])
TP = np.cumsum(samples_outcome[:, 1] == 1).astype(np.float32).T
FP = np.cumsum(samples_outcome[:, 1] == 0).astype(np.float32).T
recall = TP / P
precision = TP / (TP + FP)
f_measure = 2 * np.multiply(recall, precision) / (recall + precision)
idx = np.argmax(f_measure)
best_f_measure = f_measure[idx]
best_thr = samples_outcome[idx,0]
best_FP = FP[idx]
best_FN = P - TP[idx]
precision_, recall_, thresholds = precision_recall_curve(samples_outcome[:, 1], samples_outcome[:, 0])
FPR, TPR, _ = roc_curve(samples_outcome[:, 1], samples_outcome[:, 0])
AUC = auc(FPR,TPR)
AP = auc(recall_, precision_)
print('AUC=%f, and AP=%f, with best thr=%f at f-measure=%.3f and FP=%d, FN=%d' % (AUC, AP, best_thr, best_f_measure, best_FP, best_FN))
plt.figure(1)
plt.clf()
plt.plot(recall, precision)
plt.title('Average Precision=%.4f' % AP)
plt.xlabel('Recall')
plt.ylabel('Precision')
plt.savefig(str.format("{0}/precision-recall.pdf", eval_dir), bbox_inches='tight')
plt.figure(1)
plt.clf()
plt.plot(FPR, TPR)
plt.title('AUC=%.4f' % AUC)
plt.xlabel('False positive rate')
plt.ylabel('True positive rate')
plt.savefig(str.format("{0}/ROC.pdf", eval_dir), bbox_inches='tight')
except Exception as e: # pylint: disable=broad-except
coord.request_stop(e)
coord.request_stop()
coord.join(threads, stop_grace_period_secs=10)
return samples_outcome,samples_names, samples_speed_evalevaluate
调用_eval_once方法定期评估模型性能
（根据run_once, eval_interval_secs 评定）
def evaluate(self, dataset, run_once = True, eval_interval_secs = 5, plot_results=True):
"""Evaluate model on Dataset for a number of steps."""
with tf.Graph().as_default():
# Get images and labels from the input_data.
images, labels, img_names = self.input.add_inputs_nodes(dataset, False)
# Number of classes in the Dataset label set plus 1.
# Label 0 is reserved for an (unused) background class.
num_classes = dataset.num_classes() + 1
# Build a Graph that computes the logits predictions from the
# inference model.
with tf.name_scope('%s_%d' % (self.TOWER_NAME, 0)) as scope:
net, decision, _ = self.model.get_inference(images, num_classes, scope=scope)
# Restore the moving average version of the learned variables for eval.
variable_averages = tf.train.ExponentialMovingAverage(self.model.MOVING_AVERAGE_DECAY)
variables_to_restore = variable_averages.variables_to_restore()
eval_dir = os.path.join(self.eval_dir, dataset.subset)
try:
os.makedirs(eval_dir)
except:
pass
while True:
samples_outcome,samples_names, samples_speed_eval = self._eval_once(eval_dir, variables_to_restore, net, decision, images, labels, img_names, dataset.num_examples_per_epoch(),plot_results)
if run_once:
break
time.sleep(eval_interval_secs)
num_params = np.sum([np.prod(v.get_shape().as_list()) for v in tf.trainable_variables()])
return samples_outcome,samples_names, samples_speed_eval,num_params
if __name__=='__main__'
解析命令行参数，初始化模型训练器，运行训练和评估流程。
import tensorflow as tf
from segdec_model import SegDecModel
from segdec_data import InputData
if __name__ == '__main__':
import argparse, glob, shutil
def str2bool(v):
return v.lower() in ("yes", "true", "t", "1")
parser = argparse.ArgumentParser()
# add boolean parser to allow using 'false' in arguments
parser.register('type', 'bool', str2bool)
parser.add_argument('--folds',type=str, help="Comma delimited list of ints identifying which folds to use.")
parser.add_argument('--gpu', type=str, help="Comma delimited list of ints identifying which GPU ids to use.")
parser.add_argument('--storage_dir', help='Path to your storage dir where segdec_train (tensorboard info) and segdec_eval (results) will be stored.',
type=str,
default='/opt/workspace/host_storage_hdd/')
parser.add_argument('--dataset_dir', help='Path to your input_data dirs.',
type=str,
default='/opt/workspace/host_storage_hdd/')
parser.add_argument('--datasets', help='Comma delimited list of input_data names to use, e.g., "Dataset1,Dataset2".',
type=str, default=','.join(['KolektorSDD']))
parser.add_argument('--name_prefix',type=str, default=None)
parser.add_argument('--train_subset', type=str, default="train_pos")
parser.add_argument('--pretrained_model', type=str, default=None)
parser.add_argument('--pretrained_main_folder', type=str, default=None)
parser.add_argument('--size_height', type=int, default=2*704)
parser.add_argument('--size_width', type=int, default=2*256)
parser.add_argument('--seg_net_type', type=str, default='MSE')
parser.add_argument('--input_rotation', type='bool', default=False)
parser.add_argument('--with_seg_net', type='bool', default=True)
parser.add_argument('--with_decision_net', type='bool', default=False)
parser.add_argument('--lr', type=float, default=0)
parser.add_argument('--max_steps', type=int, default=6600)
parser.add_argument('--channels', type=int, default=1)
parser.add_argument('--pos_weights', type=float, default=1)
parser.add_argument('--ensure_posneg_balance', type='bool', default=True)
args = parser.parse_args()
main_storage_dir = args.storage_dir
main_dataset_folder = args.dataset_dir
dataset_list = args.datasets.split(",")
train_subset = args.train_subset
pretrained_model = args.pretrained_model
pretrained_main_folder = args.pretrained_main_folder
pos_weights = args.pos_weights
ensure_posneg_balance = args.ensure_posneg_balance
size_height = args.size_height
size_width = args.size_width
channels = args.channels
seg_net_type = args.seg_net_type
input_rotation = args.input_rotation
with_seg_net = args.with_seg_net
with_decision_net = args.with_decision_net
max_steps = args.max_steps
lr = args.lr
if seg_net_type == 'MSE':
lr_val = 0.005
use_corss_entropy_seg_net = False
elif seg_net_type == 'ENTROPY':
lr_val = 0.1
use_corss_entropy_seg_net = True
else:
raise Exception('Unkown SEG-NET type; allowed only: \'MSE\' or \'ENTROPY\'')
if lr > 0:
lr_val = lr
folds = [int(i) for i in args.folds.split(",")]
for i in folds:
if i >= 0:
fold_name = 'fold_%d' % i
else:
fold_name = ''
for d in dataset_list:
run_name = os.path.join(d, fold_name if args.name_prefix is None else os.path.join(args.name_prefix, fold_name))
dataset_folder = os.path.join(main_dataset_folder, d)
print("running", dataset_folder, run_name)
if with_decision_net is False:
# use bigger lr for sigmoid_corss_correlation loss
net_model = SegDecModel(decision_net=SegDecModel.DECISION_NET_NONE,
use_corss_entropy_seg_net=use_corss_entropy_seg_net,
positive_weight=pos_weights)
else:
# use lr=0.005 ofr mean squated error loss
net_model = SegDecModel(decision_net=SegDecModel.DECISION_NET_FULL,
use_corss_entropy_seg_net=use_corss_entropy_seg_net,
positive_weight = pos_weights)
current_pretrained_model = pretrained_model
if current_pretrained_model is None and pretrained_main_folder is not None:
current_pretrained_model = os.path.join(pretrained_main_folder,fold_name)
train = SegDecTrain(net_model,
storage_dir=main_storage_dir,
run_string=run_name,
image_size=(size_height,size_width,channels), # NOTE size should be dividable by 16 !!!
batch_size=1,
learning_rate=lr_val,
max_steps=max_steps,
max_epochs=1200,
visible_device_list=args.gpu,
pretrained_model_checkpoint_path=current_pretrained_model,
train_segmentation_net=with_seg_net,
train_decision_net=with_decision_net,
use_random_rotation=input_rotation,
ensure_posneg_balance=ensure_posneg_balance)
dataset_fold_folder = os.path.join(dataset_folder,fold_name)
# Run training
train.train(InputData(train_subset, dataset_fold_folder))
if with_decision_net:
# Run evaluation on test data
samples_outcome_test,samples_names_test, samples_speed_eval,num_params = train.evaluate(InputData('test', dataset_fold_folder))
np.save(os.path.join(main_storage_dir, 'segdec_eval', run_name, 'test', 'results_decision_net.npy'), samples_outcome_test)
np.save(os.path.join(main_storage_dir, 'segdec_eval', run_name, 'test', 'results_decision_net_names.npy'), samples_names_test)
np.save(os.path.join(main_storage_dir, 'segdec_eval', run_name, 'test', 'results_decision_net_speed_eval.npy'), samples_speed_eval)
# Copy results from test dir of specific fold into common folder for this input_data
src_dir = os.path.join(main_storage_dir, 'segdec_eval', run_name, 'test')
dst_dir = os.path.join(main_storage_dir, 'segdec_eval', d if args.name_prefix is None else os.path.join(d,args.name_prefix))
for src_file in glob.glob(os.path.join(src_dir, '*.pdf')):
shutil.copy(src_file, dst_dir)
segdec_print_eval.py
这个主要是计算指标：精准率、召回率、F1分数、AUC、AP（平均精度）
calc_confusion_mat
计算FP FN TN TP
def calc_confusion_mat(D, Y):
FP = (D != Y) & (Y.astype(np.bool) == False)
FN = (D != Y) & (Y.astype(np.bool) == True)
TN = (D == Y) & (Y.astype(np.bool) == False)
TP = (D == Y) & (Y.astype(np.bool) == True)
return FP, FN, TN, TPget_performance_eval
计算指标
def get_performance_eval(P,Y):
precision_, recall_, thresholds = precision_recall_curve(Y.astype(np.int32), P)
FPR, TPR, _ = roc_curve(Y.astype(np.int32), P)
AUC = auc(FPR, TPR)
AP = average_precision_score(Y.astype(np.int32), P)
f_measure = 2 * (precision_ * recall_) / (precision_ + recall_ + 0.0000000001)
best_idx = np.argmax(f_measure)
f_measure[best_idx]
thr = thresholds[best_idx]
FP, FN, TN, TP = calc_confusion_mat(P >= thr, Y)
FP_, FN_, TN_, TP_ = calc_confusion_mat(P >= thresholds[np.where(recall_ >= 1)], Y)
F_measure = (2 * TP.sum()) / float(2 * TP.sum() + FP.sum() + FN.sum())
return TP, FP, FN, TN, TP_, FP_, FN_, TN_, F_measure, AUC, AP
evaluate_decision
打印指标
def evaluate_decision(data_dir, folds_list = [0,1,2]):
PD_decision_net = None
num_params_list = []
for f in folds_list:
if f >= 0:
fold_name = 'fold_%d' % f
else:
fold_name = ''
sample_outcomes = np.load(os.path.join(data_dir, fold_name, 'test', 'results_decision_net.npy'))
if len(sample_outcomes) > 0:
PD_decision_net = np.concatenate((PD_decision_net, sample_outcomes)) if PD_decision_net is not None else sample_outcomes
num_params_filename = os.path.join(data_dir, fold_name, 'test', 'decision_net_num_params.npy')
if os.path.exists(num_params_filename):
num_params_list.append(np.load(num_params_filename))
results = None
if PD_decision_net is not None:
TP, FP, FN, TN, TP_, FP_, FN_, TN_, F_measure, AUC, AP = get_performance_eval(PD_decision_net[:,0], PD_decision_net[:,1])
print("AP: %.03f, FP/FN: %d/%d, FP@FN=0: %d" % (AP, FP.sum(), FN.sum(), FP_.sum()))
results = {'TP': TP.sum(),
'FP': FP.sum(),
'FN': FN.sum(),
'TN': FN.sum(),
'FP@FN=0': FP_.sum(),
'f-measure': F_measure,
'AUC': AUC,
'AP': AP}
return results
扫一扫
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
