HCIP实验1

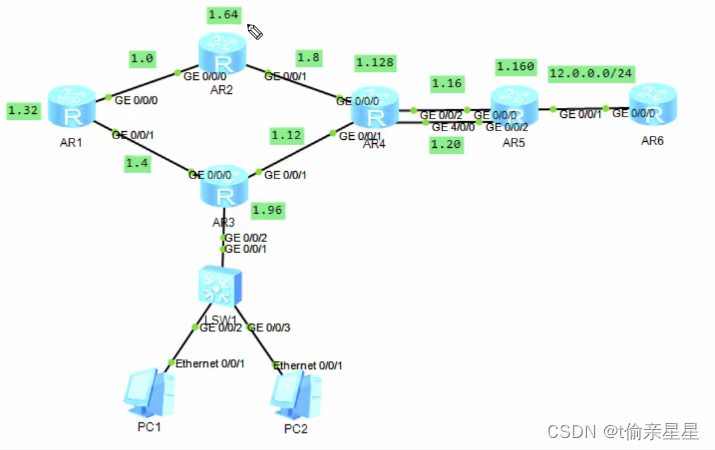

实验要求：

1、 R6为isp,接口IP地址均为公有有地址；该设备只能配置IP地址, 之后不能再对其进行任何配置;

2 、R1—R5为局域网,私有P地址192.168.1.6/24,请合理分配;
3 、R1,R2,R4,各有两个环回地址; R5,R6各有一个环回地址;所有路由器上环回均代表连接用户的接口;
4 、R3下的两台PC通过DHCP自动获取IP地址;
5、选路最佳,路由表尽量小(汇总),避免环路;
6、 R1—R5均可以访问R6的环回;
7 、R6 telnet R5的公有IP地址时,实际登陆到R1上;
8、 R4与R5正常通过1000M链路,故障时通过100M链路;

思路：

1、划分网段，简化1个骨干网段+6个用户网段

2、r6配置IP， 所以r1--r5上配置指向r6的缺省路由；

3、r3启动DHCP服务，自动获取IP

4、选路最佳需配置负载均衡；路由表尽量小则需进行汇总；避免环路需进行空接口配置

5、R1-R5为内网，R6为公网，需在边界路由器R5上配置nat服务

6、 R1上开启telnet服务，R5配置nat映射到R1的任意接口即可

7、R4与R5之间配置浮动静态路由，修改优先级

192.168.1.0 24 划分给6个，借3位

192.168.1.001 00000

192.168.1.0 27---骨干----30（2个ip）/29

划分：多借3位，共借6位

192.168.1.0 30

192.168.1.4  30

192.168.1.8  30

192.168.1.12 30

192.168.1.16 30

192.168.1.20 30

192.168.1.32（2的5次方） 27

划分：借一位，划分出2个

   1.32 28   1.48 28

192.168.1.64 27

1.64 28  1.80 28

192.168.1.128 27

1.128 28

192.168.1.160 27

预留IP:

192.168.1.192 27

192.168.1.224 27

配置：

1、配置IP和环回

r1
[r1]int g 0/0/0
[r1-GigabitEthernet0/0/0]ip add 192.168.1.1 30
[r1-GigabitEthernet0/0/0]q
[r1]int g 0/0/1
[r1-GigabitEthernet0/0/1]ip add 192.168.1.5 30
[r1-GigabitEthernet0/0/1]q
[r1]int l 0
[r1-LoopBack0]ip add 192.168.1.33 28
[r1-LoopBack0]int l 0
[r1-LoopBack0]ip add 192.168.1.49 28
[r1-LoopBack0]q

r2

[r2]int g 0/0/0
[r2-GigabitEthernet0/0/0]ip add 192.168.1.2 30
[r2-GigabitEthernet0/0/0]q
[r2]int g 0/0/1
[r2-GigabitEthernet0/0/1]ip add 192.168.1.9 30
[r2-GigabitEthernet0/0/1]q
[r2]int l 0
[r2-LoopBack0]ip add 192.168.1.65 28
[r2-LoopBack0]q
[r2]int l 1
[r2-LoopBack1]ip add 192.168.1.81 28
[r2-LoopBack1]q

r3

[r3]int g 0/0/0
[r3-GigabitEthernet0/0/0]ip add 192.168.1.6 30
[r3-GigabitEthernet0/0/0]q
[r3]int g 0/0/1
[r3-GigabitEthernet0/0/1]ip add 192.168.1.13 30
[r3-GigabitEthernet0/0/1]q

r4

[r4]int g 0/0/0
[r4-GigabitEthernet0/0/0]ip add 192.168.1.10 30
[r4-GigabitEthernet0/0/0]q
[r4]int g 0/0/1
[r4-GigabitEthernet0/0/1]ip add 192.168.1.14 30
[r4-GigabitEthernet0/0/1]q
[r4]int g 0/0/2
[r4-GigabitEthernet0/0/2]ip add 192.168.1.17 30
[r4-GigabitEthernet0/0/2]q
[r4]int g 4/0/0
[r4-GigabitEthernet4/0/0]ip add 192.168.1.21 30
[r4-GigabitEthernet4/0/0]q
[r4]int l 0
[r4-LoopBack0]ip add 192.168.1.129 28
[r4-LoopBack0]q
[r4]int l 1
[r4-LoopBack1]ip add 192.168.1.145 28

r5

[r5]int g 0/0/0
[r5-GigabitEthernet0/0/0]ip add 192.168.1.18 30
[r5-GigabitEthernet0/0/0]q
[r5]int g 0/0/1
[r5-GigabitEthernet0/0/1]ip add 12.0.0.1 24
[r5-GigabitEthernet0/0/1]q
[r5]int g 0/0/2
[r5-GigabitEthernet0/0/2]ip add 192.168.1.22 30
[r5-GigabitEthernet0/0/2]q
[r5]int l 0
[r5-LoopBack0]ip add 192.168.1.161 28
r6
[r6]int g 0/0/0
[r6-GigabitEthernet0/0/0]ip add 12.0.0.2 24
[r6-GigabitEthernet0/0/0]q
[r6]int l 0
[r6-LoopBack0]ip add 192.168.1.177 28

2、DHCP配置

[r3]dhcp enable
[r3]ip pool aaa
[r3-ip-pool-aaa]network 192.168.1.192 mask 27
[r3-ip-pool-aaa]gateway-list 192.168.1.193

[r3-ip-pool-aaa]dns-list 8.8.8.8
[r3-ip-pool-aaa]q
[r3]int g 0/0/2
[r3-GigabitEthernet0/0/2]dhcp select global
[r3-GigabitEthernet0/0/2]q

3、telnet配置

r1

[r1]aaa
[r1-aaa]local-user aaa privilege level 15 password cipher 12345
[r1-aaa]
[r1-aaa]local-user aaa service-type telnet
[r1-aaa]q
[r1]user-interface vty 0 4
[r1-ui-vty0-4]authentication-mode aaa
[r1-ui-vty0-4]q


4、配置静态路由

r1

[r1]ip route-static 0.0.0.0 0 192.168.1.2
[r1]ip route-static 0.0.0.0 0 192.168.1.6
[r1]ip route-static 192.168.1.64 27 g 0/0/0
[r1]int g 0/0/0
[r1-GigabitEthernet0/0/0]arp-proxy enable
[r1-GigabitEthernet0/0/0]q

[r1]display bridge mac-address
System bridge MAC address: 00e0-fc07-3f30
[r1]arp static 192.168.1.2 00e0-fc07-3f30
[r1]ip route-static 192.168.1.96 27 g 0/0/1 192.168.1.6
[r1]ip route-static 192.168.1.8 30 g 0/0/0 192.168.1.2
[r1]ip route-static 192.168.1.12 30 g 0/0/1 192.168.1.6

r2

[r2]ip route-static 0.0.0.0 0  192.168.1.10
[r2]ip route-static 192.168.1.32 27 g 0/0/0 192.168.1.1
[r2]ip route-static 192.168.1.4 30 g 0/0/0 192.168.1.1
[r2]ip route-static 192.168.1.96 27 g 0/0/0 192.168.1.1
[r2]ip route-static 192.168.1.96 27 g 0/0/1 192.168.1.10
r3

[r3]ip route-static 192.168.1.32 27 g 0/0/1 192.168.1.5
[r3]ip route-static 192.168.1.0 30 g 0/0/1 192.168.1.5
[r3]ip route-static 192.168.1.64 27 g 0/0/1 192.168.1.5
[r3]ip route-static 192.168.1.64 27 g 0/0/0 192.168.1.14
r4、r5间浮动静态路由

[r4]ip route-static 0.0.0.0 0 192.168.1.18
[r4]ip route-static 0.0.0.0 0 192.168.1.22 preference 70
[r4]ip route-static 192.168.1.64 27 g 0/0/0 192.168.1.9
[r4]ip route-static 192.168.1.0 30 g 0/0/0 192.168.1.9
[r4]ip route-static 192.168.1.32 27 g 0/0/0 192.168.1.9
[r4]ip route-static 192.168.1.32 27 g 0/0/1 192.168.1.13
[r4]ip route-static 192.168.1.96 27 g 0/0/1 192.168.1.13
[r4]ip route-static 192.168.1.4 30 g 0/0/1 192.168.1.13


[r5]ip route-static 192.168.1.0 24 g 0/0/0 192.168.1.17
[r5]ip route-static 192.168.1.0 24 g 0/0/2 192.168.1.21 preference 70
 防环：

r1
[r1]ip route-static 192.168.1.32 27 NULL 0
r2
[r2]ip route-static 192.168.1.64 27 NULL 0
r3
[r3]ip route-static 192.168.1.96 27 NULL 0
r4
[r4]ip route-static 192.168.1.128 27 NULL 0
r5
[r5]ip route-static 192.168.1.160 27 NULL 0
[r5]ip route-static 192.168.1.24 29 NULL 0
[r5]ip route-static 192.168.1.224 27 NULL 0

5、允许私网访问公网

[r5]acl 2000
[r5-acl-basic-2000]rule permit source 192.168.1.0 0.0.0.255
[r5-acl-basic-2000]
[r5-acl-basic-2000]q
[r5]int g 0/0/1
[r5-GigabitEthernet0/0/1]nat outbound 2000
[r5-GigabitEthernet0/0/1]q
端口映射

[r5]int g 0/0/1

[r5-GigabitEthernet0/0/1]nat server protocol tcp global current-interface 12345 inside 192.168.1.1 23
