强化学习_DQN算法的改进

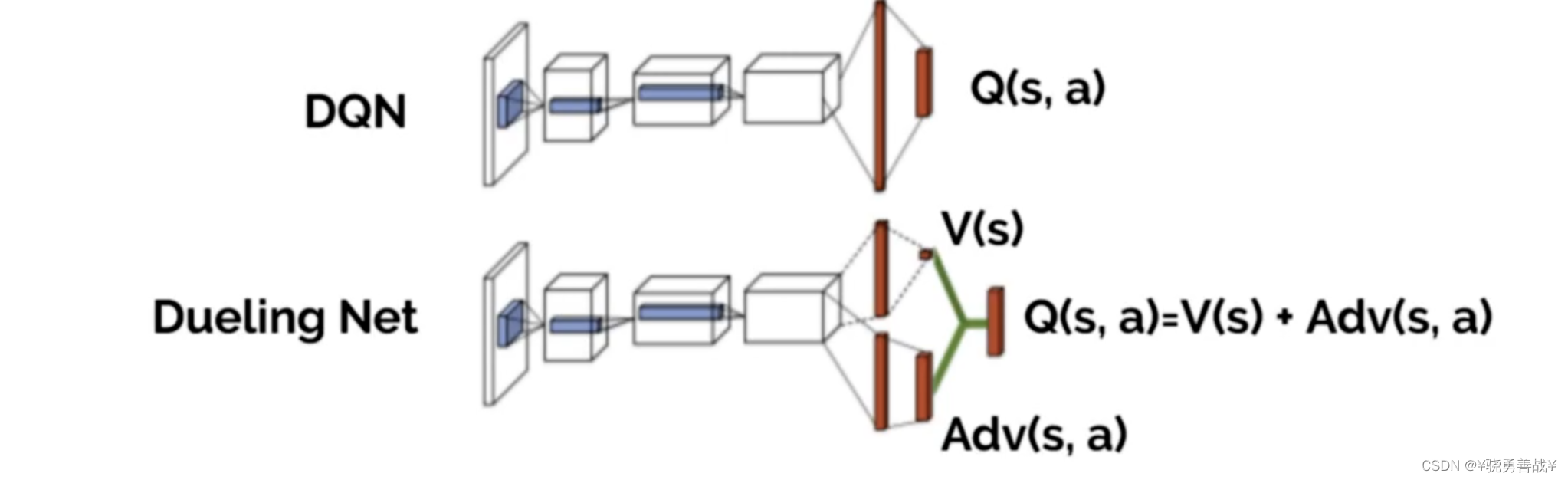

Dueling DQN

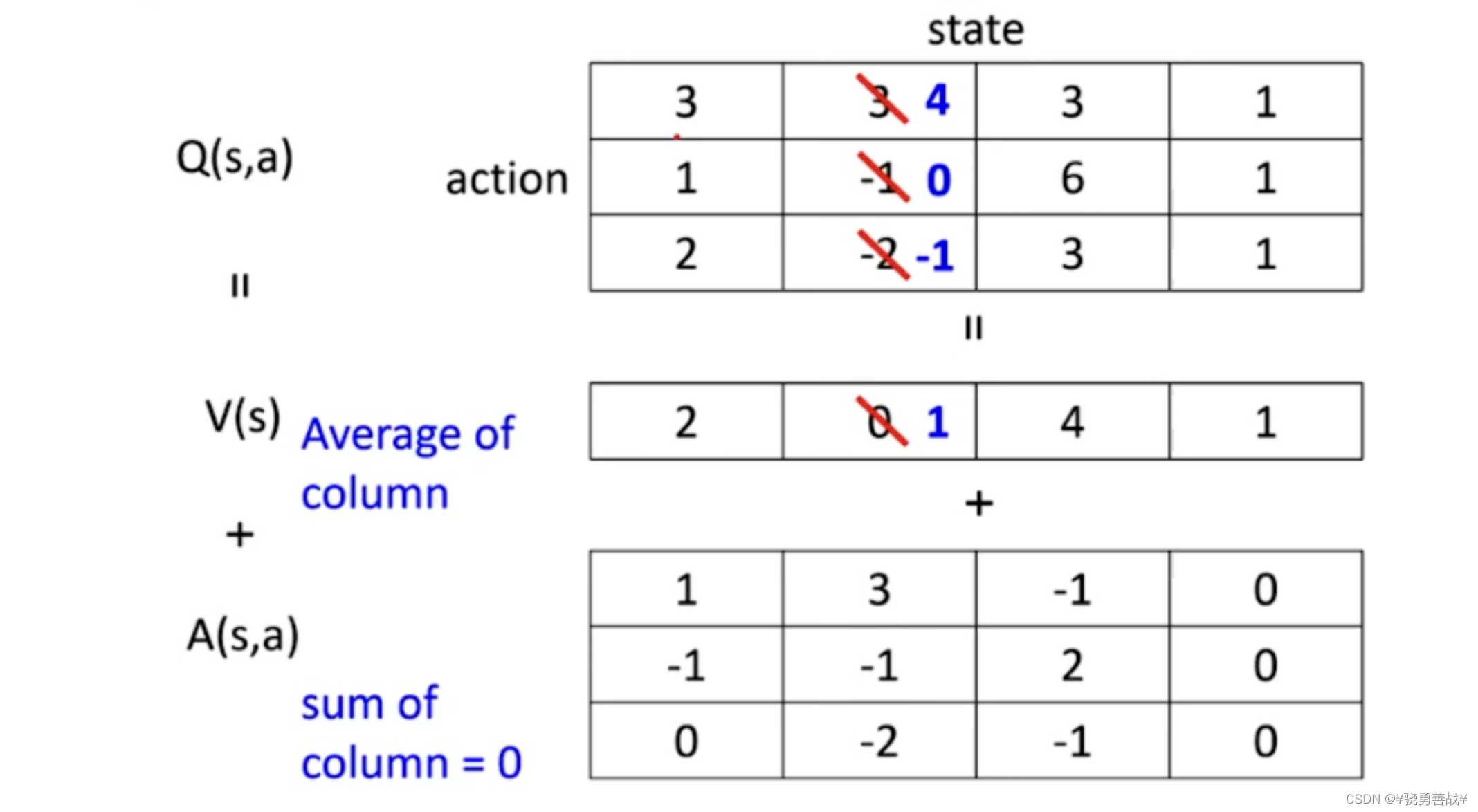

原来我们会直接预估 Q值，现在我们需要预估两个值：S值和A值。

S 值可以看成是该state 下的Q值的平均数。A 值是有所限制的，A 值的平均数为0

S 值与 A 值的和，就是原来的Q值。A + S = Q

在普通 DQN， 当我们需要更新某个动作的 Q值，我们会直接更新 Q 网络。

Dueling DQN： 在网络更新的时候，由于有A 值之和必须为 0 的限制，所以网络会优先更新S 值。S值是 Q值的平均数，S值的调整相当于一次性 把 state 下的所有 Q 值都更新了一遍。

这样，我们就可以在更少的次数下，让更多的值进行更新

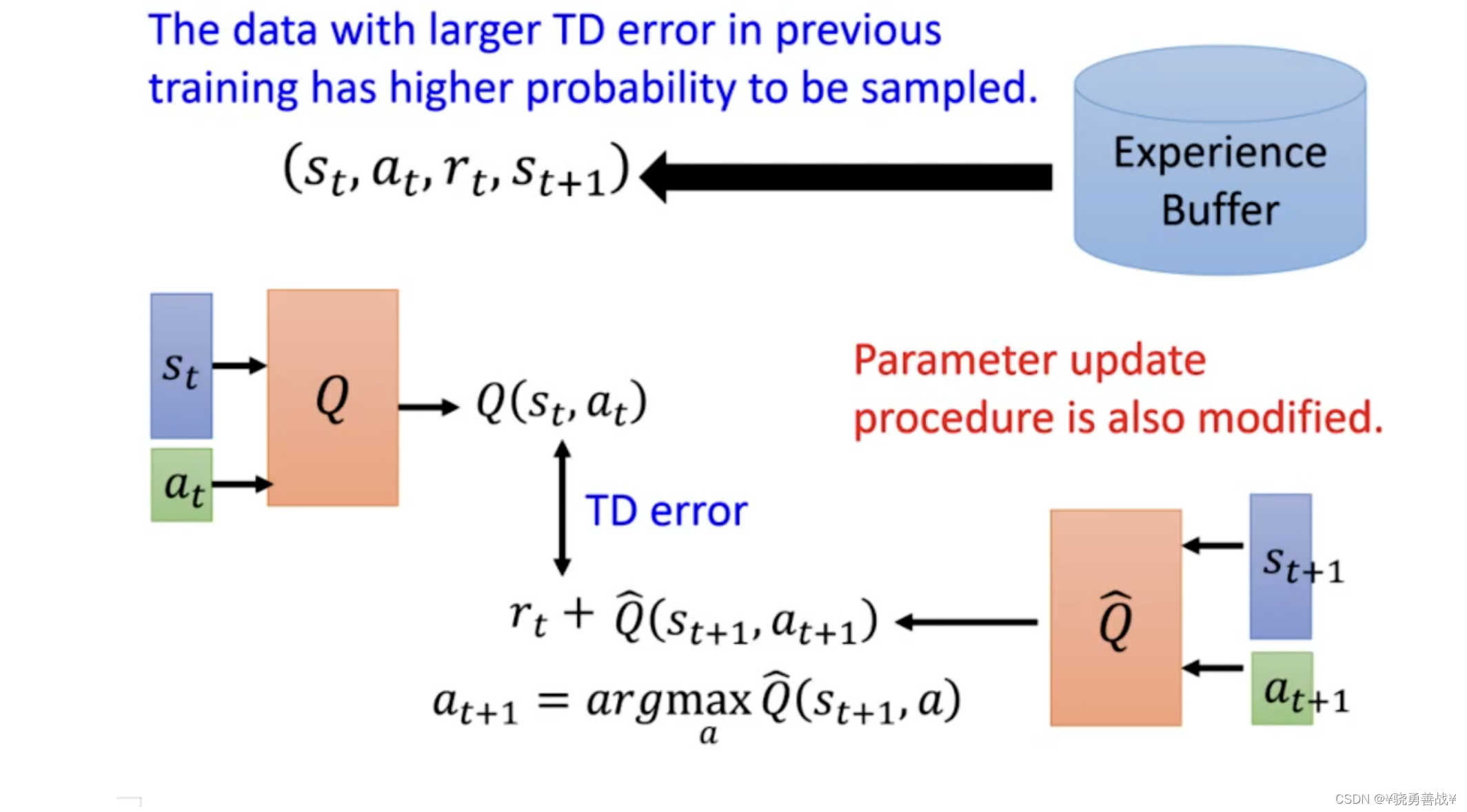

Prioritized Experience Replay

有些样本 samples 是Q网络预测不好的，需要重点关注，多次利用这些样本对网络进行训练

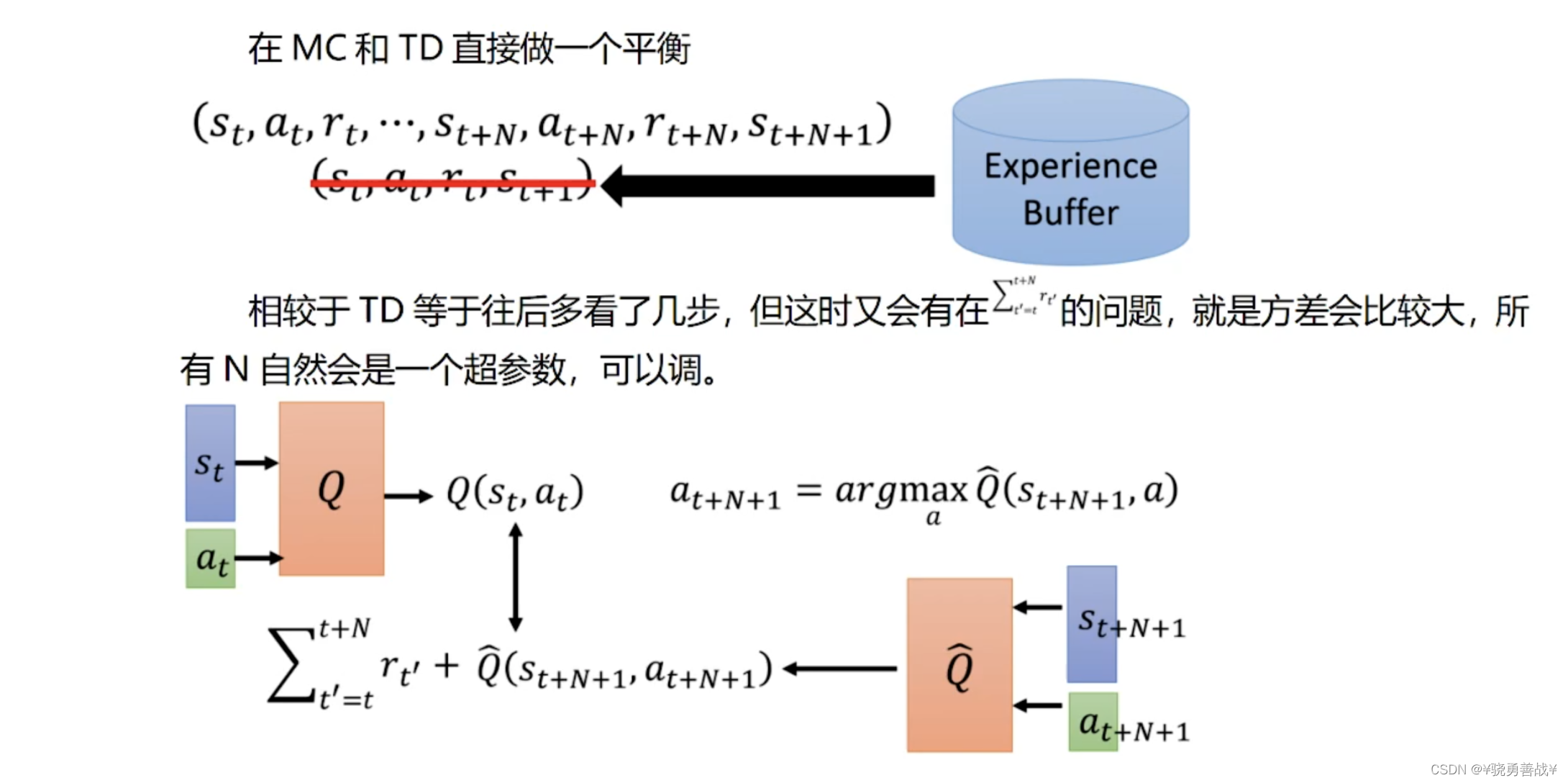

Multi-step

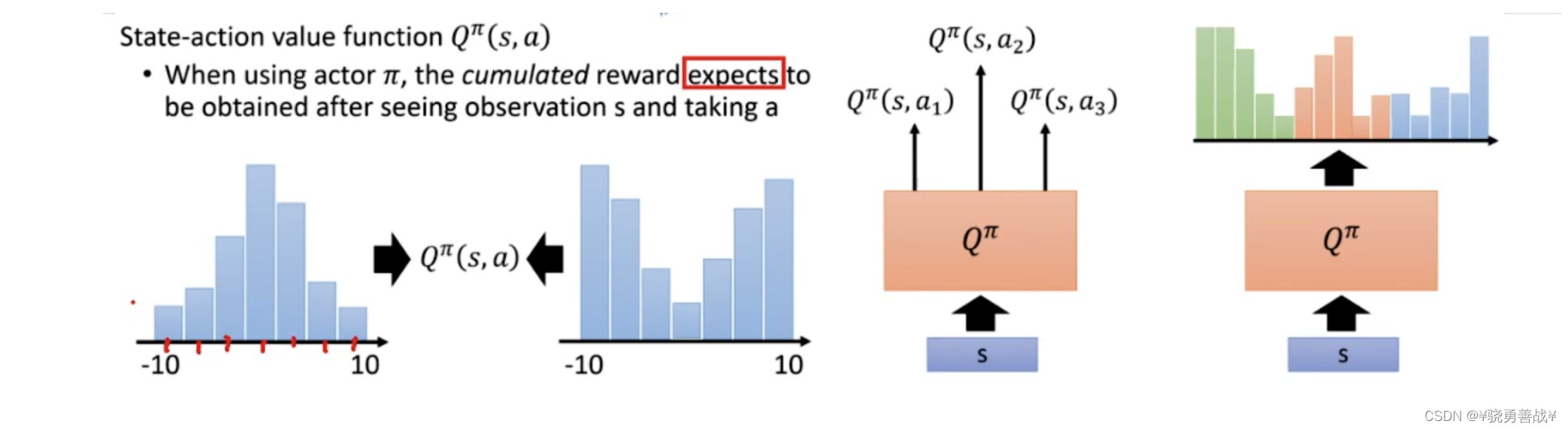

Distributional Q-function

Q值是期望值，是mean，但是不同的分布或许有同样的mean。两个分布进行比较，我们选择了期望大的，但有可能其方差很大，那么选择的这个 策略 就会显得风险很高。

如果原来有 3个action，那么就有 3个输出，改成每个action 有 5 个输出，总共 15 个输出，而且每个action 对应的 bins 值加和为 1，这样可以得到不同的action 分布，来求方差，或许就能避免风险。

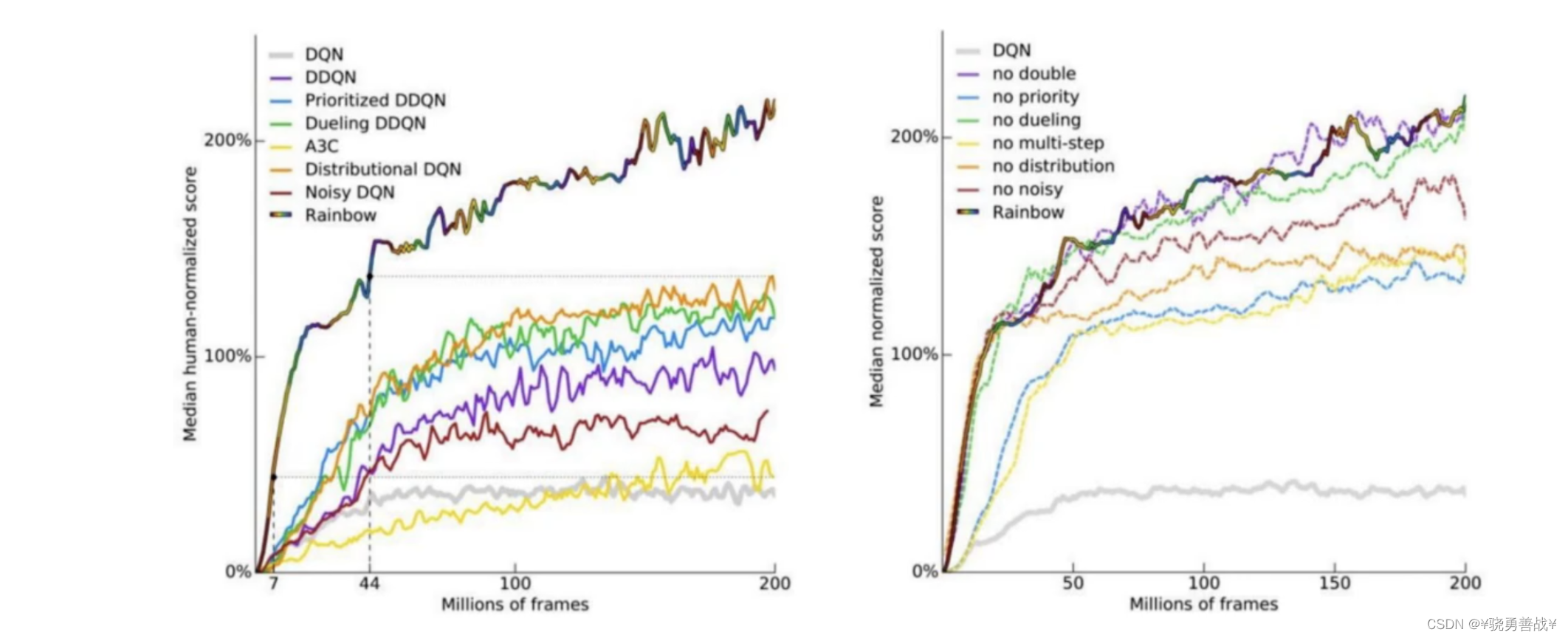

Rainbow

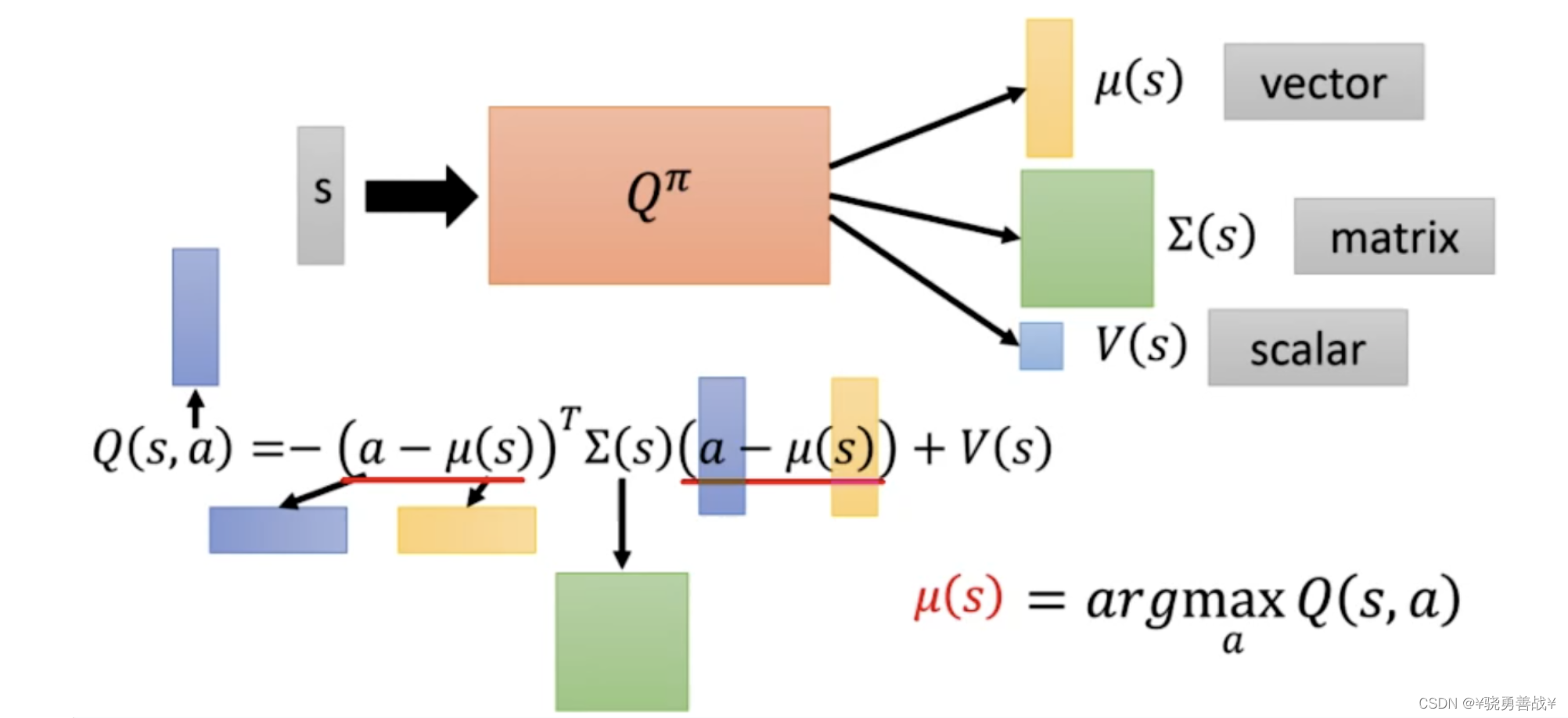

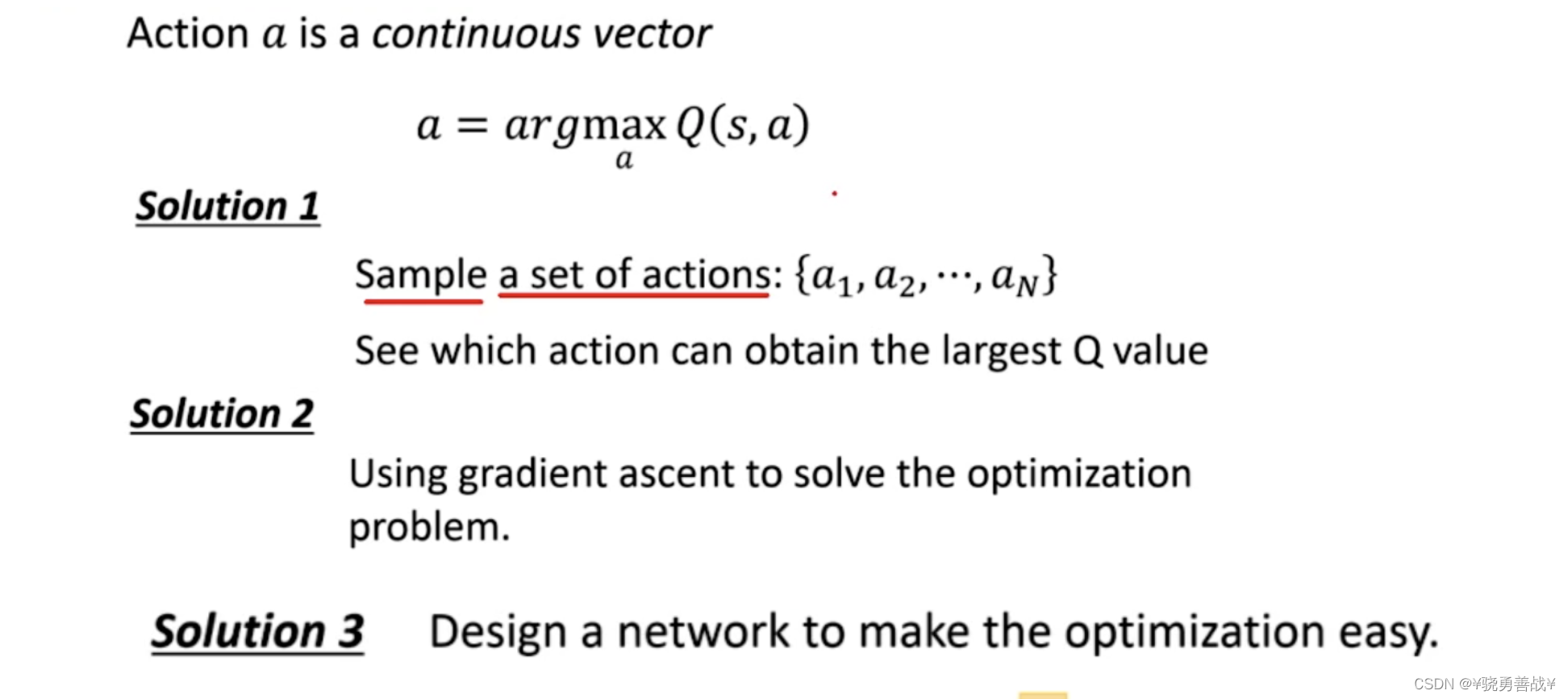

Continuous Actions

有些时候我们的action 不仅仅是上、下、左右、开火这样的离散的，也有可能是要选择多少度等这样连续的值。

Dueling_DQN代码实现

import numpy as np
import tensorflow.compat.v1 as tf
tf.disable_v2_behavior()

import gym
import matplotlib.pyplot as plt

"""
The Dueling DQN based on this paper: https://arxiv.org/abs/1511.06581

View more on my tutorial page: https://morvanzhou.github.io/tutorials/

Using:
Tensorflow: 1.0
gym: 0.8.0
"""

np.random.seed(1)



class DuelingDQN:
    def __init__(
            self,
            n_actions,
            n_features,
            learning_rate=0.001,
            reward_decay=0.9,
            e_greedy=0.9,
            replace_target_iter=200,
            memory_size=500,
            batch_size=32,
            e_greedy_increment=None,
            output_graph=False,
            dueling=True,
            sess=None,
    ):
        self.n_actions = n_actions
        self.n_features = n_features
        self.lr = learning_rate
        self.gamma = reward_decay
        self.epsilon_max = e_greedy
        self.replace_target_iter = replace_target_iter
        self.memory_size = memory_size
        self.batch_size = batch_size
        self.epsilon_increment = e_greedy_increment
        self.epsilon = 0 if e_greedy_increment is not None else self.epsilon_max

        self.dueling = dueling      # decide to use dueling DQN or not

        self.learn_step_counter = 0
        self.memory = np.zeros((self.memory_size, n_features*2+2))
        self._build_net()
        t_params = tf.get_collection('target_net_params')
        e_params = tf.get_collection('eval_net_params')
        self.replace_target_op = [tf.assign(t, e) for t, e in zip(t_params, e_params)]

        if sess is None:
            self.sess = tf.Session()
            self.sess.run(tf.global_variables_initializer())
        else:
            self.sess = sess
        if output_graph:
            tf.summary.FileWriter("logs/", self.sess.graph)
        self.cost_his = []

    def _build_net(self):
        def build_layers(s, c_names, n_l1, w_initializer, b_initializer):
            with tf.variable_scope('l1'):
                w1 = tf.get_variable('w1', [self.n_features, n_l1], initializer=w_initializer, collections=c_names)
                b1 = tf.get_variable('b1', [1, n_l1], initializer=b_initializer, collections=c_names)
                l1 = tf.nn.relu(tf.matmul(s, w1) + b1)

            if self.dueling:
                # Dueling DQN
                with tf.variable_scope('Value'):
                    w2 = tf.get_variable('w2', [n_l1, 1], initializer=w_initializer, collections=c_names)
                    b2 = tf.get_variable('b2', [1, 1], initializer=b_initializer, collections=c_names)
                    self.V = tf.matmul(l1, w2) + b2

                with tf.variable_scope('Advantage'):
                    w2 = tf.get_variable('w2', [n_l1, self.n_actions], initializer=w_initializer, collections=c_names)
                    b2 = tf.get_variable('b2', [1, self.n_actions], initializer=b_initializer, collections=c_names)
                    self.A = tf.matmul(l1, w2) + b2

                with tf.variable_scope('Q'):
                    out = self.V + (self.A - tf.reduce_mean(self.A, axis=1, keep_dims=True))     # Q = V(s) + A(s,a)
            else:
                with tf.variable_scope('Q'):
                    w2 = tf.get_variable('w2', [n_l1, self.n_actions], initializer=w_initializer, collections=c_names)
                    b2 = tf.get_variable('b2', [1, self.n_actions], initializer=b_initializer, collections=c_names)
                    out = tf.matmul(l1, w2) + b2

            return out

        # ------------------ build evaluate_net ------------------
        self.s = tf.placeholder(tf.float32, [None, self.n_features], name='s')  # input
        self.q_target = tf.placeholder(tf.float32, [None, self.n_actions], name='Q_target')  # for calculating loss
        with tf.variable_scope('eval_net'):
            c_names, n_l1, w_initializer, b_initializer = \
                ['eval_net_params', tf.GraphKeys.GLOBAL_VARIABLES], 20, \
                tf.random_normal_initializer(0., 0.3), tf.constant_initializer(0.1)  # config of layers

            self.q_eval = build_layers(self.s, c_names, n_l1, w_initializer, b_initializer)

        with tf.variable_scope('loss'):
            self.loss = tf.reduce_mean(tf.squared_difference(self.q_target, self.q_eval))
        with tf.variable_scope('train'):
            self._train_op = tf.train.RMSPropOptimizer(self.lr).minimize(self.loss)

        # ------------------ build target_net ------------------
        self.s_ = tf.placeholder(tf.float32, [None, self.n_features], name='s_')    # input
        with tf.variable_scope('target_net'):
            c_names = ['target_net_params', tf.GraphKeys.GLOBAL_VARIABLES]

            self.q_next = build_layers(self.s_, c_names, n_l1, w_initializer, b_initializer)

    def store_transition(self, s, a, r, s_):
        if not hasattr(self, 'memory_counter'):
            self.memory_counter = 0
        transition = np.hstack((s, [a, r], s_))
        index = self.memory_counter % self.memory_size
        self.memory[index, :] = transition
        self.memory_counter += 1

    def choose_action(self, observation):
        observation = observation[np.newaxis, :]
        if np.random.uniform() < self.epsilon:  # choosing action
            actions_value = self.sess.run(self.q_eval, feed_dict={self.s: observation})
            action = np.argmax(actions_value)
        else:
            action = np.random.randint(0, self.n_actions)
        return action

    def learn(self):
        if self.learn_step_counter % self.replace_target_iter == 0:
            self.sess.run(self.replace_target_op)
            print('\ntarget_params_replaced\n')

        sample_index = np.random.choice(self.memory_size, size=self.batch_size)
        batch_memory = self.memory[sample_index, :]

        q_next = self.sess.run(self.q_next, feed_dict={self.s_: batch_memory[:, -self.n_features:]}) # next observation
        q_eval = self.sess.run(self.q_eval, {self.s: batch_memory[:, :self.n_features]})

        q_target = q_eval.copy()

        batch_index = np.arange(self.batch_size, dtype=np.int32)
        eval_act_index = batch_memory[:, self.n_features].astype(int)
        reward = batch_memory[:, self.n_features + 1]

        q_target[batch_index, eval_act_index] = reward + self.gamma * np.max(q_next, axis=1)

        _, self.cost = self.sess.run([self._train_op, self.loss],
                                     feed_dict={self.s: batch_memory[:, :self.n_features],
                                                self.q_target: q_target})
        self.cost_his.append(self.cost)

        self.epsilon = self.epsilon + self.epsilon_increment if self.epsilon < self.epsilon_max else self.epsilon_max
        self.learn_step_counter += 1

"""
Dueling DQN & Natural DQN comparison

View more on my tutorial page: https://morvanzhou.github.io/tutorials/

Using:
Tensorflow: 1.0
gym: 0.8.0
"""

env = gym.make('Pendulum-v1', render_mode='human')
env = env.unwrapped

MEMORY_SIZE = 3000
ACTION_SPACE = 25

sess = tf.Session()
with tf.variable_scope('natural'):
    natural_DQN = DuelingDQN(
        n_actions=ACTION_SPACE, n_features=3, memory_size=MEMORY_SIZE,
        e_greedy_increment=0.001, sess=sess, dueling=False)

with tf.variable_scope('dueling'):
    dueling_DQN = DuelingDQN(
        n_actions=ACTION_SPACE, n_features=3, memory_size=MEMORY_SIZE,
        e_greedy_increment=0.001, sess=sess, dueling=True, output_graph=True)

sess.run(tf.global_variables_initializer())


def train(RL):
    acc_r = [0]
    total_steps = 0
    observation = env.reset()[0]
    while True:
        # if total_steps-MEMORY_SIZE > 9000: env.render()

        action = RL.choose_action(observation)

        f_action = (action-(ACTION_SPACE-1)/2)/((ACTION_SPACE-1)/4)   # [-2 ~ 2] float actions
        observation_, reward, done, info, _ = env.step(np.array([f_action]))

        reward /= 10      # normalize to a range of (-1, 0)
        acc_r.append(reward + acc_r[-1])  # accumulated reward

        RL.store_transition(observation, action, reward, observation_)

        if total_steps > MEMORY_SIZE:
            RL.learn()

        if total_steps-MEMORY_SIZE > 15000:
            break

        observation = observation_
        total_steps += 1
    return RL.cost_his, acc_r

c_natural, r_natural = train(natural_DQN)
c_dueling, r_dueling = train(dueling_DQN)

plt.figure(1)
plt.plot(np.array(c_natural), c='r', label='natural')
plt.plot(np.array(c_dueling), c='b', label='dueling')
plt.legend(loc='best')
plt.ylabel('cost')
plt.xlabel('training steps')
plt.grid()

plt.figure(2)
plt.plot(np.array(r_natural), c='r', label='natural')
plt.plot(np.array(r_dueling), c='b', label='dueling')
plt.legend(loc='best')
plt.ylabel('accumulated reward')
plt.xlabel('training steps')
plt.grid()

plt.show()

Prioritized_Replay_DQN代码实现

import numpy as np
import tensorflow.compat.v1 as tf
tf.disable_v2_behavior()

import gym
import matplotlib.pyplot as plt

 """
The DQN improvement: Prioritized Experience Replay (based on https://arxiv.org/abs/1511.05952)

View more on my tutorial page: https://morvanzhou.github.io/tutorials/

Using:
Tensorflow: 1.0
gym: 0.8.0
"""

np.random.seed(1)

class SumTree(object):
    """
    This SumTree code is a modified version and the original code is from:
    https://github.com/jaara/AI-blog/blob/master/SumTree.py

    Story data with its priority in the tree.
    """
    data_pointer = 0

    def __init__(self, capacity):
        self.capacity = capacity  # for all priority values
        self.tree = np.zeros(2 * capacity - 1)
        # [--------------Parent nodes-------------][-------leaves to recode priority-------]
        #             size: capacity - 1                       size: capacity
        self.data = np.zeros(capacity, dtype=object)  # for all transitions
        # [--------------data frame-------------]
        #             size: capacity

    def add(self, p, data):
        tree_idx = self.data_pointer + self.capacity - 1
        self.data[self.data_pointer] = data  # update data_frame
        self.update(tree_idx, p)  # update tree_frame

        self.data_pointer += 1
        if self.data_pointer >= self.capacity:  # replace when exceed the capacity
            self.data_pointer = 0

    def update(self, tree_idx, p):
        change = p - self.tree[tree_idx]
        self.tree[tree_idx] = p
        # then propagate the change through tree
        while tree_idx != 0:    # this method is faster than the recursive loop in the reference code
            tree_idx = (tree_idx - 1) // 2
            self.tree[tree_idx] += change

    def get_leaf(self, v):
        """
        Tree structure and array storage:

        Tree index:
             0         -> storing priority sum
            / \
          1     2
         / \   / \
        3   4 5   6    -> storing priority for transitions

        Array type for storing:
        [0,1,2,3,4,5,6]
        """
        parent_idx = 0
        while True:     # the while loop is faster than the method in the reference code
            cl_idx = 2 * parent_idx + 1         # this leaf's left and right kids
            cr_idx = cl_idx + 1
            if cl_idx >= len(self.tree):        # reach bottom, end search
                leaf_idx = parent_idx
                break
            else:       # downward search, always search for a higher priority node
                if v <= self.tree[cl_idx]:
                    parent_idx = cl_idx
                else:
                    v -= self.tree[cl_idx]
                    parent_idx = cr_idx

        data_idx = leaf_idx - self.capacity + 1
        return leaf_idx, self.tree[leaf_idx], self.data[data_idx]

    @property
    def total_p(self):
        return self.tree[0]  # the root


class Memory(object):  # stored as ( s, a, r, s_ ) in SumTree
    """
    This Memory class is modified based on the original code from:
    https://github.com/jaara/AI-blog/blob/master/Seaquest-DDQN-PER.py
    """
    epsilon = 0.01  # small amount to avoid zero priority
    alpha = 0.6  # [0~1] convert the importance of TD error to priority
    beta = 0.4  # importance-sampling, from initial value increasing to 1
    beta_increment_per_sampling = 0.001
    abs_err_upper = 1.  # clipped abs error

    def __init__(self, capacity):
        self.tree = SumTree(capacity)

    def store(self, transition):
        max_p = np.max(self.tree.tree[-self.tree.capacity:])
        if max_p == 0:
            max_p = self.abs_err_upper
        self.tree.add(max_p, transition)   # set the max p for new p

    def sample(self, n):
        b_idx, b_memory, ISWeights = np.empty((n,), dtype=np.int32), np.empty((n, self.tree.data[0].size)), np.empty((n, 1))
        pri_seg = self.tree.total_p / n       # priority segment
        self.beta = np.min([1., self.beta + self.beta_increment_per_sampling])  # max = 1

        min_prob = np.min(self.tree.tree[-self.tree.capacity:]) / self.tree.total_p     # for later calculate ISweight
        for i in range(n):
            a, b = pri_seg * i, pri_seg * (i + 1)
            v = np.random.uniform(a, b)
            idx, p, data = self.tree.get_leaf(v)
            prob = p / self.tree.total_p
            ISWeights[i, 0] = np.power(prob/min_prob, -self.beta)
            b_idx[i], b_memory[i, :] = idx, data
        return b_idx, b_memory, ISWeights

    def batch_update(self, tree_idx, abs_errors):
        abs_errors += self.epsilon  # convert to abs and avoid 0
        clipped_errors = np.minimum(abs_errors, self.abs_err_upper)
        ps = np.power(clipped_errors, self.alpha)
        for ti, p in zip(tree_idx, ps):
            self.tree.update(ti, p)


class DQNPrioritizedReplay:
    def __init__(
            self,
            n_actions,
            n_features,
            learning_rate=0.005,
            reward_decay=0.9,
            e_greedy=0.9,
            replace_target_iter=500,
            memory_size=10000,
            batch_size=32,
            e_greedy_increment=None,
            output_graph=False,
            prioritized=True,
            sess=None,
    ):
        self.n_actions = n_actions
        self.n_features = n_features
        self.lr = learning_rate
        self.gamma = reward_decay
        self.epsilon_max = e_greedy
        self.replace_target_iter = replace_target_iter
        self.memory_size = memory_size
        self.batch_size = batch_size
        self.epsilon_increment = e_greedy_increment
        self.epsilon = 0 if e_greedy_increment is not None else self.epsilon_max

        self.prioritized = prioritized    # decide to use double q or not

        self.learn_step_counter = 0

        self._build_net()
        t_params = tf.get_collection('target_net_params')
        e_params = tf.get_collection('eval_net_params')
        self.replace_target_op = [tf.assign(t, e) for t, e in zip(t_params, e_params)]

        if self.prioritized:
            self.memory = Memory(capacity=memory_size)
        else:
            self.memory = np.zeros((self.memory_size, n_features*2+2))

        if sess is None:
            self.sess = tf.Session()
            self.sess.run(tf.global_variables_initializer())
        else:
            self.sess = sess

        if output_graph:
            tf.summary.FileWriter("logs/", self.sess.graph)

        self.cost_his = []

    def _build_net(self):
        def build_layers(s, c_names, n_l1, w_initializer, b_initializer, trainable):
            with tf.variable_scope('l1'):
                w1 = tf.get_variable('w1', [self.n_features, n_l1], initializer=w_initializer, collections=c_names, trainable=trainable)
                b1 = tf.get_variable('b1', [1, n_l1], initializer=b_initializer, collections=c_names,  trainable=trainable)
                l1 = tf.nn.relu(tf.matmul(s, w1) + b1)

            with tf.variable_scope('l2'):
                w2 = tf.get_variable('w2', [n_l1, self.n_actions], initializer=w_initializer, collections=c_names,  trainable=trainable)
                b2 = tf.get_variable('b2', [1, self.n_actions], initializer=b_initializer, collections=c_names,  trainable=trainable)
                out = tf.matmul(l1, w2) + b2
            return out

        # ------------------ build evaluate_net ------------------
        self.s = tf.placeholder(tf.float32, [None, self.n_features], name='s')  # input
        self.q_target = tf.placeholder(tf.float32, [None, self.n_actions], name='Q_target')  # for calculating loss
        if self.prioritized:
            self.ISWeights = tf.placeholder(tf.float32, [None, 1], name='IS_weights')
        with tf.variable_scope('eval_net'):
            c_names, n_l1, w_initializer, b_initializer = \
                ['eval_net_params', tf.GraphKeys.GLOBAL_VARIABLES], 20, \
                tf.random_normal_initializer(0., 0.3), tf.constant_initializer(0.1)  # config of layers

            self.q_eval = build_layers(self.s, c_names, n_l1, w_initializer, b_initializer, True)

        with tf.variable_scope('loss'):
            if self.prioritized:
                self.abs_errors = tf.reduce_sum(tf.abs(self.q_target - self.q_eval), axis=1)    # for updating Sumtree
                self.loss = tf.reduce_mean(self.ISWeights * tf.squared_difference(self.q_target, self.q_eval))
            else:
                self.loss = tf.reduce_mean(tf.squared_difference(self.q_target, self.q_eval))
        with tf.variable_scope('train'):
            self._train_op = tf.train.RMSPropOptimizer(self.lr).minimize(self.loss)

        # ------------------ build target_net ------------------
        self.s_ = tf.placeholder(tf.float32, [None, self.n_features], name='s_')    # input
        with tf.variable_scope('target_net'):
            c_names = ['target_net_params', tf.GraphKeys.GLOBAL_VARIABLES]
            self.q_next = build_layers(self.s_, c_names, n_l1, w_initializer, b_initializer, False)

    def store_transition(self, s, a, r, s_):
        if self.prioritized:    # prioritized replay
            transition = np.hstack((s, [a, r], s_))
            self.memory.store(transition)    # have high priority for newly arrived transition
        else:       # random replay
            if not hasattr(self, 'memory_counter'):
                self.memory_counter = 0
            transition = np.hstack((s, [a, r], s_))
            index = self.memory_counter % self.memory_size
            self.memory[index, :] = transition
            self.memory_counter += 1

    def choose_action(self, observation):
        observation = observation[np.newaxis, :]
        if np.random.uniform() < self.epsilon:
            actions_value = self.sess.run(self.q_eval, feed_dict={self.s: observation})
            action = np.argmax(actions_value)
        else:
            action = np.random.randint(0, self.n_actions)
        return action

    def learn(self):
        if self.learn_step_counter % self.replace_target_iter == 0:
            self.sess.run(self.replace_target_op)
            print('\ntarget_params_replaced\n')

        if self.prioritized:
            tree_idx, batch_memory, ISWeights = self.memory.sample(self.batch_size)
        else:
            sample_index = np.random.choice(self.memory_size, size=self.batch_size)
            batch_memory = self.memory[sample_index, :]

        q_next, q_eval = self.sess.run(
                [self.q_next, self.q_eval],
                feed_dict={self.s_: batch_memory[:, -self.n_features:],
                           self.s: batch_memory[:, :self.n_features]})

        q_target = q_eval.copy()
        batch_index = np.arange(self.batch_size, dtype=np.int32)
        eval_act_index = batch_memory[:, self.n_features].astype(int)
        reward = batch_memory[:, self.n_features + 1]

        q_target[batch_index, eval_act_index] = reward + self.gamma * np.max(q_next, axis=1)

        if self.prioritized:
            _, abs_errors, self.cost = self.sess.run([self._train_op, self.abs_errors, self.loss],
                                         feed_dict={self.s: batch_memory[:, :self.n_features],
                                                    self.q_target: q_target,
                                                    self.ISWeights: ISWeights})
            self.memory.batch_update(tree_idx, abs_errors)     # update priority
        else:
            _, self.cost = self.sess.run([self._train_op, self.loss],
                                         feed_dict={self.s: batch_memory[:, :self.n_features],
                                                    self.q_target: q_target})

        self.cost_his.append(self.cost)

        self.epsilon = self.epsilon + self.epsilon_increment if self.epsilon < self.epsilon_max else self.epsilon_max
        self.learn_step_counter += 1

"""
The DQN improvement: Prioritized Experience Replay (based on https://arxiv.org/abs/1511.05952)

View more on my tutorial page: https://morvanzhou.github.io/tutorials/

Using:
Tensorflow: 1.0
gym: 0.8.0
"""

env = gym.make('MountainCar-v0', render_mode='human')
env = env.unwrapped

MEMORY_SIZE = 10000

sess = tf.Session()
with tf.variable_scope('natural_DQN'):
    RL_natural = DQNPrioritizedReplay(
        n_actions=3, n_features=2, memory_size=MEMORY_SIZE,
        e_greedy_increment=0.00005, sess=sess, prioritized=False,
    )

with tf.variable_scope('DQN_with_prioritized_replay'):
    RL_prio = DQNPrioritizedReplay(
        n_actions=3, n_features=2, memory_size=MEMORY_SIZE,
        e_greedy_increment=0.00005, sess=sess, prioritized=True, output_graph=True,
    )
sess.run(tf.global_variables_initializer())


def train(RL):
    total_steps = 0
    steps = []
    episodes = []
    for i_episode in range(20):
        observation = env.reset()[0]
        while True:
            env.render()

            action = RL.choose_action(observation)

            observation_, reward, done, info, _ = env.step(action)

            if done: reward = 10

            RL.store_transition(observation, action, reward, observation_)

            if total_steps > MEMORY_SIZE:
                RL.learn()

            if done:
                print('episode ', i_episode, ' finished')
                steps.append(total_steps)
                episodes.append(i_episode)
                break

            observation = observation_
            total_steps += 1
    return np.vstack((episodes, steps))

his_natural = train(RL_natural)
his_prio = train(RL_prio)

# compare based on first success
plt.plot(his_natural[0, :], his_natural[1, :] - his_natural[1, 0], c='b', label='natural DQN')
plt.plot(his_prio[0, :], his_prio[1, :] - his_prio[1, 0], c='r', label='DQN with prioritized replay')
plt.legend(loc='best')
plt.ylabel('total training time')
plt.xlabel('episode')
plt.grid()
plt.show()
