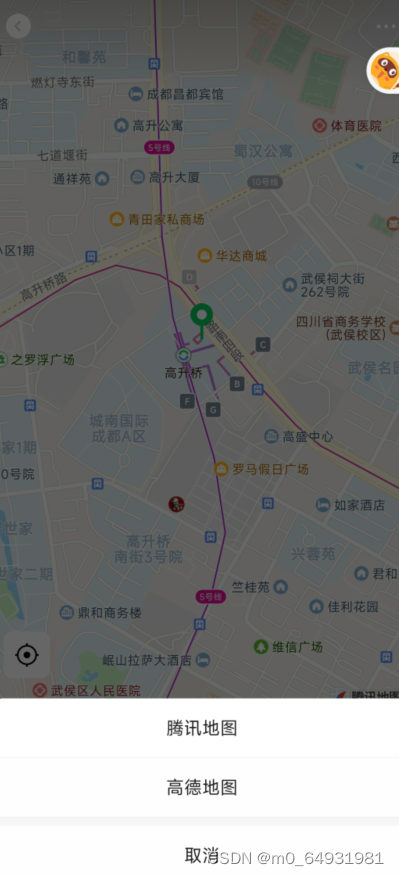

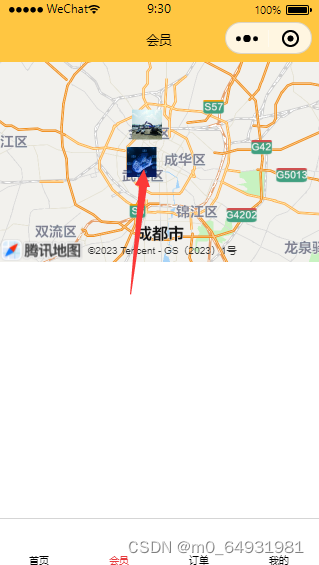

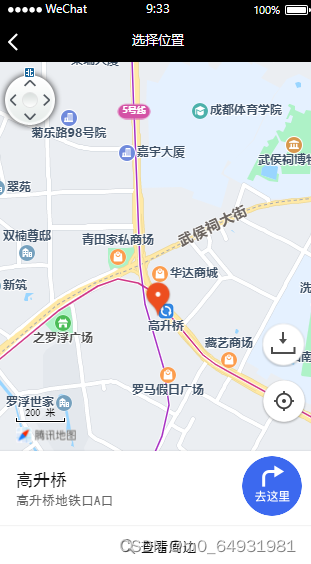

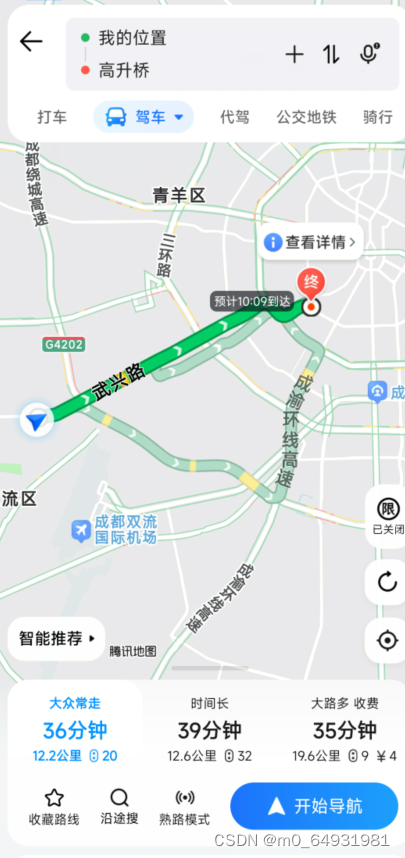

uniapp小程序实现导航功能,以下是效果图

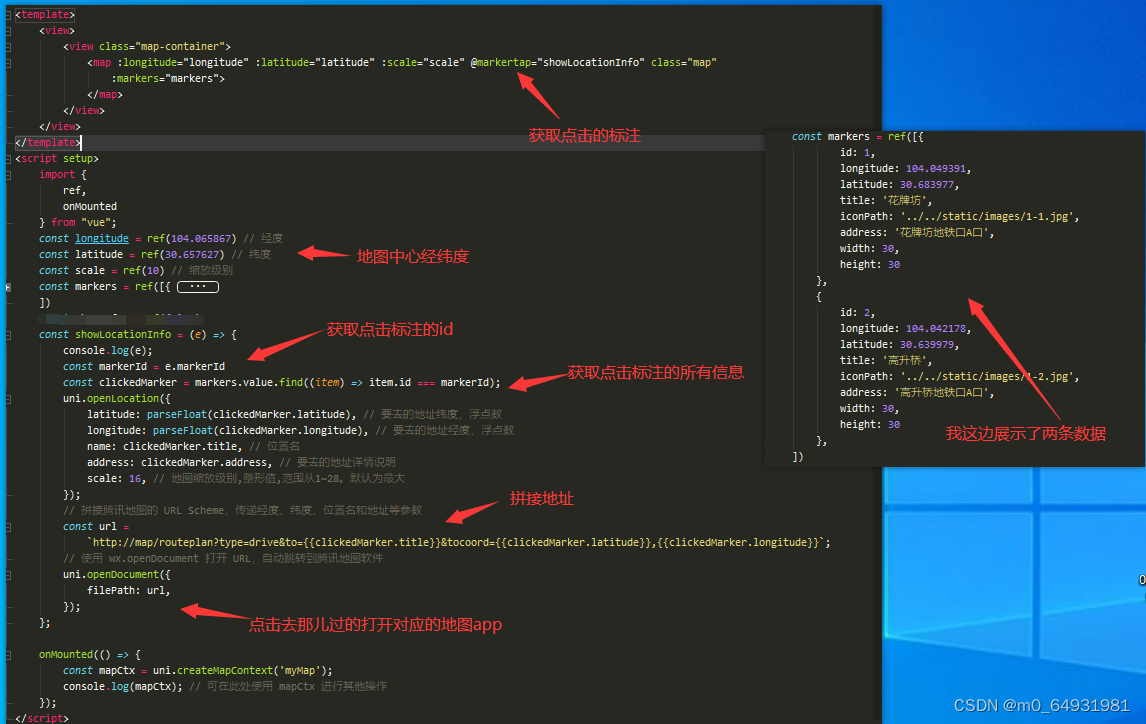

代码标注如图所示,配置的话,请参考上一篇文章uniapp+腾讯地图定位获取位置信息
代码附上
<template>
<view>
<view class="map-container">
<map :longitude="longitude" :latitude="latitude" :scale="scale" @markertap="showLocationInfo" class="map"
:markers="markers">
</map>
</view>
</view>
</template>
<script setup>
import {
ref,
onMounted
} from "vue";
const longitude = ref(104.065867) // 经度
const latitude = ref(30.657627) // 纬度
const scale = ref(10) // 缩放级别
const markers = ref([{
id: 1,
longitude: 104.049391,
latitude: 30.683977,
title: '花牌坊',
iconPath: '../../static/images/1-1.jpg',
address: '花牌坊地铁口A口',
width: 30,
height: 30
},
{
id: 2,
longitude: 104.042178,
latitude: 30.639979,
title: '高升桥',
iconPath: '../../static/images/1-2.jpg',
address: '高升桥地铁口A口',
width: 30,
height: 30
},
])
const showInfo = ref(false)
const showLocationInfo = (e) => {
console.log(e);
const markerId = e.markerId
const clickedMarker = markers.value.find((item) => item.id === markerId);
uni.openLocation({
latitude: parseFloat(clickedMarker.latitude), // 要去的地址经度,浮点数
longitude: parseFloat(clickedMarker.longitude), // 要去的地址纬度,浮点数
name: clickedMarker.title, // 位置名
address: clickedMarker.address, // 要去的地址详情说明
scale: 16, // 地图缩放级别,整形值,范围从1~28。默认为最大
});
// 拼接腾讯地图的 URL Scheme,传递经度、纬度、位置名和地址等参数
const url = `http://map/routeplan?type=drive&to={{clickedMarker.title}}&tocoord=30.683977,104.049391`;
// 使用 wx.openDocument 打开 URL,自动跳转到腾讯地图软件
uni.openDocument({
filePath: url,
});
};
onMounted(() => {
const mapCtx = uni.createMapContext('myMap');
console.log(mapCtx); // 可在此处使用 mapCtx 进行其他操作
});
</script>
<style>
.map {
width: 100%;
height: 200px;
}
</style>
希望可以有帮助
