ensp静态路由

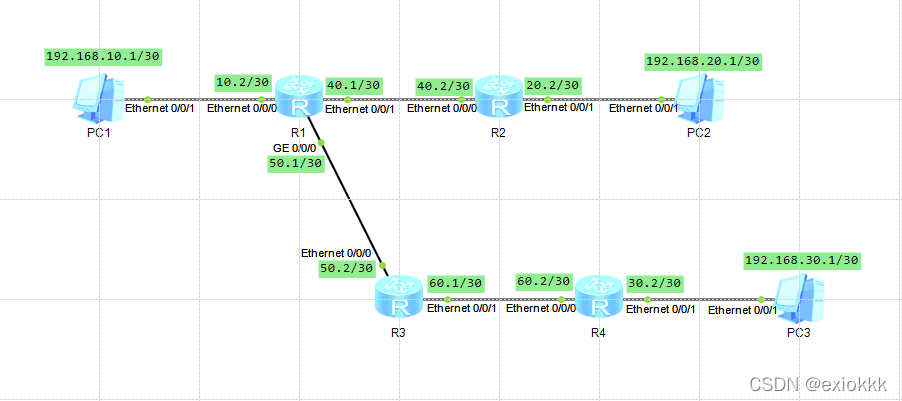

拓扑图

PC
名称	接口	IP地址	网关	子网掩码
PC1	Ethernet 0/0/1	192.168.10.1	192.168.10.2	255.255.255.252
PC2	Ethernet 0/0/1	192.168.20.1	192.168.20.2	255.255.255.252
PC3	Ethernet 0/0/1	192.168.30.1	192.168.30.2	255.255.255.252
路由器
名称	接口	IP地址		子网掩码
R1	Ethernet 0/0/0	192.168.10.2		255.255.255.252
	Ethernet 0/0/1	192.168.40.1		255.255.255.252
	GE 0/0/0	192.168.50.1		255.255.255.252
R2	Ethernet 0/0/0	192.168.40.2		255.255.255.252
	Ethernet 0/0/1	192.168.20.2		255.255.255.252
R3	Ethernet 0/0/0	192.168.50.2		255.255.255.252
	Ethernet 0/0/1	192.168.60.1		255.255.255.252
R4	Ethernet 0/0/0	192.168.60.2		255.255.255.252
	Ethernet 0/0/1	192.168.30.2		255.255.255.252

一、基础配置

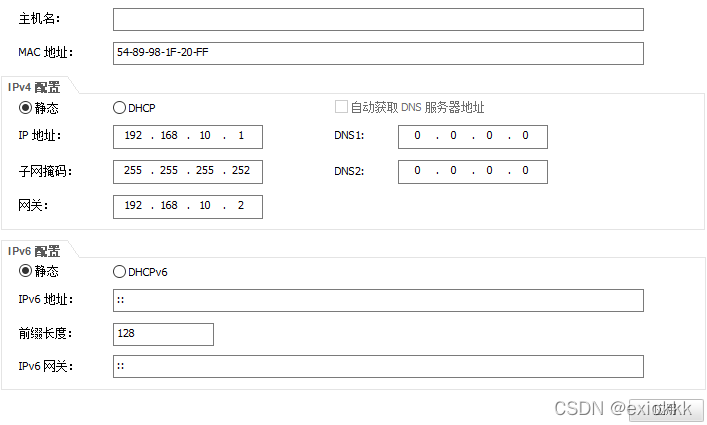

给PC配置静态IP

 给路由器配置IP

R1

<Huawei>sys                                                                        //进入系统视图
[Huawei]sys R1                                                                    //修改name
[R1]int e0/0/0                                                                       //进入接口视图
[R1-Ethernet0/0/0]ip add 192.168.10.2 30                          //为接口配置IP
[R1-Ethernet0/0/0]int e0/0/1
[R1-Ethernet0/0/1]ip add 192.168.40.1 30
[R1-Ethernet0/0/1]int g0/0/0
[R1-GigabitEthernet0/0/0]ip add 192.168.50.1 30

R2

<Huawei>sys
[Huawei]sys R2
[R2]int e0/0/0
[R2-Ethernet0/0/0]ip add 192.168.40.2 30
[R2-Ethernet0/0/0]int e0/0/1
[R2-Ethernet0/0/1]ip add 192.168.20.2 30

R3

<Huawei>sys
[Huawei]sys R3
[R3]int e0/0/0
[R3-Ethernet0/0/0]ip add 192.168.50.2 30
[R3-Ethernet0/0/0]int e0/0/1
[R3-Ethernet0/0/1]ip add 192.168.60.1 30

R4

<Huawei>sys
[Huawei]sys R4
[R4]int e0/0/0
[R4-Ethernet0/0/0]ip add 192.168.60.2 30
[R4-Ethernet0/0/0]int e0/0/1
[R4-Ethernet0/0/1]ip add 192.168.30.2 30

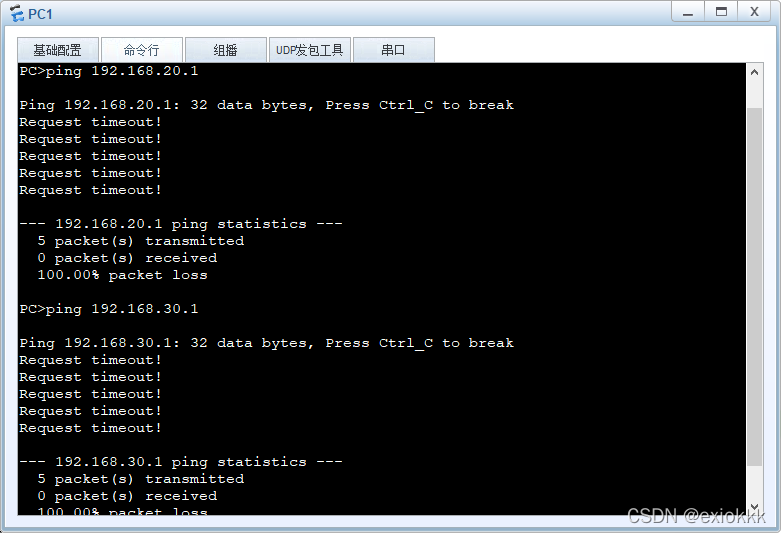

测试PC1 ping PC2或PC3 ping不通

 二、配置静态路由

R1

配置静态路由              目标       子网      下一跳

[R1]ip route-static 192.168.20.0 30 192.168.40.2

[R1]ip route-static 192.168.30.0 30 192.168.50.2

R2

[R2]ip route-static 192.168.10.0 30 192.168.40.1

[R1]ip route-static 192.168.30.0 30 192.168.40.1

R3

[R3]ip route-static 192.168.30.0 30 192.168.60.2

[R3]ip route-static 192.168.10.0 30 192.168.50.1

[R3]ip route-static 192.168.20.0 30 192.168.50.1

R4

[R4]ip route-static 192.168.10.0 30 192.168.60.1

[R4]ip route-static 192.168.20.0 30 192.168.60.1

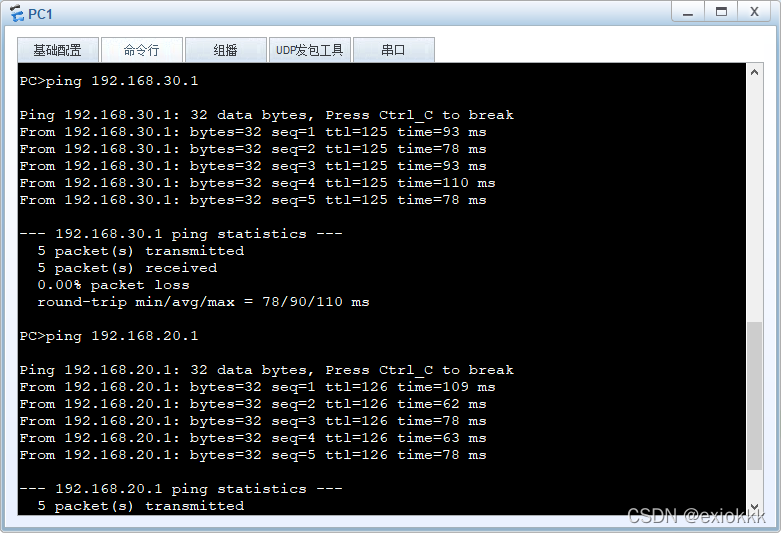

测试PC互ping，全通。
