ensp 动态路由RIP简单案例

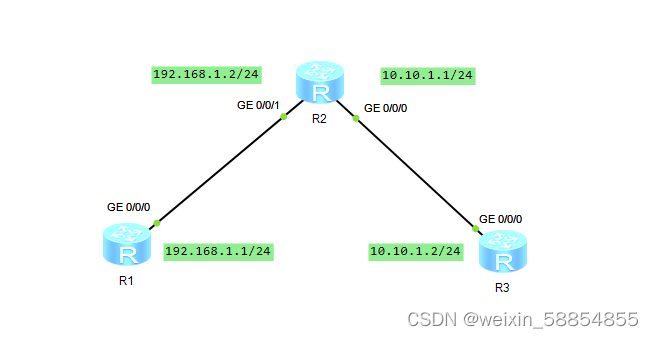

第一步：配置各接口IP及rip：

R1:

<Huawei>sys
[Huawei]sysname R1
[R1]int g0/0/0
[R1-GigabitEthernet0/0/0]ip add 192.168.1.1 24
[R1-GigabitEthernet0/0/0]qu
[R1]rip
[R1-rip-1]network 192.168.1.0 //发布直连网段

R2:

<Huawei>sys
[Huawei]sysname R2
[R2]int g0/0/0
[R2-GigabitEthernet0/0/0]ip add 10.10.1.1 24
[R2-GigabitEthernet0/0/0]int g0/0/1
[R2-GigabitEthernet0/0/1]ip add 192.168.1.2 24
[R2]rip
[R2-rip-1]network 192.168.1.0
[R2-rip-1]network 10.0.0.0

R3:

<Huawei>sys
[Huawei]sysname R3
[R3]int g0/0/0
[R3-GigabitEthernet0/0/0]ip add 10.10.1.2 24
[R3-GigabitEthernet0/0/0]qu
[R3]rip
[R3-rip-1]network 10.0.0.0

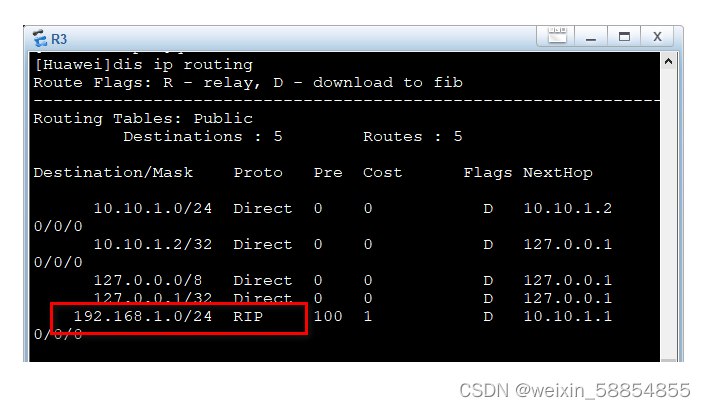

验证：dis ip routing、ping
