HDLBits-Verilog:Count1to10

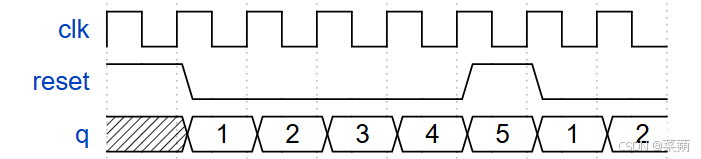

Make a decade counter that counts 1 through 10, inclusive. The reset input is synchronous, and should reset the counter to 1.

module top_module (
    input clk,
    input reset,
    output [3:0] q);
​
    always@(posedge clk) begin
        if(reset) begin
            q<=4'd1;
        end
        else if(q>4'd9)begin//这里也可以写为>=10
            q<=4'd1;
        end
        else begin
            q<=q+1'b1;
        end
    end

endmodule
