1.前期准备：

centos7.9 3台

k8s-master 192.168.10.128

k8s-node1 192.168.10.129

k8s-node2 192.168.10.130

kubernetes

2.基本环境部署(所有节点)

1).设置主机名：

hostnamectl set-hostname k8s-master
hostnamectl set-hostname k8s-node1
hostnamectl set-hostname k8s-node2

2).关闭防火墙、selinux

systemctl stop firewalld
systemctl disable firewalld
sed -i '/SELINUX=enforcing/ s/SELINUX=enforcing/SELINUX=disabled/' /etc/selinux/config

3).更改hosts文件

vim /etc/hosts

127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
::1         localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.10.128 k8s-master
192.168.10.129 k8s-node1
192.168.10.130 k8s-node2

4).配置ssh

ssh-keygen
ssh-copy-id -i ~/.ssh/id_rsa.pub root@k8s-master
ssh-copy-id -i ~/.ssh/id_rsa.pub root@k8s-node1
ssh-copy-id -i ~/.ssh/id_rsa.pub root@k8s-node2

5).时间同步

yum install chrony -y
systemctl start chronyd
systemctl enable chronyd
chronyc sources

6).关闭swap

swapoff -a #临时关闭

sed -ri 's/.*swap.*/#&/' /etc/fstab #永久关闭

7).运行iptables检查桥接流量

modprobe br_netfilter
lsmod | grep br_netfilter #检查br-netfilter模块是否以及加载

确认sysctl配置中的net.bridge.bridge-nf-call-iptables设置为1

cat <<EOF | tee /etc/modules-load.d/k8s.conf
overlay
br_netfilter
EOF

modprobe overlay
modprobe br_netfilter

#设置所需的sysctl参数，参数在重新启动后保持不变
cat <<EOF | tee /etc/sysctl.d/k8s.conf
net.bridge.bridge-nf-call-iptables  = 1
net.bridge.bridge-nf-call-ip6tables = 1
net.ipv4.ip_forward                 = 1
EOF
#应用
sysctl --system

3.k8s部署(所有节点)

1)配置yum源

cd /etc/yum.repos.d
#安装自动寻找最快源的插件
yum install -y yum-plugin-fastestmirror
#打开
vim /etc/yum.conf
#添加这行
fastestmirror=true

#安装yum-config-manager配置工具
yum -y install yum-utils
#设置docker的yum源
wget -O /etc/yum.repos.d/docker-ce.repo https://mirrors.tuna.tsinghua.edu.cn/docker-ce/linux/centos/docker-ce.repo --no-check-certificate

#安装必要的软件
yum install -y yum-utils device-mapper-persistent-data lvm2 wget net-tools nfs-utils lrzsz gcc gcc-c++ make cmake libxml2-devel openssl-devel curl curl-devel unzip sudo ntp libaio-devel wget vim ncurses-devel autoconf automake zlib-devel python-devel epel-release openssh-server socat  ipvsadm conntrack ntpdate telnet ipvsadm

2)安装docker

#安装docker-ce
yum install -y docker-ce-20.10.6
# 开机自启
systemctl enable --now docker
# 查看版本号
docker --version

#docker镜像源设置
cat >/etc/docker/daemon.json<<EOF
{
   "registry-mirrors":["https://rsbud4vc.mirror.aliyuncs.com","https://registry.docker-cn.com","https://docker.mirrors.ustc.edu.cn","https://dockerhub.azk8s.cn","http://hub-mirror.c.163.com"],
  "exec-opts": ["native.cgroupdriver=systemd"]
}
EOF

#加载
systemctl daemon-reload  && systemctl restart docker
# 查看
systemctl status docker

【温馨提示】dockerd 实际真实调用的还是 containerd 的 api 接口，containerd 是 dockerd 和 runC 之间的一个中间交流组件。所以启动 docker 服务的时候，也会启动 containerd 服务的。

3).配置K8s源

cat > /etc/yum.repos.d/kubernetes.repo << EOF
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64/
enabled=1
gpgcheck=0
EOF

4.安装kubeadm，kubelet，kubectl（所以节点）

yum install -y kubelet-1.20.6 kubeadm-1.20.6 kubectl-1.20.6
# 设置为开机自启并现在立刻启动服务 --now：立刻启动服务
systemctl enable --now kubelet

查看版本

kubectl version
yum info kubeadm

提前下载好需要的镜像

我这里导入下载好的压缩包即可

没有压缩包可以行docker pull

docker load -i k8simage-1-20-6.tar.gz

#软件包包含的软件如下
[root@k8s-node1 ~]# docker images
REPOSITORY                                                        TAG        IMAGE ID       CREATED       SIZE
registry.aliyuncs.com/google_containers/kube-proxy                v1.20.6    9a1ebfd8124d   2 years ago   118MB
registry.aliyuncs.com/google_containers/kube-scheduler            v1.20.6    b93ab2ec4475   2 years ago   47.3MB
registry.aliyuncs.com/google_containers/kube-apiserver            v1.20.6    b05d611c1af9   2 years ago   122MB
registry.aliyuncs.com/google_containers/kube-controller-manager   v1.20.6    560dd11d4550   2 years ago   116MB
calico/pod2daemon-flexvol                                         v3.18.0    2a22066e9588   2 years ago   21.7MB
calico/node                                                       v3.18.0    5a7c4970fbc2   2 years ago   172MB
calico/cni                                                        v3.18.0    727de170e4ce   2 years ago   131MB
calico/kube-controllers                                           v3.18.0    9a154323fbf7   2 years ago   53.4MB
registry.aliyuncs.com/google_containers/etcd                      3.4.13-0   0369cf4303ff   2 years ago   253MB
registry.aliyuncs.com/google_containers/coredns                   1.7.0      bfe3a36ebd25   3 years ago   45.2MB
registry.aliyuncs.com/google_containers/pause                     3.2        80d28bedfe5d   3 years ago   683kB

5.配置kubeadm.yaml文件便于初始化（master节点）

[root@master ~]# kubeadm config print init-defaults > kubeadm.yaml
[root@master ~]# vim kubeadm.yaml
apiVersion: kubeadm.k8s.io/v1beta2
bootstrapTokens:
- groups:
  - system:bootstrappers:kubeadm:default-node-token
  token: abcdef.0123456789abcdef
  ttl: 24h0m0s
  usages:
  - signing
  - authentication
kind: InitConfiguration
localAPIEndpoint:
  advertiseAddress: 192.168.10.128 #控制节点的ip
  bindPort: 6443
nodeRegistration:
  criSocket: /var/run/dockershim.sock
  name: k8s-master #控制节点主机名
  taints:	#修改taints为下列两行，设置不在master上启动pod，选择配置
  - effect: NoSchedule
    key: node-role.kubernetes.io/master
---
apiServer:
  timeoutForControlPlane: 4m0s
apiVersion: kubeadm.k8s.io/v1beta2
certificatesDir: /etc/kubernetes/pki
clusterName: kubernetes
controllerManager: {}
dns:
  type: CoreDNS	#这里可以指定类型，不配置也是可以的
etcd:
  local:
    dataDir: /var/lib/etcd
imageRepository: registry.aliyuncs.com/google_containers
kind: ClusterConfiguration
kubernetesVersion: v1.20.6
networking:
  dnsDomain: cluster.local
  serviceSubnet: 10.96.0.0/12
  podSubnet: 10.244.0.0/16 #指定pod网段， 需要新增加这个
scheduler: {}
#追加如下几行
---
apiVersion: kubeproxy.config.k8s.io/v1alpha1
kind: KubeProxyConfiguration
mode: ipvs
---
apiVersion: kubelet.config.k8s.io/v1beta1
kind: KubeletConfiguration
cgroupDriver: systemd

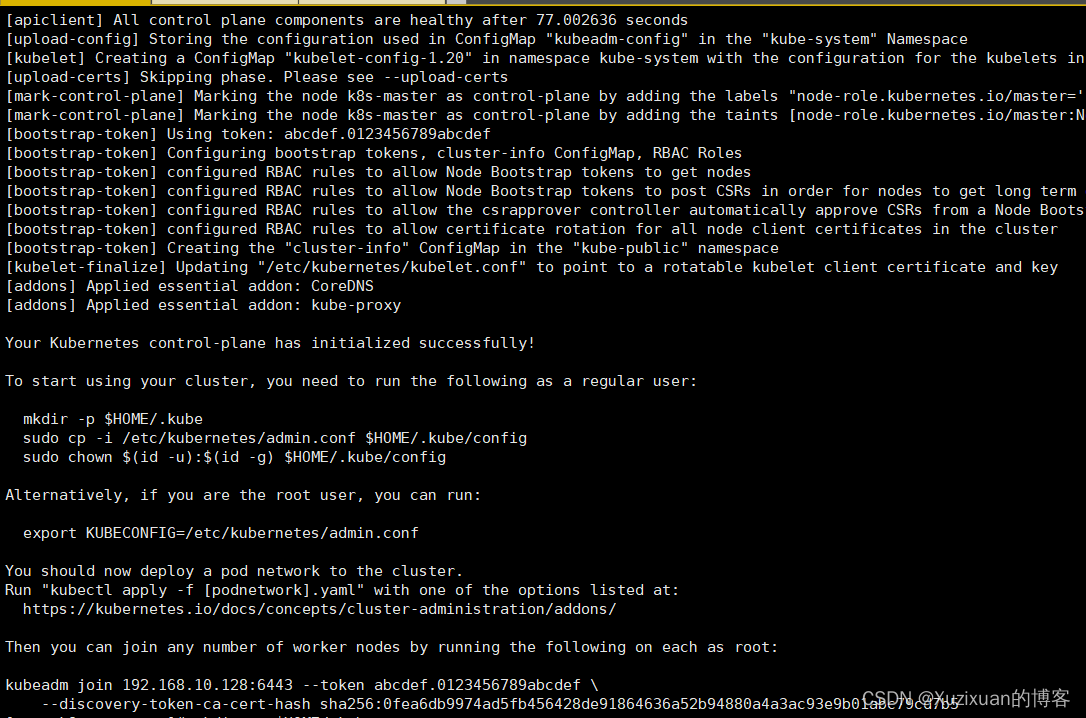

初始化

 kubeadm init --config=kubeadm.yaml --ignore-preflight-errors=SystemVerification

$[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-oby8cde2-1690254861705)(C:\Users\xuzixuan\AppData\Roaming\Typora\typora-user-images\image-20230724212730093.png)]$

之后执行下面命令

[root@master ~]#   mkdir -p $HOME/.kube
[root@master ~]#   sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
[root@master ~]#   sudo chown $(id -u):$(id -g) $HOME/.kube/config

6将node节点加入集群

在node节点上执行上面的命令，将node加入集群
kubeadm join 192.168.10.128:6443 --token abcdef.0123456789abcdef     --discovery-token-ca-cert-hash sha256:0fea6db9974ad5fb456428de91864636a52b94880a4a3ac93e9b01abc79cd7b5

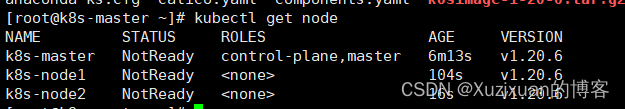

验证

kubectl get node

$[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-QJxcHwzL-1690254861706)(C:\Users\xuzixuan\AppData\Roaming\Typora\typora-user-images\image-20230724212954057.png)]$

修改工作节点标签

kubectl label node k8s-node1 node-role.kubernetes.io/worker=worker
kubectl label node k8s-node2 node-role.kubernetes.io/worker=worker
[root@k8s-master ~]# kubectl get node
NAME         STATUS     ROLES                  AGE   VERSION
k8s-master   Ready      control-plane,master   13h   v1.20.6
k8s-node1    NotReady   worker                 13h   v1.20.6
k8s-node2    NotReady   worker                 13h   v1.20.6
