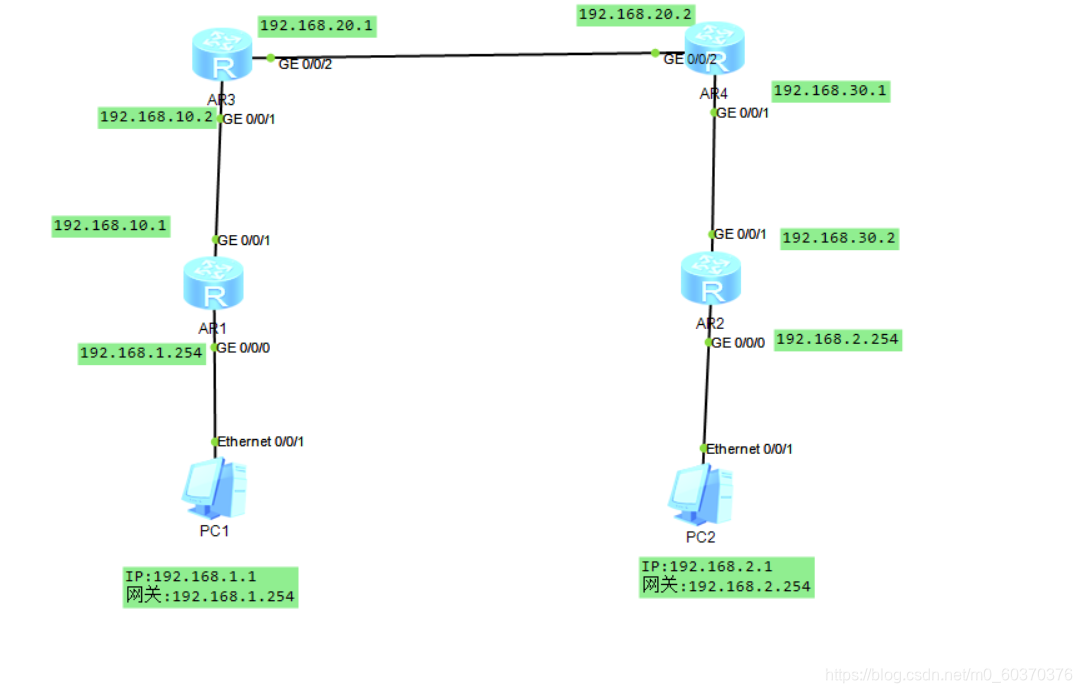

osof的多域配置

 AR1

sys

sysname r1

int g0/0/0

ip add 192.168.1.254 24

int g0/0/1

ip add 192.168.10.1 30

AR3

sys

sysanme r2

int g0/0/1

ip add 192.168.10.2 30

int g0/0/2

ip add 192.168.20.1 30

AR4

sys

sysname r3

int g0/0/2

ip add 192.168.20.2 30

int g0/0/1

ip add 192.168.30.1 30

AR2

sys

sysname r4

int g0/0/1

ip add 192.168.30.2 30

ing g0/0/0

ip add 192.168.2.254 24

接下来ospf协议

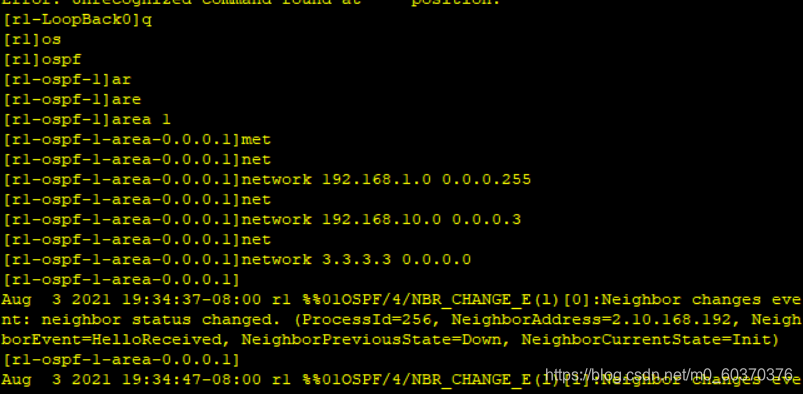

AR1

sys

ospf

area 1

network 3.3.3.3 0.0.0.0

network 192.168.1.0 0.0.0.255

network 192.168.10.0 0.0.0.3



AR3

sys

ospf

area 1

network 192.168.10.0 0.0.0.3

area 0

network 1.1.1.1 0.0.0.0

network 192.168.20.0 0.0.0.3



AR4

sys

ospf

area 1

network 192.168.30.0 0.0.0.3

area 0

network 2.2.2.2 0.0.0.0

network 192.168.20.0 0.0.0.3



AR2

sys

ospf

area 1

network 192.168.30.0 0.0.0.3

network 4.4.4.4 0.0.0.0

network 192.168.2.0 0.0.0.255
