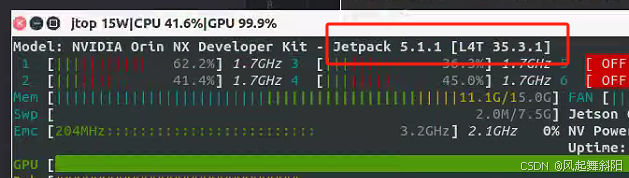

把这两组链接分别导入就可以了，这里主要t+数字要更换，还有后面r32.7就是你的l4t系统版本号，输入一个点后的就可以了，不用精确到小版本，比如我32.7.3就输到32.7，不然也是找不到。
引言：记录使用深度学习的方法，使得不清楚失真图像进行超分辨率重建使得不清楚图像变得清晰
代码来着GitHub大佬分析：GitHub - zhengchen1999/DAT: PyTorch code for our ICCV 2023 paper "Dual Aggregation Transformer for Image Super-Resolution"
论文地址：https://arxiv.org/abs/2308.03364
本文主要讲述自己进行安装部署运行的过程，用于debug记录，希望也可以帮助其他小伙伴。

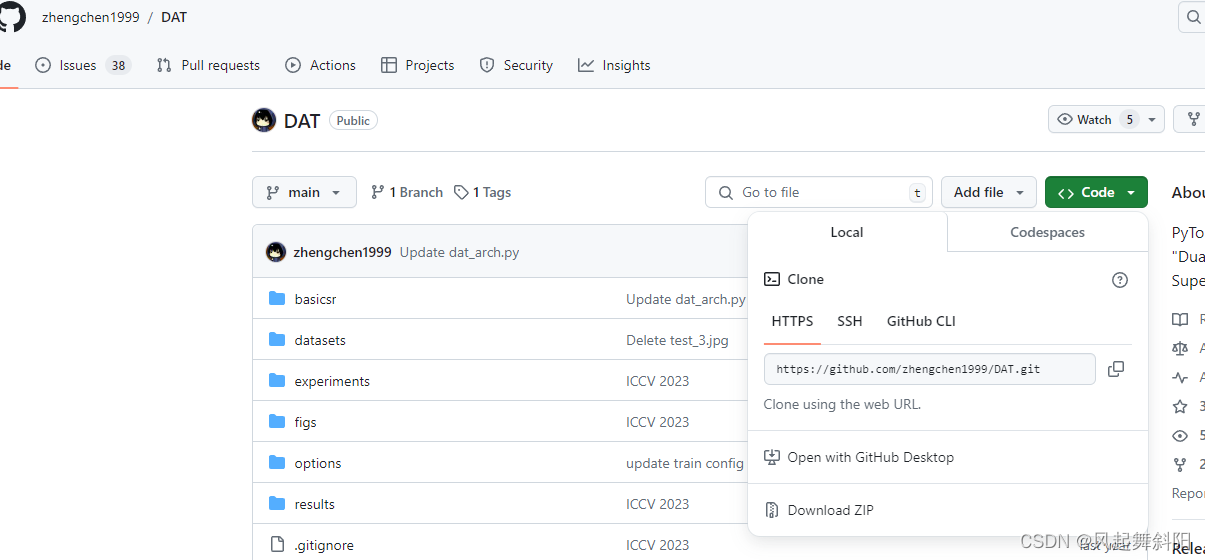

1.代码获取
https://github.com/zhengchen1999/DAT.git
2.环境搭建
这里使用conda搭建python运行环境，注意conda要切换到代码目录
conda create -n DAT python=3.8
conda activate DAT
pip install -r requirements.txt
python setup.py develop其中pytorch和cuda安装可能有点问题
torch-1.8.0+cu111-cp38-cp38-win_amd64.whl
建议去官网下载：https://download.pytorch.org/whl/torch_stable.html
安装完之后，可能会出现“ImportError: cannot import name ‘packaging‘ from ‘pkg_resources‘‘
降低版本setuptools版本
pip install setuptools==69.5.1使用项目进行检查环境
python setup.py develop
在环境中测试，是否加载cuda
import torch
device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
print(device)
运行结果：cuda 说明显卡加载成功
下载对应数据集，和预训练模型，识别效果
将预训练模型放入experiments的pretrained_models 下
3.测试
可以将自己要重建的图像放入datasets目录的single目录下
进行超分辨率重建
python basicsr/test.py -opt options/Test/test_single_x4.yml
test_single_x4.yml介绍
# general settings
name: test_single_x4 #测试文件生成名
model_type: DATModel #使用模型
scale: 4 #缩小倍数
num_gpu: 1 #gpu数量
manual_seed: 10 #随机种子，随机种子一样，生成的结果一样，可用来复现
datasets: #超分辨重建数据
test_1:
name: Single
type: SingleImageDataset #图片配对模式
dataroot_lq: datasets/single #测试路径低清图片位置
io_backend:
type: disk #输入/输出后端配置，这里使用磁盘作为后端
# network structures 网络结构配置，用于生成模型
network_g:
type: DAT #网络类型 DAT
upscale: 4 #上采样倍数
in_chans: 3 #输入通道数
img_size: 64 #图像尺寸
img_range: 1. #图像数据的范围
split_size: [8,32] #分割大小，用于网络中的注意力机制。
depth: [6,6,6,6,6,6] #网络层深度
embed_dim: 180 #嵌入维度
num_heads: [6,6,6,6,6,6] #注意力机制中的头数
expansion_factor: 4 #扩张因子
resi_connection: '1conv' #残差连接的类型
# path
path:
pretrain_network_g: experiments/pretrained_models/DAT/DAT_x4.pth #预训练模型路径
strict_load_g: True #加载预训练模型时是否严格匹配
# validation settings
val:
save_img: True #是否保存图片
suffix: 'x4' # 保存图像时添加的后缀
use_chop: False # 是否使用分割来节省内存
生成输出结果在results/test_sing_x4/visualization/sing内
4.数据集制作
根据使用的预训练模型在option/Train目录下选择对应的yml文件。
数据集的制作包括：高清图片数据集获取、高清图片数据集的清洗（去除异常图片）、低清图片制作
高清图片数据集获取：自己选择合适的数据集
高清图片数据集的清洗（去除切片产生的黑色图片）
对对灰度图进行的处理
from PIL import Image
import numpy as np
import os
def load_grayscale_image(image_path):
"""加载灰度图像并转换为NumPy数组"""
with Image.open(image_path) as img:
if img.mode != 'L': # 确保图像是灰度模式
img = img.convert('L')
return np.array(img)
def is_black_dominant_gray(image_array, threshold=0.5, black_threshold=10):
"""判断图像是否含有大面积黑色区域"""
# 计算低于black_threshold的像素点数量
black_pixels = np.sum(image_array < black_threshold)
total_pixels = image_array.size
return black_pixels / total_pixels > threshold
def filter_images(folder_path, threshold=0.5, black_threshold=10):
"""遍历文件夹并剔除含有大面积黑色区域的灰度图像"""
for filename in os.listdir(folder_path):
if filename.lower().endswith(('.png', '.jpg', '.jpeg', '.bmp', '.pgm', '.pbm')):
image_path = os.path.join(folder_path, filename)
image_array = load_grayscale_image(image_path)
if is_black_dominant_gray(image_array, threshold, black_threshold):
print(f"Removing {filename} due to black dominance.")
os.remove(image_path) # 取消注释以删除文件
# Example usage
folder_path = r'G:\1_tmp\img'
filter_images(folder_path)对彩色图的处理
from PIL import Image
import numpy as np
import os
def load_color_image(image_path):
"""加载彩色图像并转换为NumPy数组"""
with Image.open(image_path) as img:
return np.array(img)
def is_black_dominant_color(image_array, threshold=0.5, black_threshold=10):
"""判断彩色图像是否含有大面积黑色区域"""
# 将图像数组转换为HSV颜色空间，以便更容易地检测黑色
hsv_image = np.zeros_like(image_array, dtype=np.uint8)
hsv_image[..., 0] = image_array[..., 0] # H通道
hsv_image[..., 1] = 255 # S通道设为最大值
hsv_image[..., 2] = image_array[..., 2] # V通道
# 计算低于black_threshold的像素点数量
black_pixels = np.sum(hsv_image[..., 2] < black_threshold)
total_pixels = image_array.size // 3 # 彩色图像的总像素数是三个通道的像素数之和
return black_pixels / total_pixels > threshold
def filter_images(folder_path, threshold=0.5, black_threshold=10):
"""遍历文件夹并剔除含有大面积黑色区域的彩色图像"""
for filename in os.listdir(folder_path):
if filename.lower().endswith(('.png', '.jpg', '.jpeg', '.bmp')):
image_path = os.path.join(folder_path, filename)
image_array = load_color_image(image_path)
if is_black_dominant_color(image_array, threshold, black_threshold):
print(f"Removing {filename} due to black dominance.")
os.remove(image_path) # 取消注释以删除文件
# Example usage
folder_path = r'G:\1_tmp\img'
filter_images(folder_path)低清图片制作：
模糊：
#!/usr/bin/env python
# -*- coding: utf-8 -*-
import os
import uuid
from ffmpy import FFmpeg
def blur_image(image_path: str, output_dir: str, level=10):
ext = os.path.basename(image_path).strip().split('.')[-1]
if ext not in ['png', 'jpg']:
raise Exception('format error')
ff = FFmpeg(executable=r'G:ffmpeg-6.1-win-64\ffmpeg.exe',
inputs={
'{}'.format(image_path): None}, outputs={
os.path.join(
output_dir, '{}.{}'.format(
uuid.uuid4(), ext)): '-filter_complex "boxblur={}:1:cr=0:ar=0"'.format(level)})
print(ff.cmd)
ff.run()
return os.path.join(output_dir, '{}.{}'.format(uuid.uuid4(), ext))
def blur_images_in_folder(folder_path: str, output_dir: str, level=10):
# 确保输出目录存在
if not os.path.exists(output_dir):
os.makedirs(output_dir)
# 遍历文件夹中的所有文件
for filename in os.listdir(folder_path):
image_path = os.path.join(folder_path, filename)
# 检查文件是否是图片
if os.path.isfile(image_path) and filename.lower().endswith(('png', 'jpg', 'jpeg')):
# 对图像应用模糊效果并保存到输出目录
blurred_image_path = blur_image(image_path, output_dir, level)
print(f"Blurred image saved as: {blurred_image_path}")
# 使用示例
# 假设 'path_to_images' 是包含图片的文件夹路径
# 'path_to_output' 是你希望保存模糊图片的文件夹路径
path_to_images = r'G:\1_tmp\img'
path_to_output = r'G:\1_tmp\img_LR'
blur_images_in_folder(path_to_images, path_to_output)
注意：
ff = FFmpeg(executable=r'G:python_ku\ffmpeg-6.1-win-64\ffmpeg.exe'
使用双线性插值方法，将800*800的模糊图像，退化为200*200作为低清模糊图像
（matlab代码） 有兴趣可以转为python
function Prepare_TrainData_HR_LR_BI()
%% settings
path_save = './img_LR_200'; %保存路径
path_src = './img_LR'; %原路径
ext = {'*.jpg','*.png','*.bmp'};
filepaths = [];
for i = 1 : length(ext)
filepaths = cat(1,filepaths, dir(fullfile(path_src, ext{i})));
end
nb_im = length(filepaths);
DIV2K_HR = [];
for idx_im = 1:nb_im
fprintf('Read HR :%d\n', idx_im);
ImHR = imread(fullfile(path_src, filepaths(idx_im).name));
DIV2K_HR{idx_im} = ImHR;
end
%% generate and save LR via imresize() with Bicubic
for IdxIm = 1:nb_im
fprintf('IdxIm=%d\n', IdxIm);
ImHR = DIV2K_HR{IdxIm};
ImLRx2 = imresize(ImHR, 1/2, 'bicubic');
ImLRx3 = imresize(ImHR, 1/3, 'bicubic');
ImLRx4 = imresize(ImHR, 1/4, 'bicubic');
% Use the original filename and append _x* suffix
origFileName = filepaths(IdxIm).name;
fileName_x2 = [origFileName(1:end-4), '.jpg']; % Assuming .png extension 修改 生成图片的后缀，需要对训练和测试的yml文件进行修改
fileName_x3 = [origFileName(1:end-4), '.jpg'];
fileName_x4 = [origFileName(1:end-4), '.jpg'];
FolderLRx2 = fullfile(path_save, 'DIV2K_LR_bicubic', 'X2'); %文件夹名字
FolderLRx3 = fullfile(path_save, 'DIV2K_LR_bicubic', 'X3');
FolderLRx4 = fullfile(path_save, 'DIV2K_LR_bicubic', 'X4');
if ~exist(FolderLRx2, 'dir')
mkdir(FolderLRx2);
end
if ~exist(FolderLRx3, 'dir')
mkdir(FolderLRx3);
end
if ~exist(FolderLRx4, 'dir')
mkdir(FolderLRx4);
end
NameLRx2 = fullfile(FolderLRx2, fileName_x2);
NameLRx3 = fullfile(FolderLRx3, fileName_x3);
NameLRx4 = fullfile(FolderLRx4, fileName_x4);
% save image
imwrite(ImLRx2, NameLRx2);
imwrite(ImLRx3, NameLRx3);
imwrite(ImLRx4, NameLRx4);
end
end5.训练
Python basicsr/train.py -opt options/Train/train_DAT_light_x4.yml yml文件根据需求自己添加编写，主要是训练轮数和训练策略。
6.测试
python basicsr/test.py -opt options/Test/test_single_x4.yml 可以制作测试集进行对模型进行测试
7.pth转onnx模型
转换为onnx模型，注意转换所需内存特别大，RTX4090 24G只能转400*400,800*800转不了。不过超分辨率模型对这个要求不高，可以打散再拼接。
from basicsr.archs.dat_arch import DAT
import torch
import torch.nn as nn
import torch.nn.functional as F
device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
print(device)
device = 'cpu'
# 假设DAT类已经正确导入，并且是你需要的模型架构
model = DAT(
upscale=4,
in_chans=3,
img_size=64,
img_range=1.,
depth=[18],
embed_dim=60,
num_heads=[6],
expansion_factor=2,
resi_connection='3conv',
split_size=[8,32],
upsampler='pixelshuffledirect'
).to(device)
# 加载预训练的权重
state_dict = torch.load(r'G:\1_tmp_1\DAT_light_1600_g_480000.pth')['params']
model.load_state_dict(state_dict, strict=False) # 使用strict=False以忽略不匹配的键
# 确保模型处于评估模式
model.eval()
dummy_input = torch.randn(1,3,200,200).to(device)
x = model(dummy_input)
print(x)
print(x.shape)
# 导出模型为ONNX格式
# 'path_to_save_model.onnx' 是你想要保存ONNX模型的文件路径
torch.onnx.export(model, # 模型
dummy_input, # 输入张量
'DAT_model12.onnx', # 输出文件路径
export_params=True, # 是否导出参数到ONNX文件中
opset_version=11, # ONNX的操作集版本
do_constant_folding=True, # 是否执行常量折叠优化
input_names=['input'], # 输入张量的名称
output_names=['output'], # 输出张量的名称
dynamic_axes={'input': {0: 'batch_size'}, # 可变长度轴的字典
'output': {0: 'batch_size'}})
8.使用onnx模型
import os
import numpy as np
import onnxruntime as ort
import torch
import cv2
import math
from typing import Optional, List, Union
from PIL import Image
import time
print(torch.cuda.is_available())
print(ort.__version__)
print(ort.get_device())
device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
def make_grid(
tensor: Union[torch.Tensor, List[torch.Tensor]],
nrow: int = 8,
padding: int = 0,
normalize: bool = False,
value_range: Optional[tuple] = None,
scale_each: bool = False,
pad_value: int = 0
) -> torch.Tensor:
"""Make a grid of images.
Args:
tensor (Tensor or list): 4D mini-batch Tensor of shape (B x C x H x W)
or a list of images all of the same size.
nrow (int, optional): Number of images displayed in each row of the grid.
The final grid size is ``(B / nrow, nrow)``. Default: ``8``.
padding (int, optional): amount of padding. Default: ``2``.
normalize (bool, optional): If True, shift the image to the range (0, 1),
by the min and max values specified by :attr:`value_range`. Default: ``False``.
value_range (tuple, optional): tuple (min, max) where min and max are numbers,
then these numbers are used to normalize the image. By default, min and max
are computed from the tensor.
scale_each (bool, optional): If ``True``, scale each image in the batch of
images separately rather than the (min, max) over all images. Default: ``False``.
pad_value (int, optional): Value for the padded pixels. Default: ``0``.
Returns:
Tensor: Grid of images.
"""
if not (torch.is_tensor(tensor) or
(isinstance(tensor, list) and all(torch.is_tensor(t) for t in tensor))):
raise TypeError(f'tensor or list of tensors expected, got {type(tensor)}')
# if list of tensors, convert to a 4D mini-batch Tensor
if isinstance(tensor, list):
tensor = torch.stack(tensor, dim=0)
if tensor.dim() == 2: # single image H x W
tensor = tensor.unsqueeze(0)
if tensor.dim() == 3: # single image
if tensor.size(0) == 1: # if single-channel, convert to 3-channel
tensor = torch.cat((tensor, tensor, tensor), 0)
tensor = tensor.unsqueeze(0)
if tensor.dim() == 4 and tensor.size(1) == 1: # single-channel images
tensor = torch.cat((tensor, tensor, tensor), 1)
if normalize is True:
tensor = tensor.clone() # avoid modifying tensor in-place
if value_range is not None:
assert isinstance(value_range, tuple), \
"value_range has to be a tuple (min, max) if specified. min and max are numbers"
def norm_ip(img, low, high):
img.clamp_(min=low, max=high)
img.sub_(low).div_(max(high - low, 1e-5))
def norm_range(t, value_range):
if value_range is not None:
norm_ip(t, value_range[0], value_range[1])
else:
norm_ip(t, float(t.min()), float(t.max()))
if scale_each is True:
for t in tensor: # loop over mini-batch dimension
norm_range(t, value_range)
else:
norm_range(tensor, value_range)
if tensor.size(0) == 1:
return tensor.squeeze(0)
# make the mini-batch of images into a grid
nmaps = tensor.size(0)
xmaps = min(nrow, nmaps)
ymaps = int(math.ceil(float(nmaps) / xmaps))
height, width = int(tensor.size(2) + padding), int(tensor.size(3) + padding)
num_channels = tensor.size(1)
grid = tensor.new_full((num_channels, height * ymaps + padding, width * xmaps + padding), pad_value)
k = 0
for y in range(ymaps):
for x in range(xmaps):
if k >= nmaps:
break
grid.narrow(1, y * height + padding, height - padding).narrow( # type: ignore[attr-defined]
2, x * width + padding, width - padding
).copy_(tensor[k])
k = k + 1
return grid
def tensor2img_run(tensor, rgb2bgr=True, out_type=np.uint8, min_max=(0, 1)):
"""Convert torch Tensors into image numpy arrays.
After clamping to [min, max], values will be normalized to [0, 1].
Args:
tensor (Tensor or list[Tensor]): Accept shapes:
1) 4D mini-batch Tensor of shape (B x 3/1 x H x W);
2) 3D Tensor of shape (3/1 x H x W);
3) 2D Tensor of shape (H x W).
Tensor channel should be in RGB order.
rgb2bgr (bool): Whether to change rgb to bgr.
out_type (numpy type): output types. If ``np.uint8``, transform outputs
to uint8 type with range [0, 255]; otherwise, float type with
range [0, 1]. Default: ``np.uint8``.
min_max (tuple[int]): min and max values for clamp.
Returns:
(Tensor or list): 3D ndarray of shape (H x W x C) OR 2D ndarray of
shape (H x W). The channel order is BGR.
"""
if not (torch.is_tensor(tensor) or (isinstance(tensor, list) and all(torch.is_tensor(t) for t in tensor))):
raise TypeError(f'tensor or list of tensors expected, got {type(tensor)}')
if torch.is_tensor(tensor):
tensor = [tensor]
result = []
for _tensor in tensor:
_tensor = _tensor.squeeze(0).float().detach().cpu().clamp_(*min_max)
_tensor = (_tensor - min_max[0]) / (min_max[1] - min_max[0])
n_dim = _tensor.dim()
if n_dim == 4:
img_np = make_grid(_tensor, nrow=int(math.sqrt(_tensor.size(0))), normalize=False).numpy()
img_np = img_np.transpose(1, 2, 0)
if rgb2bgr:
img_np = cv2.cvtColor(img_np, cv2.COLOR_RGB2BGR)
elif n_dim == 3:
img_np = _tensor.numpy()
img_np = img_np.transpose(1, 2, 0)
if img_np.shape[2] == 1: # gray image
img_np = np.squeeze(img_np, axis=2)
else:
if rgb2bgr:
img_np = cv2.cvtColor(img_np, cv2.COLOR_RGB2BGR)
elif n_dim == 2:
img_np = _tensor.numpy()
else:
raise TypeError(f'Only support 4D, 3D or 2D tensor. But received with dimension: {n_dim}')
if out_type == np.uint8:
# Unlike MATLAB, numpy.unit8() WILL NOT round by default.
img_np = (img_np * 255.0).round()
img_np = img_np.astype(out_type)
result.append(img_np)
if len(result) == 1:
result = result[0]
return result
# def load_onnx_model(model_path):
# """加载 ONNX 模型."""
# session = ort.InferenceSession(model_path, providers=['CPUExecutionProvider'])
# return session
def load_onnx_model(model: str) -> ort.InferenceSession:
providers = ['CPUExecutionProvider']
if torch.cuda.is_available():
providers.insert(0, 'CUDAExecutionProvider')
session = ort.InferenceSession(model, providers=providers)
return session
def infer(session, input_tensor):
"""使用 ONNX 模型进行推理"""
input_name = session.get_inputs()[0].name
output = session.run(None, {input_name: input_tensor}) #推理输出
return output
def get_image_bytes(filepath):
"""读取图像文件的字节内容."""
with open(filepath, 'rb') as f:
image_bytes = f.read()
return image_bytes
def imfrombytes(content, flag='color', float32=False):
"""从字节内容读取图像."""
img_np = np.frombuffer(content, np.uint8)
img = cv2.imdecode(img_np, cv2.IMREAD_COLOR)
if float32:
img = img.astype(np.float32) / 255.
return img
def img2tensor(img, bgr2rgb=True, float32=True):
"""Numpy array to NO tensor."""
img = cv2.cvtColor(img, cv2.COLOR_BGR2RGB) if bgr2rgb else img
#Todo 通道转变HWC —-> CHW
#img type is float32
img = img.transpose(2, 0, 1)
return img
def preprocess_image(image_path, block_size=64):
"""预处理图像，转换为模型输入所需的格式."""
image_bytes = get_image_bytes(image_path)
img_cv = imfrombytes(image_bytes, flag='color', float32=True)
img_numpy = img2tensor(img_cv)
# axis=0 会在数组的形状前面添加一个维度
img_numpy = np.expand_dims(img_numpy, axis=0)
return img_numpy, img_cv.shape[0], img_cv.shape[1]
def main(session, input_image_path, output_image_path, sc):
# 预处理图像
input_img_numpy, height, width = preprocess_image(input_image_path)
output_numpy = infer(session, input_img_numpy)
output_tensors = torch.tensor(output_numpy[0], dtype=torch.get_default_dtype())
output_np = tensor2img_run(output_tensors, rgb2bgr=True, out_type=np.uint8, min_max=(0, 1))
img_rgb = cv2.cvtColor(output_np, cv2.COLOR_BGR2RGB)
img_pil = Image.fromarray(img_rgb, 'RGB')
# img_pil.show()
sc = sc+1
print(f"第{sc}张图片 output_image_path is {output_image_path}")
img_pil.save(output_image_path)
return sc
if __name__ == "__main__":
model_path = r'G:\1_超分辨数据集\onnx模型\DAT_light_HighPrecisiondata_400to1600_x4_CPU.onnx'
# 替换为你的输入图像文件夹路径
input_images_folder = r'G:\1_tmp_1\test_data_SR_400x400\test_onnx_infer_input_400x400_DAT_light_HighPrecisiondata_800to3200_x4_400to1600_GPU'
# 替换为你的输出图像文件夹路径
output_images_folder = r'G:\1_tmp_1\test_data_SR_400x400\test_onnx_infer_output_1600x1600_DAT_light_HighPrecisiondata_400to1600_x4_CPU'
# 确保输出文件夹存在
os.makedirs(output_images_folder, exist_ok=True)
# 记录开始时间
a = time.time()
# 加载模型
session = load_onnx_model(model_path)
sc = 0
# 遍历文件夹中的所有文件
for image_filename in os.listdir(input_images_folder):
# 检查文件扩展名，确保只处理图片文件
if image_filename.lower().endswith(('.png', '.jpg', '.jpeg', '.bmp', '.gif')):
# 构建完整的文件路径
input_image_path = os.path.join(input_images_folder, image_filename)
output_image_path = os.path.join(output_images_folder, image_filename)
# try:
# 调用你的模型处理函数
sc = main(session, input_image_path, output_image_path,sc)
# except Exception as e:
# print(f"处理图像时发生错误: {e}")
# 记录结束时间
b = time.time()
# 打印总的处理时间
print('Total time:', int(b - a))
print('2')此代码采用onnxruntime-gpu 库进行推理def load_onnx_mode（）使用GPU加载模型，数据导入使用numpy进行加载输入维度是1*3*n*n
所需库文件windows conda DAT
Package Version Editable project location
----------------------- ------------------ -------------------------
absl-py 2.1.0
addict 2.4.0
astunparse 1.6.3
basicsr 1.3.5
cachetools 5.3.3
certifi 2024.6.2
chardet 5.2.0
charset-normalizer 3.3.2
colorama 0.4.6
coloredlogs 15.0.1
einops 0.8.0
filelock 3.15.4
flatbuffers 24.3.25
fsspec 2024.6.1
future 1.0.0
fvcore 0.1.5.post20221221
google-auth 2.31.0
google-auth-oauthlib 1.0.0
grpcio 1.64.1
h5py 3.11.0
huggingface-hub 0.23.4
humanfriendly 10.0
idna 3.7
imageio 2.34.2
importlib_metadata 8.0.0
iopath 0.1.10
lazy_loader 0.4
lmdb 1.5.1
Markdown 3.6
MarkupSafe 2.1.5
mpmath 1.3.0
networkx 3.1
numpy 1.24.4
oauthlib 3.2.2
onnx 1.16.1
onnxruntime 1.18.1
onnxruntime-gpu 1.18.1
opencv-python 4.10.0.84
packaging 24.1
pillow 10.4.0
pip 24.0
platformdirs 4.2.2
portalocker 2.10.1
protobuf 5.27.2
pyasn1 0.6.0
pyasn1_modules 0.4.0
scipy 1.10.1
setuptools 69.5.1
six 1.16.0
sympy 1.13.0
tabulate 0.9.0
tb-nightly 2.14.0a20230808
tensorboard-data-server 0.7.2
termcolor 2.4.0
tifffile 2023.7.10
timm 1.0.7
tomli 2.0.1
torch 1.8.0+cu111
torchvision 0.9.0
tqdm 4.66.4
typing_extensions 4.12.2
urllib3 2.2.2
Werkzeug 3.0.3
wheel 0.43.0
yacs 0.1.8
yapf 0.40.2
zipp 3.19.2
注：cuda 和pytoch 根据自己显卡进行安装配置
cuda torch和torchvision下载网站download.pytorch.org/whl/torch_stable.html
下载对应版本
10.在英伟达orin nx开发板上部署
查看自己的nvidia版本 安装jtop
sudo apt install jtopjtop 查看自己的型号
安装nvidia-jetpack 使用这个配置cuda tensorRT cuDNN
sudo vi /etc/apt/sources.list这句打开记录源的文件，一般是这个文件，有的默认可能不一样。随便什么编辑器打开都可以，gedit也行看个人习惯。增加下面这两行
deb https://repo.download.nvidia.com/jetson/common r35.3 main
deb https://repo.download.nvidia.com/jetson/t210 r35.3 main
把这两组链接分别导入就可以了，这里主要数字要更换，还有后面r35.3就是你的l4t系统版本号，输入一个点后的就可以了，不用精确到小版本
sudo apt update
sudo apt install nvidia-jetpack
安装pytorch
根据cuda版本去安装pytorch。
资料：链接：https://pan.baidu.com/s/1rb9m11lq_nQqNJ2_ToX5OA?pwd=50vd
提取码：50vd
注意：arm的pytorch比较特殊 不能在线安装，需要离线安装包下载，上面有资料
torchvision：
git clone --branch v0.13.0 https://gitee.com/xing-min/vision torchvision
参考：jetson agx orin 的pytorch、torchvision、tensorrt安装最全教程_jetson torchvision-优快云博客
扫一扫
1001
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
