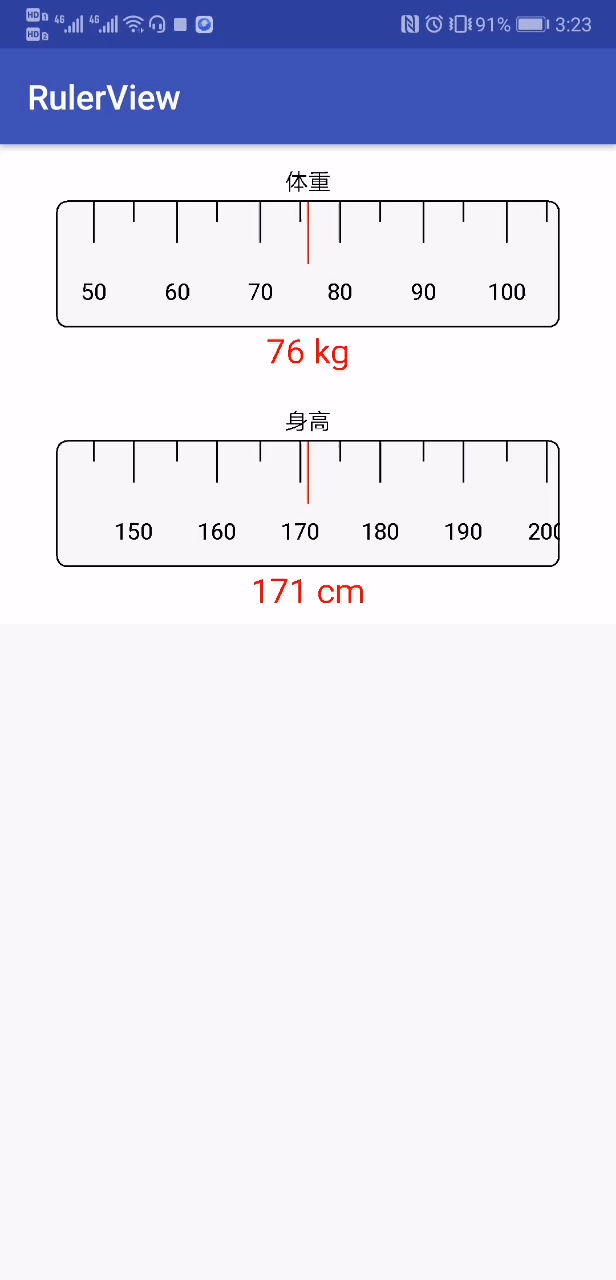

一、效果图

效果图

二、控件结构

三、代码实现

1、attrs.xml中添加自定义控件的属性

<declare-styleable name="RulerView">
        <attr name="titleName" format="reference|string" />
        <attr name="unitName" format="reference|string" />
        <attr name="minValue" format="reference|integer" />
        <attr name="maxValue" format="reference|integer" />
        <attr name="currentValue" format="reference|integer" />
    </declare-styleable>

2、创建自定义控件RulerView继承View（请结合具体代码来看）

1)构造方法中通过initView获取初始化值。

2)onMeasure中来确定控件自身和控件内所要绘制内容的的尺寸。

3)onDraw中进行控件的绘制。

4)GestureDetectorCompat的监听方法onScroll和onFling中根据手指滑动的距离来计算当前刻度的位置。


import android.animation.ValueAnimator;
import android.content.Context;
import android.content.res.TypedArray;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.graphics.Rect;
import android.graphics.RectF;
import android.graphics.Region;
import android.graphics.RegionIterator;
import android.os.Build;
import android.support.annotation.Nullable;
import android.support.annotation.RequiresApi;
import android.support.v4.view.GestureDetectorCompat;
import android.support.v4.view.animation.FastOutLinearInInterpolator;
import android.text.TextUtils;
import android.util.AttributeSet;
import android.view.GestureDetector;
import android.view.MotionEvent;
import android.view.View;
import android.view.animation.AccelerateDecelerateInterpolator;
import android.view.animation.AccelerateInterpolator;
import android.view.animation.AnticipateInterpolator;
import android.view.animation.AnticipateOvershootInterpolator;
import android.view.animation.BounceInterpolator;
import android.view.animation.DecelerateInterpolator;
import android.view.animation.LinearInterpolator;

/**
 * Created by HARRY on 2018/12/26.
 */

public class RulerView extends View {

    //控件宽
    private int mMeasuredWidth = 0;
    //控件高
    private int mMeasuredHeight = 0;
    //标尺宽
    private int mRulerWid;
    //标尺高
    private int mRulerHei;
    //标尺的左侧离控件的左侧的距离
    private int mLeft;
    //标尺的右侧离控件左侧的距离
    private int mRight;
    //标尺顶部离控件顶部距离
    private int mTop;
    //标尺底部离控件顶部的距离
    private int mBottom;
    //标题
    private String mTitleName;
    //画笔
    private Paint mPaint = new Paint();
    //目前设置刻度值默认显示6个单位值，打个比方初始显示可见的值是20-80，那么mLineOffset的值就是，标尺的宽除以6
    private int mLineOffset;
    //标尺刻度的长度
    private int mLineLong;
    //标尺指示器的长度
    private int mIndicatorLong;
    //最大刻度值
    private int mMaxValue;
    //最小刻度值
    private int mMinValue;
    //现在的刻度值
    private float mCurrentValue;
    //平均单位值下占有的px值
    private float mAverage;
    //标尺中间坐标x值
    private int mRulerMiddleX;
    //标尺刻度值y坐标
    private int mValueY;
    //实时手指移动时候的x坐标
    private float mCurrentDownX;
    //点击标尺时候记录下的点击y坐标
    private float mStartClickY;
    //点击标尺时候记录下的点击x坐标
    private float mStartClickX;
    //标尺单位名
    private String mUnitName;
    //滑动监听
    private SizeViewValueChangeListener listener;
    private GestureDetectorCompat mDetector;
    private ValueAnimator animator;

    public RulerView(Context context) {
        this(context, null);
    }

    public RulerView(Context context, @Nullable AttributeSet attrs) {
        this(context, attrs, 0);
    }

    public RulerView(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
        initView(context, attrs);
    }

    @RequiresApi(api = Build.VERSION_CODES.LOLLIPOP)
    public RulerView(Context context, @Nullable AttributeSet attrs, int defStyleAttr, int defStyleRes) {
        super(context, attrs, defStyleAttr, defStyleRes);
        initView(context, attrs);
    }


    private void initView(Context context, AttributeSet attrs) {
        mDetector = new GestureDetectorCompat(context, new RulerGestureListener());

        TypedArray array = context.obtainStyledAttributes(attrs, R.styleable.RulerView);
        if (array != null) {
            String titleName = array.getString(R.styleable.RulerView_titleName);
            String unitName = array.getString(R.styleable.RulerView_unitName);
            int minValue = array.getInt(R.styleable.RulerView_minValue, 30);
            int maxValue = array.getInt(R.styleable.RulerView_maxValue, 120);
            int currentValue = array.getInt(R.styleable.RulerView_currentValue, 76);

            if (TextUtils.isEmpty(titleName)) {
                mTitleName = "体重";
            } else {
                mTitleName = titleName;
            }
            if (TextUtils.isEmpty(unitName)) {
                mUnitName = "kg";
            } else {
                mUnitName = unitName;
            }
            mMaxValue = maxValue;
            mMinValue = minValue;
            //默认让标尺距离左侧为100
            mLeft = 100;
            //默认让标尺距离顶部距离为100
            mTop = 100;
            setCurrentValue(currentValue);
            array.recycle();
        }
    }

    @Override
    protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
        super.onMeasure(widthMeasureSpec, heightMeasureSpec);
        int modeHei = MeasureSpec.getMode(heightMeasureSpec);
        mMeasuredWidth = getMeasuredWidth();
        if (modeHei == MeasureSpec.AT_MOST || modeHei == MeasureSpec.UNSPECIFIED) {
            //不确定控件高度情况下设置一个默认值
            int heiDefault = DensityUtil.dip2px(getContext(), 140);
            setMeasuredDimension(mMeasuredWidth, heiDefault);
        } else if (modeHei == MeasureSpec.EXACTLY) {
            //确切值不做任何操作
        }
        mMeasuredHeight = getMeasuredHeight();
        //设置标尺宽度
        mRulerWid = mMeasuredWidth - 2 * mLeft;

        mRight = mLeft + mRulerWid;
        //默认让标尺可见的范围内可以显示6个单位的刻度
        mLineOffset = mRulerWid / 6;
        mRulerHei = mMeasuredHeight - 2 * mTop;
        mBottom = mRulerHei + mTop;
        //使刻度线的长度为标尺高度的1/3
        mLineLong = mRulerHei / 3;
        //标尺的指示器的长度为标尺高度的1/2
        mIndicatorLong = mRulerHei / 2;

        //单位刻度下占有的屏幕宽度
        mAverage = mLineOffset / 10;
        //标尺中间的位置的x坐标
        mRulerMiddleX = mMeasuredWidth / 2;
        //标尺刻度值的y坐标位置
        mValueY = mTop + mLineLong + 100;

    }

    @Override
    protected void onDraw(Canvas canvas) {
        super.onDraw(canvas);
        initDraw(canvas);

        //画标尺
        drawRuler(canvas);

//        //把标尺以外所有区域染白
//        drawOutSideRuler(canvas);

        //目前没有更好的办法，先把标尺的左右两侧都设置白色
        drawLeftRight(canvas);

        //画标题
        drawTitle(canvas);

        //画实时刻度值
        drawRulerValue(canvas, (int) mCurrentValue);
    }

//    private void drawOutSideRuler(Canvas canvas) {
//        mPaint.setColor(Color.parseColor("#FFFFFF"));
//        mPaint.setStyle(Paint.Style.FILL);
//
//        Rect rulerRect = new Rect();
//        rulerRect.set(mLeft, mTop, mRight, mBottom);
//
//        Rect allRect = new Rect();
//        allRect.set(0, 0, mMeasuredWidth, mRulerHei);
//
//        Region regionRuler = new Region(rulerRect);
//        Region regionAll = new Region(allRect);
//        regionAll.op(regionRuler, Region.Op.DIFFERENCE);
//
//        drawRegion(canvas, regionAll, mPaint);
//    }

    private void drawRegion(Canvas canvas, Region rgn, Paint paint) {
        RegionIterator iter = new RegionIterator(rgn);
        Rect r = new Rect();

        while (iter.next(r)) {
            canvas.drawRect(r, paint);
        }
    }

    private void drawTitle(Canvas canvas) {
        setTitlePaint();
        //画标题,使标题底部正好在标尺顶部，baseLineY的实现原理这里不讲了，大家百度下
        Paint.FontMetricsInt fm = mPaint.getFontMetricsInt();
        int baseLineY = mTop - fm.bottom;
        canvas.drawText(mTitleName, mMeasuredWidth / 2, baseLineY - 10, mPaint);
    }

    private void initDraw(Canvas canvas) {
        mPaint.setColor(Color.parseColor("#FFFFFF"));
        mPaint.setStyle(Paint.Style.FILL);

        RectF rect = new RectF(0, 0, mMeasuredWidth, mMeasuredHeight);
        canvas.drawRect(rect, mPaint);
    }

    private void drawLeftRight(Canvas canvas) {
        mPaint.setColor(Color.parseColor("#FFFFFF"));
        mPaint.setStyle(Paint.Style.FILL);

        RectF rectLeft = new RectF(0, 0, mLeft - 2, mMeasuredHeight);
        RectF rectRight = new RectF(mRight + 2, 0, mMeasuredWidth, mMeasuredHeight);

        canvas.drawRect(rectLeft, mPaint);
        canvas.drawRect(rectRight, mPaint);
    }

    private void setTitlePaint() {
        mPaint.setColor(Color.BLACK);
        mPaint.setTextSize(40);
        mPaint.setStyle(Paint.Style.FILL);
        mPaint.setTextAlign(Paint.Align.CENTER);
    }

    private void drawRuler(Canvas canvas) {
        RectF rulerRect = new RectF();
        rulerRect.set(mLeft, mTop, mRight, mBottom);

        //画标尺的背景
        setRulerBackgroundPaint();
        int cornor = DensityUtil.dip2px(getContext(), 6);
        canvas.drawRoundRect(rulerRect, cornor, cornor, mPaint);

        //画标尺的刻度线和刻度
        drawRulerLine(canvas, (int) mCurrentValue);

        //画标尺的指示器线
        setIndicatorLinePaint();
        canvas.drawLine(mMeasuredWidth / 2, mTop, mMeasuredWidth / 2, mTop + mIndicatorLong, mPaint);

        //画标尺的背景边框
        setRulerStrokePaint();
        canvas.drawRoundRect(rulerRect, cornor, cornor, mPaint);
    }

    private void drawRulerValue(Canvas canvas, int indicatorValue) {
        setIndicatorValuePaint();
        //计算出baseLine位置,使文字正好在标尺的下面，具体原理这里就不讲了，大家百度
        Paint.FontMetricsInt fm = mPaint.getFontMetricsInt();
        int baseLineY = mBottom - fm.top;
        canvas.drawText(indicatorValue + " " + mUnitName, mRulerMiddleX, baseLineY, mPaint);
    }

    private void drawRulerLine(Canvas canvas, int indicatorValue) {
        setTitlePaint();
        //目前标尺值十位数字值
        int remainder = indicatorValue % 10;

        setRulerLinePaint();
        //画右侧长线
        int startXRl = (int) (mRulerMiddleX + mAverage * (10 - remainder));
        int endXRl = startXRl;
        int startYRl = mTop;
        int endYRl = mTop + mLineLong;
        int valueRl = (indicatorValue / 10 + 1) * 10;
        while (startXRl <= mRight && valueRl <= mMaxValue) {
            canvas.drawLine(startXRl, startYRl, endXRl, endYRl, mPaint);
            canvas.drawText("" + valueRl, startXRl, mValueY, mPaint);
            startXRl = startXRl + mLineOffset;
            endXRl = startXRl;
            valueRl = valueRl + 10;
        }

        //画右侧短线
        int startYRs = mTop;
        int endYRs = mTop + mLineLong / 2;
        int valueRs = 0;
        int startXRs = 0;
        if (remainder > 5) {
            valueRs = (indicatorValue / 10 + 1) * 10 + 5;
            startXRs = (int) (mRulerMiddleX + mAverage * (10 - remainder + 5));
        } else {
            valueRs = (indicatorValue / 10) * 10 + 5;
            startXRs = (int) (mRulerMiddleX + mAverage * (5 - remainder));
        }
        int endXRs = startXRs;
        while (startXRs <= mRight && valueRs <= mMaxValue) {
            canvas.drawLine(startXRs, startYRs, endXRs, endYRs, mPaint);
            startXRs = startXRs + mLineOffset;
            endXRs = startXRs;
            valueRs = valueRs + 10;
        }

        //画左侧长线
        int startXLl = (int) (mRulerMiddleX - mAverage * remainder);
        int endXLl = startXLl;
        int startYLl = mTop;
        int endYLl = mTop + mLineLong;
        int valueLl = (indicatorValue / 10) * 10;
        while (startXLl >= mLeft && valueLl >= mMinValue) {
            canvas.drawLine(startXLl, startYLl, endXLl, endYLl, mPaint);
            canvas.drawText("" + valueLl, startXLl, mValueY, mPaint);
            startXLl = startXLl - mLineOffset;
            endXLl = startXLl;
            valueLl = valueLl - 10;
        }

        //画左侧短线
        int startYLs = mTop;
        int endYLs = mTop + mLineLong / 2;
        int startXLs = 0;
        int valueLs = 0;
        if (remainder > 5) {
            valueLs = (indicatorValue / 10) * 10 + 5;
            startXLs = (int) (mRulerMiddleX - mAverage * (remainder - 5));
        } else {
            valueLs = (indicatorValue / 10 - 1) * 10 + 5;
            startXLs = (int) (mRulerMiddleX - mAverage * (remainder + 5));
        }
        int endXLs = startXLs;
        while (startXLs >= mLeft && valueLs >= mMinValue) {
            canvas.drawLine(startXLs, startYLs, endXLs, endYLs, mPaint);
            startXLs = startXLs - mLineOffset;
            endXLs = startXLs;
            valueLs = valueLs - 10;
        }
    }

    @Override
    public boolean onTouchEvent(MotionEvent event) {
        return mDetector.onTouchEvent(event);
    }

    private class RulerGestureListener extends GestureDetector.SimpleOnGestureListener {
        @Override
        public boolean onDown(MotionEvent e) {
            if (animator != null) {
                animator.cancel();
            }
            mCurrentDownX = e.getX();
            //记录用户点击屏幕时候的坐标点
            mStartClickX = mCurrentDownX;
            mStartClickY = e.getY();
            return true;
        }

        @Override
        public boolean onScroll(MotionEvent e1, MotionEvent e2, float distanceX, float distanceY) {
            System.out.println("onScroll");
            if (mStartClickX >= mLeft && mStartClickX <= mRight &&
                    mStartClickY >= mTop && mStartClickY < mBottom) {
                float value = mCurrentValue + distanceX / mAverage;
                setCurrentValue(value);
                invalidate();
                if (listener != null) {
                    listener.onValueChange((int) mCurrentValue);
                }
            }
            return true;
        }

        @Override
        public boolean onFling(MotionEvent e1, MotionEvent e2, float velocityX, float velocityY) {
            System.out.println("onFling");
            if (mStartClickX >= mLeft && mStartClickX <= mRight &&
                    mStartClickY >= mTop && mStartClickY < mBottom) {
                animator = ValueAnimator.ofFloat(velocityX, 0);
                animator.setDuration(1000);
//                animator.setInterpolator(new LinearInterpolator());
                animator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
                    @Override
                    public void onAnimationUpdate(ValueAnimator animation) {
                        float animatedValue = (float) animation.getAnimatedValue();
                        float value = mCurrentValue - (animatedValue * (float) 0.005) / mAverage;
                        setCurrentValue(value);
                        invalidate();
                        if (listener != null) {
                            listener.onValueChange((int) mCurrentValue);
                        }
                    }
                });
                animator.start();
            }
            return true;
        }
    }

    public void setCurrentValue(float value) {
        mCurrentValue = value;
        if (mCurrentValue < mMinValue) {
            mCurrentValue = mMinValue;
        } else if (mCurrentValue > mMaxValue) {
            mCurrentValue = mMaxValue;
        }
    }

    private void setIndicatorValuePaint() {
        mPaint.setColor(Color.RED);
        mPaint.setStyle(Paint.Style.FILL);
        mPaint.setTextSize(60);
        //使文字居中显示
        mPaint.setTextAlign(Paint.Align.CENTER);
    }

    private void setIndicatorLinePaint() {
        mPaint.setColor(Color.parseColor("#FF0000"));
        mPaint.setStrokeWidth(3);
    }

    private void setRulerLinePaint() {
//        mPaint.setColor(Color.parseColor("#E2E2E2"));
        mPaint.setColor(Color.parseColor("#000000"));
        mPaint.setStrokeWidth(3);
    }

    private void setRulerBackgroundPaint() {
        mPaint.setStyle(Paint.Style.FILL);
        mPaint.setColor(Color.parseColor("#F8F8F8"));
    }

    private void setRulerStrokePaint() {
        mPaint.setStyle(Paint.Style.STROKE);
//        mPaint.setColor(Color.parseColor("#E2E2E2"));
        mPaint.setColor(Color.parseColor("#000000"));
        mPaint.setStrokeWidth(3);
    }

    public void setOnValueChangeListener(SizeViewValueChangeListener listener) {
        this.listener = listener;
    }


}
public interface SizeViewValueChangeListener {
    void onValueChange(int value);
}

三、项目中如何引用

步骤1.将JitPack存储库添加到构建文件中

项目的根build.gradle中添加以下代码：

allprojects {
	repositories {
		...
		maven { url 'https://jitpack.io' }
	}
}

步骤2.build.gradle添加依赖项

dependencies {
        implementation 'com.github.hnsycsxhzcsh:RulerView:v1.3'
}

步骤3. 布局中引用控件

<com.rulerlibrary.RulerView
    	android:id="@+id/sizeview_kg"
    	android:layout_width="match_parent"
    	android:layout_height="wrap_content"
    	app:currentValue="76"
    	app:maxValue="150"
    	app:minValue="45"
    	app:titleName="体重"
    	app:unitName="kg" />

步骤4. activity中添加监听

mSizeViewKg = findViewById(R.id.sizeview_kg);

//设置初始化值
mSizeViewKg.setCurrentValue(89);

mSizeViewKg.setOnValueChangeListener(new SizeViewValueChangeListener() {
        @Override
        public void onValueChange(int value) {
	//获取现在的值
        }
    });

备注：

可以在github上下载我的项目：https://github.com/hnsycsxhzcsh/RulerView，如果我的博客对你有帮助的话，欢迎博客点赞支持，并在github右上角star支持！





评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
