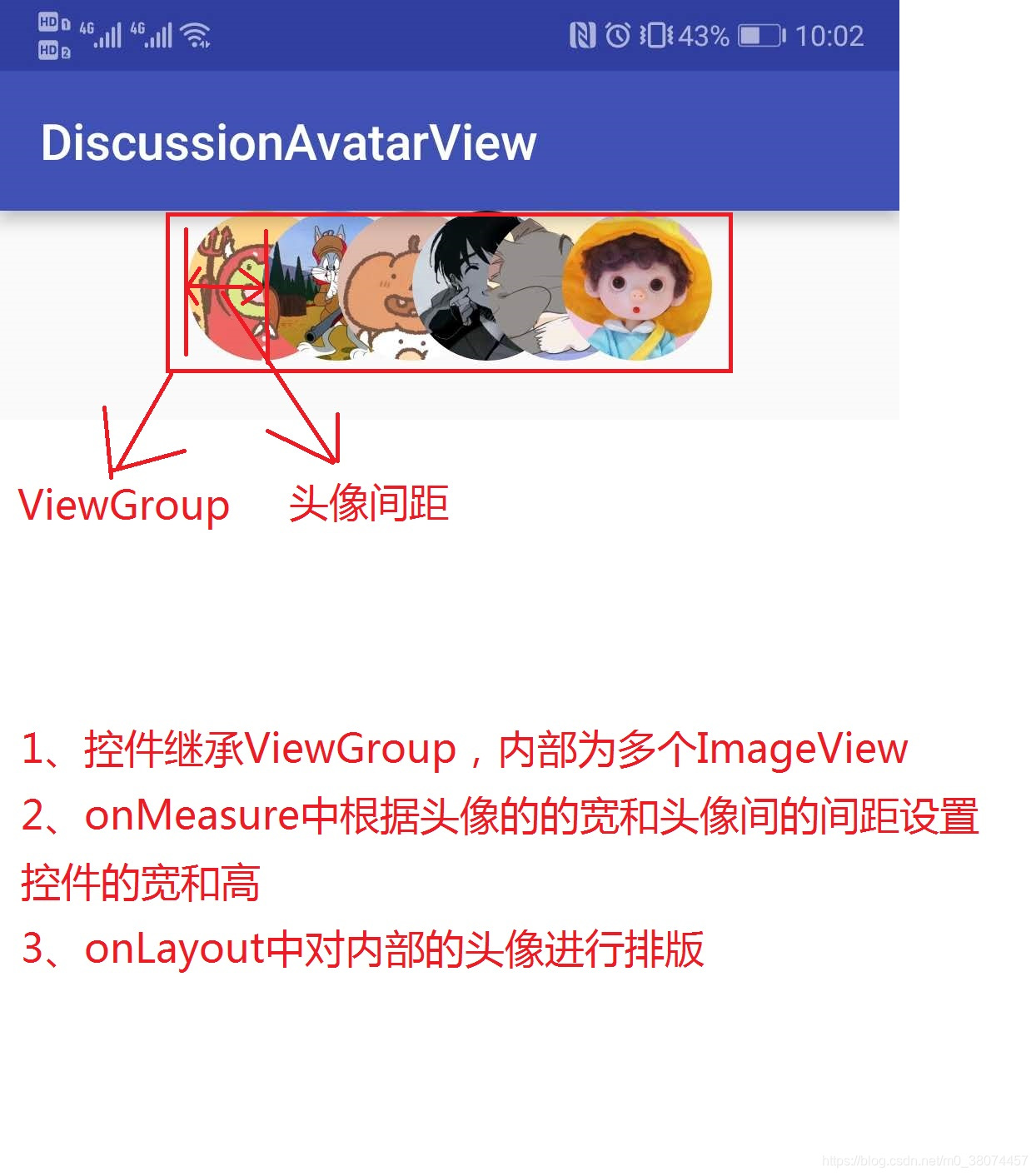

一、效果图
二、实现步骤
三、代码实现
1、attrs.xml中添加自定义控件的属性
<declare-styleable name="DiscussionAvatarView">
<!--头像的半径,dp为单位-->
<attr name="radius" format="reference|integer" />
<!--头像间的距离,为头像直径的长度的百分比,dp为单位-->
<attr name="space" format="reference|float" />
<!--最多显示多少个头像-->
<attr name="maxCount" format="reference|integer" />
<!--是否最后一个显示完全,默认是true-->
<attr name="isLastComplete" format="reference|boolean" />
<!--是否显示动画效果-->
<attr name="isShowAnimation" format="reference|boolean" />
</declare-styleable>
2、控件代码
1、构造方法中初始化
private void initView(Context context, AttributeSet attrs) {
this.mContext = context;
this.mInflater = LayoutInflater.from(mContext);
TypedArray array = context.obtainStyledAttributes(attrs, R.styleable.DiscussionAvatarView);
if (array != null) {
int radius = array.getInteger(R.styleable.DiscussionAvatarView_radius, 13);
mSpace = array.getFloat(R.styleable.DiscussionAvatarView_space, (float) 0.5);
mMaxCount = array.getInteger(R.styleable.DiscussionAvatarView_maxCount, 6);
isLastComplete = array.getBoolean(R.styleable.DiscussionAvatarView_isLastComplete, true);
isShowAnimation = array.getBoolean(R.styleable.DiscussionAvatarView_isShowAnimation, true);
mRadius = DensityUtil.dip2px(context, radius);
array.recycle();
}
}
2、onMeasure中设置控件的宽高
@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
super.onMeasure(widthMeasureSpec, heightMeasureSpec);
int heiMeasure = MeasureSpec.getSize(heightMeasureSpec);
int heiMode = MeasureSpec.getMode(heightMeasureSpec);
int widMode = MeasureSpec.getMode(widthMeasureSpec);
int widMeasure = MeasureSpec.getSize(heightMeasureSpec);
int wid = 0;
int hei = 0;
int count = getChildCount();
for (int i = 0; i < count; i++) {
View child = getChildAt(i);
ViewGroup.LayoutParams lp = child.getLayoutParams();
lp.width = 2 * mRadius;
lp.height = lp.width;
child.setLayoutParams(lp);
// 测量子View的宽和高,系统提供的measureChild
measureChild(child, widthMeasureSpec, heightMeasureSpec);
// 子View占据的宽度
int childWidth = child.getMeasuredWidth();
// 子View占据的高度
int childHeight = child.getMeasuredHeight();
if (i < mMaxCount) {
if (i == 0) {
wid = wid + childWidth;
} else {
wid = (int) (wid + childWidth * mSpace);
}
}
hei = Math.max(hei, childHeight);
}
//如果是exactly使用测量宽和高,否则使用自己设置的宽和高
setMeasuredDimension((widMode == MeasureSpec.EXACTLY) ? widMeasure : wid,
(heiMode == MeasureSpec.EXACTLY) ? heiMeasure : hei);
}
3、onLayout对头像排版
@Override
protected void onLayout(boolean changed, int l, int t, int r, int b) {
int count = getChildCount();
int left = -mCurrentOffset;
int top = 0;
int right = -mCurrentOffset;
for (int i = 0; i < count; i++) {
View child;
if (isLastComplete) {
child = getChildAt(i);
} else {
child = getChildAt(count - i - 1);
}
int childWidth = child.getMeasuredWidth();
int childHeight = child.getMeasuredHeight();
if (i == 0) {
right = right + childWidth;
} else {
right = (int) (right + childWidth * mSpace);
}
child.layout(left, top, right, childHeight);
left = (int) (left + childWidth * mSpace);
}
}
三、项目中如何引用
步骤1.将JitPack存储库添加到构建文件中
项目的根build.gradle中添加以下代码:
allprojects {
repositories {
...
maven { url 'https://jitpack.io' }
}
}
步骤2.build.gradle添加依赖项
dependencies {
implementation 'com.github.hnsycsxhzcsh:DiscussionAvatarView:v1.3'
}
步骤3. 布局中引用控件
<com.discussionavatarview.DiscussionAvatarView
android:id="@+id/daview"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_gravity="center_horizontal"
app:isLastComplete="true"
app:isShowAnimation="true"
app:maxCount="6"
app:radius="30"
app:space="0.5">
</com.discussionavatarview.DiscussionAvatarView>
步骤4. initDatas初始化数据(也可以直接addData),新增头像使用addData方法,DiscussionAvatarListener(可以不加)为动画效果的监听
备注:
可以在github上下载我的项目:https://github.com/hnsycsxhzcsh/DiscussionAvatarView,如果我的博客对你有帮助的话,欢迎博客点赞支持,并在github右上角star支持!
