afsim银河麒麟ARM版搭建----第二篇

本篇主要介绍afsim在国产硬件+国产麒麟操作系统ARM版的第三方依赖库的编译过程，后续章节逐步讲解qt的编译以及afsim编译以及arm64上的代码适配，有兴趣的小伙伴欢迎一起交流，q群824154267，欢迎交流~~

请大家尊重原创转载注明出处，谢谢~~

下载第三方库(github或者库的官网均可以找到对应版本下载即可)：

1. zlib-1.2.11

2. libpng-1.6.37

3. libjpeg-turbo-2.1.2

4. tiff-4.3.0

5. sqlite-3.32.3

6. SDL-2.0.16

7. tinyxml2-7.1.0

8. googletest-release-1.8.0

9. openssl-3.1.1

10. curl-7.79.1

11. PROJ-8.1.1

12. geos-3.5.1

13. ffmpeg-4.2.4

14. gdal-3.3.2

15. OpenSceneGraph-3.6.3

16. osgEarth-2.10.1

创建编译环境变量(全局)

sudo vim ~/.bashrc

在末尾添加

export AFSIM_HOME=/home/cc/afsim

export AFSIM_3RDPARTY_PATH=$AFSIM_HOME/swdev/dependencies/3rd_party

export LD_LIBRARY_PATH=$AFSIM_3RDPARTY_PATH/tiff-4.3.0-x64-lnx/lib:$AFSIM_3RDPARTY_PATH/tinyxml2-7.1.0-x64-lnx/lib:$AFSIM_3RDPARTY_PATH/sqlite-3.32.3-x64-lnx/lib:$AFSIM_3RDPARTY_PATH/sdl-2.0.16-x64-lnx/lib:$AFSIM_3RDPARTY_PATH/openssl-3.1.1-x64-lnx/lib:$AFSIM_3RDPARTY_PATH/curl-7.79.1-x64-lnx/lib:$AFSIM_3RDPARTY_PATH/proj-8.1.1-x64-lnx/lib:$AFSIM_3RDPARTY_PATH/geos-3.5.1-x64-lnx/lib:$AFSIM_3RDPARTY_PATH/gtest-1.8.0-x64-lnx/lib:$AFSIM_3RDPARTY_PATH/zlib-1.2.11-x64-lnx/lib:$AFSIM_3RDPARTY_PATH/libpng-1.6.37-x64-lnx/lib:$AFSIM_3RDPARTY_PATH/libjpeg-turbo-2.1.2-x64-lnx/lib:$AFSIM_3RDPARTY_PATH/gdal-3.3.2-x64-lnx/lib:$AFSIM_3RDPARTY_PATH/ffmpeg-4.2.4-x64-lnx/lib:$AFSIM_3RDPARTY_PATH/osg-3.6.3-x64-lnx/lib64:$AFSIM_3RDPARTY_PATH/osgEarth-2.10.1-x64-lnx/lib64:$AFSIM_3RDPARTY_PATH/3rd_party/qt-5.12.11-x64-lnx/lib:

按ESC键结束编辑，然后按:wq保存退出文本

第三方库编译：

zlib-1.2.11

cd zlib-1.2.11

sudo ./configure --enable-shared --prefix=$AFSIM_3RDPARTY_PATH/zlib-1.2.11-x64-lnx

sudo make -j8 && sudo make install

libpng-1.6.37

cd libpng-1.6.37

mkdir build && cd build

cmake .. -DZLIB_INCLUDE_DIR=$AFSIM_3RDPARTY_PATH/zlib-1.2.11-x64-lnx/include -DZLIB_LIBRARY_RELEASE=$AFSIM_3RDPARTY_PATH/zlib-1.2.11-x64-lnx/lib/libz.so.1.2.11 -DCMAKE_INSTALL_PREFIX=$AFSIM_3RDPARTY_PATH/libpng-1.6.37-x64-lnx -DCMAKE_BUILD_TYPE=Release

sudo make -j8 && sudo make install

libjpeg-turbo-2.1.2

cd libjpeg-turbo-2.1.2

mkdir build && cd build

cmake .. -DCMAKE_INSTALL_PREFIX=$AFSIM_3RDPARTY_PATH/libjpeg-turbo-2.1.2-x64-lnx -DCMAKE_BUILD_TYPE=Release

sudo make -j8 && sudo make install

tiff-4.3.0 build

cd tiff-4.3.0

sudo ./configure --with-pic --enable-shared --prefix=$AFSIM_3RDPARTY_PATH/tiff-4.3.0-x64-lnx

sudo make -j8 && sudo make install

sqlite-3.32.3

cd sqlite-3.32.3

在目录下的sqlite3.c文件中添加一个宏：#define SQLITE_ENABLE_COLUMN_METADATA 1 （用于解决undefined symbol: sqlite3_column_table_name）

sudo CPPFLAGS="-I$AFSIM_3RDPARTY_PATH/zlib-1.2.11-x64-lnx/include" ./configure --with-pic --enable-shared --prefix=$AFSIM_3RDPARTY_PATH/sqlite-3.32.3-x64-lnx

sudo make -j8 && sudo make install

SDL-2.0.16

cd SDL-release-2.0.16

sudo ./configure --with-pic --enable-shared --prefix=$AFSIM_3RDPARTY_PATH/sdl-2.0.16-x64-lnx

sudo make -j8 && sudo make install

tinyxml2-7.1.0

cd tinyxml2-7.1.0

mkdir build && cd build

cmake .. -DCMAKE_INSTALL_PREFIX=$AFSIM_3RDPARTY_PATH/tinyxml2-7.1.0-x64-lnx -DCMAKE_BUILD_TYPE=Release

sudo make -j8 && sudo make install

googletest-release-1.8.0

cd googletest-release-1.8.0

mkdir build && cd build

cmake .. -DCMAKE_INSTALL_PREFIX=$AFSIM_3RDPARTY_PATH/gtest-1.8.0-x64-lnx -DCMAKE_BUILD_TYPE=Release -DBUILD_SHARED_LIBS=true

sudo make -j8 && sudo make install

openssl-3.1.1

cd openssl-3.1.1

sudo ./Configure -fPIC -shared --prefix=$AFSIM_3RDPARTY_PATH/openssl-3.1.1-x64-lnx

sudo make -j8 && sudo make install

curl-7.79.1

cd curl-7.79.1

mkdir build && cd build

cmake .. -DOPENSSL_CRYPTO_LIBRARY=$AFSIM_3RDPARTY_PATH/openssl-3.1.1-x64-lnx/lib/libcrypto.so.3 -DOPENSSL_SSL_LIBRARY=$AFSIM_3RDPARTY_PATH/openssl-3.1.1-x64-lnx/lib/libssl.so.3 -DOPENSSL_INCLUDE_DIR=$AFSIM_3RDPARTY_PATH/openssl-3.1.1-x64-lnx/include -DCMAKE_INSTALL_PREFIX=$AFSIM_3RDPARTY_PATH/curl-7.79.1-x64-lnx -DCMAKE_BUILD_TYPE=Release

sudo make -j8 && sudo make install

PROJ-8.1.1

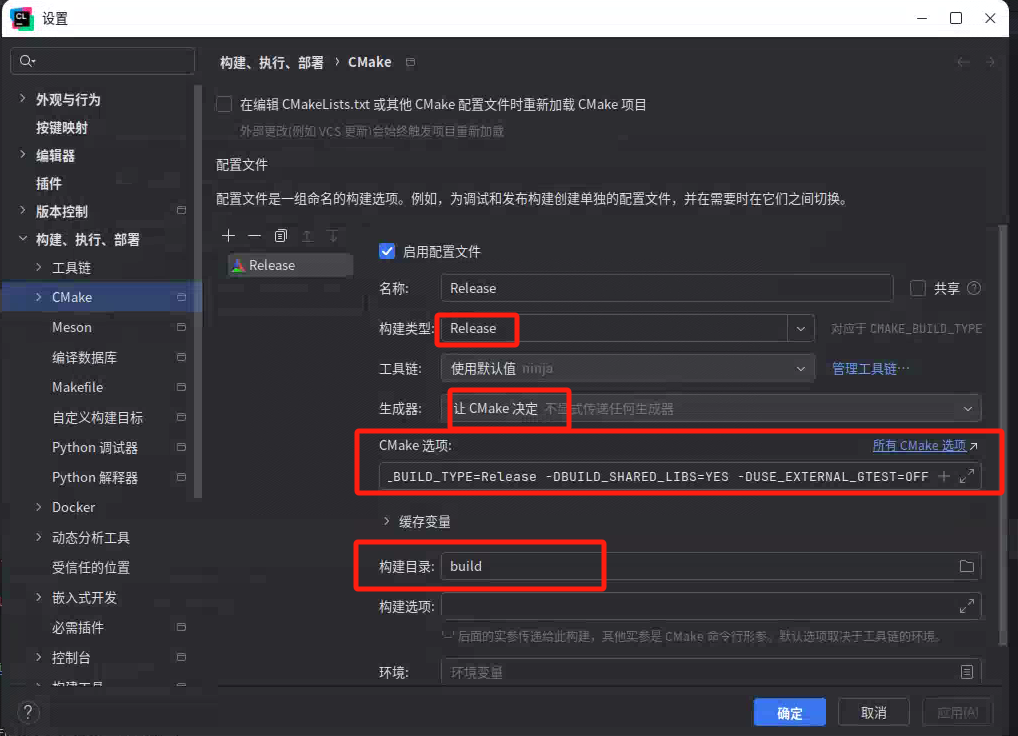

（1）采用clion进行编译：

cmake选项：

-DSQLITE3_INCLUDE_DIR=/home/cc/afsim/swdev/dependencies/3rd_party/sqlite-3.32.3-x64-lnx/include -DSQLITE3_LIBRARY=/home/cc/afsim/swdev/dependencies/3rd_party/sqlite-3.32.3-x64-lnx/lib/libsqlite3.so.0.8.6 -DEXE_SQLITE3=/home/cc/afsim/swdev/dependencies/3rd_party/sqlite-3.32.3-x64-lnx/bin/sqlite3 -DTIFF_INCLUDE_DIR=/home/cc/afsim/swdev/dependencies/3rd_party/tiff-4.3.0-x64-lnx/include -DTIFF_LIBRARY_RELEASE=/home/cc/afsim/swdev/dependencies/3rd_party/tiff-4.3.0-x64-lnx/lib/libtiff.so.5.7.0 -DCURL_LIBRARY=/home/cc/afsim/swdev/dependencies/3rd_party/curl-7.79.1-x64-lnx/lib/libcurl.so -DCURL_INCLUDE_DIR=/home/cc/afsim/swdev/dependencies/3rd_party/curl-7.79.1-x64-lnx/include -DSSL_LIBRARY=/home/cc/afsim/swdev/dependencies/3rd_party/openssl-3.1.1-x64-lnx/lib/libssl.so -DSSL_INCLUDE_DIR=/home/cc/afsim/swdev/dependencies/3rd_party/openssl-3.1.1-x64-lnx/include -DCMAKE_INSTALL_PREFIX=/home/cc/afsim/swdev/dependencies/3rd_party/proj-8.1.1-x64-lnx -DCMAKE_BUILD_TYPE=Release -DBUILD_SHARED_LIBS=YES -DUSE_EXTERNAL_GTEST=OFF

（2）需要修改源码中的cmake文件，添加rpath：

src/CMakeLists.txt开始处添加：

function(add_rpath TARGET_NAME)
  if(NOT WIN32)
    set(TEMP_RPATH ${CMAKE_RUNTIME_OUTPUT_DIRECTORY}:/home/cc/afsim/swdev/dependencies/3rd_party/curl-7.79.1-x64-lnx/lib:/home/cc/afsim/swdev/dependencies/3rd_party/curl-7.79.1-x64-lnx/lib:/home/cc/afsim/swdev/dependencies/3rd_party/openssl-3.1.1-x64-lnx/lib)
    set_target_properties(${TARGET_NAME} PROPERTIES LINK_FLAGS "-Wl,-rpath,${TEMP_RPATH}")
  endif ()
endfunction()

在每个编译异常的add_executable后添加add_rpath

（3）安装

gdal-3.3.2

cd gdal-3.3.2/gdal

sudo ./configure --prefix=$AFSIM_3RDPARTY_PATH/gdal-3.3.2-x64-lnx --with-pic --enable-shared --with-proj=$AFSIM_3RDPARTY_PATH/proj-8.1.1-x64-lnx --with-geos=$AFSIM_3RDPARTY_PATH/geos-3.5.1-x64-lnx/bin/geos-config --with-sqlite3=$AFSIM_3RDPARTY_PATH/sqlite-3.32.3-x64-lnx --with-libtiff=$AFSIM_3RDPARTY_PATH/tiff-4.3.0-x64-lnx --with-curl=$AFSIM_3RDPARTY_PATH/curl-7.79.1-x64-lnx/bin/curl-config --with-libz=$AFSIM_3RDPARTY_PATH/zlib-1.2.11-x64-lnx --with-png=$AFSIM_3RDPARTY_PATH/libpng-1.6.37-x64-lnx

sudo make -j8 && sudo make install

configure及编译时出现的问题

（1）PROJ 6 symbols not found

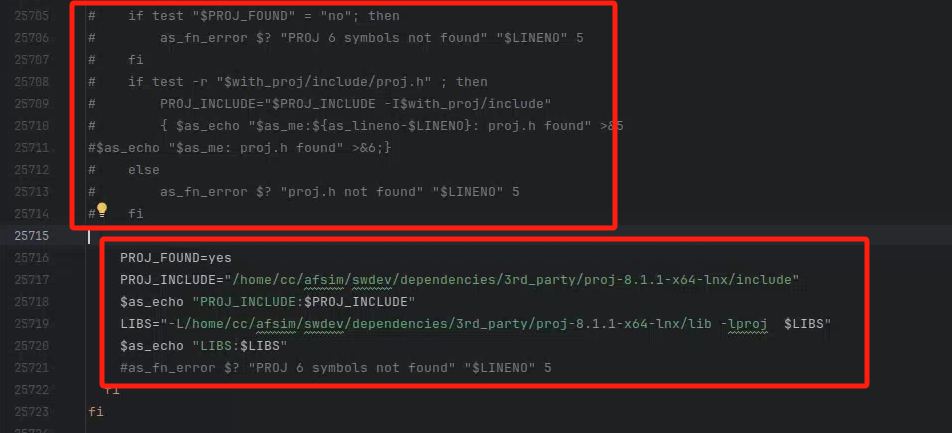

修改configure文件如下，注释提示错误的代码，添加部分代码

PROJ_FOUND=yes
PROJ_INCLUDE="/home/cc/afsim/swdev/dependencies/3rd_party/proj-8.1.1-x64-lnx/include"
$as_echo "PROJ_INCLUDE:$PROJ_INCLUDE"
EXTRA_INCLUDES="-I/home/cc/afsim/swdev/dependencies/3rd_party/proj-8.1.1-x64-lnx/include $EXTRA_INCLUDES"
LIBS="-L/home/cc/afsim/swdev/dependencies/3rd_party/proj-8.1.1-x64-lnx/lib -lproj  $LIBS"
$as_echo "LIBS:$LIBS"

（2）geos等问题

        具体问题解决办法

OpenSceneGraph-3.6.3

cd OpenSceneGraph-OpenSceneGraph-3.6.3

mkdir build && cd build

cmake .. -DSQLITE3_INCLUDE_DIR=$AFSIM_3RDPARTY_PATH/sqlite-3.32.3-x64-lnx/include -DSQLITE3_LIBRARY=$AFSIM_3RDPARTY_PATH/sqlite-3.32.3-x64-lnx/lib/libsqlite3.so.0.8.6 -DEXE_SQLITE3=$AFSIM_3RDPARTY_PATH/sqlite-3.32.3-x64-lnx/bin/sqlite3 -DTIFF_INCLUDE_DIR=$AFSIM_3RDPARTY_PATH/tiff-4.3.0-x64-lnx/include -DTIFF_LIBRARY_RELEASE=$AFSIM_3RDPARTY_PATH/tiff-4.3.0-x64-lnx/lib/libtiff.so.5.7.0 -DCURL_DIR=$AFSIM_3RDPARTY_PATH/curl-7.79.1-x64-lnx -DCURL_LIBRARY_RELEASE=$AFSIM_3RDPARTY_PATH/curl-7.79.1-x64-lnx/lib/libcurl.so -DCURL_INCLUDE_DIR=$AFSIM_3RDPARTY_PATH/curl-7.79.1-x64-lnx/include -DJPEG_INCLUDE_DIR=$AFSIM_3RDPARTY_PATH/libjpeg-turbo-2.1.2-x64-lnx/include -DJPEG_LIBRARY_RELEASE=$AFSIM_3RDPARTY_PATH/libjpeg-turbo-2.1.2-x64-lnx/lib/libturbojpeg.so.0.2.0 -DGDAL_INCLUDE_DIR=$AFSIM_3RDPARTY_PATH/gdal-3.3.2-x64-lnx/include -DGDAL_LIBRARY=$AFSIM_3RDPARTY_PATH/gdal-3.3.2-x64-lnx/lib/libgdal.so.29.0.2 -DSDL2_INCLUDE_DIR=$AFSIM_3RDPARTY_PATH/sdl-2.0.16-x64-lnx/include -DSDL2_LIBRARY_RELEASE=$AFSIM_3RDPARTY_PATH/sdl-2.0.16-x64-lnx/lib/libSDL2-2.0.so.0.16.0 -DSDL2MAIN_LIBRARY=$AFSIM_3RDPARTY_PATH/sdl-2.0.16-x64-lnx/lib/libSDL2main.la -DPNG_PNG_INCLUDE_DIR=$AFSIM_3RDPARTY_PATH/libpng-1.6.37-x64-lnx/include -DPNG_LIBRARY_RELEASE=$AFSIM_3RDPARTY_PATH/libpng-1.6.37-x64-lnx/lib/libpng16.so.16.37.0 -DZLIB_INCLUDE_DIR=$AFSIM_3RDPARTY_PATH/zlib-1.2.11-x64-lnx/include -DZLIB_LIBRARY_RELEASE=$AFSIM_3RDPARTY_PATH/zlib-1.2.11-x64-lnx/lib/libz.so.1.2.11 -DFFMPEG_ROOT=$AFSIM_3RDPARTY_PATH/ffmpeg-4.2.4-x64-lnx -DCMAKE_INSTALL_PREFIX=$AFSIM_3RDPARTY_PATH/osg-3.6.3-x64-lnx -DCMAKE_BUILD_TYPE=Release -DBUILD_SHARED_LIBS=YES

sudo make -j8 && sudo make install

如果采用clion编译，cmake选项如下：

-DSQLITE3_INCLUDE_DIR=/home/cc/afsim/swdev/dependencies/3rd_party/sqlite-3.32.3-x64-lnx/include -DSQLITE3_LIBRARY=/home/cc/afsim/swdev/dependencies/3rd_party/sqlite-3.32.3-x64-lnx/lib/libsqlite3.so.0.8.6 -DEXE_SQLITE3=/home/cc/afsim/swdev/dependencies/3rd_party/sqlite-3.32.3-x64-lnx/bin/sqlite3 -DTIFF_INCLUDE_DIR=/home/cc/afsim/swdev/dependencies/3rd_party/tiff-4.3.0-x64-lnx/include -DTIFF_LIBRARY_RELEASE=/home/cc/afsim/swdev/dependencies/3rd_party/tiff-4.3.0-x64-lnx/lib/libtiff.so.5.7.0 -DCURL_DIR=/home/cc/afsim/swdev/dependencies/3rd_party/curl-7.79.1-x64-lnx -DCURL_LIBRARY_RELEASE=/home/cc/afsim/swdev/dependencies/3rd_party/curl-7.79.1-x64-lnx/lib/libcurl.so -DCURL_INCLUDE_DIR=/home/cc/afsim/swdev/dependencies/3rd_party/curl-7.79.1-x64-lnx/include -DJPEG_INCLUDE_DIR=/home/cc/afsim/swdev/dependencies/3rd_party/libjpeg-turbo-2.1.2-x64-lnx/include -DJPEG_LIBRARY_RELEASE=/home/cc/afsim/swdev/dependencies/3rd_party/libjpeg-turbo-2.1.2-x64-lnx/lib/libturbojpeg.so.0.2.0 -DGDAL_INCLUDE_DIR=/home/cc/afsim/swdev/dependencies/3rd_party/gdal-3.3.2-x64-lnx/include -DGDAL_LIBRARY=/home/cc/afsim/swdev/dependencies/3rd_party/gdal-3.3.2-x64-lnx/lib/libgdal.so.29.0.2 -DSDL2_INCLUDE_DIR=/home/cc/afsim/swdev/dependencies/3rd_party/sdl-2.0.16-x64-lnx/include -DSDL2_LIBRARY=/home/cc/afsim/swdev/dependencies/3rd_party/sdl-2.0.16-x64-lnx/lib/libSDL2-2.0.so.0.16.0 -DSDL2MAIN_LIBRARY=/home/cc/afsim/swdev/dependencies/3rd_party/sdl-2.0.16-x64-lnx/lib/libSDL2main.la -DPNG_PNG_INCLUDE_DIR=/home/cc/afsim/swdev/dependencies/3rd_party/libpng-1.6.37-x64-lnx/include -DPNG_LIBRARY_RELEASE=/home/cc/afsim/swdev/dependencies/3rd_party/libpng-1.6.37-x64-lnx/lib/libpng16.so.16.37.0 -DZLIB_INCLUDE_DIR=/home/cc/afsim/swdev/dependencies/3rd_party/zlib-1.2.11-x64-lnx/include -DZLIB_LIBRARY_RELEASE=/home/cc/afsim/swdev/dependencies/3rd_party/zlib-1.2.11-x64-lnx/lib/libz.so.1.2.11 -DFFMPEG_ROOT=/home/cc/afsim/swdev/dependencies/3rd_party/ffmpeg-4.2.4-x64-lnx -DCMAKE_INSTALL_PREFIX=/home/cc/afsim/swdev/dependencies/3rd_party/osg-3.6.3-x64-lnx -DCMAKE_BUILD_TYPE=Release -DBUILD_SHARED_LIBS=YES

注意

osg编译安装完之后，bin目录下的osgviewer应该可以打开.earth文件。终端命令如下：

./osgviewer '/home/cc/afsim/build-debug/resources/maps/bluemarble_db/bmng.earth'

如果不能启动，或者启动后显示白球，请根据提示做修改。

（1）

提示：libturbojpeg.so.0: cannot open shared object file: No such file or directory

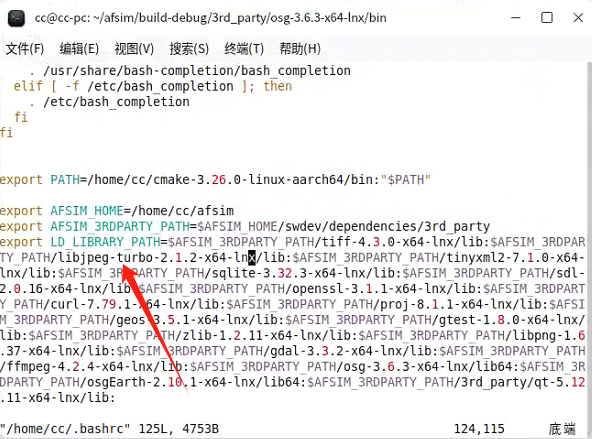

解决方案：这是环境变量中没有指定好jpeg库路径，修改~/.bashrc：

参考：libfsuartservo.so: cannot open shared object file: No such file or directory_libavfilter.so.6: cannot open shared object file: -优快云博客

（2）

提示：

VERTEX glCompileShader "main(vertex)" FAILED

VERTEX Shader "main(vertex)" infolog:

0:1(10): error: GLSL 3.30 is not supported. Supported versions are: 1.10, 1.20, 1.30, 1.40, 1.00 ES, and 3.00 ES

解决方案：

参考：error: GLSL 3.30 is not supported. Supported versions are: 1.10, 1.20, 1.30, 1.40, 1.00 ES, and 3.00-优快云博客

opengl版本问题 - 狂奔~ - 博客园

osgEarth-2.10.1 (参照附录先改一下代码，添加arm64宏定义)

1、参照附录先改一下代码，添加arm64宏定义；

2、用clion进行编译

cmake选项:

-DGEOS_DIR=/home/cc/afsim/swdev/dependencies/3rd_party/geos-3.5.1-x64-lnx -DSQLITE3_INCLUDE_DIR=/home/cc/afsim/swdev/dependencies/3rd_party/sqlite-3.32.3-x64-lnx/include -DSQLITE3_LIBRARY=/home/cc/afsim/swdev/dependencies/3rd_party/sqlite-3.32.3-x64-lnx/lib/libsqlite3.so.0.8.6 -DEXE_SQLITE3=/home/cc/afsim/swdev/dependencies/3rd_party/sqlite-3.32.3-x64-lnx/bin/sqlite3 -DTIFF_INCLUDE_DIR=/home/cc/afsim/swdev/dependencies/3rd_party/tiff-4.3.0-x64-lnx/include -DTIFF_LIBRARY_RELEASE=/home/cc/afsim/swdev/dependencies/3rd_party/tiff-4.3.0-x64-lnx/lib/libtiff.so.5.7.0 -DCURL_DIR=/home/cc/afsim/swdev/dependencies/3rd_party/curl-7.79.1-x64-lnx -DCURL_LIBRARY_RELEASE=/home/cc/afsim/swdev/dependencies/3rd_party/curl-7.79.1-x64-lnx/lib/libcurl.so -DCURL_INCLUDE_DIR=/home/cc/afsim/swdev/dependencies/3rd_party/curl-7.79.1-x64-lnx/include -DJPEG_INCLUDE_DIR=$AFSIM_3RDPARTY_PATH/libjpeg-turbo-2.1.2-x64-lnx/include -DJPEG_LIBRARY_RELEASE=$AFSIM_3RDPARTY_PATH/libjpeg-turbo-2.1.2-x64-lnx/lib/libturbojpeg.so.0.2.0 -DPROJ_DIR=/home/cc/afsim/swdev/dependencies/3rd_party/proj-8.1.1-x64-lnx -DPROJ_INCLUDE_DIR=/home/cc/afsim/swdev/dependencies/3rd_party/proj-8.1.1-x64-lnx/include -DPROJ_LIBRARY_RELEASE=/home/cc/afsim/swdev/dependencies/3rd_party/proj-8.1.1-x64-lnx/lib/libproj.so.22.1.1 -DGDAL_DIR=/home/cc/afsim/swdev/dependencies/3rd_party/gdal-3.3.2-x64-lnx -DGDAL_INCLUDE_DIR=/home/cc/afsim/swdev/dependencies/3rd_party/gdal-3.3.2-x64-lnx/include -DGDAL_LIBRARY=/home/cc/afsim/swdev/dependencies/3rd_party/gdal-3.3.2-x64-lnx/lib/libgdal.so.29.0.2 -DSDL2_INCLUDE_DIR=/home/cc/afsim/swdev/dependencies/3rd_party/sdl-2.0.16-x64-lnx/include -DSDL2_LIBRARY_RELEASE=/home/cc/afsim/swdev/dependencies/3rd_party/sdl-2.0.16-x64-lnx/lib/libSDL2-2.0.so.0.16.0 -DSDL2MAIN_LIBRARY=/home/cc/afsim/swdev/dependencies/3rd_party/sdl-2.0.16-x64-lnx/lib/libSDL2main.la -DPNG_INCLUDE_DIR=/home/cc/afsim/swdev/dependencies/3rd_party/libpng-1.6.37-x64-lnx/include -DPNG_LIBRARY_RELEASE=/home/cc/afsim/swdev/dependencies/3rd_party/libpng-1.6.37-x64-lnx/lib/libpng16.so.16.37.0 -DZLIB_INCLUDE_DIR=/home/cc/afsim/swdev/dependencies/3rd_party/zlib-1.2.11-x64-lnx/include -DZLIB_LIBRARY_RELEASE=/home/cc/afsim/swdev/dependencies/3rd_party/zlib-1.2.11-x64-lnx/lib/libz.so.1.2.11 -DFFMPEG_ROOT=/home/cc/afsim/swdev/dependencies/3rd_party/ffmpeg-4.2.4-x64-lnx -DOSG_DIR=/home/cc/afsim/swdev/dependencies/3rd_party/osg-3.6.3-x64-lnx -DOSG_INCLUDE_DIR=/home/cc/afsim/swdev/dependencies/3rd_party/osg-3.6.3-x64-lnx/include -DBUILD_OSGEARTH_EXAMPLES=OFF -DCMAKE_INSTALL_PREFIX=/home/cc/afsim/swdev/dependencies/3rd_party/osgEarth-2.10.1-x64-lnx -DCMAKE_BUILD_TYPE=Release -DBUILD_SHARED_LIBS=YES -DOSGEARTH_ENABLE_FASTXDT=OFF

3、添加rpath

CMakeModules/OsgEarthMacroUtils.cmake顶部添加函数：

function(add_rpath TARGET_NAME)
    if(NOT WIN32)
        set(TEMP_RPATH ${CMAKE_RUNTIME_OUTPUT_DIRECTORY}:/home/cc/afsim/swdev/dependencies/3rd_party/curl-7.79.1-x64-lnx/lib:/home/cc/afsim/swdev/dependencies/3rd_party/curl-7.79.1-x64-lnx/lib:/home/cc/afsim/swdev/dependencies/3rd_party/openssl-3.1.1-x64-lnx/lib)
        set_target_properties(${TARGET_NAME} PROPERTIES LINK_FLAGS "-Wl,-rpath,${TEMP_RPATH}")
    endif ()
endfunction()

查找ADD_EXECUTABLE，后面添加add_rpath

4、安装

附录

在银河麒麟下适配的修改记录

修改三方库记录

修改原因：osgEarth代码未支持arm64平台

修改方案：添加文件，更换头文件

更改位置：src/osgEarthDrivers/fastdxt/intrinsic.cpp文件

拷贝文件在同文件夹下： sse2neon.h文件（github搜sse2neon，地址：GitHub - DLTcollab/sse2neon: A translator from Intel SSE intrinsics to Arm/Aarch64 NEON implementation）

原来代码：

#include <emmintrin.h> // sse2

现在代码：

#ifdef __aarch64__

#include "sse2neon.h"

#else

#include <emmintrin.h> // sse2

#endif

下一篇将详细介绍Qt5.12.11在麒麟ARM上的源码编译方法，q群824154267，欢迎交流~~

创作不易，请大家尊重原创转载注明出处，谢谢~~
