floodfill算法–Space Station Shielding(空间站屏蔽)
题目描述
描述
罗杰·威尔科负责火星低轨道空间站的设计。为了简化结构,空间站由一系列气密隔间模块(ACM)组成,这些模块在太空中一次性连接在一起。罗杰担心的一个问题是可能存在于火星高层大气中的(潜在的)致命细菌。由于空间站偶尔会在高层大气中飞行,因此必须在ACM触摸的所有面上使用额外的屏蔽,无论是边对边还是面对面,接头都是密封的,这样细菌就不会偷偷通过。当然,另一个ACM共享的ACM的任何面都不需要屏蔽,从外面无法接触到的面也不需要屏蔽。罗杰可以在每个ACM的所有表面上加上额外的屏蔽,但成本太高了。因此,他想知道需要额外屏蔽的ACM面的确切数量。
输入

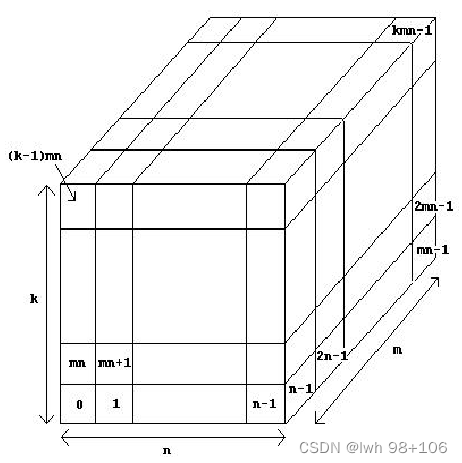

输入包含多个问题实例。每个实例都包含一个空间站的规范。我们假设每个空间站都可以适应一个n x m x k的网格(1<=n,m,k<=60),其中每个网格立方体可能包含也可能不包含ACM。我们对网格立方体进行编号0,1,2。。。,kmn-1,如下图所示。每个空间站规范由以下内容组成:第一行包含四个正整数n m k l,其中n、m和k如上所述,l是空间站中ACM的数量。随后是一组指定ACM的l网格位置的线接下来的一组数表示ACM的网格位置。这些行中的每一行都包含10个整数(可能最后一行除外)。每个空间站都是完全连接的(即宇航员可以在不离开空间站的情况下从空间站的一个ACM移动到空间站的任何其他ACM)。n=m=k=l=0的值终止输入。
Output
For each problem instance, you should output one line of the form
The number of faces needing shielding is s.
Sample Input
2 2 1 3
0 1 3
3 3 3 26
0 1 2 3 4 5 6 7 8 9
10 11 12 14 15 16 17 18 19 20
21 22 23 24 25 26
0 0 0 0
Sample Output
The number of faces needing shielding is 14.
The number of faces needing shielding is 54.
*学习floodfill算法时,接触到了这个题,可惜我看了半天没明白是什么意思。可能是英文的缘故吧,网络翻译的也不好。
思路
1.对空间站的网格用数组进行存储,0表示无ACM,1表示有ACM(ACM本文中是指气密隔间模块)。
2.使用广度优先搜索进行暴力遍历。如果该ACM面左边为空,那么就得进行覆盖。(共有上下左右前后四个方向)
3.为了便于处理,我们存储ACM要的位置要在加1(这并没有多大影响,前提数组够大),以ACM位置在(0,0,0)为例,它的前面为空,需要覆盖。只需将它在数组中的位置放在[1][1][1]位置即可,从[0][0][0]开始遍历
4.x坐标,也就是横坐标,a%(mn)%n+1,a对mn取余的最底下的一面,在%n变得第几个位置。
y坐标,a%(m
∗
*
∗n)/n+1,取底下一面,/n就是第几列,看图;
z坐标,a/(m
∗
*
∗n)+1,找到他是竖的那一面;
代码
using namespace std;
int n, m,k, l,ans;
int arr[70][70][70];
int flag[70][70][70];
struct node {
int x, y, z;
};
void bfs()
{
ans = 0;
queue<node>q;
node now, next;
now.x = 0;
now.y = 0;
now.z = 0;
q.push(now);
while (!q.empty())
{
next = q.front();
q.pop();
if (flag[next.x][next.y][next.z])
continue;
flag[next.x][next.y][next.z] = 1;
if (next.x-1 >= 0)
{
if (arr[next.x - 1][next.y][next.z] == 0)
{
if (!flag[next.x - 1][next.y][next.z])
{
now.x = next.x - 1;
now.y = next.y;
now.z = next.z;
q.push(now);
}
}
else ans++;
}
if (next.x <= n)
{
if (arr[next.x + 1][next.y][next.z] == 0)
{
if (!arr[next.x + 1][next.y][next.z])
{
now.x = next.x + 1;
now.y = next.y;
now.z = next.z;
q.push(now);
}
}
else ans++;
}
if (next.y - 1 >= 0)
{
if (arr[next.x][next.y - 1][next.z] == 0)
{
if (!flag[next.x][next.y - 1][next.z])
{
now.x = next.x;
now.y = next.y - 1;
now.z = next.z;
}
}
else
ans++;
}
if (next.y <= m)
{
if (arr[next.x][next.y + 1][next.z] == 0)
{
if (!flag[next.x][next.y + 1][next.z])
{
now.x = next.x;
now.y = next.y + 1;
now.z = next.z;
q.push(now);
}
}
else ans++;
}
if (next.z - 1 >= 0)
{
if (arr[next.x][next.y][next.z - 1] == 0)
{
if (!flag[next.x][next.y][next.z - 1])
{
now.x = next.x;
now.y = next.y;
now.z = next.z - 1;
q.push(now);
}
}
else ans++;
}
if (next.z <= k)
{
if (arr[next.x][next.y][next.z + 1] == 0)
{
if (!flag[next.x][next.y][next.z + 1])
{
now.x = next.x;
now.y = next.y;
now.z = next.z + 1;
q.push(now);
}
}
else ans++;
}
}
}
int main()
{
while (cin >> n >> m >>k >> l)
{
if (n == 0 && m == 0 && k == 0 && l == 0)
break;
memset(arr, 0, sizeof(arr));
memset(flag, 0, sizeof(flag));
for (int i = 0; i < l; i++)
{
int a;
cin >> a;
arr[a % (m * n) % n + 1][a % (m * n) / n + 1][a / (m * n) + 1] = 1;
}
bfs();
cout << ans << endl;
}
return 0;
}
