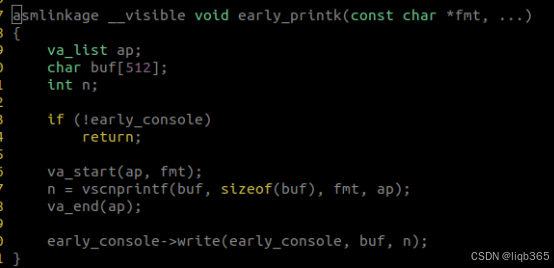

内核中有些函数有asmlinkage修饰符，比如：

这里基于5.15.133版本分析一下这个“修饰符”。

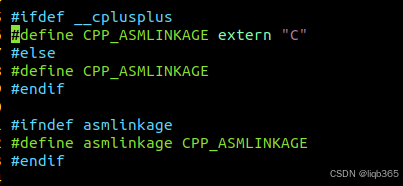

asmlinkage本身是个宏定义，X86/IA64以外的架构定义在include/linux/linkage.h头文件中。

也就是asmlinkage本身就是extern “C”。

主要的目的是让C++程序能够调用到这个C语言定义的函数。

比如下面的程序：

main.c:

callee.c:

我们用gcc命令进行编译的时候会报undefined reference错误。

如果给hello函数加个extern “C”,

编译会顺利进行。
