选型手册：6-18GHz 3 位数字可变放大器—CHA3513-99F

最新推荐文章于 2025-08-20 15:18:23 发布
原创 最新推荐文章于 2025-08-20 15:18:23 发布 · 176 阅读 · 0 ·
CC 4.0 BY-SA版权
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
文章标签：

#信息与通信

CHA3513-99F

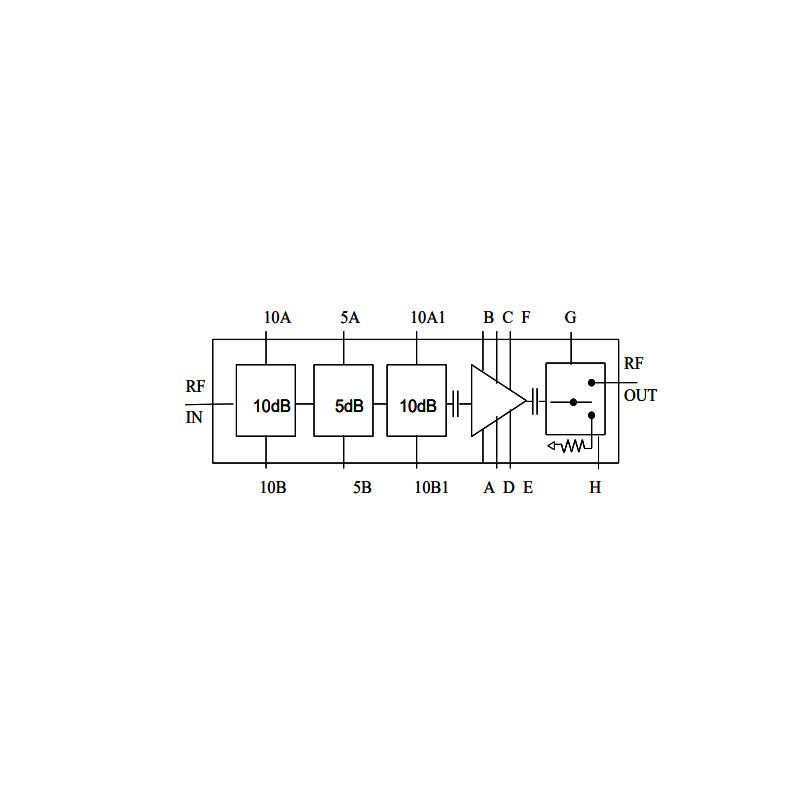

          CHA3513-99F由一个三级数字衰减器、一个三级行波放大器和一个单刀单掷 (SPST) 开关组成。芯片背面采用射频和直流接地，有助于简化组装流程。

工作频率范围: 6-18GHz
饱和输出功率: 20dBm
增益: 19dB
衰减范围: 26dB (3 位衰减器)
直流功耗: 300mA @ 4.5V
芯片尺寸: 6.68 x 2.46 x 0.1mm

CHA3512-99F
CHA3511-99F
CHA2063a99F
CHA2110-QDG
CHA2110-98F
CHA1010-99F
CHA8054-99F
CHA8612-QDB
CHA8312-99F
CHA6710-99F
CHA6710-FAB
CHA5115-QDG
CHA5115-99F
CHA6005-QEG
CHA6005-99F
