【辅助驾驶】透视变换、仿射变换(包含鸟瞰图、俯视图、正视图)[2]——俯视图

本文介绍了一种基于OpenCV库和imutils库的图像处理方法，实现了图像的鸟瞰图转换与文本识别功能。首先，通过Python代码进行边缘检测、轮廓识别，找到图像四角并转换为鸟瞰视角。其次，利用C++代码实现相似功能，展示了不同编程语言在图像处理上的应用。最后，介绍了GitHub上一个开源项目，该项目集成了图像裁剪自动化、鸟瞰图转换和光学字符识别功能。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

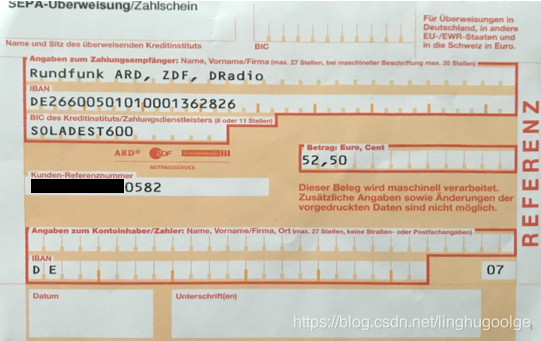

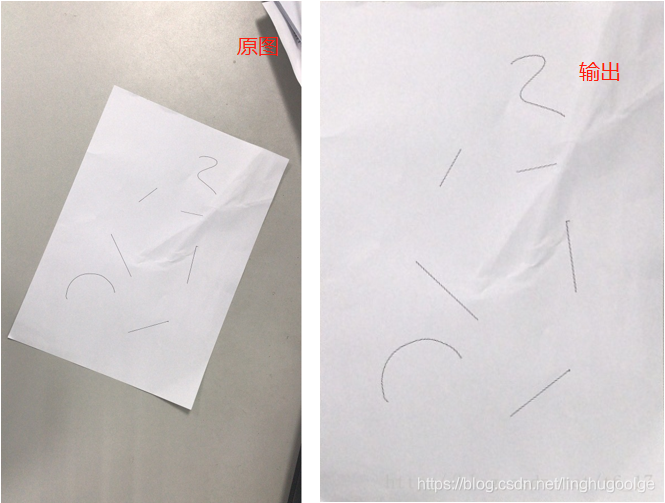

一、效果

二、代码实现

1、python代码，基于opencv库和imutils库

来源：https://blog.youkuaiyun.com/qq_34199383/article/details/79571318

from imutils import perspective
from skimage.filters import threshold_local
import cv2
import imutils

# 边缘扫描
image = cv2.imread("./picture/5.png")
ratio = image.shape[0] / 500.0                                 # 比例
orig = image.copy()
image = imutils.resize(image, height = 500)

# 灰度转换及边缘查找
gray = cv2.cvtColor(image, cv2.COLOR_BGR2GRAY)
gray = cv2.GaussianBlur(gray, (5, 5), 0)
edged = cv2.Canny(gray, 75, 200)                               # 边缘检测

# 只保留轮廓
cnts = cv2.findContours(edged.copy(), cv2.RETR_LIST, cv2.CHAIN_APPROX_SIMPLE)#通过边缘图像找到轮廓
cnts = cnts[0] if imutils.is_cv2() else cnts[1]                # 用以区分OpenCV2.4和OpenCV3
cnts = sorted(cnts, key = cv2.contourArea, reverse = True)[:5] # 保留最大轮廓

for c in cnts:
    peri = cv2.arcLength(c, True)
    approx = cv2.approxPolyDP(c, 0.02 * peri, True)            # 轮廓点
    if len(approx) == 4:                                       # 表明找到四个轮廓点
        screenCnt = approx
        break

# 转为鸟瞰图
warped = perspective.four_point_transform(orig, screenCnt.reshape(4, 2) * ratio)
warped = cv2.cvtColor(warped, cv2.COLOR_BGR2GRAY)              # 灰度转换
T = threshold_local(warped, 11, offset = 10, method = "gaussian")
warped = (warped > T).astype("uint8") * 255

cv2.imshow("Original", imutils.resize(orig, height = 650))
cv2.imshow("Scanned", imutils.resize(warped, height = 650))
cv2.waitKey(0)
