WPF自定义控件(教程含源码)-圆形进度条、环形进度条

使用环形进度条显示用量百分比

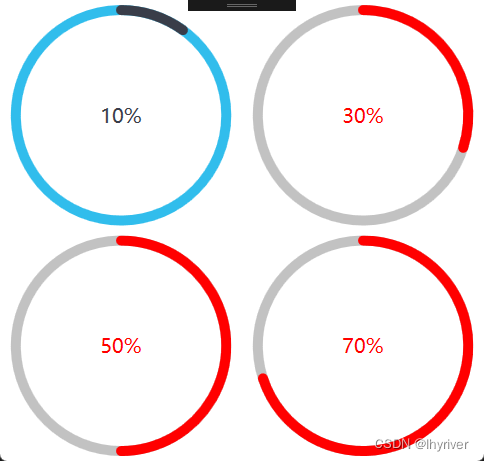

控件效果如下

控件的关键属性如下：

Background：控制背景圆环的原色。

Stroke：控制进度圆环颜色、以及中间文本颜色。

Value：进度百分比，double类型，进度0~1.

控件前端xaml模板

<ResourceDictionary xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
                    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
                    xmlns:local="clr-namespace:WPFCustomControl.Controls">

    <!--圆弧绑定转换,根据控件属性转换圆弧-->
    <local:RingProgressArcConverter x:Key="ringProgressArcConverter" />

    <!--文本显示转换-->
    <local:RingProgressValueConverter x:Key="ringProgressValueConverter" />

    <ControlTemplate x:Key="RingProgress_Template" TargetType="local:RingProgress">
        <Grid>
            <Path StrokeThickness="{TemplateBinding StrokeThickness}" Stroke="{TemplateBinding Background}" StrokeEndLineCap="Round" StrokeStartLineCap="Round"
                  HorizontalAlignment="Center" VerticalAlignment="Center" x:Name="rootRing" >
                <Path.Data>
                    <MultiBinding Converter="{StaticResource ringProgressArcConverter}">
                        <Binding Path="ActualWidth" RelativeSource="{RelativeSource Mode=FindAncestor,AncestorType=local:RingProgress}" />
                        <Binding Path="ActualHeight" RelativeSource="{RelativeSource Mode=FindAncestor,AncestorType=local:RingProgress}" />
                        <Binding Path="StrokeThickness" RelativeSource="{RelativeSource Mode=FindAncestor,AncestorType=local:RingProgress}" />
                    </MultiBinding>
                </Path.Data>
            </Path>
            <Path StrokeThickness="{TemplateBinding StrokeThickness}" Stroke="{TemplateBinding Stroke}" StrokeEndLineCap="Round" StrokeStartLineCap="Round"
                  HorizontalAlignment="Center" VerticalAlignment="Center"
                  Width="{Binding ElementName=rootRing, Path=ActualWidth}"
                  Height="{Binding ElementName=rootRing, Path=ActualHeight}">
                <Path.Data>
                    <MultiBinding Converter="{StaticResource ringProgressArcConverter}">
                        <Binding Path="ActualWidth" RelativeSource="{RelativeSource Mode=FindAncestor,AncestorType=local:RingProgress}" />
                        <Binding Path="ActualHeight" RelativeSource="{RelativeSource Mode=FindAncestor,AncestorType=local:RingProgress}" />
                        <Binding Path="StrokeThickness" RelativeSource="{RelativeSource Mode=FindAncestor,AncestorType=local:RingProgress}" />
                        <Binding Path="Value" RelativeSource="{RelativeSource Mode=FindAncestor,AncestorType=local:RingProgress}" />
                    </MultiBinding>
                </Path.Data>
            </Path>

            <TextBlock Foreground="{TemplateBinding Stroke}" FontSize="20" VerticalAlignment="Center" HorizontalAlignment="Center"
                       Text="{Binding RelativeSource={RelativeSource Mode=TemplatedParent},Path=Value, Converter={StaticResource ringProgressValueConverter}}"/>
        </Grid>
    </ControlTemplate>

    <!--设置 RingProgress 的默认样式-->
    <Style TargetType="local:RingProgress">
        <Setter Property="Template" Value="{StaticResource RingProgress_Template}" />
        <Setter Property="Background" Value="#D2D2D2" />
    </Style>
</ResourceDictionary>

 控件后台代码：

    public partial class RingProgress : RangeBase
    {

        static RingProgress()
        {
            DefaultStyleKeyProperty.OverrideMetadata(typeof(RingProgress), new FrameworkPropertyMetadata(typeof(RingProgress)));
        }

        #region StrokeThickness 圆环描边宽度
        public static readonly DependencyProperty StrokeThicknessProperty =
            DependencyProperty.Register("StrokeThickness", typeof(double), typeof(RingProgress), new PropertyMetadata(10d));

        public double StrokeThickness
        {
            get { return (double)GetValue(StrokeThicknessProperty); }
            set { SetValue(StrokeThicknessProperty, value); }
        }
        #endregion

        #region Stroke 圆环描边颜色
        public static readonly DependencyProperty StrokeProperty =
            DependencyProperty.Register("Stroke", typeof(Brush), typeof(RingProgress), new PropertyMetadata(Brushes.Red));

        public Brush Stroke
        {
            get { return (Brush)GetValue(StrokeProperty); }
            set { SetValue(StrokeProperty, value); }
        }
        #endregion
    }

    internal class RingProgressArcConverter : IMultiValueConverter
    {
        // 注意,因为这里使用Path绘制圆环, 所以要把描边宽度大小考虑进去. 所有点的x、y偏移 半个描边宽度
        public object Convert(object[] values, Type targetType, object parameter, CultureInfo culture)
        {
            double value;
            if (values[0] is double width
                && values[1] is double height
                && width > 0 && height>0
                && values[2] is double storkeWidth)
            {
                width -= storkeWidth;
                height -= storkeWidth;

                value = values.Length == 4 ? System.Convert.ToDouble(values[3]) : 1d;

                if (value == 0) return "";

                var startAngle = -90d;
                var endAngle = Math.Min(value * 360 -90 , 269);
                var radius = Math.Min(width, height) * 0.5;
                var start = startAngle.AngleToPoint(radius, storkeWidth * 0.5);
                var end = endAngle.AngleToPoint(radius, storkeWidth * 0.5);

                var dataStr = $"M {start.X},{start.Y} A {radius},{radius} 0 {(endAngle - startAngle >= 180 ? 1 : 0)} 1 {end.X},{end.Y}";

                var converter = TypeDescriptor.GetConverter(typeof(Geometry));
                return (Geometry)converter.ConvertFrom(dataStr);
            }
            else
            {
                return "";
            }
        }

        public object[] ConvertBack(object value, Type[] targetTypes, object parameter, CultureInfo culture)
        {
            throw new NotImplementedException();
        }
    }

    internal class RingProgressValueConverter : IValueConverter
    {
        public object Convert(object value, Type targetType, object parameter, CultureInfo culture)
        {
            if (value is double v)
            {
                return $"{v * 100}%";
            }
            else
            {
                return 0;
            }
        }

        public object ConvertBack(object value, Type targetType, object parameter, CultureInfo culture)
        {
            throw new NotImplementedException();
        }
    }

    internal static class RingProgressExtension
    {
        /// <summary>
        /// 角度转为弧度
        /// </summary>
        /// <param name="a"></param>
        /// <returns></returns>
        public static double AngleToArc(this double a)
        {
            return Math.PI * a / 180;
        }
        /// <summary>
        /// 角度及半径计算坐标点位置
        /// </summary>
        /// <param name="a"></param>
        /// <param name="radius"></param>
        /// <param name="offset"></param>
        /// <returns></returns>
        public static Point AngleToPoint(this double a, double radius, double offset = 0)
        {
            return new Point(Math.Cos(a.AngleToArc()) * radius + radius + offset, Math.Sin(a.AngleToArc()) * radius + radius + offset);
        }
    }

使用示例

        <UniformGrid Rows="2" Columns="2">
            <c:RingProgress Value="0.1" Margin="5" Stroke="#393D49" Background="#31BDEC" />
            <c:RingProgress Value="0.3" Margin="5" Stroke="Red" Background="#C2C2C2"/>
            <c:RingProgress Value="0.5" Margin="5" Stroke="Red" Background="#C2C2C2"/>
            <c:RingProgress Value="0.7" Margin="5" Stroke="Red" Background="#C2C2C2"/>
        </UniformGrid>

有问题的请评论去留言。
