vue3自定义流程组件

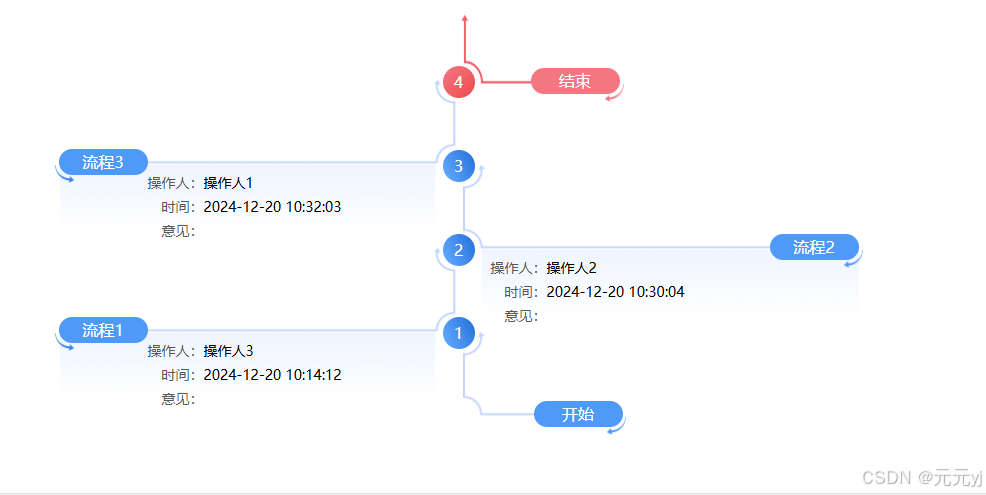

效果图

<template>
  <div
    class="time-line"
    :style="{
      'margin-bottom': processList.length % 2 === 0 ? 84 + Math.floor(processList.length / 2) * 18 + 'px' : (processList.length / 2) * 18 + 'px'
    }"
  >
    <template v-for="(item, index) in processList" :key="index">
      <div
        :class="{ 'first-item': index === 0, 'comment-end': item.type == 'comment_end', 'comment-start': item.type == 'comment_start' }"
        class="item"
        :style="{
          top: index % 2 === 1 ? 66 + Math.floor(index / 2) * 18 + 'px' : (Math.floor(index / 2) - 1 > 0 ? Math.floor(index / 2) - 1 : 0.05) * 18 + 'px'
        }"
      >
        <div class="time-num" v-if="index !== 0">{{ processList.length - index }}</div>
        <div class="title">{{ item.operationModule }}</div>
        <div class="content" v-if="item.type != 'comment_start' && item.type != 'comment_end'">
          <div class="item-box">
            <span class="label">操作人：</span>
            <span class="value" :title="item?.assigneeName">{{ item?.assigneeName }}</span>
          </div>
          <div class="item-box">
            <span class="label">时间：</span>
            <span class="value">{{ item?.completedTime }}</span>
          </div>
          <div class="item-box">
            <span class="label">意见：</span>
            <span class="value" :title="item.message ? item.message : ''">{{ item?.message }}</span>
          </div>
        </div>
        <div class="btn-box" :title="item?.activityName">{{ item?.activityName }}</div>
        <div class="arrow"></div>
      </div>
    </template>
  </div>
</template>
<script>
import { defineComponent, ref, onMounted } from 'vue'
export default defineComponent({
  name: 'proccess-component',
  props: {
  // 后台获取的数据，根据实际情况修改element的key
    processList: {
      type: Array,
      required: true,
      default: () => []
    }
  },
})
</script>
<style lang="scss" scoped>
.time-line {
  width: 800px;
  position: relative;
  display: flex;
  flex-wrap: wrap;
  flex-direction: row-reverse;
  position: relative;
  top: 15px;
  .item {
    width: 400px;
    height: 150px;
    background-image: url('@/assets/images/group-bj3.png');
    background-size: 98.875% 100%;
    background-repeat: no-repeat;
    position: relative;
    .time-num {
      width: 32px;
      height: 32px;
      border-radius: 50%;
      line-height: 32px;
      text-align: center;
      background-image: linear-gradient(243deg, #0971da 5%, #5cadff 100%);
      color: #fff;
    }
    .btn-box {
      position: absolute;
      width: 73px;
      height: 26px;
      border-radius: 13px;
      text-align: center;
      line-height: 26px;
      color: #fff;
      text-overflow: ellipsis;
      overflow: hidden;
      white-space: nowrap;
      padding: 0 8px;
    }
    .arrow {
      width: 20px;
      height: 18px;
      background-size: 100% 100%;
      position: absolute;
      background-repeat: no-repeat;
    }
    .content {
      position: absolute;
      font-size: 12px;
      width: 281px;
      .item-box {
        margin-top: 4px;
        display: flex;
        align-items: center;
        font-size: 14px;
        height: 20px;
        line-height: 20px;
        .value {
          flex: 1;
          text-overflow: ellipsis;
          overflow: hidden;
          white-space: nowrap;
        }
        .label {
          display: inline-block;
          width: 64px;
          text-align: right;
          color: rgba(0, 0, 0, 0.65);
        }
        &:first-child {
          margin-top: 0;
        }
      }
    }
    .title {
      color: #000;
      position: absolute;
      font-size: 20px;
    }
    &:nth-child(odd) {
      background-image: url('@/assets/images/group-bj4.png');
      background-position: 4px 0;
      .time-num {
        position: relative;
        bottom: 14px;
        right: 16px;
      }
      .btn-box {
        right: 0;
        background: #419af6;
        top: 70px;
      }
      .arrow {
        background-image: url('@/assets/images/group-icon2.png');
        top: 86px;
        left: 384px;
      }
      .title {
        left: 36px;
        top: 50px;
      }
      .content {
        top: 94px;
        left: 24px;
      }
    }
    &:nth-child(odd).comment-start {
      background-image: url('@/assets/images/group-bj4-1.png');
      background-size: 18% 100%;
      background-repeat: no-repeat;
      .btn-box {
        left: 75px;
        background: #419af6;
        top: 70px;
      }
      .arrow {
        background-image: url('@/assets/images/group-icon2.png');
        left: 147px;
      }
    }

    &:nth-child(even) {
      background-position: 1px 0;
      .time-num {
        position: relative;
        left: 384px;
        bottom: 13px;
      }
      .btn-box {
        left: 0;
        background: #419af6;
        top: 70px;
      }
      .arrow {
        background-image: url('@/assets/images/group-icon4.png');
        top: 86px;
        left: -4px;
      }
      .title {
        right: 36px;
        top: 50px;
      }
      .content {
        top: 94px;
        left: 81px;
      }
    }
    &:nth-child(even).comment-start {
      background-image: url('@/assets/images/group-bj3-1.png');
      background-repeat: no-repeat;
      background-position: 324px 0;
      background-size: 18% 100%;
      .btn-box {
        right: 75px;
        left: auto;
      }
      .arrow {
        right: 149px;
        left: auto;
      }
    }
    &:nth-child(2) {
      .time-num {
        background-image: linear-gradient(136deg, #fc7887 0%, #f8434f 100%);
      }
    }
  }
  .item.first-item {
    background-image: url('@/assets/images/group-bj1.png');
    background-position: 1px 0;
    background-size: 98.875% 100%;
    .btn-box {
      background: #fb7482;
      top: 54px;
    }
    .arrow {
      background-image: url('@/assets/images/group-icon1.png');
      top: 70px;
      left: 384px;
    }
    .title {
      color: #ff606c;
      top: 36px;
    }
    .content {
      top: 80px;
    }
  }
  .item.comment-end {
    background-image: url('@/assets/images/group-end.png');
    background-repeat: no-repeat;
    background-size: 18% 100%;
    background-position: 1px 0;
    .btn-box {
      background: #fb7482;
      top: 54px;
      left: 72px;
    }
    .arrow {
      left: 145px;
    }
  }
}
</style>

切图
