数据结构之使用双向链表或数组实现环形队列

1. 环形队列分析

环形队列是一种复用性极高的数据结构，被使用在许多场景中，如在MySQL数据库的InnoDB存储引擎中的Redo log日志，在DB挂了的时候，提供即使的数据恢复，保证了其持久性。默认便是有四个文件循环写入修改信息。又例如Disruptor消息队列，其任务队列便是一个环形队列，循环写入，写满即覆盖继续写。

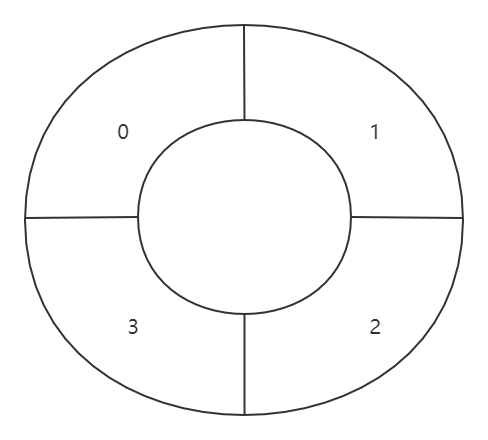

逻辑图如下：

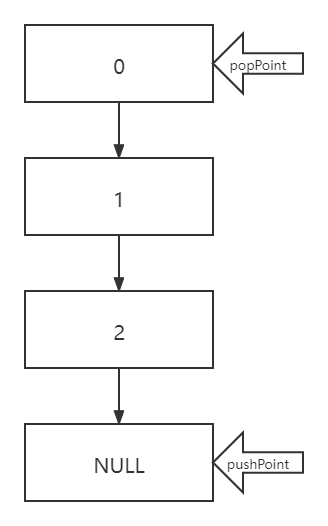

环形队列的一个主要特性便是当队列满了之后，回到头部继续push，这里可采用两个指针pushPoint和popPoint进行实现。分析图如下。

2. 代码实现

双向链表实现环形队列

public class RingLinked {
    public static void main(String[] args) {
        RingLinked<Integer> buffer = new RingLinked<Integer>(4);
        buffer.push(1);
        buffer.push(2);
        buffer.push(3);
        buffer.push(4);
        System.out.println(buffer.pop());
        System.out.println(buffer.pop());
        buffer.push(5);
        System.out.println(buffer.pop());
    }

    static class RingLinked<T>{
        private Node<T> head;
        private int pushPoint;
        private int popPoint;
        private int size;
        private int limit;

        public RingLinked(int limit) {
            this.limit = limit;
            this.pushPoint = 0;
            this.popPoint = 0;
            this.size = 0;


            this.head =  new Node<T>(null);
            Node<T> h = head;
            for (int i = 0; i < (limit-1); i++) {
                Node<T> node = new Node<T>(null);
                h.next = node;
                node.last = h;
                h = node;
            }
        }

        public void push(T value){
            if(size == limit) {
                throw new RuntimeException("队列已满，无法push");
            }
            //找到对应Node
            Node<T> node = node(pushPoint);
            // 直接替换value即可！
            node.value = value;
            pushPoint = nextIndex(pushPoint);
            size++;
        }

        public T pop(){
            if(size==0) {
                throw new RuntimeException("队列已空，无值pop");
            }
            Node<T> node = node(popPoint);
            popPoint = nextIndex(popPoint);
            size --;
            T result = node.value;
            node.value = null;
            return result;
        }

        public boolean isEmpty(){
            return size==0;
        }
        public int size() {
            return size;
        }

        /**
         * 遍历Node节点
         * @param index
         * @return
         */
        public Node<T> node(int index) {
            Node<T> x = head;
            for (int i = 0; i < index; i++) {
                x = x.next;
            }
            return x;
        }

        public int nextIndex(int index) {
            return index < (limit - 1)  ? index+1 : 0;
        }
    }
    /**
     * 节点
     */
    static class Node<T> {
        private T value;
        private Node<T> next;
        private Node<T> last;

        public Node(T value) {
            this.value = value;
        }
    }
}

数组实现环形队列:

public class RingArray {
    public static void main(String[] args) {
        MyQueue queue = new MyQueue(4);
        queue.push(0);
        queue.push(1);
        queue.push(2);
        queue.push(3);
        System.out.println(queue.pop());
        queue.push(4);

    }
}

/**
 * 环形队列由数组实现
 */
class MyQueue{
    private Object[] arr;
    private int pushPoint;
    private int popPoint;
    private int size;
    private int limit;

    public MyQueue(int limit){
        this.arr = new Object[limit];
        pushPoint = 0;
        popPoint = 0;
        size = 0;
        this.limit = limit;
    }

    public void push(Object value) {
        if(size == limit) {
            throw new RuntimeException("队列已满，请稍后再加");
        }
        arr[pushPoint] = value;
        pushPoint = nextIndex(pushPoint);
        size ++ ;
    }

    public Object pop() {
        if(size == 0) {
            throw new RuntimeException("队列已空，请稍后再取");
        }
        Object result = arr[popPoint];
        popPoint = nextIndex(popPoint);
        size --;
        return result;
    }

    private boolean isEmpty(){
        return size==0;
    }

    private int nextIndex(int i){
        return i < limit-1 ? i+1:0;
    }

}

思路如下图：

3. 后言

无论是环形队列还是栈或者哈希表，实则数据结构的实现要么是数组要么是链表或者数组+链表。
