springboot+logback+RabbitMQ+logstash

使用slf4j，需添加依赖

<!-- loombok -->
<dependency>
    <groupId>org.projectlombok</groupId>
    <artifactId>lombok</artifactId>
</dependency>

<!-- rabbitMQ -->
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-amqp</artifactId>
</dependency>
<dependency>
    <groupId>org.springframework.amqp</groupId>
    <artifactId>spring-rabbit</artifactId>
</dependency>

然后就是添加一个lombok插件 (我使用的是IDEA, 其他的IDA可以自行搜索安装方法)
直接按快捷键Ctrl+Alt+s弹出Settings界面

创建logback-spring.xml文件

<?xml version="1.0" encoding="UTF-8" ?>
<configuration>
    <property resource="application.properties" />
    <!-- 全局参数 -->
    <!--日志存储位置（读取配置文件的路径）-->
    <springProperty scope="context" name="displayName" source="spring.application.name"/>
    <springProperty scope="context" name="log_dir" source="logging.file.path"/>
    <springProperty scope="context" name="rabbit_host" source="spring.rabbitmq.host"/>
    <springProperty scope="context" name="rabbit_port" source="spring.rabbitmq.port"/>
    <springProperty scope="context" name="rabbit_username" source="spring.rabbitmq.username"/>
    <springProperty scope="context" name="rabbit_password" source="spring.rabbitmq.password"/>

    <!-- 常用的Pattern变量 -->
    <!--
      <pattern>
          %d{yyyy-MM-dd HH:mm:ss} [%level] - %msg%n
          Logger: %logger
          Class: %class
          File: %file
          Caller: %caller
          Line: %line
          Message: %m
          Method: %M
          Relative: %relative
          Thread: %thread
          Exception: %ex
          xException: %xEx
          nopException: %nopex
          rException: %rEx
          Marker: %marker
          %n
      </pattern>
    -->
    <!-- 彩色日志格式 -->
    <property name="CONSOLE_LOG_PATTERN" value="${CONSOLE_LOG_PATTERN:-%clr(%d{yyyy-MM-dd HH:mm:ss.SSS}){faint} %clr(${LOG_LEVEL_PATTERN:-%5p}) %clr(${PID:- }){magenta} %clr(---){faint} %clr([%15.15t]){faint} %clr(%-40.40logger{39}){cyan} %clr(:){faint} %m%n${LOG_EXCEPTION_CONVERSION_WORD:-%wEx}}"/>

    <property name="console-pattern" value="[%ip] %date{yyyy-MM-dd HH:mm:ss}  %highlight(%-5level) %magenta(${PID:- })--- [%-5t] %cyan(%logger{56}.%method:%L): %msg%n " />
    <property name="pattern" value="[%ip] %date{yyyy-MM-dd HH:mm:ss.SSS}  %-5level ${PID:- }--- [%-5t] %logger{56}.%method:%L: %msg%n" />

    <!-- 获取IP -->
    <conversionRule conversionWord="ip" converterClass="com.cloud.common.config.LogIpConfig" />

    <appender name="consoleApp" class="ch.qos.logback.core.ConsoleAppender">
        <layout class="ch.qos.logback.classic.PatternLayout">
            <pattern>
                ${console-pattern}
            </pattern>
        </layout>
    </appender>

<!--    <appender name="fileInfoApp" class="ch.qos.logback.core.rolling.RollingFileAppender">-->
<!--        <filter class="ch.qos.logback.classic.filter.LevelFilter">-->
<!--            <level>DEBUG</level>-->
<!--            <onMatch>DENY</onMatch>-->
<!--            <onMismatch>ACCEPT</onMismatch>-->
<!--        </filter>-->
<!--        <encoder>-->
<!--            <pattern>-->
<!--                ${pattern}-->
<!--            </pattern>-->
<!--        </encoder>-->
<!--        &lt;!&ndash; 滚动策略 &ndash;&gt;-->
<!--        <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">-->
<!--            &lt;!&ndash; 路径 &ndash;&gt;-->
<!--            <fileNamePattern>${log_dir}/app.info.%d.log</fileNamePattern>-->
<!--        </rollingPolicy>-->
<!--    </appender>-->

<!--    <appender name="fileErrorApp" class="ch.qos.logback.core.rolling.RollingFileAppender">-->
<!--        <filter class="ch.qos.logback.classic.filter.ThresholdFilter">-->
<!--            <level>ERROR</level>-->
<!--        </filter>-->
<!--        <encoder>-->
<!--            <pattern>-->
<!--                ${pattern}-->
<!--            </pattern>-->
<!--        </encoder>-->

<!--        &lt;!&ndash; 设置滚动策略 &ndash;&gt;-->
<!--        <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">-->
<!--            &lt;!&ndash; 路径 &ndash;&gt;-->
<!--            <fileNamePattern>${log_dir}/app.err.%d.log</fileNamePattern>-->

<!--            &lt;!&ndash; 控制保留的归档文件的最大数量，超出数量就删除旧文件，假设设置每个月滚动，-->
<!--            且<maxHistory> 是1，则只保存最近1个月的文件，删除之前的旧文件 &ndash;&gt;-->
<!--            <MaxHistory>1</MaxHistory>-->

<!--        </rollingPolicy>-->
<!--    </appender>-->

    <appender name="RABBITMQ"
              class="org.springframework.amqp.rabbit.logback.AmqpAppender">
        <layout>
            <pattern>${pattern}</pattern>
        </layout>
        <!--rabbitmq地址 -->
        <addresses>${rabbit_host}:${rabbit_port}</addresses>
        <username>${rabbit_username}</username>
        <password>${rabbit_password}</password>
        <declareExchange>true</declareExchange>
        <exchangeType>direct</exchangeType>
        <exchangeName>rabbit.log</exchangeName>
        <routingKeyPattern>info</routingKeyPattern>
        <generateId>true</generateId>
        <charset>UTF-8</charset>
        <durable>true</durable>
        <deliveryMode>NON_PERSISTENT</deliveryMode>
        <autoDelete>false</autoDelete>
    </appender>


    <!--    <appender name="mqAppender" class="org.apache.rocketmq.logappender.logback.RocketmqLogbackAppender">-->
<!--        <tag>logback</tag>-->
<!--        <topic>logTopic</topic>-->
<!--        <producerGroup>logback</producerGroup>-->
<!--        <nameServerAddress>localhost:5672</nameServerAddress>-->
<!--        <layout>-->
<!--            <pattern>${pattern}</pattern>-->
<!--        </layout>-->
<!--    </appender>-->

<!--    <appender name="mqAsyncAppender" class="ch.qos.logback.classic.AsyncAppender">-->
<!--        <queueSize>1024</queueSize>-->
<!--        <discardingThreshold>80</discardingThreshold>-->
<!--        <maxFlushTime>2000</maxFlushTime>-->
<!--        <neverBlock>true</neverBlock>-->
<!--        <appender-ref ref="mqAppender"/>-->
<!--    </appender>-->

    <!-- 文件记录只记录指定包的日志 -->
    <logger name="com.cloud.sparepart" level="info" additivity="false">
        <appender-ref ref="consoleApp"/>
        <appender-ref ref="RABBITMQ"/>
    </logger>


    <!--myibatis log configure-->
    <logger name="com.cloud.sparepart.mapper" level="debug"/>
    <!--log4jdbc -->
    <logger name="jdbc.sqltiming" level="debug"/>
    <logger name="com.ibatis" level="debug"/>
    <logger name="com.ibatis.common.jdbc.SimpleDataSource" level="debug"/>
    <logger name="com.ibatis.common.jdbc.ScriptRunner" level="debug"/>
    <logger name="com.ibatis.sqlmap.engine.impl.SqlMapClientDelegate" level="debug"/>
    <logger name="java.sql.Connection" level="debug"/>
    <logger name="java.sql.Statement" level="debug"/>
    <logger name="java.sql.PreparedStatement" level="debug"/>
    <logger name="java.sql.ResultSet" level="debug"/>
    <logger name="org.springframework" level="WARN"/>
    <!--rabbitmq的日志输出级别-->
    <logger name="org.springframework.amqp.rabbit.listener.BlockingQueueConsumer" level="WARN" />
    <logger name="org.springframework.core.task.SimpleAsyncTaskExecutor" level="WARN" />

    <!-- root 一定要放在最后，因有加载顺序的问题 -->
    <root level="INFO">
        <appender-ref ref="consoleApp"/>
<!--        <appender-ref ref="fileInfoApp"/>-->
<!--        <appender-ref ref="fileErrorApp"/>-->
        <appender-ref ref="RABBITMQ"/>
    </root>
</configuration>

message服务中 rabbitMQ项目中directExchange

/**
 *   1.定义direct exchange，绑定queueTest
 *   2.durable="true" rabbitmq重启的时候不需要创建新的交换机
 *   3.direct交换器相对来说比较简单，匹配规则为：如果路由键匹配，消息就被投送到相关的队列
 *     fanout交换器中没有路由键的概念，他会把消息发送到所有绑定在此交换器上面的队列中。
 *     topic交换器你采用模糊匹配路由键的原则进行转发消息到队列中
 *   key: queue在该direct-exchange中的key值，当消息发送给direct-exchange中指定key为设置值时，
 *   消息将会转发给queue参数指定的消息队列
 */
@Bean
public DirectExchange directExchange(){
    DirectExchange directExchange = new DirectExchange(RabbitMqConfig.EXCHANGE,true,false);
    return directExchange;
}

队列

@Bean
public Queue logQueue() {
    /**
     durable="true" 持久化 rabbitmq重启的时候不需要创建新的队列
     auto-delete 表示消息队列没有在使用时将被自动删除 默认是false
     exclusive  表示该消息队列是否只在当前connection生效,默认是false
     */
    return new Queue("logback",true,false,false);
}

交换机绑定队列

/**
 将消息队列logQueue和交换机进行绑定
 */
@Bean
public Binding binding_logQueue() {
    return BindingBuilder.bind(queueConfig.logQueue()).to(exchangeConfig.directExchange()).with("logback");
}

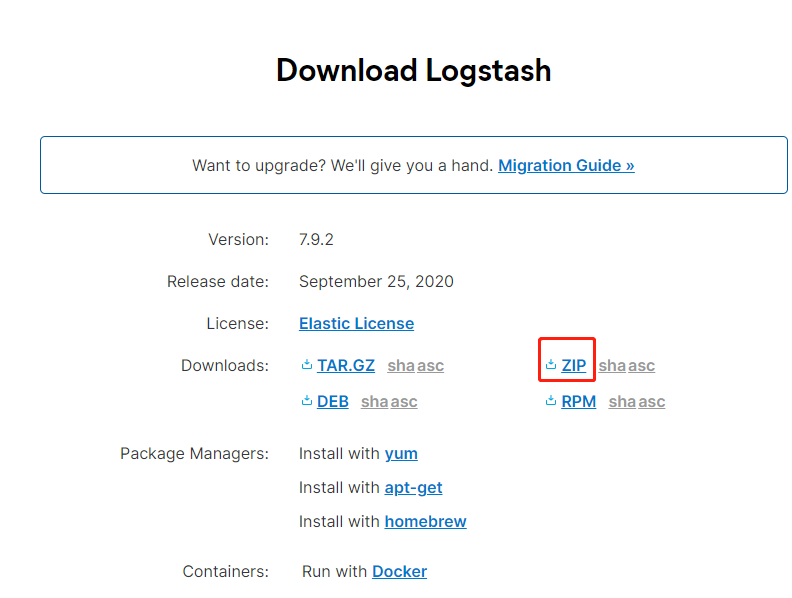

下载logstash
https://www.elastic.co/cn/downloads/logstash

解压（解压路径不包含空格）

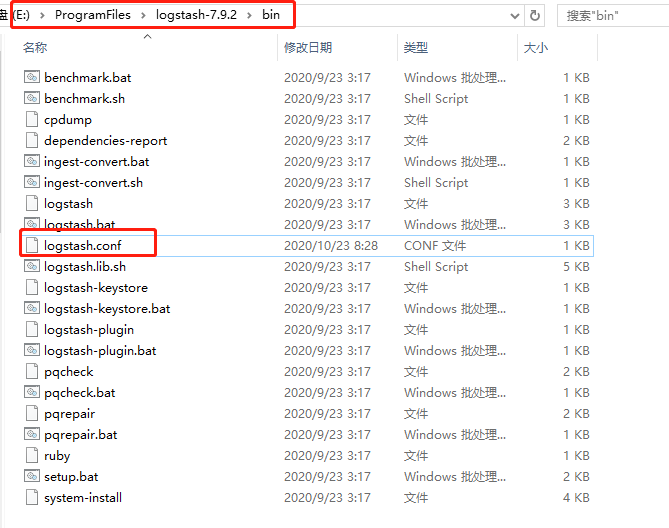

在bin文件夹下新建文件logstash.conf

input {

  rabbitmq {
       type =>"all"
       durable => true
       exchange => "rabbit.log"
       exchange_type => "direct"
       key => "info"
       host => "127.0.0.1"
       port => 5672
       user => "admin"
       password => "123456"
       queue => "logback"
       auto_delete => false
  }

}

output {

    file {
      path => "D:/WorkSpace/IdeaProjects/framework/logs/spare-part/info-%{+YYYY-MM-dd}.log"
      codec => multiline {
            pattern => "^\d"
            negate => true
            what => "previous"
        }

    }
}

日志文件将通过rabbitMQ队列统一写入日志文件

codec => multiline {
            pattern => "^\d"
            negate => true
            what => "previous"
        }

补充一个codec plugin 编解码器插件
　　codec 本质上是流过滤器，可以作为input 或output 插件的一部分运行。例如上面output的stdout插件里有用到。
multiline codec plugin  多行合并, 处理堆栈日志或者其他带有换行符日志需要用到

input {
  stdin {
    codec => multiline {
      pattern => "pattern, a regexp"    #正则匹配规则，匹配到的内容按照下面两个参数处理
      negate => "true" or "false"     # 默认为false。处理匹配符合正则规则的行。如果为true，处理不匹配符合正则规则的行。
      what => "previous" or "next"    #指定上下文。将指定的行是合并到上一行或者下一行。
    }
  }
}
codec => multiline {
    pattern => "^\s"
    what => "previous"
}
# 以空格开头的行都合并到上一行

codec => multiline {
    # Grok pattern names are valid! :)
    pattern => "^%{TIMESTAMP_ISO8601} "
    negate => true
    what => "previous"
}
# 任何不以这个时间戳格式开头的行都与上一行合并

codec => multiline {
   pattern => "\\$"
   what => "next"
}
# 以反斜杠结尾的行都与下一行合并

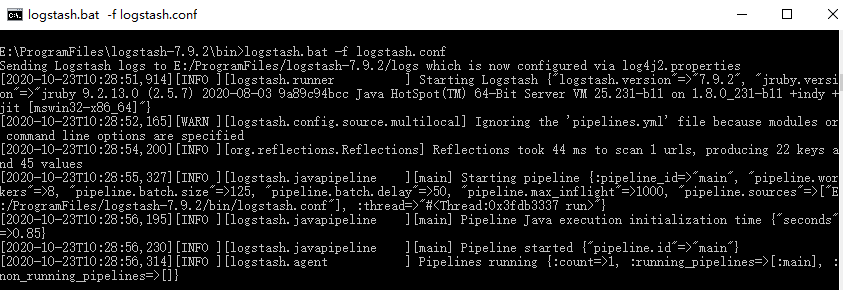

cmd 进入logstash/bin目录下

logstash.bat -f logstash.conf
