tensorflow学习（3）

莫凡2017tensorflow（使用更简便版）https://github.com/MorvanZhou/Tensorflow-Tutorial

17.分类学习

https://morvanzhou.github.io/tutorials/machine-learning/tensorflow/5-01-classifier/

之前的是使用TensorFlow解决Regression (回归)问题。这次我们会介绍如何使用TensorFlow解决Classification（分类）问题。

MNIST库是手写体数字库，数据中包含55000张训练图片，每张图片的分辨率是28×28，所以我们的训练网络输入应该是28×28=784个像素数据。调用add_layer函数搭建一个最简单的训练网络结构，只有输入层和输出层，其中输入数据是784个特征，输出数据是10个特征（0到9），激励采用softmax函数https://blog.youkuaiyun.com/bitcarmanlee/article/details/82320853。

loss函数（即最优化目标函数）选用交叉熵函数Cross entropy loss。交叉熵用来衡量预测值和真实值的相似程度，如果完全相同，它们的交叉熵等于零。train方法（最优化算法）采用梯度下降法。

数据训练时每次只取100张图片，免得数据太多训练太慢，每训练50次输出一下预测精度。



"""
Please note, this code is only for python 3+. If you are using python 2+, please modify the code accordingly.
"""
import tensorflow as tf
from tensorflow.examples.tutorials.mnist import input_data
# number 1 to 10 data
mnist = input_data.read_data_sets('MNIST_data', one_hot=True)

def add_layer(inputs, in_size, out_size, activation_function=None,):
    # add one more layer and return the output of this layer
    Weights = tf.Variable(tf.random_normal([in_size, out_size]))
    biases = tf.Variable(tf.zeros([1, out_size]) + 0.1,)
    Wx_plus_b = tf.matmul(inputs, Weights) + biases
    if activation_function is None:
        outputs = Wx_plus_b
    else:
        outputs = activation_function(Wx_plus_b,)
    return outputs

def compute_accuracy(v_xs, v_ys):
    global prediction
    y_pre = sess.run(prediction, feed_dict={xs: v_xs})
    correct_prediction = tf.equal(tf.argmax(y_pre,1), tf.argmax(v_ys,1))
    accuracy = tf.reduce_mean(tf.cast(correct_prediction, tf.float32))
    result = sess.run(accuracy, feed_dict={xs: v_xs, ys: v_ys})
    return result

# define placeholder for inputs to network
xs = tf.placeholder(tf.float32, [None, 784]) # 28x28
ys = tf.placeholder(tf.float32, [None, 10])

# add output layer
prediction = add_layer(xs, 784, 10,  activation_function=tf.nn.softmax)

# the error between prediction and real data
cross_entropy = tf.reduce_mean(-tf.reduce_sum(ys * tf.log(prediction),
                                              reduction_indices=[1]))       # loss
train_step = tf.train.GradientDescentOptimizer(0.5).minimize(cross_entropy)

sess = tf.Session()
# important step
sess.run(tf.initialize_all_variables())

for i in range(1000):
    batch_xs, batch_ys = mnist.train.next_batch(100)
    sess.run(train_step, feed_dict={xs: batch_xs, ys: batch_ys})
    if i % 50 == 0:
        print(compute_accuracy(
            mnist.test.images, mnist.test.labels))

这里因为翻墙原因，未能如愿得出越来越高的精确度结果。显示如下错误：

WARNING:tensorflow:From F:/BaiduNetdiskDownload/04-深度学习课程/TensorFlow教程/Tensorflow视频教程/tensorflowTUT源码/tf16_classification/full_code.py:9: read_data_sets (from tensorflow.contrib.learn.python.learn.datasets.mnist) is deprecated and will be removed in a future version.
Instructions for updating:
Please use alternatives such as official/mnist/dataset.py from tensorflow/models.
WARNING:tensorflow:From D:\应用软件\python\lib\site-packages\tensorflow\contrib\learn\python\learn\datasets\mnist.py:260: maybe_download (from tensorflow.contrib.learn.python.learn.datasets.base) is deprecated and will be removed in a future version.
Instructions for updating:
Please write your own downloading logic.
WARNING:tensorflow:From D:\应用软件\python\lib\site-packages\tensorflow\contrib\learn\python\learn\datasets\base.py:252: _internal_retry.<locals>.wrap.<locals>.wrapped_fn (from tensorflow.contrib.learn.python.learn.datasets.base) is deprecated and will be removed in a future version.
Instructions for updating:
Please use urllib or similar directly.
Traceback (most recent call last):
  File "F:/BaiduNetdiskDownload/04-深度学习课程/TensorFlow教程/Tensorflow视频教程/tensorflowTUT源码/tf16_classification/full_code.py", line 9, in <module>
    mnist = input_data.read_data_sets('MNIST_data', one_hot=True)
  File "D:\应用软件\python\lib\site-packages\tensorflow\python\util\deprecation.py", line 250, in new_func
    return func(*args, **kwargs)
  File "D:\应用软件\python\lib\site-packages\tensorflow\contrib\learn\python\learn\datasets\mnist.py", line 260, in read_data_sets
    source_url + TRAIN_IMAGES)
  File "D:\应用软件\python\lib\site-packages\tensorflow\python\util\deprecation.py", line 250, in new_func
    return func(*args, **kwargs)
  File "D:\应用软件\python\lib\site-packages\tensorflow\contrib\learn\python\learn\datasets\base.py", line 252, in maybe_download
    temp_file_name, _ = urlretrieve_with_retry(source_url)
  File "D:\应用软件\python\lib\site-packages\tensorflow\python\util\deprecation.py", line 250, in new_func
    return func(*args, **kwargs)
  File "D:\应用软件\python\lib\site-packages\tensorflow\contrib\learn\python\learn\datasets\base.py", line 205, in wrapped_fn
    return fn(*args, **kwargs)
  File "D:\应用软件\python\lib\site-packages\tensorflow\contrib\learn\python\learn\datasets\base.py", line 233, in urlretrieve_with_retry
    return urllib.request.urlretrieve(url, filename)
  File "D:\应用软件\python\lib\urllib\request.py", line 187, in urlretrieve
    with contextlib.closing(urlopen(url, data)) as fp:
  File "D:\应用软件\python\lib\urllib\request.py", line 162, in urlopen
    return opener.open(url, data, timeout)
  File "D:\应用软件\python\lib\urllib\request.py", line 465, in open
    response = self._open(req, data)
  File "D:\应用软件\python\lib\urllib\request.py", line 483, in _open
    '_open', req)
  File "D:\应用软件\python\lib\urllib\request.py", line 443, in _call_chain
    result = func(*args)
  File "D:\应用软件\python\lib\urllib\request.py", line 1283, in https_open
    context=self._context, check_hostname=self._check_hostname)
  File "D:\应用软件\python\lib\urllib\request.py", line 1243, in do_open
    r = h.getresponse()
  File "D:\应用软件\python\lib\http\client.py", line 1174, in getresponse
    response.begin()
  File "D:\应用软件\python\lib\http\client.py", line 282, in begin
    version, status, reason = self._read_status()
  File "D:\应用软件\python\lib\http\client.py", line 243, in _read_status
    line = str(self.fp.readline(_MAXLINE + 1), "iso-8859-1")
  File "D:\应用软件\python\lib\socket.py", line 575, in readinto
    return self._sock.recv_into(b)
  File "D:\应用软件\python\lib\ssl.py", line 924, in recv_into
    return self.read(nbytes, buffer)
  File "D:\应用软件\python\lib\ssl.py", line 786, in read
    return self._sslobj.read(len, buffer)
  File "D:\应用软件\python\lib\ssl.py", line 570, in read
    v = self._sslobj.read(len, buffer)
TimeoutError: [WinError 10060] 由于连接方在一段时间后没有正确答复或连接的主机没有反应，连接尝试失败。

尝试1：https://www.cnblogs.com/8023spz/p/9545986.html关闭防火墙，也未能出正确结果。

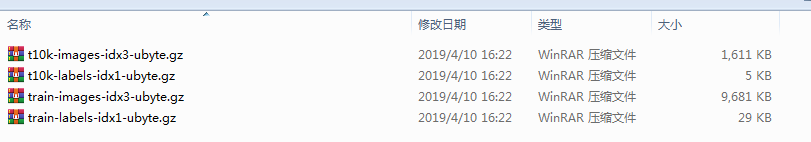

尝试2：最后，参考https://morvanzhou.github.io/tutorials/machine-learning/tensorflow/5-01-classifier/中评论的方法，直接将http://yann.lecun.com/exdb/mnist/中的压缩文件下载到MNIST_data目录下，就可以啦，完美~~~

0.1524
0.6469
0.7477
0.7853
0.8095
0.8255
0.839
0.8389
0.8495
0.8495
0.8551
0.8595
0.865
0.8658
0.866
0.8672
0.8688
0.8725
0.8776
0.8779

18.dropout（随机失活）解决overfitting问题

https://morvanzhou.github.io/tutorials/machine-learning/tensorflow/5-02-A-overfitting/

解决过拟合问题的方法：

• 增加数据量：大部分过拟合产生的原因是因为数据量太少了，数据量增多，拟合线可被拉直
• 运用正规化：L1, l2 regularization等等，这些方法适用于大多数的机器学习，保证学出来的线条不会过于扭曲
• dropout：专门用在神经网络的正规化方法。在训练的时候, 我们随机忽略掉一些神经元和神经联结 , 使这个神经网络变得”不完整”. 用一个不完整的神经网络训练一次.Dropout 的做法是从根本上让神经网络没机会过度依赖.

dropout解决overfitting方法：

内容需要使用一下 sklearn 数据库当中的数据,

import tensorflow as tf
from sklearn.datasets import load_digits
from sklearn.cross_validation import train_test_split
from sklearn.preprocessing import LabelBinarizer

keep_prob = tf.placeholder(tf.float32)
...
...
Wx_plus_b = tf.nn.dropout(Wx_plus_b, keep_prob)

这里的keep_prob是保留概率，即我们要保留的结果所占比例，它作为一个placeholder，在run时传入， 当keep_prob=1的时候，相当于100%保留，也就是dropout没有起作用。

digits = load_digits()
X = digits.data
y = digits.target
y = LabelBinarizer().fit_transform(y)
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=.3)

其中X_train是训练数据, X_test是测试数据。 然后添加隐含层和输出层

# add output layer
l1 = add_layer(xs, 64, 50, 'l1', activation_function=tf.nn.tanh)
prediction = add_layer(l1, 50, 10, 'l2', activation_function=tf.nn.softmax)

loss函数（即最优化目标函数）选用交叉熵函数。交叉熵用来衡量预测值和真实值的相似程度，如果完全相同，交叉熵就等于零。

cross_entropy = tf.reduce_mean(-tf.reduce_sum(ys * tf.log(prediction),
                                              reduction_indices=[1]))  # loss

train方法（最优化算法）采用梯度下降法。

train_step = tf.train.GradientDescentOptimizer(0.5).minimize(cross_entropy)

最后开始train，总共训练500次。

sess.run(train_step, feed_dict={xs: X_train, ys: y_train, keep_prob: 0.5})
#sess.run(train_step, feed_dict={xs: X_train, ys: y_train, keep_prob: 1})



"""
Please note, this code is only for python 3+. If you are using python 2+, please modify the code accordingly.
"""
import tensorflow as tf
from sklearn.datasets import load_digits
from sklearn.cross_validation import train_test_split
from sklearn.preprocessing import LabelBinarizer

# load data
digits = load_digits()
X = digits.data
y = digits.target
y = LabelBinarizer().fit_transform(y)
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=.3)


def add_layer(inputs, in_size, out_size, layer_name, activation_function=None, ):
    # add one more layer and return the output of this layer
    Weights = tf.Variable(tf.random_normal([in_size, out_size]))
    biases = tf.Variable(tf.zeros([1, out_size]) + 0.1, )
    Wx_plus_b = tf.matmul(inputs, Weights) + biases
    # here to dropout
    Wx_plus_b = tf.nn.dropout(Wx_plus_b, keep_prob)
    if activation_function is None:
        outputs = Wx_plus_b
    else:
        outputs = activation_function(Wx_plus_b, )
    #tf.histogram_summary(layer_name + '/outputs', outputs)
    tf.summary.histogram(layer_name + '/outputs', outputs)  # Tensorflow >= 0.12
    return outputs


# define placeholder for inputs to network
keep_prob = tf.placeholder(tf.float32)
xs = tf.placeholder(tf.float32, [None, 64])  # 8x8
ys = tf.placeholder(tf.float32, [None, 10])

# add output layer
l1 = add_layer(xs, 64, 50, 'l1', activation_function=tf.nn.tanh)
prediction = add_layer(l1, 50, 10, 'l2', activation_function=tf.nn.softmax)

# the loss between prediction and real data
cross_entropy = tf.reduce_mean(-tf.reduce_sum(ys * tf.log(prediction),
                                              reduction_indices=[1]))  # loss
#tf.scalar_summary('loss', cross_entropy)
tf.summary.scalar('loss', cross_entropy)  # tensorflow >= 0.12
train_step = tf.train.GradientDescentOptimizer(0.5).minimize(cross_entropy)

sess = tf.Session()
#merged = tf.merge_all_summaries()
merged = tf.summary.merge_all()  # tensorflow >= 0.12
# summary writer goes in here
#train_writer = tf.train.SummaryWriter("logs/train", sess.graph)
train_writer = tf.summary.FileWriter("logs/train", sess.graph) # tensorflow >=0.12
#test_writer = tf.train.SummaryWriter("logs/test", sess.graph)
test_writer = tf.summary.FileWriter("logs/test", sess.graph) # tensorflow >=0.12

sess.run(tf.initialize_all_variables())

for i in range(500):
    # here to determine the keeping probability
    sess.run(train_step, feed_dict={xs: X_train, ys: y_train, keep_prob: 0.5})
    if i % 50 == 0:
        # record loss
        train_result = sess.run(merged, feed_dict={xs: X_train, ys: y_train, keep_prob: 1})
        test_result = sess.run(merged, feed_dict={xs: X_test, ys: y_test, keep_prob: 1})
        train_writer.add_summary(train_result, i)
        test_writer.add_summary(test_result, i)
