mammoth定制开发,提取word（docx）中的公式(OMath格式)

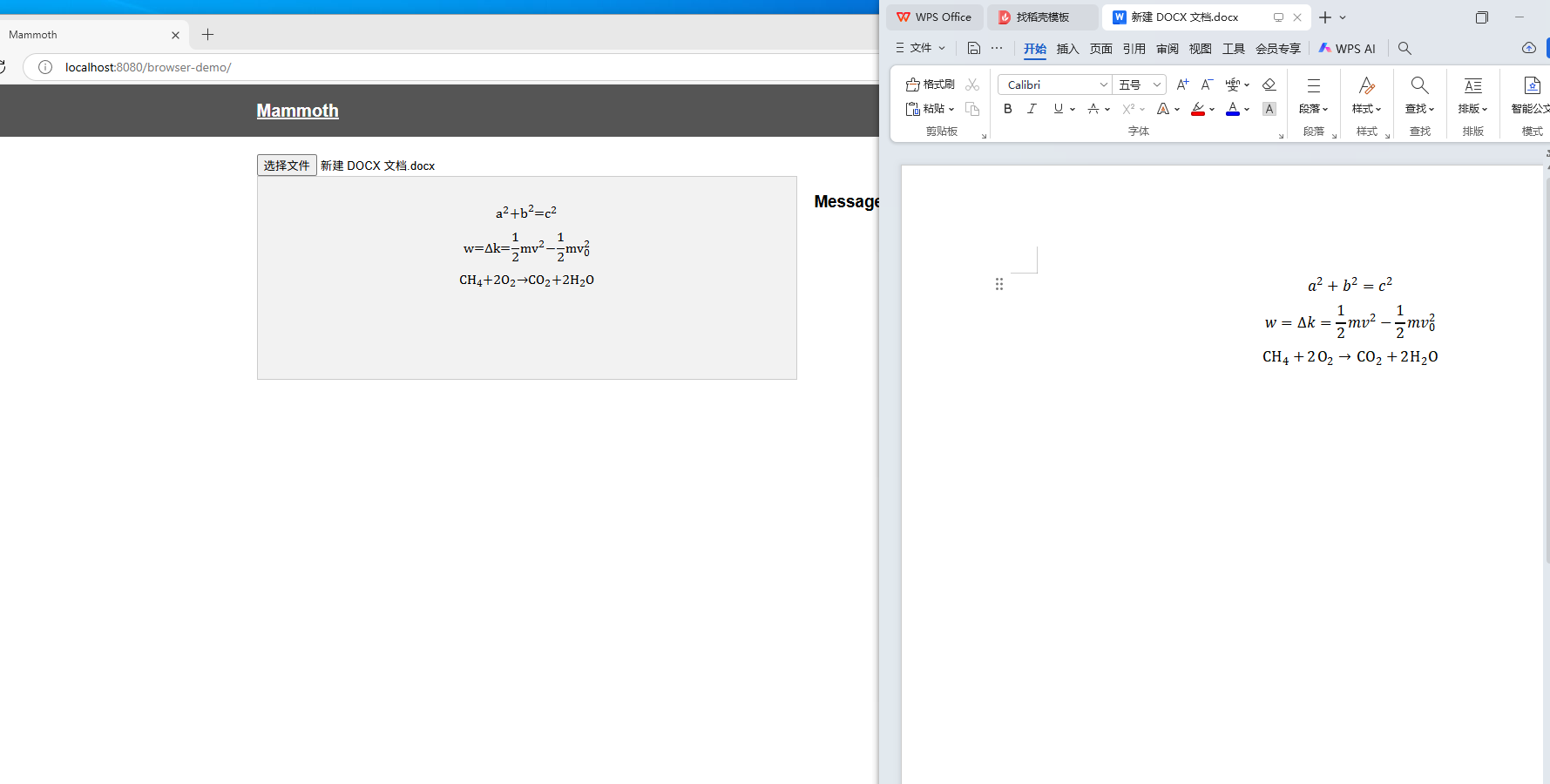

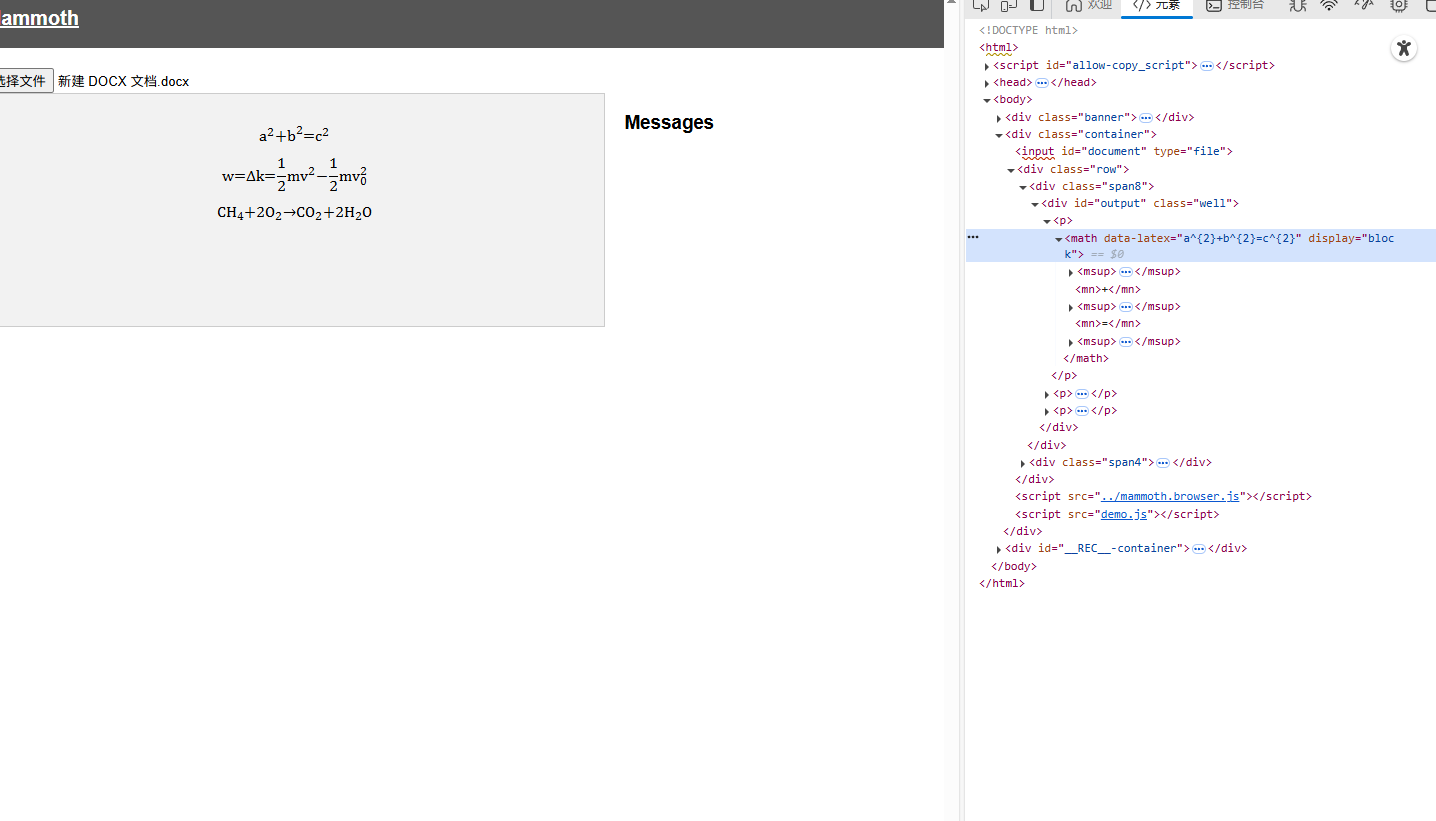

效果图展示

需求说明

1. 需要提取docx中的内容,经过工作流处理之后,重新生成文档
2. 要求支持公式,表格样式,图片大小还原到新的文档中

参考文章/网站

1. 魔改mammoth支持导入样式
2. docx文档
3. 在线latex公式编辑器
4. MathML

方案选择

由于之前使用过mammoth,并且实现过mammoth的定制开发,因此决定使用mammoth.js和docx.js来实现这个功能

方案流程

1. mammoth提取docx内容转换成html
2. html实现还原docx中的样式并转换成docx.js能支持的数据格式
3. 还原docx

本文主要是实现公式的提取

实现方法

1. 通过查看docx原始的xml(通过更改docx文件拓展名,改为zip之后解压缩),获取公式的各种标签
2. 定制开发解析的方法
3. 解析对象转换成html能显示的MathML

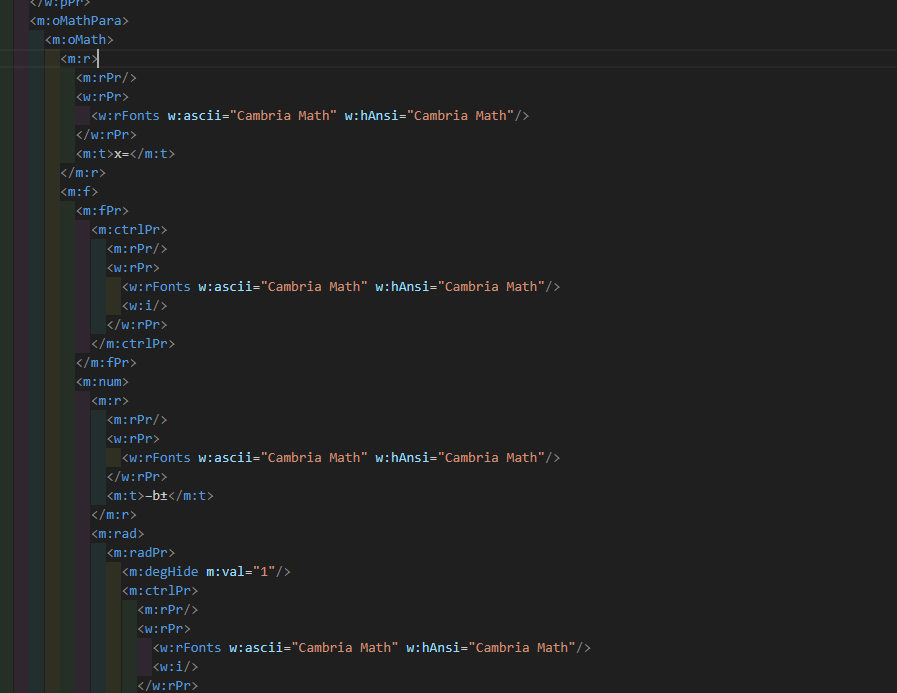

xml标签示例

关键代码

document.js

function OMath(children) {


    return {


        type: types.math,
        children: children
    };
}

function OMathText(value) {


    return {


        type: types.mathText,
        value: value
    };
}

function OMathFraction(numerator, denominator) {


    return {


        type: types.mathFraction,
        numerator: numerator,
        denominator: denominator
    };
}

function OMathRadical(children, degree) {


    return {


        type: types.mathRadical,
        children: children,
        degree: degree
    };
}

function OMathNary(children, options, subScript, superScript){


    return {


        type: types.mathNary,
        children: children,
        options: options,
        subScript: subScript,
        superScript: superScript
    };
}
function OMathFunction(children, name) {


    return {


        type: types.mathFunction,
        children: children,
        name: name
    };
}
function OMathSuperScript(children, superScript) {


    return {


        type: types.mathSuperScript,
        children: children,
        superScript: superScript
    };
}
function OMathSubScript(children, subScript) {


    return {


        type: types.mathSubScript,
        children: children,
        subScript: subScript
    };
}
function OMathSubSuperScript(children, subScript, superScript) {


    return {


        type: types.mathSubSuperScript,
        children: children,
        subScript: subScript,
        superScript: superScript
    };
}
function OMathPreSubSuperScript(children, subScript, superScript) {


    return {


        type: types.mathPreSubSuperScript,
        children: children,
        subScript: subScript,
        superScript: superScript
    };
}
function OMathBracket(children, bracketType) {


    return {


        type: types.mathBracket,
        children: children,
        bracketType: bracketType
    };
}

function OMathLimitUpper(children, limit) {


    return {


        type: types.mathLimitUpper,
        children: children,
        limit: limit
    };
}
function OMathLimitLower(children, limit) {


    return {


        type: types.mathLimitLower,
        children: children,
        limit: limit
    };
}

body-reader.js

var xmlElementReaders = {


     _oMath: function(element) {


            return elementResult(new documents.OMath(readChildElements(element)));
        },
    // 对应children属性
        _e: readChildElements,
    // 处理公式内的元素转换
        _r: readChildElements,
        _t: function(element) {


            return elementResult(new documents.OMathText(element.text()));
        },
        _f: function(element) {


            return elementResult(
        new documents.OMathFraction(readChildElements(element.mathFirst('num')), readChildElements(element.mathFirst('den')))
      );
        },
        _num: readChildElements,
        _den: readChildElements,
        _rad: function(element) {


            return elementResult(
        new documents.OMathRadical(readChildElements(element.mathFirst('e')), readChildElements(element.mathFirst('deg')))
      );
        },
    // 对应开根号的指数
        _deg: readChildElements,
    // 积分运算
        _nary: function(element) {


            var narySub = element.mathFirst('sub');
            var narySup = element.mathFirst('sup');
            var naryPr = element.mathFirst('naryPr');
            var chr = naryPr.mathFirstOrEmpty('chr').attributes[mathVersion + 'val'] || '';
            var limLoc = naryPr.mathFirstOrEmpty('limLoc').attributes[mathVersion + 'val'] || '';
            var options = {


                chr: chr,
                limLoc: limLoc
            };
            var subScript = narySub ? readChildEleme
