Flink sink算子，kafka数据写入redis

1. 概述

  Redis 提供了string、hash、list、set、sorted set、bitmap等一系列常用的数据结构。
Flink 没有直接提供官方的 Redis 连接器，但 Bahir 项目提供了 Flink-Redis 的连接工具

2. 使用

2.1 引入依赖

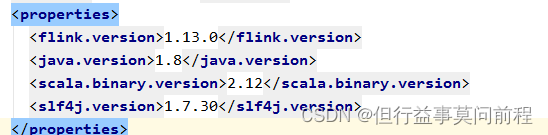

   服务器上的flink版本与引入的依赖之间有冲突，使用exclusions排除

    <dependency>
      <groupId>org.apache.bahir</groupId>
      <artifactId>flink-connector-redis_2.11</artifactId>
      <version>1.0</version>
      <exclusions>
        <exclusion>
          <groupId>org.apache.flink</groupId>
          <artifactId>flink-streaming-java_2.11</artifactId>
        </exclusion>
      </exclusions>
    </dependency>

2.2 RedisSink

  连接器提供了一个 RedisSink，继承抽象类 RichSinkFunction，RedisSink 的构造方法需要传入两个参数：FlinkJedisConfigBase：Jedis 的连接配置；RedisMapper：Redis 映射类接口，说明怎样将数据转换成写入 Redis 的类型

2.3 代码

pojo对象

public class Event {
    public String user;
    public String url;
    public long timestamp;

    public Event() {
    }

    public Event(String user, String url, Long timestamp) {
        this.user = user;
        this.url = url;
        this.timestamp = timestamp;
    }

    @Override
    public int hashCode() {
        return super.hashCode();
    }

    public String getUser() {
        return user;
    }

    public void setUser(String user) {
        this.user = user;
    }

    public String getUrl() {
        return url;
    }

    public void setUrl(String url) {
        this.url = url;
    }

    public Long getTimestamp() {
        return timestamp;
    }

    public void setTimestamp(Long timestamp) {
        this.timestamp = timestamp;
    }

    @Override
    public String toString() {
        return "Event{" +
                "user='" + user + '\'' +
                ", url='" + url + '\'' +
                ", timestamp=" + new Timestamp(timestamp) +
                '}';
    }
}

(1) 从kafka读取数据
(2) 转换操作
(3) 写入redis

public class SinkToRedis {
    public static void main(String[] args) throws Exception {
        StreamExecutionEnvironment env =
                StreamExecutionEnvironment.getExecutionEnvironment();

        Properties properties = new Properties();
        properties.setProperty("bootstrap.servers", "192.168.42.102:9092,192.168.42.103:9092,192.168.42.104:9092");
        properties.setProperty("group.id", "consumer-group");
        properties.setProperty("key.deserializer",
                "org.apache.kafka.common.serialization.StringDeserializer");
        properties.setProperty("value.deserializer",
                "org.apache.kafka.common.serialization.StringDeserializer");
        properties.setProperty("auto.offset.reset", "latest");
        DataStreamSource<String> stream = env.addSource(new
                FlinkKafkaConsumer<String>(
                "clicks",
                new SimpleStringSchema(),
                properties
        ));

        SingleOutputStreamOperator<Event> flatMap = stream.flatMap(new FlatMapFunction<String, Event>() {
            @Override
            public void flatMap(String s, Collector<Event> collector) throws Exception {
                String[] split = s.split(",");
                collector.collect(new Event(split[0], split[1], Long.parseLong(split[2])));
            }
        });

        FlinkJedisPoolConfig config = new FlinkJedisPoolConfig.Builder().setHost("192.168.0.23").setPassword("123456").setDatabase(15).build();

        flatMap.addSink(new RedisSink<>(config, new RedisMapper<Event>() {
            @Override
            public RedisCommandDescription getCommandDescription() {
                return new RedisCommandDescription(RedisCommand.HSET, "events");
            }

            @Override
            public String getKeyFromData(Event data) {
                return data.user;
            }

            @Override
            public String getValueFromData(Event data) {
                return data.url;
            }
        }));

        env.execute();
    }
}

结果：

./kafka-console-producer.sh  --broker-list 192.168.42.102:9092,192.168.42.103:9092,192.168.42.104:9092 --topic clicks

---
