flink StreamingFileSink 读取kafka中的数据，流式地写入本地文件系统

1. StreamingFileSink

  Flink有输出到文件的预实现方法：如 writeAsText()、writeAsCsv() 直接将输出结果保存到文本文件或 Csv 文件。但这种方式是不支持同时写入一份文件，Sink 操作并行度只能为 1，拖慢系统效率且无法保证故障恢复后的状态一致性，已被弃用
  对此，Flink 专门提供了一个流式文件系统的连接器：StreamingFileSink，它继承自抽象类RichSinkFunction，而且集成了 Flink 的检查点（checkpoint）机制，用来保证exactly once的一致性语义

  StreamingFileSink 主要操作是将数据写入桶（buckets），每个桶中的数据都可以分割成一个个大小有限的分区文件，这样一来就实现真正意义上的分布式文件存储

Sink that emits its input elements to files within buckets

  可以通过各种配置来控制“分桶”的操作；默认的分桶方式是基于时间的，每小时写入一个新的桶

In some scenarios, the open buckets are required to change based on time. In these cases, the user can specify a {@code bucketCheckInterval} (by default 1m) and the sink will check periodically and roll the part file if the specified rolling policy says so

  StreamingFileSink 支持行编码（Row-encoded）和批量编码（Bulk-encoded）格式StreamingFileSink 的静态方法：
(1) 行编码：StreamingFileSink.forRowFormat（basePath，rowEncoder）
(2) 批量编码：StreamingFileSink.forBulkFormat（basePath，bulkWriterFactory）

---

2. 代码示例

POJO对象

public class Event {
    public String user;
    public String url;
    public long timestamp;

    public Event() {
    }

    public Event(String user, String url, Long timestamp) {
        this.user = user;
        this.url = url;
        this.timestamp = timestamp;
    }

    @Override
    public int hashCode() {
        return super.hashCode();
    }

    public String getUser() {
        return user;
    }

    public void setUser(String user) {
        this.user = user;
    }

    public String getUrl() {
        return url;
    }

    public void setUrl(String url) {
        this.url = url;
    }

    public Long getTimestamp() {
        return timestamp;
    }

    public void setTimestamp(Long timestamp) {
        this.timestamp = timestamp;
    }

    @Override
    public String toString() {
        return "Event{" +
                "user='" + user + '\'' +
                ", url='" + url + '\'' +
                ", timestamp=" + new Timestamp(timestamp) +
                '}';
    }
}

读取kafka中的数据，写入本地文件系统：
步骤：
(1) 从kafka集群中，消费message
(2) flatMap扁平映射成自定义的Event对象，
(3) rescale 对数据进行重缩放分区后，设置滚动策略写入文本文件

public class SinkToFileTest {
    public static void main(String[] args) throws Exception {
        StreamExecutionEnvironment env =
                StreamExecutionEnvironment.getExecutionEnvironment();

        Properties properties = new Properties();
        properties.setProperty("bootstrap.servers", "192.168.42.102:9092,192.168.42.103:9092,192.168.42.104:9092");
        properties.setProperty("group.id", "consumer-group");
        properties.setProperty("key.deserializer",
                "org.apache.kafka.common.serialization.StringDeserializer");
        properties.setProperty("value.deserializer",
                "org.apache.kafka.common.serialization.StringDeserializer");
        properties.setProperty("auto.offset.reset", "latest");
        DataStreamSource<String> stream = env.addSource(new
                FlinkKafkaConsumer<String>(
                "clicks",
                new SimpleStringSchema(),
                properties
        )).setParallelism(2);

        SingleOutputStreamOperator<Event> flatMap = stream.flatMap(new FlatMapFunction<String, Event>() {
            @Override
            public void flatMap(String s, Collector<Event> collector) throws Exception {
                String[] split = s.split(",");
                collector.collect(new Event(split[0], split[1], Long.parseLong(split[2])));
            }
        });

        StreamingFileSink<Event> fileSink = StreamingFileSink.forRowFormat(new Path("./"), new SimpleStringEncoder<Event>("UTF-8"))                .withRollingPolicy(DefaultRollingPolicy.builder().withRolloverInterval(TimeUnit.MINUTES.toMillis(15)).withMaxPartSize(128 * 1024 * 1024).withInactivityInterval(TimeUnit.MINUTES.toMillis(5)).build())
                .build();

        flatMap.rescale().addSink(fileSink).setParallelism(4);

        env.execute();
    }
}

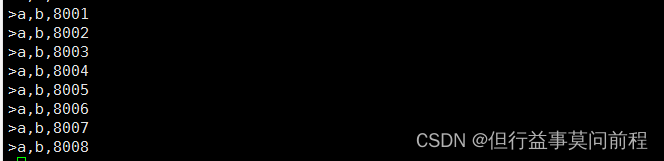

结果：

./kafka-console-producer.sh  --broker-list 192.168.42.102:9092,192.168.42.103:9092,192.168.42.104:9092 --topic clicks

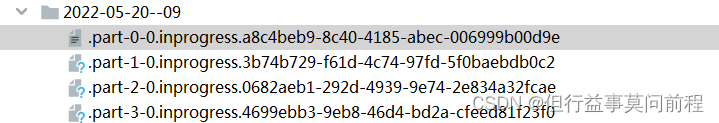

查看文件
