数仓漏斗模型，正则匹配REGEXP_EXTRACT，SORT_ARRAY

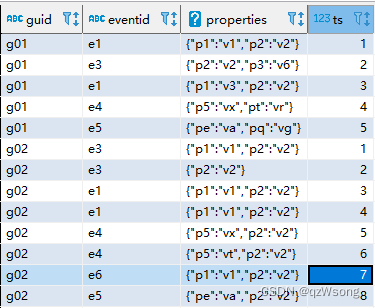

日志数据 test.action_dtl_ld

1、步骤定义

第一步: eventid = 'e1' and properties['p1'] = 'v1'

第二步: eventid = 'e4' and properties['p5'] = 'vx'

第三步: eventid = 'e6' and properties['p2'] = 'v2'

2、步骤号计算

select
	guid,
	eventid,
	properties ,
	ts,
	case
        -- 前边添加一个ld 是为了正则表达式好抽取
		when eventid = 'e1'
		and properties['p1'] = 'v1' then 'ld1'
		when eventid = 'e4'
		and properties['p5'] = 'vx' then 'ld2'
		when eventid = 'e6'
		and properties['p2'] = 'v2' then 'ld3'
		else null
	end as orderid
from
	test.action_dtl_ld

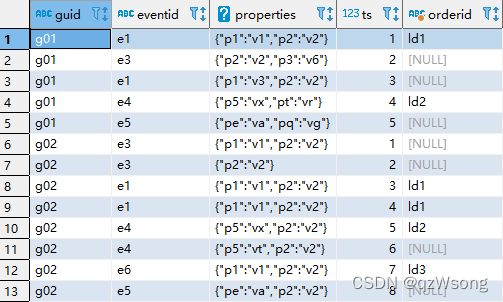

3、步骤号计算结果

4、步骤正则编码计算

1、根据步骤号计算结果，过滤掉orderid是null的

2、concat(ts,'_',orderid)将ts与orderid拼接起来（拼接ts放在前边用来排序，sort_array）

3、collect_list(_)，将ts与orderid拼接起来的结果收集到list中

4、sort_array(_)，将list中的数据进行排序，因为前边拼接了ts所以会根据时间先后排序

5、concat_ws(_), 将list中排好序的数据，转成字符串，as Regstr

concat_ws(',',sort_array(collect_list(concat(ts,'_',orderid)))) as regstr

with t_orderid as (
select
	guid,
	eventid,
	properties ,
	ts,
	case
		when eventid = 'e1'
		and properties['p1'] = 'v1' then 'ld1'
		when eventid = 'e4'
		and properties['p5'] = 'vx' then 'ld2'
		when eventid = 'e6'
		and properties['p2'] = 'v2' then 'ld3'
		else null
	end as orderid
from
	test.action_dtl_ld
)

select
	guid,
	concat_ws(',',sort_array(collect_list(concat(ts,'_',orderid)))) as regstr
from
	t_orderid
where
	orderid is not null
	group by guid

5、步骤正则编码计算结果

6、利用正则表达式判断上述结果

regexp_extract(subject,parttern,inedx)
解释：
--subject 是被解析的字符串
--pattern 是正则表达式
--index 是返回结果，取表达式的哪一部，“默认值为1”。
----0表示把整个正则表达式对应的结果全部返回；
----1表示返回正则表达式中第一个() 对应的结果 以此类推。
----注意点：
----要注意的是idx的数字不能大于表达式中()的个数。
----否则报错

select REGEXP_EXTRACT('3_ld1,4_ld1,5_ld2,7_ld3','.*?(ld1).*?(ld2).*?(ld3).*?',3)
----ld3

7、计算语句

7、1 计算每个人完成的最大漏斗步数


with t_orderid as (
select
	guid,
	eventid,
	properties ,
	ts,
	case
		when eventid = 'e1'
		and properties['p1'] = 'v1' then 'ld1'
		when eventid = 'e4'
		and properties['p5'] = 'vx' then 'ld2'
		when eventid = 'e6'
		and properties['p2'] = 'v2' then 'ld3'
		else null
	end as orderid
from
	test.action_dtl_ld
),
regstr_res as (
select
	guid,
	concat_ws(',',
	sort_array(collect_list(concat(ts, '_', orderid)))) as regstr
from
	t_orderid
where
	orderid is not null
group by
	guid
)
-- 计算每个人完成的最大漏斗步数
select
	guid,
	case
	when REGEXP_EXTRACT(regstr,'.*?(ld1).*?(ld2).*?(ld3).*?',3) = 'ld3' then 3
	when REGEXP_EXTRACT(regstr,'.*?(ld1).*?(ld2).*?',2) = 'ld2' then 2
	when REGEXP_EXTRACT(regstr,'.*?(ld1).*?',1) = 'ld2' then 1
	else 0
	end as stepmax
from
	regstr_res

结果1

7、2 计算每个人完成的最大漏斗步数

with t_orderid as (
select
	guid,
	eventid,
	properties ,
	ts,
	case
		when eventid = 'e1'
		and properties['p1'] = 'v1' then 'ld1'
		when eventid = 'e4'
		and properties['p5'] = 'vx' then 'ld2'
		when eventid = 'e6'
		and properties['p2'] = 'v2' then 'ld3'
		else null
	end as orderid
from
	test.action_dtl_ld
),
regstr_res as (
select
	guid,
	concat_ws(',',
	sort_array(collect_list(concat(ts, '_', orderid)))) as regstr
from
	t_orderid
where
	orderid is not null
group by
	guid
),
step_nums as (
select
	guid,
	case
		when REGEXP_EXTRACT(regstr, '.*?(ld1).*?(ld2).*?(ld3).*?', 3) = 'ld3' then 3
		when REGEXP_EXTRACT(regstr, '.*?(ld1).*?(ld2).*?', 2) = 'ld2' then 2
		when REGEXP_EXTRACT(regstr, '.*?(ld1).*?', 1) = 'ld2' then 1
		else 0
	end as stepmax
from
	regstr_res
)
-- 计算各个步数的人数
select
	count(if(stepmax>0,1,null)) as step1,
	count(if(stepmax>1,1,null)) as step2,
	count(if(stepmax>2,1,null)) as step3
from
	step_nums
