06 - GPIO输入按键检测

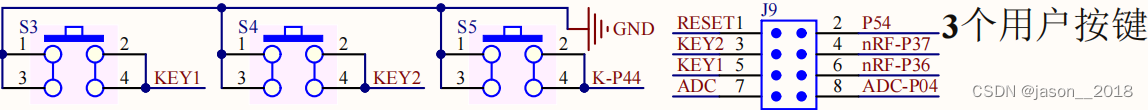

电路

  • S3和S4通过跳线帽连接到P3.6和P3.7口。
  • S5直接连接到P4.4口。

代码

  • 程序使用了最简单的延时消抖。

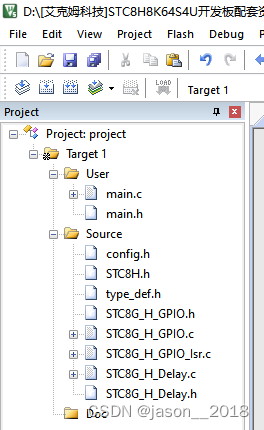

  • main.c
#define _MAIN_C
#include "config.h"
#include "STC8G_H_Delay.h"
#include "STC8G_H_GPIO.h"
#include "main.h"

#define D1 P03
#define D2 P02
#define D3 P01
#define D4 P00

#define KEY1 P36
#define KEY2 P37
#define K P44

/**
 * GPIO口初始化
 */
void GPIO_config(void)
{
	GPIO_InitTypeDef GPIO_InitStructure;
	GPIO_InitStructure.Mode = GPIO_PullUp;
	GPIO_InitStructure.Pin = GPIO_Pin_LOW;
	GPIO_Inilize(GPIO_P0, &GPIO_InitStructure);

	GPIO_InitStructure.Mode = GPIO_PullUp;				// P3.6和P3.7端口设置为准双向口
	GPIO_InitStructure.Pin = GPIO_Pin_6 | GPIO_Pin_7;
	GPIO_Inilize(GPIO_P3, &GPIO_In
