51单片机—矩阵按键

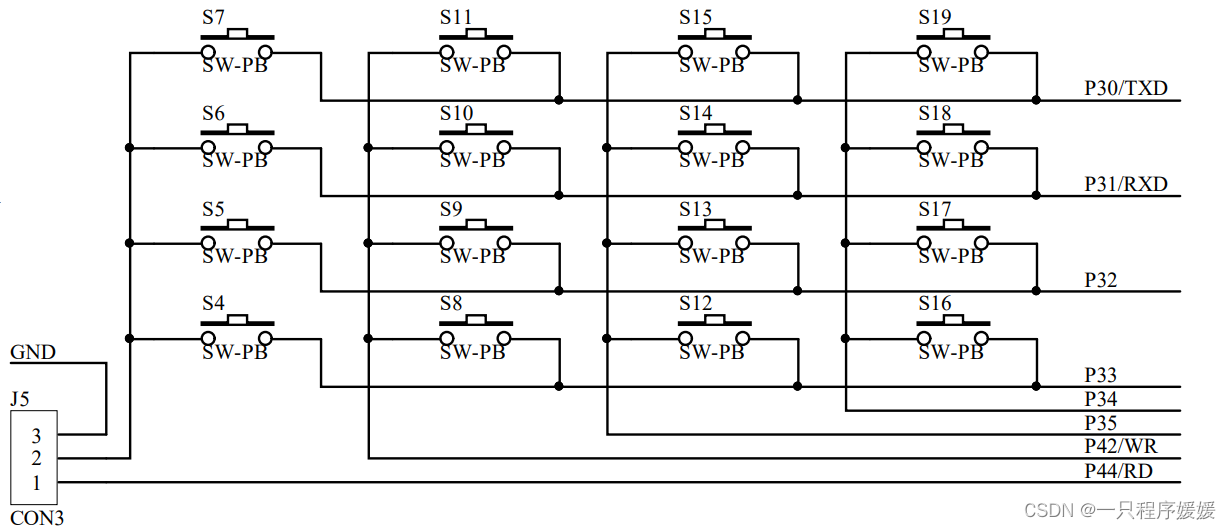

一、原理图

矩阵按键工作原理实质是单片机不断的循环扫描，所以使用到定时器和4X4矩阵按键，原理图以蓝桥杯单片机矩阵按键为例。

行为P30、P31、P32、P33，列为P44、P42、P35、P34。

二、key.c程序

#include "key.h"

sbit hang1=P3^0;
sbit hang2=P3^1;
sbit hang3=P3^2;
sbit hang4=P3^3;
sbit lie1=P4^4;
sbit lie2=P4^2;
sbit lie3=P3^5;
sbit lie4=P3^4;

void delayms(unsigned int nms)
{
  unsigned int i;
  while(nms--)
    for(i = 0;i <110;i++);
}

unsigned char JZjianpan(void)
{
  unsigned char lsbl=20;
  hang1=hang2=hang3=hang4=1;
  lie1=lie2=lie3=lie4=0;
  if(!(hang1 & hang2 & hang3 & hang4))
  {
    delayms(5);
    hang1=hang2=hang3=hang4=1;
    lie1=lie2=lie3=lie4=0;
    if(!(hang1 & hang2 & hang3 & hang4))
    {
       P3=0xff;
       lie1=0; lie2 = 1; lie3 = 1;  lie4 = 1;
       if(hang1==0)       lsbl=7;
       else if(hang2==0)       lsbl=6;
       else if(hang3==0)       lsbl=5;
       else if(hang4==0)       lsbl=4;

       lie1 = 1; lie2 = 0; lie3 = 1;  lie4 = 1;
       if(hang1==0)       lsbl=11;
       else if(hang2==0)       lsbl=10;
       else if(hang3==0)       lsbl=9;
       else if(hang4==0)       lsbl=8;

       lie1 = 1; lie2 = 1; lie3 = 0;  lie4 = 1;
       if(hang1==0)       lsbl=15;
       else if(hang2==0)       lsbl=14;
       else if(hang3==0)       lsbl=13;
       else if(hang4==0)       lsbl=12;

       lie1 = 1; lie2 = 1; lie3 = 1;  lie4 = 0;
       if(hang1==0)       lsbl=19;
       else if(hang2==0)       lsbl=18;
       else if(hang3==0)       lsbl=17;
       else if(hang4==0)       lsbl=16;
    }
  }
  hang1=hang2=hang3=hang4=1;
  lie1=lie2=lie3=lie4=0;
  while(!(hang1 & hang2 & hang3 & hang4));
  return lsbl;
}

三、main.c程序

定时器使用的是Timer1，12MHZ，12T模式，1ms定时，自动重装载。

#include "key.h"

unsigned char jianzhi,jianpan_flag;
unsigned long u1ms;

void Timer1_Init(void)		//1毫秒@12.000MHz
{
	AUXR &= 0xBF;			//定时器时钟12T模式
	TMOD &= 0x0F;			//设置定时器模式
	TL1 = 0x18;				//设置定时初始值
	TH1 = 0xFC;				//设置定时初始值
	TF1 = 0;				//清除TF1标志
	TR1 = 1;				//定时器1开始计时
	EA = 1;
}

void main(void)
{
  Timer1Init();

  while(1)
  {
    if(jianpan_flag == 1)
    {
      jianpan_flag = 0;
      jianzhi = JZjianpan();

	  switch(jianzhi)
	  {
		case 4:

		break;
		case 5:

		break;
		case 6:

		break;
		case 7:

		break;
	  }
    }
  }
}

void Time_1(void) interrupt 3
{
  u1ms++;
  if(!(u1ms%10 == 0))  jianpan_flag = 1; // 每隔10ms检测一次
}
