《Spring源码深度解析》
spring-framework-reference

前面的章节中都是以BeanFactory接口以及它的默认实现类XmlBeanFactory为例进行分析，
Spring中还提供了另一个接口ApplicationContext，用于扩展BeanFactory中现有的功能。
二者加载方式比较：

BeanFactory factory = new XmlBeanFactory(new ClassPathResource("beanFactoryTest.xml"));

ClassPathXmlApplicationContext factory = new ClassPathXmlApplicationContext("beanFactoryTest.xml");

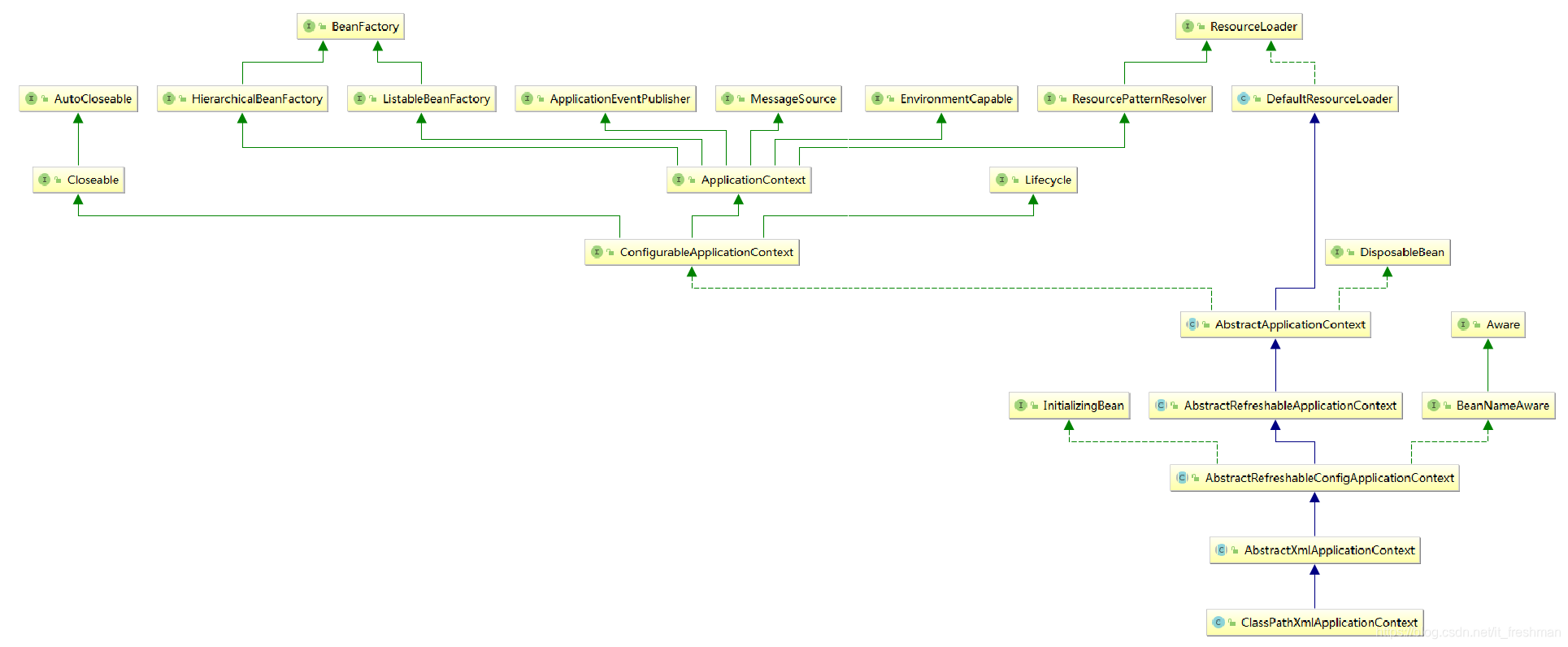

我们以ClassPathXmlApplicationContext作为切入点，开始对整体功能进行分析。

public ClassPathXmlApplicationContext(String configLocation) throws BeansException {
    this(new String[] {configLocation}, true, null);
}

public ClassPathXmlApplicationContext(String[] configLocations, boolean refresh, ApplicationContext parent){
    super(parent);
    setConfigLocations(configLocations);
    if (refresh) {
        refresh();
    }
}

设置配置路径

//org.springframework.context.support.AbstractRefreshableConfigApplicationContext
public void setConfigLocations(String[] locations) {
    if (locations != null) {
        this.configLocations = new String[locations.length];
        for (int i = 0; i < locations.length; i++) {
           //
            this.configLocations[i] = resolvePath(locations[i]).trim();
        }
    } else {
         this.configLocations = null;
     }
}

//使用环境变量中的值，替换path中特殊符号,如“$”
protected String resolvePath(String path) {
    return getEnvironment().resolveRequiredPlaceholders(path);
}

如： ClassPathXmlApplicationContext factory = new ClassPathXmlApplicationContext("${xmlName}.xml");

使用命令：java -DxmlName=beanFactoryTest xxMainClass

refresh() – AbstractApplicationContext.448

//org.springframework.context.support.AbstractApplicationContext
public void refresh() throws BeansException, IllegalStateException {
    synchronized (this.startupShutdownMonitor) {
        //1. 准备刷新上下文环境
        prepareRefresh();

        //2. 初始化beanFactory,并对XML文件读取.
        ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();

        //3. 对beanFactory进行各种填充,扩展
        prepareBeanFactory(beanFactory);

        //4. 子类覆盖方法做额外的处理 ：： 当前为空实现。
        postProcessBeanFactory(beanFactory);

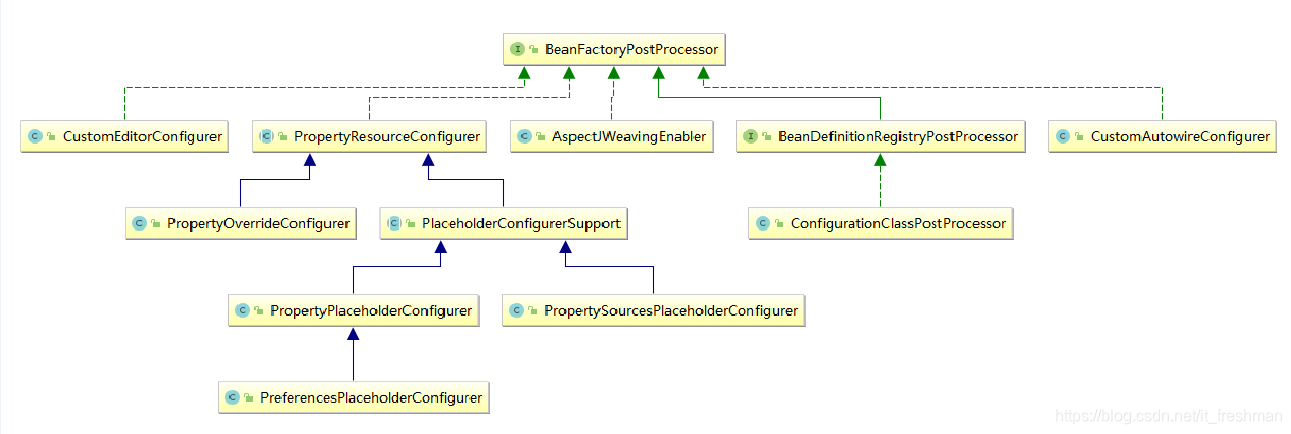

        //5. 执行BeanFactory各种PostProcessor处理器
        invokeBeanFactoryPostProcessors(beanFactory);

        //6. 注册拦截bean创建的 bean处理器，这里只是注册，真正调用是在getBean的时候。
        registerBeanPostProcessors(beanFactory);

        //7. 初始化上下文Message源，即不同语言的消息体（i18n）
        initMessageSource();

        //8. 初始化应用事件广播
        initApplicationEventMulticaster();

        //9. 留给子类来初始化其他bean ：： 目前未空实现
        onRefresh();

        //10. 在所有注册bean中查找Listener bean，并注册到广播器中
        registerListeners();

        //11. 初始化剩下的 (non-lazy-init) 单例.
        finishBeanFactoryInitialization(beanFactory);

        //12. 最后：完成刷新过程，通知生命周期处理器LifecycleProcessor刷新过程，同时发出ContextRefreshEvent通知别人
        finishRefresh();
    }
}

1. prepareRefresh(); 初始化前准备

//org.springframework.context.support.AbstractApplicationContext
protected void prepareRefresh() {
    this.startupDate = System.currentTimeMillis();

    synchronized (this.activeMonitor) {
    	this.active = true;
	}

    //由子类扩展，目前实现为空：：  可在方法中进行个性化属性处理和设计
    initPropertySources();

    // 对所有的requiredProperties进行验证
    // 通过实现ConfigurablePropertyResolver#setRequiredProperties方法，来对需要设置的requiredProperties
    getEnvironment().validateRequiredProperties();
}

2. obtainFreshBeanFactory();加载BeanFactory

obtainFreshBeanFactory()方法从字面理解是获取BeanFactory,ApplicationContext是对BeanFactory的功能上的扩展，不但包含了BeanFactory所有的功能，还在其基础上添加了大量的扩展应用。

//org.springframework.context.support.AbstractApplicationContext
protected ConfigurableListableBeanFactory obtainFreshBeanFactory() {
	//初始化BeanFactory，并进行xml文件读取，并将得到的BeanFactory记录在当前实体的属性中
    refreshBeanFactory();

    //返回当前实体的beanFactory属性
    ConfigurableListableBeanFactory beanFactory = getBeanFactory();
    return beanFactory;
}

方法中核心处理逻辑委托给了refreshBeanFactory()

2.1 refreshBeanFactory

//org.springframework.context.support.AbstractRefreshableApplicationContext
@Override
protected final void refreshBeanFactory() throws BeansException {
	//即判断： this.beanFactory != null，如果不为null,则需要销毁
    if (hasBeanFactory()) {
    	//清空BeanFactory初始、实例化过程中产生的所有缓存：如singletonObjects,singletonFactorie等
        destroyBeans();

        //beanFactory设为null
        closeBeanFactory();
    }
    //创建 DefaultListableBeanFactory
    DefaultListableBeanFactory beanFactory = createBeanFactory();
    beanFactory.setSerializationId(getId());

    //设置@Autowired 和 @Qualifier 注解解析器QualifierAnnotationAutowireCandidateResolver
    customizeBeanFactory(beanFactory);

    //初始化DocumentReader,并进行XML文件读取解析
    loadBeanDefinitions(beanFactory);
    synchronized (this.beanFactoryMonitor) {
        this.beanFactory = beanFactory;
    }
}

2.1.1 customizeBeanFactory

protected void customizeBeanFactory(DefaultListableBeanFactory beanFactory) {
    //设置是否允许注册名称相同的不同bean，后一个会覆盖前一个
    if (this.allowBeanDefinitionOverriding != null) {
    	beanFactory.setAllowBeanDefinitionOverriding(this.allowBeanDefinitionOverriding);
    }
    //设置是否允许循环依赖
    if (this.allowCircularReferences != null) {
    	beanFactory.setAllowCircularReferences(this.allowCircularReferences);
    }
    //设置@Autowired 和 @Qualifier 注解的解析器QualifierAnnotationAutowireCandidateResolver
	beanFactory.setAutowireCandidateResolver(new QualifierAnnotationAutowireCandidateResolver());
}

这里扩展了AutowireCandidateResolver，

在创建bean实例属性注入时即调用

populateBean() --> autowireByType() --> resolveDependency() --> doResolveDependency()方法时，

执行

Object value = getAutowireCandidateResolver().getSuggestedValue(descriptor);

默认使用的是SimpleAutowireCandidateResolver

2.1.2 loadBeanDefinitions()：

//org.springframework.context.support.AbstractXmlApplicationContext
@Override
protected void loadBeanDefinitions(DefaultListableBeanFactory beanFactory) throws BeansException, IOException {
    //为指定的beanFactory 创建 XmlBeanDefinitionReader
    XmlBeanDefinitionReader beanDefinitionReader = new XmlBeanDefinitionReader(beanFactory);

    // 对BeanDefinitionReader 设置环境变量，ResourceLoader
    beanDefinitionReader.setEnvironment(this.getEnvironment());
    beanDefinitionReader.setResourceLoader(this);
    beanDefinitionReader.setEntityResolver(new ResourceEntityResolver(this));

    // 对BeanDefinitionReader进行设置，可由----子类覆盖，实现
    initBeanDefinitionReader(beanDefinitionReader);

    //最后执行loadBeanDefinitions()进行配置文件的读取
    loadBeanDefinitions(beanDefinitionReader);
}

protected void loadBeanDefinitions(XmlBeanDefinitionReader reader) throws BeansException, IOException {
    //读取Resource
    Resource[] configResources = getConfigResources();
    if (configResources != null) {
        reader.loadBeanDefinitions(configResources);
    }
    //读取locations, String
    String[] configLocations = getConfigLocations();
    if (configLocations != null) {
        reader.loadBeanDefinitions(configLocations);
    }
}

3.prepareBeanFactory() 功能扩展

在进入prepareBeanFactory()之前，Spring已经完成了对配置的解析，ApplicationContext在功能上的扩展在此方法内完成：

//org.springframework.context.support.AbstractApplicationContext
protected void prepareBeanFactory(ConfigurableListableBeanFactory beanFactory) {
    // 设置classLoader
    beanFactory.setBeanClassLoader(getClassLoader());

    //设置beanFactory的表达式语言处理器，默认可使用#{bean.xxx},增加对Spel表达式的支持
    beanFactory.setBeanExpressionResolver(new StandardBeanExpressionResolver());

    //为beanFactory增加一个默认的propertyEidtor,这个主要是对bean的属性等设置管理的一个工具
    beanFactory.addPropertyEditorRegistrar(new ResourceEditorRegistrar(this, getEnvironment()));

    //增加多种BeanPostProcessor
    beanFactory.addBeanPostProcessor(new ApplicationContextAwareProcessor(this));

    //设置几个忽略自动装配的接口 --- 在ApplicationContextAwareProcessor中已经以了如下几种Aware
    beanFactory.ignoreDependencyInterface(EnvironmentAware.class);
    beanFactory.ignoreDependencyInterface(EmbeddedValueResolverAware.class);
    beanFactory.ignoreDependencyInterface(ResourceLoaderAware.class);
    beanFactory.ignoreDependencyInterface(ApplicationEventPublisherAware.class);
    beanFactory.ignoreDependencyInterface(MessageSourceAware.class);
    beanFactory.ignoreDependencyInterface(ApplicationContextAware.class);

    // 设置几个自动装配的特殊规则
    beanFactory.registerResolvableDependency(BeanFactory.class, beanFactory);
    beanFactory.registerResolvableDependency(ResourceLoader.class, this);
    beanFactory.registerResolvableDependency(ApplicationEventPublisher.class, this);
    beanFactory.registerResolvableDependency(ApplicationContext.class, this);

    // 增加对AspectJ的支持
    if (beanFactory.containsBean(LOAD_TIME_WEAVER_BEAN_NAME)) {
        beanFactory.addBeanPostProcessor(new LoadTimeWeaverAwareProcessor(beanFactory));
        // Set a temporary ClassLoader for type matching.
        beanFactory.setTempClassLoader(new ContextTypeMatchClassLoader(beanFactory.getBeanClassLoader()));
    }

    // 注册默认的系统环境bean
    if (!beanFactory.containsLocalBean(ENVIRONMENT_BEAN_NAME)) {
        beanFactory.registerSingleton(ENVIRONMENT_BEAN_NAME, getEnvironment());
    }
    if (!beanFactory.containsLocalBean(SYSTEM_PROPERTIES_BEAN_NAME)) {
        beanFactory.registerSingleton(SYSTEM_PROPERTIES_BEAN_NAME, getEnvironment().getSystemProperties());
    }
    if (!beanFactory.containsLocalBean(SYSTEM_ENVIRONMENT_BEAN_NAME)) {
        beanFactory.registerSingleton(SYSTEM_ENVIRONMENT_BEAN_NAME, getEnvironment().getSystemEnvironment());
    }
}

1. 增加SPEL语言的支持

spring在bean进行属性进行初始化时，会进行属性的填充时，Spring会调用

populateBean()-->applyPropertyValues() --> valueResolver = new BeanDefinitionValueResolver() --> valueResolver.resolveValueIfNecessary() --> evaluate() --> beanFactory.evaluateBeanDefinitionString() -->beanExpressionResolver.evaluate()进行属性填充，

//org.springframework.beans.factory.support.AbstractBeanFactory
protected Object evaluateBeanDefinitionString(String value, BeanDefinition beanDefinition) {
    if (this.beanExpressionResolver == null) {
        return value;
    }
    Scope scope = (beanDefinition != null ? getRegisteredScope(beanDefinition.getScope()) : null);
    //调用beanExpressionResolver.evaluate()解析
    return this.beanExpressionResolver.evaluate(value, new BeanExpressionContext(this, scope));
}

SpEL表达式以#{...}作为界定符，所有在大括号中的字符都被认为是SpEL,

<bean id="book1" class="spring.chap06.bean.Book">
    <constructor-arg name="isbn" value="isbn"/>
    <constructor-arg name="name" value="name"/>
    <constructor-arg name="price" value="3.1"/>
    <constructor-arg name="publishDate" value="2018-12-11"/>
</bean>

<bean id="book2" class="spring.chap06.bean.Book">
	<constructor-arg name="isbn"  value="#{book1.isbn}"/>
</bean>

2. 增加属性注册编辑器

Spring3.x源码分析(5)-bean加载1-总体分析 TypeConverter部分。

在Spring执行createBeanInstance()三种方式创建bean实例(BeanWrapper )时，会调用beanFactory.initBeanWrapper(bw);

//org.springframework.beans.factory.support.AbstractBeanFactory
private final Set<PropertyEditorRegistrar> propertyEditorRegistrars =new LinkedHashSet<PropertyEditorRegistrar>(4);

protected void initBeanWrapper(BeanWrapper bw) {
    bw.setConversionService(getConversionService());

    //遍历 propertyEditorRegistrars 调用.propertyEditorRegistrar.registerCustomEditors()方法
    registerCustomEditors(bw);
}

beanFactory.addPropertyEditorRegistrar(new ResourceEditorRegistrar(this, getEnvironment()));注册了在此处注册的ResourceEditorRegistrar，注册了一系列的常用属性编辑器。

//org.springframework.beans.support.ResourceEditorRegistrar

public void registerCustomEditors(PropertyEditorRegistry registry) {
		ResourceEditor baseEditor = new ResourceEditor(this.resourceLoader, this.propertyResolver);
		doRegisterEditor(registry, Resource.class, baseEditor);
		doRegisterEditor(registry, ContextResource.class, baseEditor);
		doRegisterEditor(registry, InputStream.class, new InputStreamEditor(baseEditor));
		doRegisterEditor(registry, InputSource.class, new InputSourceEditor(baseEditor));
		doRegisterEditor(registry, File.class, new FileEditor(baseEditor));
		doRegisterEditor(registry, URL.class, new URLEditor(baseEditor));

		ClassLoader classLoader = this.resourceLoader.getClassLoader();
		doRegisterEditor(registry, URI.class, new URIEditor(classLoader));
		doRegisterEditor(registry, Class.class, new ClassEditor(classLoader));
		doRegisterEditor(registry, Class[].class, new ClassArrayEditor(classLoader));

		if (this.resourceLoader instanceof ResourcePatternResolver) {
			doRegisterEditor(registry, Resource[].class,
					new ResourceArrayPropertyEditor((ResourcePatternResolver) this.resourceLoader, this.propertyResolver));
		}
	}

3. 添加ApplicationContextAwareProcessor处理器

beanFactory.addBeanPostProcessor(new ApplicationContextAwareProcessor(this));其实就是注册了一个BeanPostProcessor.

//org.springframework.context.support.ApplicationContextAwareProcessor

class ApplicationContextAwareProcessor implements BeanPostProcessor {
    //postProcessBeforeInitialization:实例化、依赖注入完毕，在调用显示的初始化之前完成一些定制的初始化任务
    //为实现如下诸多Aware接口的bean,执行setXXX方法，设置相关资源.
	public Object postProcessBeforeInitialization(final Object bean, String beanName) throws BeansException {
		AccessControlContext acc = null;

		if (System.getSecurityManager() != null &&
				(bean instanceof EnvironmentAware || bean instanceof EmbeddedValueResolverAware ||
						bean instanceof ResourceLoaderAware || bean instanceof ApplicationEventPublisherAware ||
						bean instanceof MessageSourceAware || bean instanceof ApplicationContextAware)) {
			acc = this.applicationContext.getBeanFactory().getAccessControlContext();
		}
		if(
		invokeAwareInterfaces(bean);

		return bean;
	}


	private void invokeAwareInterfaces(Object bean) {
		if (bean instanceof Aware) {
			if (bean instanceof EnvironmentAware) {
				((EnvironmentAware) bean).setEnvironment(this.applicationContext.getEnvironment());
			}
			if (bean instanceof EmbeddedValueResolverAware) {
				((EmbeddedValueResolverAware) bean).setEmbeddedValueResolver(
						new EmbeddedValueResolver(this.applicationContext.getBeanFactory()));
			}
			if (bean instanceof ResourceLoaderAware) {
				((ResourceLoaderAware) bean).setResourceLoader(this.applicationContext);
			}
			if (bean instanceof ApplicationEventPublisherAware) {
				((ApplicationEventPublisherAware) bean).setApplicationEventPublisher(this.applicationContext);
			}
			if (bean instanceof MessageSourceAware) {
				((MessageSourceAware) bean).setMessageSource(this.applicationContext);
			}
			if (bean instanceof ApplicationContextAware) {
				((ApplicationContextAware) bean).setApplicationContext(this.applicationContext);
			}
		}
	}
}

4. 设置忽略依赖Interface

在上文的ApplicationContextAwareProcessor注册后，已经做了特殊处理，那么Spring在bean的依赖注入时，忽略他们的注入。

5. 注册特殊Dependency


beanFactory.registerResolvableDependency(BeanFactory.class, beanFactory);
beanFactory.registerResolvableDependency(ResourceLoader.class, this);
beanFactory.registerResolvableDependency(ApplicationEventPublisher.class, this);
beanFactory.registerResolvableDependency(ApplicationContext.class, this);

//将上面四种类型对应的bean,注册到 DefaultListableBeanFactory.resolvableDependencies属性
//用来缓存已经解析的依赖类型，当bean解析依赖时，先从此缓存中获取。
private final Map<Class<?>, Object> resolvableDependencies = new HashMap<Class<?>, Object>(16);

4.postProcessBeanFactory()

允许由子类对beanFactory进行后处理，目前为空实现。

5. invokeBeanFactoryPostProcessors(beanFactory);–激活执行BeanFactoryPostProcessor

invokeBeanFactoryPostProcessors(beanFactory);执行激活注册的BeanFactoryPostProcessor.

先了解下BeanFactoryPostProcessor接口，它跟BeanPostProcessor类似，可以对bean定义(配置元数据)进行修改(如修改bean的scope，property等..)。Spring IoC容器允许BeanFactoryPostProcessor在容器实际实例化任何其他bean之前读取配置元数据，并修改它。还可以使用@Ordered注解来控制多个BeanFactoryPostProcessor的执行顺序。

BeanFactoryPostProcessor的作用范围是整个容器级别的，只跟使用的容器有关。

5.1 BeanFactoryPostProcessor

a.接口定义

//org.springframework.beans.factory.config.BeanFactoryPostProcessor
public interface BeanFactoryPostProcessor {

	//bean定义都已加载但未实例化时执行
	//允许修改bean定义的属性 ---- 如：PropertyPlaceholderConfigurer
	//甚至提前初始化bean
	void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) throws BeansException;

}

b.类图
在这里插入图片描述

c. BeanDefinitionRegistryPostProcessor

//继承自BeanFactoryPostProcessor
public interface BeanDefinitionRegistryPostProcessor extends BeanFactoryPostProcessor {

	//扩展postProcessBeanDefinitionRegistry方法
	//该方法允许动态添加BeanDefinition(同样，并不会实例化)，通过BeanDefinitionRegistry注册到容器内.
	void postProcessBeanDefinitionRegistry(BeanDefinitionRegistry registry) throws BeansException;
}

5.2 invokeBeanFactoryPostProcessors()执行BeanFactoryPostProcessor

//org.springframework.context.support.AbstractApplicationContext

protected void invokeBeanFactoryPostProcessors(ConfigurableListableBeanFactory beanFactory) {
		// Invoke BeanDefinitionRegistryPostProcessors first, if any.
		Set<String> processedBeans = new HashSet<String>();
		if (beanFactory instanceof BeanDefinitionRegistry) {
			BeanDefinitionRegistry registry = (BeanDefinitionRegistry) beanFactory;

			//显示注册的：BeanFactoryPostProcessor
			List<BeanFactoryPostProcessor> regularPostProcessors = new LinkedList<BeanFactoryPostProcessor>();

			//显示注册的： BeanDefinitionRegistryPostProcessor
			List<BeanDefinitionRegistryPostProcessor> registryPostProcessors = new LinkedList<BeanDefinitionRegistryPostProcessor>();

			//通过调用ApplicationContext.addBeanFactoryPostProcessor()显示注册的BeanFactoryPostProcessor
			for (BeanFactoryPostProcessor postProcessor : getBeanFactoryPostProcessors()) {
				if (postProcessor instanceof BeanDefinitionRegistryPostProcessor) {
					BeanDefinitionRegistryPostProcessor registryPostProcessor = (BeanDefinitionRegistryPostProcessor) postProcessor;
					//执行显示注册的:BeanDefinitionRegistryPostProcessor.postProcessBeanDefinitionRegistry(registry);
					registryPostProcessor.postProcessBeanDefinitionRegistry(registry);
					registryPostProcessors.add(registryPostProcessor);
				} else {
					regularPostProcessors.add(postProcessor);
				}
			}

			//获取配置文件中定义的 BeanDefinitionRegistryPostProcessor
			Map<String, BeanDefinitionRegistryPostProcessor> beanMap = beanFactory.getBeansOfType(BeanDefinitionRegistryPostProcessor.class, true, false);

			//通过配置文件注册的: BeanDefinitionRegistryPostProcessor
			List<BeanDefinitionRegistryPostProcessor> registryPostProcessorBeans = new ArrayList<BeanDefinitionRegistryPostProcessor>(beanMap.values());

			OrderComparator.sort(registryPostProcessorBeans);
			for (BeanDefinitionRegistryPostProcessor postProcessor : registryPostProcessorBeans) {
				//执行配置文件注册的:BeanDefinitionRegistryPostProcessor.postProcessBeanDefinitionRegistry(registry);
				postProcessor.postProcessBeanDefinitionRegistry(registry);
			}
			//执行BeanFacotryPostProcessor.postProcessBeanFactory
			invokeBeanFactoryPostProcessors(registryPostProcessors, beanFactory);
			invokeBeanFactoryPostProcessors(registryPostProcessorBeans, beanFactory);
			invokeBeanFactoryPostProcessors(regularPostProcessors, beanFactory);

			//记录已经处理过的BeanDefinitionRegistryPostProcessor(显示注册+配置文件配置) + 显示注册的BeanFactoryPostProcessor
			processedBeans.addAll(beanMap.keySet());
		} else {
			// Invoke factory processors registered with the context instance.
			invokeBeanFactoryPostProcessors(getBeanFactoryPostProcessors(), beanFactory);
		}


		//获取配置的BeanFactoryPostProcessor: 这里无需
		String[] postProcessorNames =
				beanFactory.getBeanNamesForType(BeanFactoryPostProcessor.class, true, false);

		// 根据BeanFactoryPostProcessors实现PriorityOrdered，Ordered接口，分割为3部分
		List<BeanFactoryPostProcessor> priorityOrderedPostProcessors = new ArrayList<BeanFactoryPostProcessor>();
		List<String> orderedPostProcessorNames = new ArrayList<String>();
		List<String> nonOrderedPostProcessorNames = new ArrayList<String>();
		for (String ppName : postProcessorNames) {
			if (processedBeans.contains(ppName)) {
				//如果前面已经执行过，则skip....
			} else if (isTypeMatch(ppName, PriorityOrdered.class)) {
				priorityOrderedPostProcessors.add(beanFactory.getBean(ppName, BeanFactoryPostProcessor.class));
			} else if (isTypeMatch(ppName, Ordered.class)) {
				orderedPostProcessorNames.add(ppName);
			} else {
				nonOrderedPostProcessorNames.add(ppName);
			}
		}

		//优先执行 implement PriorityOrdered.
		OrderComparator.sort(priorityOrderedPostProcessors);
		invokeBeanFactoryPostProcessors(priorityOrderedPostProcessors, beanFactory);

		//其次执行 implement Ordered.
		List<BeanFactoryPostProcessor> orderedPostProcessors = new ArrayList<BeanFactoryPostProcessor>();
		for (String postProcessorName : orderedPostProcessorNames) {
			orderedPostProcessors.add(getBean(postProcessorName, BeanFactoryPostProcessor.class));
		}
		OrderComparator.sort(orderedPostProcessors);
		invokeBeanFactoryPostProcessors(orderedPostProcessors, beanFactory);

		//最后执行 未实现PriorityOrdered && 也未实现 Ordered的 BeanFactoryPostProcessor
		List<BeanFactoryPostProcessor> nonOrderedPostProcessors = new ArrayList<BeanFactoryPostProcessor>();
		for (String postProcessorName : nonOrderedPostProcessorNames) {
			nonOrderedPostProcessors.add(getBean(postProcessorName, BeanFactoryPostProcessor.class));
		}
		invokeBeanFactoryPostProcessors(nonOrderedPostProcessors, beanFactory);
	}

private void invokeBeanFactoryPostProcessors(
		Collection<? extends BeanFactoryPostProcessor> postProcessors, ConfigurableListableBeanFactory beanFactory) {

	for (BeanFactoryPostProcessor postProcessor : postProcessors) {
		postProcessor.postProcessBeanFactory(beanFactory);
	}
}

5.3 demo

自定义BeanDefinitionRegistryPostProcessor解析`

@Test
public void test02() {
    //false： 表示不执行refresh()
    ClassPathXmlApplicationContext applicationContext = new ClassPathXmlApplicationContext(new String[]{"applicationContext.xml"},false);
    final String beanName = "book999";
    //硬编码 注册BeanFactoryPostProcessor
    applicationContext.addBeanFactoryPostProcessor(new BeanDefinitionRegistryPostProcessor() {
        //动态注册 beanDefinition
        @Override
        public void postProcessBeanDefinitionRegistry(BeanDefinitionRegistry registry) throws BeansException {
            GenericBeanDefinition beanDefinition = new GenericBeanDefinition();
            beanDefinition.setBeanClass(Book.class);
            beanDefinition.getPropertyValues().addPropertyValue("isbn", "dynamic_isbn_999");
            beanDefinition.getPropertyValues().addPropertyValue("name", "dynamic_name_999");
            beanDefinition.getPropertyValues().addPropertyValue("price", 12.34d);

            System.out.println("动态添加beanDefinition:"+beanDefinition.getPropertyValues());
            registry.registerBeanDefinition(beanName,beanDefinition);

        }

        @Override
        public void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) throws BeansException {
            BeanDefinition beanDefinition = beanFactory.getBeanDefinition(beanName);
            System.out.println("修改前:"+beanDefinition);
            beanDefinition.getPropertyValues().addPropertyValue("isbn", "isbn2");
            System.out.println("修改后:"+beanDefinition);
        }
    });

    //手动执行refresh()
    applicationContext.refresh();

    Book book1 = applicationContext.getBean(beanName, Book.class);
    System.out.println(book1); // Book(isbn=isbn2, name=dynamic_name_999, price=12.34, publishDate=null)
}

2. PropertyPlaceholderConfigurer解析

a.xml配置

<bean class="org.springframework.beans.factory.config.PropertyPlaceholderConfigurer">
    <property name="locations">
        <list>
            <value>classpath*:a.properties</value>
            <value>classpath*:b.properties</value>
        </list>
    </property>
</bean>

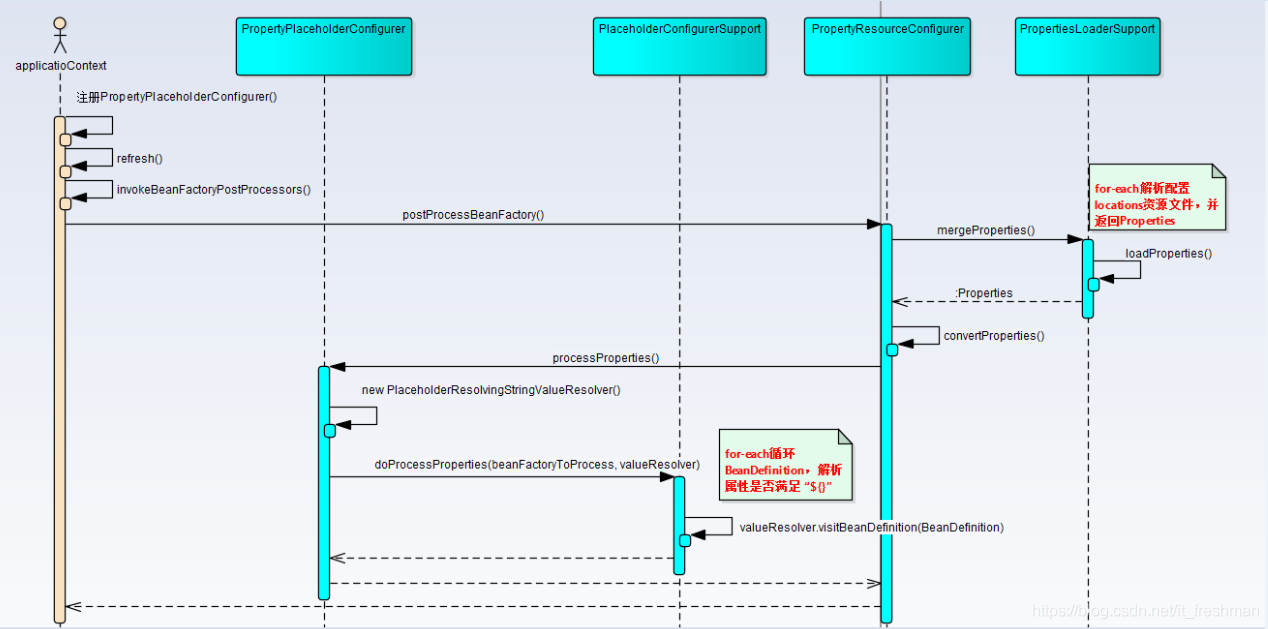

b.源码跟踪

PropertyPlaceholderConfigurer extends PlaceholderConfigurerSupport
PlaceholderConfigurerSupport extends PropertyResourceConfigurer
PropertyResourceConfigurer extends PropertiesLoaderSupport implements BeanFactoryPostProcessor

//org.springframework.core.io.support.PropertiesLoaderSupport
public abstract class PropertiesLoaderSupport {
	private Resource[] locations;
	private String fileEncoding;
	private PropertiesPersister propertiesPersister = new DefaultPropertiesPersister();

	protected Properties mergeProperties() throws IOException {
		Properties result = new Properties();

		if (this.localOverride) {
			loadProperties(result);
		}

		//略.....
		return result;
	}

	protected void loadProperties(Properties props) throws IOException {
			if (this.locations != null) {
				for (Resource location : this.locations) {
					PropertiesLoaderUtils.fillProperties(	props, new EncodedResource(location, this.fileEncoding), this.propertiesPersister);
				}
	}
}

/////////////////////////////////////////////////////////////////////////////

//org.springframework.beans.factory.config.PropertyResourceConfigurer ;

public abstract class PropertyResourceConfigurer extends PropertiesLoaderSupport
		implements BeanFactoryPostProcessor, PriorityOrdered {
	public void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) throws BeansException {
		try {
			//调用父类：mergeProperties()方法，获取Properties
			Properties mergedProps = mergeProperties();

			// properties转换
			convertProperties(mergedProps);

			//子类实现：processProperties
			processProperties(beanFactory, mergedProps);
		}
		catch (IOException ex) {
			throw new BeanInitializationException("Could not load properties", ex);
		}
	}

}

public abstract class PlaceholderConfigurerSupport extends PropertyResourceConfigurer
		implements BeanNameAware, BeanFactoryAware {

	public static final String DEFAULT_PLACEHOLDER_PREFIX = "${";
	public static final String DEFAULT_PLACEHOLDER_SUFFIX = "}";
	public static final String DEFAULT_VALUE_SEPARATOR = ":";
	private String beanName;

	protected void doProcessProperties(ConfigurableListableBeanFactory beanFactoryToProcess,
			StringValueResolver valueResolver) {

		BeanDefinitionVisitor visitor = new BeanDefinitionVisitor(valueResolver);

		String[] beanNames = beanFactoryToProcess.getBeanDefinitionNames();
		for (String curName : beanNames) {
			// 不解析当前bean自身
			// 仅解析当前beanfactory:: springmvc容器无法获取 父容器的<PropertyPlaceholderConfigurer>配置的属性，必须在mvc容器中再次配置方可使用。
			if (!(curName.equals(this.beanName) && beanFactoryToProcess.equals(this.beanFactory))) {
				BeanDefinition bd = beanFactoryToProcess.getBeanDefinition(curName);
				visitor.visitBeanDefinition(bd);
			}
		}

		// New in Spring 2.5: resolve placeholders in alias target names and aliases as well.
		beanFactoryToProcess.resolveAliases(valueResolver);

		// New in Spring 3.0: resolve placeholders in embedded values such as annotation attributes.
		beanFactoryToProcess.addEmbeddedValueResolver(valueResolver);
	}
}


public class PropertyPlaceholderConfigurer extends PlaceholderConfigurerSupport {
	@Override
	protected void processProperties(ConfigurableListableBeanFactory beanFactoryToProcess, Properties props)
			throws BeansException {

		StringValueResolver valueResolver = new PlaceholderResolvingStringValueResolver(props);
		doProcessProperties(beanFactoryToProcess, valueResolver);
	}
}

c. 执行时序图
在这里插入图片描述

6. registerBeanPostProcessors–注册BeanPostProcessor

registerBeanPostProcessors()注册BeanPostProcessor**(注意：这里是注册并不执行)**

之前有专门章节解析BeanPostProcessor，当时就已经提到beanfactory必须硬编码注册BeanPostProcessor

factory.addBeanPostProcessor(new XXXBeanPostProcessor());

,而ApplicationContext则可以扫描bean容器，自动发现&&注册,就是在此方法中实现的。

由于之前已经详细的解析过BeanPostProcessor,这里大致叙述下registerBeanPostProcessors()执行的过程：

//org.springframework.context.support.AbstractApplicationContext

protected void registerBeanPostProcessors(ConfigurableListableBeanFactory beanFactory) {
    //1. 寻找容器中的BeanPostProcessor
    String[] postProcessorNames = beanFactory.getBeanNamesForType(BeanPostProcessor.class, true, false);

    //2. 根据不同策略：划分priorityOrderedPostProcessors
    List<BeanPostProcessor> priorityOrderedPostProcessors = new ArrayList<BeanPostProcessor>();
    List<BeanPostProcessor> internalPostProcessors = new ArrayList<BeanPostProcessor>();
    List<String> orderedPostProcessorNames = new ArrayList<String>();
    List<String> nonOrderedPostProcessorNames = new ArrayList<String>();

    //3.排序，执行
    OrderComparator.sort(priorityOrderedPostProcessors);
            registerBeanPostProcessors(beanFactory, priorityOrderedPostProcessors);

	//略....
}

private void registerBeanPostProcessors(
ConfigurableListableBeanFactory beanFactory, List<BeanPostProcessor> postProcessors) {

	for (BeanPostProcessor postProcessor : postProcessors) {
   	 	beanFactory.addBeanPostProcessor(postProcessor);
    }
}

7. initMessageSource-初始化消息资源

//org.springframework.context.support.AbstractApplicationContext

public static final String MESSAGE_SOURCE_BEAN_NAME = "messageSource";

protected void initMessageSource() {
	ConfigurableListableBeanFactory beanFactory = getBeanFactory();

	//从容器中寻找  beanName="messageSource" 的bean
	if (beanFactory.containsLocalBean(MESSAGE_SOURCE_BEAN_NAME)) {
		this.messageSource = beanFactory.getBean(MESSAGE_SOURCE_BEAN_NAME, MessageSource.class);
		if (this.parent != null && this.messageSource instanceof HierarchicalMessageSource) {
			HierarchicalMessageSource hms = (HierarchicalMessageSource) this.messageSource;
			if (hms.getParentMessageSource() == null) {
				hms.setParentMessageSource(getInternalParentMessageSource());
			}
		}

	} else {
		// else,使用默认的DelegatingMessageSource，并注册到容器中
		DelegatingMessageSource dms = new DelegatingMessageSource();
		dms.setParentMessageSource(getInternalParentMessageSource());
		this.messageSource = dms;

		//注册到容器中
		beanFactory.registerSingleton(MESSAGE_SOURCE_BEAN_NAME, this.messageSource);
	}
}

demo

a.注册messageSource

    <!-- beanname 必须为 messageSource -->
    <bean id="messageSource" class="org.springframework.context.support.ResourceBundleMessageSource">

        <property name="basenames">
            <list>
                <!-- basename默认从classpaths下寻找, value值不带后缀名-->
                <value>m1</value>
                <value>m2</value>
            </list>
        </property>
    </bean>

b.添加属性文件
在这里插入图片描述

c. test

@Test
public void test03() {
    ClassPathXmlApplicationContext factory = new ClassPathXmlApplicationContext("applicationContext.xml");
    Object args[] = new Object[]{"特朗普"};
    String msg = factory.getMessage("welcome",args , Locale.CHINA); //欢迎您：特朗普
    System.out.println(msg);
}

8. initApplicationEventMulticaster–初始化事件广播器

结合10.registerListeners注册监听器 一并讲解。

9. onRefresh();

模板方法，可有子类重写，用来添加特定的上下文刷新工作。当前为空实现

10. registerListeners–注册监听器

10.1 demo

a.新建事件

public class MyApplicationEnvent  extends ApplicationEvent {
	private String msg ;
	public MyApplicationEnvent(Object source,String msg) {
		super(source);
		this.msg = msg;
	}
	public void print(){
		System.out.println("事件触发："+msg);
	}
}

b.注册特定的事件监听

public class MyApplicationEnventListener implements ApplicationListener<MyApplicationEnvent> {
	@Override
	public void onApplicationEvent(MyApplicationEnvent event) {
		System.out.println("Listener监听到:"+event+"事件");
		event.print();
	}
}

c.注册时间监听

  <bean class="spring.chap06.listener.MyApplicationEnventListener"/>

d.发布事件

@Test
public void test04() {
    AbstractApplicationContext context = new ClassPathXmlApplicationContext("applicationContext.xml");
    context.publishEvent(new MyApplicationEnvent("hello","trump"));
}

10.2 initApplicationEventMulticaster()–初始化广播器

//org.springframework.context.support.AbstractApplicationContext
public static final String APPLICATION_EVENT_MULTICASTER_BEAN_NAME = "applicationEventMulticaster";

protected void initApplicationEventMulticaster() {
		ConfigurableListableBeanFactory beanFactory = getBeanFactory();
    	//自定义广播器，必须命名为 “applicationEventMulticaster”
		if (beanFactory.containsLocalBean(APPLICATION_EVENT_MULTICASTER_BEAN_NAME)) {
			this.applicationEventMulticaster =
					beanFactory.getBean(APPLICATION_EVENT_MULTICASTER_BEAN_NAME, ApplicationEventMulticaster.class);

		} else {
            //else，则使用SimpleApplicationEventMulticaster，然后注册到beanFactory中
			this.applicationEventMulticaster = new SimpleApplicationEventMulticaster(beanFactory);
			beanFactory.registerSingleton(APPLICATION_EVENT_MULTICASTER_BEAN_NAME, this.applicationEventMulticaster);
		}
}

a. ApplicationEventMulticaster接口定义

//org.springframework.context.event.ApplicationEventMulticaster

public interface ApplicationEventMulticaster {

	//花式：添加、移除 listener监听器
	void addApplicationListener(ApplicationListener listener);
	void addApplicationListenerBean(String listenerBeanName);
	void removeApplicationListener(ApplicationListener listener);
	void removeApplicationListenerBean(String listenerBeanName);
	void removeAllListeners();

	//广播指定的event类型事件给特定的listeners
	void multicastEvent(ApplicationEvent event);
}

b. SimpleApplicationEventMulticaster

//org.springframework.context.event.SimpleApplicationEventMulticaster

public class SimpleApplicationEventMulticaster extends AbstractApplicationEventMulticaster {

	private Executor taskExecutor;

	//listener 增加移除的方法由AbstractApplicationEventMulticaster实现，这里不再赘述

	@SuppressWarnings("unchecked")
	public void multicastEvent(final ApplicationEvent event) {
		//遍历所有支持event类型的 listener
		for (final ApplicationListener listener : getApplicationListeners(event)) {
			Executor executor = getTaskExecutor();
			//如果配置了 executor，则使用线程池执行
			if (executor != null) {
				executor.execute(new Runnable() {
					public void run() {
						listener.onApplicationEvent(event);
					}
				});
			} else {
				//else 直接执行
				listener.onApplicationEvent(event);
			}

		}
	}
}

10.3 registerListeners–注册监听器

//org.springframework.context.support.AbstractApplicationContext
protected void registerListeners() {
    // 硬编码注册的ApplicationListener
    for (ApplicationListener<?> listener : getApplicationListeners()) {
        getApplicationEventMulticaster().addApplicationListener(listener);
    }

    //注册FactoryBeans中的ApplicationListener，这里无需初始化listener，由 post-processors初始化。
    String[] listenerBeanNames = getBeanNamesForType(ApplicationListener.class, true, false);
    for (String listenerBeanName : listenerBeanNames) {
        getApplicationEventMulticaster().addApplicationListenerBean(listenerBeanName);
    }
}

11.finishBeanFactoryInitialization–初始化非延迟加载单例

//org.springframework.context.support.AbstractApplicationContext

protected void finishBeanFactoryInitialization(ConfigurableListableBeanFactory beanFactory) {
	//a. ConversionService设置
	//CONVERSION_SERVICE_BEAN_NAME = "conversionService"
	if (beanFactory.containsBean(CONVERSION_SERVICE_BEAN_NAME) &&
			beanFactory.isTypeMatch(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class)) {
		beanFactory.setConversionService(
				beanFactory.getBean(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class));
	}

	// Initialize LoadTimeWeaverAware beans early to allow for registering their transformers early.
	String[] weaverAwareNames = beanFactory.getBeanNamesForType(LoadTimeWeaverAware.class, false, false);
	for (String weaverAwareName : weaverAwareNames) {
		getBean(weaverAwareName);
	}

	//Stop using the temporary ClassLoader for type matching.
	beanFactory.setTempClassLoader(null);

	//b.冻结bean定义，注册的bean定义将不被允许修改或进一步处理
	beanFactory.freezeConfiguration();

	//c.初始化(non-lazy-init)单例--- 将所有的单例bean,提前进行实例化
	beanFactory.preInstantiateSingletons();
}

这里重点分析下：

11.1 ConversionServic设置

在之前文章，讲述TypeConverter时，有提到TypeConverter实现类通常使用PropertyEditor来实现类型转换，而PropertyEditor不是线程安全的，所以TypeConverter也不是线程安全的。Spring提供了ConversionService()来替换PropertyEditor转换

//org.springframework.core.convert.converter.Converter

public interface Converter<S, T> {
	//将源S类型转换为 目标类型T
	T convert(S source);
}

//org.springframework.core.convert.ConversionService
public interface ConversionService {

	//是否支持转换
	boolean canConvert(Class<?> sourceType, Class<?> targetType);
	boolean canConvert(TypeDescriptor sourceType, TypeDescriptor targetType);

	<T> T convert(Object source, Class<T> targetType);
	Object convert(Object source, TypeDescriptor sourceType, TypeDescriptor targetType);
}

demo

a. 定义Converter

public class String2DateConverter implements Converter<String, Date> {

	@Override
	public Date convert(String source) {
		try {
			return new SimpleDateFormat("yyyy-mm-dd").parse(source);
		} catch (ParseException e) {
			e.printStackTrace();
		}

		return null;
	}
}

b.注册ConversionServiceFactory(beanname必须为"conversionService")

    <!-- beanname 必须为 conversionService -->
    <bean id="conversionService" class="org.springframework.context.support.ConversionServiceFactoryBean">
        <property name="converters">
            <list>
                <bean class="spring.chap06.converter.String2DateConverter"/>
            </list>
        </property>
    </bean>

12. finishRefresh

finishRefresh完成此上下文的刷新，调用LifecycleProcessor.onRefresh()方法并发布.

//org.springframework.context.support.AbstractApplicationContext

protected void finishRefresh() {
	//a.初始化LifecycleProcessor
	initLifecycleProcessor();

	//b.启动所有Lifecycle的bean
	getLifecycleProcessor().onRefresh();

	//c. 发布ContextRefreshedEvent 事件
	publishEvent(new ContextRefreshedEvent(this));

	//
	LiveBeansView.registerApplicationContext(this);
}

12.1 initLifecycleProcessor

//org.springframework.context.support.AbstractApplicationContext
protected void initLifecycleProcessor() {
    ConfigurableListableBeanFactory beanFactory = getBeanFactory();
    // LIFECYCLE_PROCESSOR_BEAN_NAME = "lifecycleProcessor"
    if (beanFactory.containsLocalBean(LIFECYCLE_PROCESSOR_BEAN_NAME)) {
        this.lifecycleProcessor =
            beanFactory.getBean(LIFECYCLE_PROCESSOR_BEAN_NAME, LifecycleProcessor.class);
    } else {
        //默认使用： DefaultLifecycleProcessor
        DefaultLifecycleProcessor defaultProcessor = new DefaultLifecycleProcessor();
        defaultProcessor.setBeanFactory(beanFactory);
        this.lifecycleProcessor = defaultProcessor;
        beanFactory.registerSingleton(LIFECYCLE_PROCESSOR_BEAN_NAME, this.lifecycleProcessor);
    }
}

Lifecycle接口定义

它定义了三个方法，非常简单不再赘述

//org.springframework.context.Lifecycle

public interface Lifecycle {

	void start();

	void stop();

	boolean isRunning();
}

LifecycleProcessor接口定义

//org.springframework.context.LifecycleProcessor

public interface LifecycleProcessor extends Lifecycle {
	void onRefresh();

	void onClose();
}

12.2 lifecycleProcessor.onRefresh()

这里以默认的DefaultLifecycleProcessor为例，它的执行逻辑代码如下：

//org.springframework.context.support.DefaultLifecycleProcessor

public class DefaultLifecycleProcessor implements LifecycleProcessor, BeanFactoryAware {

	private volatile boolean running;

	public void start() {
		startBeans(false);
		this.running = true;
	}

	protected Map<String, Lifecycle> getLifecycleBeans() {
		Map<String, Lifecycle> beans = new LinkedHashMap<String, Lifecycle>();
		//获取所有实现Lifecycle接口的beanNames
		String[] beanNames = this.beanFactory.getBeanNamesForType(Lifecycle.class, false, false);
		for (String beanName : beanNames) {
			//转换beanName
			String beanNameToRegister = BeanFactoryUtils.transformedBeanName(beanName);

			//判断条件略.....

			Lifecycle bean = this.beanFactory.getBean(beanNameToCheck, Lifecycle.class);
			if (bean != this) {
				beans.put(beanNameToRegister, bean);
			}
		}
		return beans;
	}


	private void startBeans(boolean autoStartupOnly) {
		//获取LifecycleBeans
		Map<String, Lifecycle> lifecycleBeans = getLifecycleBeans();
		Map<Integer, LifecycleGroup> phases = new HashMap<Integer, LifecycleGroup>();
		for (Map.Entry<String, ? extends Lifecycle> entry : lifecycleBeans.entrySet()) {
			Lifecycle bean = entry.getValue();

			//判断逻辑省略
			int phase = getPhase(bean);
			LifecycleGroup group = phases.get(phase);
			group.add(entry.getKey(), bean);
		}
		if (phases.size() > 0) {
			List<Integer> keys = new ArrayList<Integer>(phases.keySet());
			Collections.sort(keys);
			for (Integer key : keys) {
				//LifecycleGroup.start()最终调用 doStart方法
				phases.get(key).start();
			}
		}
	}

	private void doStart(Map<String, ? extends Lifecycle> lifecycleBeans, String beanName, boolean autoStartupOnly) {
		Lifecycle bean = lifecycleBeans.remove(beanName);
		//省略其他....
		bean.start();
	}

}

12.3 publishEvent

//org.springframework.context.support.AbstractApplicationContext
public void publishEvent(ApplicationEvent event) {

    getApplicationEventMulticaster().multicastEvent(event);
    if (this.parent != null) {
    	this.parent.publishEvent(event);
    }
}
