Spring3.x源码分析(5)-bean加载
《Spring源码深度解析》spring-framework-reference
bean的加载
接下来分析上一张跳过的内容创建bean实例,分别针对singleton,prototype,其他scope类型bean进行创建。
创建singleton实例
创建singleton的入口代码逻辑如下：
if (mbd.isSingleton()) {
sharedInstance = getSingleton(beanName, new ObjectFactory<Object>() {
//重写接口方法
public Object getObject() throws BeansException {
try {
return createBean(beanName, mbd, args);
} catch (BeansException ex) {
destroySingleton(beanName);
throw ex;
}
}
});
bean = getObjectForBeanInstance(sharedInstance, name, beanName, mbd);
}
getSingleton(beanName ,objectFactory)
//org.springframework.beans.factory.support.DefaultSingletonBeanRegistry
public class DefaultSingletonBeanRegistry extends SimpleAliasRegistry implements SingletonBeanRegistry {
protected static final Object NULL_OBJECT = new Object();
/** 被抑制的异常集合： 不抛出的异常Set*/
private Set<Exception> suppressedExceptions;
//标识当前容器是否正在销毁singletons
private boolean singletonsCurrentlyInDestruction = false;
/**缓存 singleton objects: bean name --> bean instance */
private final Map<String, Object> singletonObjects = new ConcurrentHashMap<String, Object>(64);
/** 排除创建bean列表*/
private final Map<String, Boolean> inCreationCheckExclusions = new ConcurrentHashMap<String, Boolean>(16);
/** 当前正在创建bean列表 */
private final Map<String, Boolean> singletonsCurrentlyInCreation = new ConcurrentHashMap<String, Boolean>(16);
public Object getSingleton(String beanName, ObjectFactory<?> singletonFactory) {
Assert.notNull(beanName, "'beanName' must not be null");
synchronized (this.singletonObjects) {
Object singletonObject = this.singletonObjects.get(beanName);
if (singletonObject == null) {
//1. 检测当前容器是否正处于销毁singletons装填
if (this.singletonsCurrentlyInDestruction) {
//如果当前正处于 销毁singletons 阶段，在此阶段创建singleton 会抛出异常.....
throw new BeanCreationNotAllowedException(beanName,"xxx...");
}
//2.创建前检查，将beanName注册到当前创建bean集合中
beforeSingletonCreation(beanName);
//省略suppressedExceptions.....
try {
//3.最终是通过 singletonFactory.getObject();来进行对象创建
singletonObject = singletonFactory.getObject();
} finally {
//4.创建后检测,，将beanName从当前创建bean集合中移除
afterSingletonCreation(beanName);
}
//5.创建singleton
addSingleton(beanName, singletonObject);
}
return (singletonObject != NULL_OBJECT ? singletonObject : null);
}
}
//2.Singleton创建前检测
protected void beforeSingletonCreation(String beanName) {
// 排除创建bean列表 不包含beanName
// 将beanName设置为 当前正在创建缓存 != null 的含义：表示当前singletonsCurrentlyInCreation 不包含beanName
if (!this.inCreationCheckExclusions.containsKey(beanName) &&
this.singletonsCurrentlyInCreation.put(beanName, Boolean.TRUE) != null) {
throw new BeanCurrentlyInCreationException(beanName);
}
}
//4.Singleton创建后检测
protected void afterSingletonCreation(String beanName) {
// 排除创建bean列表 不包含beanName
// 将beanName从正在创建缓存中移除，
// 如果singletonsCurrentlyInCreation.remove(beanName) == false,则会触发异常
// 如果== true,则正常。 此时表示当前创建列表中存在 beanName -> true的记录。 即当前beanName正在创建中。
if (!this.inCreationCheckExclusions.containsKey(beanName) &&
!this.singletonsCurrentlyInCreation.remove(beanName)) {
throw new IllegalStateException("Singleton '" + beanName + "' isn't currently in creation");
}
}
//5.创建singleton
protected void addSingleton(String beanName, Object singletonObject) {
synchronized (this.singletonObjects) {
// singletonObjects缓存添加 beanName
this.singletonObjects.put(beanName, (singletonObject != null ? singletonObject : NULL_OBJECT));
//从singletonFactories ， earlySingletonObjects 缓存中移除。
this.singletonFactories.remove(beanName);
this.earlySingletonObjects.remove(beanName);
// registeredSingletons缓存添加 beanName
this.registeredSingletons.add(beanName);
}
}
}
分析上述代码，最终bean的创建的核心代码是调用了//3. singletonFactory.getObject();来完成的，
而这段代码的逻辑中的singletonFactory是有方法入参传入的，最终创建bean的逻辑，是交由createBean(beanName, mbd, args);完成的。

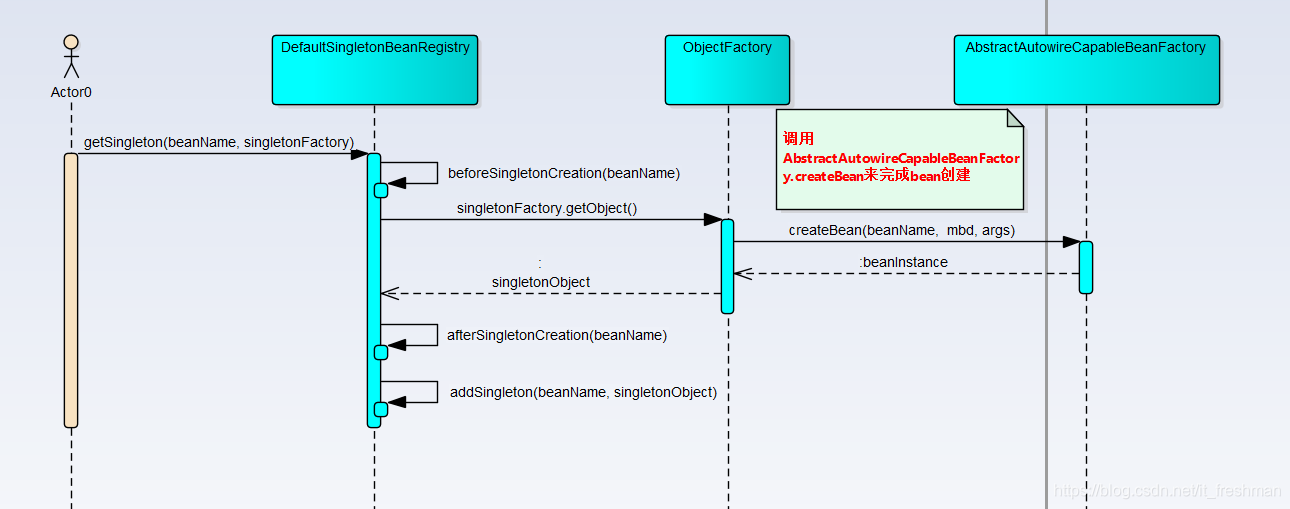

上述代码流程如下图：

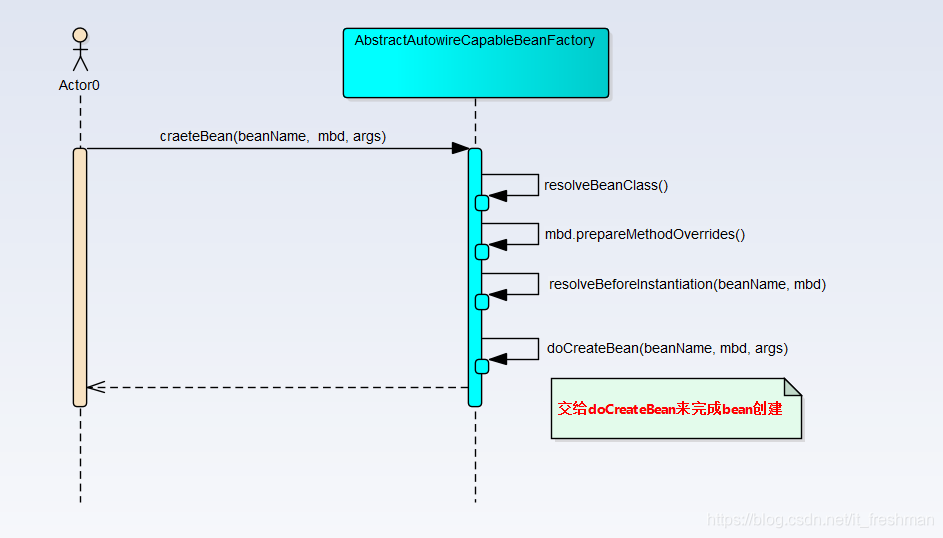

createBean(beanName, mbd, args);
protected Object createBean(String beanName, RootBeanDefinition mbd, Object[] args) {
// 确保bean class 在此处已经解析了。
resolveBeanClass(mbd, beanName);
//1. 设置MethodOverride的 重载标识。
mbd.prepareMethodOverrides();
//2.执行BeanPostProcessors，当执行结果返回bean != null时，则程序短路，不在进行后续的创建操作
Object bean = resolveBeforeInstantiation(beanName, mbd);
if (bean != null) {
return bean;
}
//最终交由doCreateBean()，来创建bean....
Object beanInstance = doCreateBean(beanName, mbd, args);
return beanInstance;
}
1. mbd.prepareMethodOverrides()
//org.springframework.beans.factory.support.AbstractBeanDefinition
public void prepareMethodOverrides() throws BeanDefinitionValidationException {
//获取配置的 <lookup-method > ,<replaced-method > 方法清单
MethodOverrides methodOverrides = getMethodOverrides();
if (!methodOverrides.isEmpty()) {
//for-each 遍历所有的 overrides 方法..
for (MethodOverride mo : methodOverrides.getOverrides()) {
prepareMethodOverride(mo);
}
}
}
protected void prepareMethodOverride(MethodOverride mo) throws BeanDefinitionValidationException {
//计算同名方法的个数(是否重载)
int count = ClassUtils.getMethodCountForName(getBeanClass(), mo.getMethodName());
if (count == 0) {
//如果为0，则说明没有该名称的方法，与上面逻辑不符，抛出异常
throw new BeanDefinitionValidationException(
"Invalid method override: no method with name '" + mo.getMethodName() +
"' on class [" + getBeanClassName() + "]");
} else if (count == 1) {
//如果只有1个同名方法， 说明该方法没有被重载
mo.setOverloaded(false);
}
}
2. resolveBeforeInstantiation
//org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory
protected Object resolveBeforeInstantiation(String beanName, RootBeanDefinition mbd) {
Object bean = null;
//默认为null,第一次都能进入if{}语句块
if (!Boolean.FALSE.equals(mbd.beforeInstantiationResolved)) {
//synthetic:合成的，用户定义的bean都为false,AOP自动创建的会为true
//hasInstantiationAwareBeanPostProcessors() --- 注
if (mbd.hasBeanClass() && !mbd.isSynthetic() && hasInstantiationAwareBeanPostProcessors()) {
//1.
bean = applyBeanPostProcessorsBeforeInstantiation(mbd.getBeanClass(), beanName);
if (bean != null) {
//2.
bean = applyBeanPostProcessorsAfterInitialization(bean, beanName);
}
}
mbd.beforeInstantiationResolved = (bean != null);
}
return bean;
}
//1. 执行 InstantiationAwareBeanPostProcessor.postProcessAfterInitialization()
protected Object applyBeanPostProcessorsBeforeInstantiation(Class<?> beanClass, String beanName) {
for (BeanPostProcessor bp : getBeanPostProcessors()) {
//遍历所有的BeanPostProcessor,寻找到InstantiationAwareBeanPostProcessor类型
if (bp instanceof InstantiationAwareBeanPostProcessor) {
InstantiationAwareBeanPostProcessor ibp = (InstantiationAwareBeanPostProcessor) bp;
//执行postProcessBeforeInstantiation方法，并找到第一个执行结果不为空的结果，返回
Object result = ibp.postProcessBeforeInstantiation(beanClass, beanName);
if (result != null) {
return result;
}
}
}
return null;
}
//2. 执行所有BeanPostProcessor.postProcessAfterInitialization()
public Object applyBeanPostProcessorsAfterInitialization(Object existingBean, String beanName) {
Object result = existingBean;
for (BeanPostProcessor beanProcessor : getBeanPostProcessors()) {
//遍历所有的BeanPostProcessor,执行postProcessAfterInitialization方法，当执行结果为null时，不再往下执行.
result = beanProcessor.postProcessAfterInitialization(result, beanName);
if (result == null) {
return result;
}
}
return result;
}
注1
之前文章介绍了
BeanPostProcessor相关知识，当使用factory.addBeanPostProcessor(processor)时，如果存在processor是
InstantiationAwareBeanPostProcessor类型的时候，则设置hasInstantiationAwareBeanPostProcessors为true;

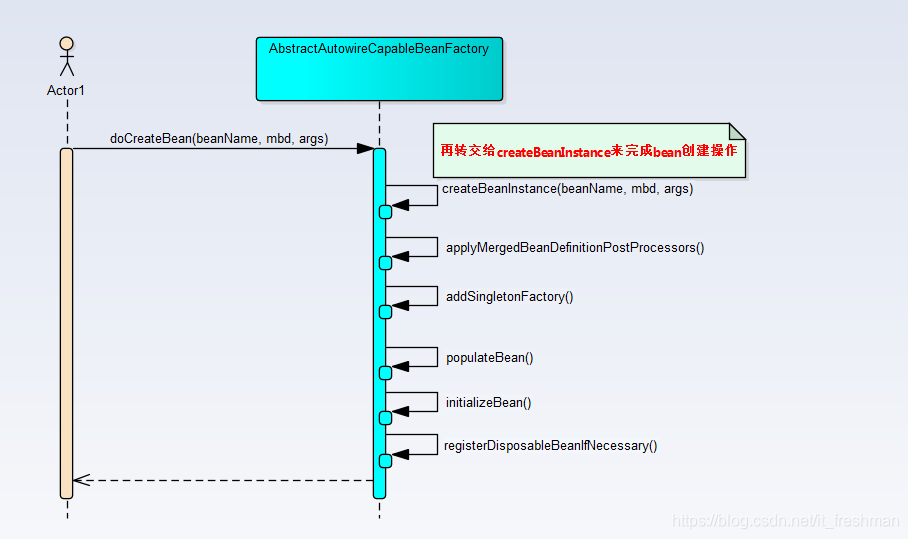

doCreateBean
最终bean的创建委托给doCreateBean()来完成.
//org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory
/** 未完成FactoryBean实例缓存: FactoryBean name --> BeanWrapper */
private final Map<String, BeanWrapper> factoryBeanInstanceCache = new ConcurrentHashMap<String, BeanWrapper>(16);
protected Object doCreateBean(final String beanName, final RootBeanDefinition mbd, final Object[] args) {
BeanWrapper instanceWrapper = null;
if (mbd.isSingleton()) {
//从获取缓存中 未完成FactoryBean
instanceWrapper = this.factoryBeanInstanceCache.remove(beanName);
}
if (instanceWrapper == null) {
//1. 如果instanceWrapper为空，则通过createBeanInstance创建BeanWrapper，并返回
instanceWrapper = createBeanInstance(beanName, mbd, args);
}
//获取bean, beanType
final Object bean = (instanceWrapper != null ? instanceWrapper.getWrappedInstance() : null);
Class<?> beanType = (instanceWrapper != null ? instanceWrapper.getWrappedClass() : null);
synchronized (mbd.postProcessingLock) {
if (!mbd.postProcessed) {
//2. 执行 MergedBeanDefinitionPostProcessors ， 执行完成之后将标识置为true
applyMergedBeanDefinitionPostProcessors(mbd, beanType, beanName);
mbd.postProcessed = true;
}
}
// 此时bean刚刚创建完成，还没有完成初始化以及属性的注入等。
//判断是否需要 提前曝光此bean，用来解决在singleton循环依赖的问题
boolean earlySingletonExposure = (mbd.isSingleton() && this.allowCircularReferences && isSingletonCurrentlyInCreation(beanName));
if (earlySingletonExposure) {
//3.
//3.1 避免后期循环依赖，可以在bean初始化完成前将创建示例的ObjectFactory假如缓存
addSingletonFactory(beanName, new ObjectFactory<Object>() {
public Object getObject() throws BeansException {
//3.2
return getEarlyBeanReference(beanName, mbd, bean);
}
});
}
Object exposedObject = bean;
//4.从mbd获取属性信息，填充到instanceWrapper中的 bean实例。
populateBean(beanName, mbd, instanceWrapper);
if (exposedObject != null) {
//5.执行初始化方法
exposedObject = initializeBean(beanName, exposedObject, mbd);
}
//6.
if (earlySingletonExposure) {
Object earlySingletonReference = getSingleton(beanName, false);
//earlySingletonReference只有在检测到有循环依赖的情况下才不为空
if (earlySingletonReference != null) {
//if true,表明exposedObject没有在初始化方法中被改变，即没有被增强
if (exposedObject == bean) {
exposedObject = earlySingletonReference;
} else if (!this.allowRawInjectionDespiteWrapping && hasDependentBean(beanName)) {
//所有依赖该bean的集合
String[] dependentBeans = getDependentBeans(beanName);
Set<String> actualDependentBeans = new LinkedHashSet<String>(dependentBeans.length);
//检测依赖
for (String dependentBean : dependentBeans) {
//如果依赖beanName 的 bean先一步创建完成，即alreadyCreated.contains(dependentBean),则返回false,取 "非"后 为true
if (!removeSingletonIfCreatedForTypeCheckOnly(dependentBean)) {
//添加 出现错误依赖的dependentBean
actualDependentBeans.add(dependentBean);
}
}
//因为bean创建后，它所依赖的bean也一定已经创建了
//但是如果actualDependentBeans不为空，则说明bean所依赖的bean并没有创建完，则说明存在循环依赖
if (!actualDependentBeans.isEmpty()) {
throw new BeanCurrentlyInCreationException(beanName,"xxxxxx....");
}
}
}
}
//7. 注册销毁方法...
registerDisposableBeanIfNecessary(beanName, bean, mbd);
return exposedObject;
}
1.createBeanInstance
分三种方式创建bean实例
1.1 instantiateUsingFactoryMethod 工厂类创建
最终调用ConstructorResolver(this).instantiateUsingFactoryMethod(beanName, mbd, explicitArgs);来完成创建.
创建的大致步骤如下，后续会专门针对此类来进行详细分析
- 创建
bw = new BeanWrapperImpl(); - 初始化
beanFactory.initBeanWrapper(bw); - 判断是否为静态工厂方法:
isStatic - 构造函数参数的确定
argsToUse - 根据
isStatic和方法名称获取候选方法清单 - 确定构造函数
- 根据实例化策略实例化bean.
(如果有动态覆盖则需要使用cglib动态代理，如果没有，则直接使用反射即可)
1.2 autowireConstructor-带参数的实例化
最终调用ConstructorResolver(this).autowireConstructor(beanName, mbd, explicitArgs);来完成创建.
步骤参上上述instantiateUsingFactoryMethod
1.3 instantiateBean-不带参数的实例化
没有上述两种方法来确定构造函数和参数的复杂逻辑，直接调用最后一步：
- 根据实例化策略实例化bean.
2.applyMergedBeanDefinitionPostProcessors
//2.执行MergedBeanDefinitionPostProcessor.postProcessMergedBeanDefinition(),执行bean定义的合并
protected void applyMergedBeanDefinitionPostProcessors(RootBeanDefinition mbd, Class<?> beanType, String beanName){
for (BeanPostProcessor bp : getBeanPostProcessors()) {
if (bp instanceof MergedBeanDefinitionPostProcessor) {
MergedBeanDefinitionPostProcessor bdp = (MergedBeanDefinitionPostProcessor) bp;
bdp.postProcessMergedBeanDefinition(mbd, beanType, beanName);
}
}
}
3.addSingletonFactory
//3.1 addSingletonFactory
protected void addSingletonFactory(String beanName, ObjectFactory singletonFactory) {
synchronized (this.singletonObjects) {
//必须满足 singletonObjects不包含beanName, 即beanName没有创建完成
if (!this.singletonObjects.containsKey(beanName)) {
//singletonFactories添加缓存
this.singletonFactories.put(beanName, singletonFactory);
//earlySingletonObjects移除缓存
this.earlySingletonObjects.remove(beanName);
//registeredSingletons添加缓存
this.registeredSingletons.add(beanName);
}
}
}
//3.2
protected Object getEarlyBeanReference(String beanName, RootBeanDefinition mbd, Object bean) {
Object exposedObject = bean;
if (bean != null && !mbd.isSynthetic() && hasInstantiationAwareBeanPostProcessors()) {
for (BeanPostProcessor bp : getBeanPostProcessors()) {
if (bp instanceof SmartInstantiationAwareBeanPostProcessor) {
SmartInstantiationAwareBeanPostProcessor ibp = (SmartInstantiationAwareBeanPostProcessor) bp;
//AOP通过此方法将advice织入bean中
exposedObject = ibp.getEarlyBeanReference(exposedObject, beanName);
if (exposedObject == null) {
return exposedObject;
}
}
}
}
return exposedObject;
}
4.populateBean – 属性填充
//4. 填充属性
protected void populateBean(String beanName, RootBeanDefinition mbd, BeanWrapper bw) {
PropertyValues pvs = mbd.getPropertyValues();
//判断条件省略.....
//是否继续属性填充标识
boolean continueWithPropertyPopulation = true;
if (!mbd.isSynthetic() && hasInstantiationAwareBeanPostProcessors()) {
for (BeanPostProcessor bp : getBeanPostProcessors()) {
if (bp instanceof InstantiationAwareBeanPostProcessor) {
InstantiationAwareBeanPostProcessor ibp = (InstantiationAwareBeanPostProcessor) bp;
//通过构造函数或工厂方法实例化bean之后执行操作，但是在Spring属性入口（来自显式属性或自动装配）之前发生。
//如果返回false,随后的InstantiationAwareBeanPostProcessor以及Spring属性注入都会被skipped
if (!ibp.postProcessAfterInstantiation(bw.getWrappedInstance(), beanName)) {
continueWithPropertyPopulation = false;
break;
}
}
}
}
if (!continueWithPropertyPopulation) {
return;
}
if (mbd.getResolvedAutowireMode() == RootBeanDefinition.AUTOWIRE_BY_NAME ||
mbd.getResolvedAutowireMode() == RootBeanDefinition.AUTOWIRE_BY_TYPE) {
MutablePropertyValues newPvs = new MutablePropertyValues(pvs);
if (mbd.getResolvedAutowireMode() == RootBeanDefinition.AUTOWIRE_BY_NAME) {
//4.1 按照名称填充属性 -- 提取依赖的bean,并统一装入newPvs
autowireByName(beanName, mbd, bw, newPvs);
}
if (mbd.getResolvedAutowireMode() == RootBeanDefinition.AUTOWIRE_BY_TYPE) {
//4.2 按照类型填充属性 -- 提取依赖的bean,并统一装入newPvs
autowireByType(beanName, mbd, bw, newPvs);
}
pvs = newPvs;
}
boolean hasInstAwareBpps = hasInstantiationAwareBeanPostProcessors();
boolean needsDepCheck = (mbd.getDependencyCheck() != RootBeanDefinition.DEPENDENCY_CHECK_NONE);
if (hasInstAwareBpps || needsDepCheck) {
//剔除 bw属性中 且在 ignoredDependencyTypes 类型的参数;
PropertyDescriptor[] filteredPds = filterPropertyDescriptorsForDependencyCheck(bw, mbd.allowCaching);
if (hasInstAwareBpps) {
for (BeanPostProcessor bp : getBeanPostProcessors()) {
if (bp instanceof InstantiationAwareBeanPostProcessor) {
InstantiationAwareBeanPostProcessor ibp = (InstantiationAwareBeanPostProcessor) bp;
//InstantiationAwareBeanPostProcessor.postProcessPropertyValues(), 典型的应用如 @Required 注解属性进行验证
pvs = ibp.postProcessPropertyValues(pvs, filteredPds, bw.getWrappedInstance(), beanName);
if (pvs == null) {
return;
}
}
}
}
if (needsDepCheck) {
//再次验证
checkDependencies(beanName, mbd, filteredPds, pvs);
}
}
//将MutablePropertyValues 应用到BeanWraper中
applyPropertyValues(beanName, mbd, bw, pvs);
}
5.5. 执行初始化方法
protected Object initializeBean(final String beanName, final Object bean, RootBeanDefinition mbd) {
//5.1.执行Aware接口方法
invokeAwareMethods(beanName, bean);
Object wrappedBean = bean;
if (mbd == null || !mbd.isSynthetic()) {
//5.2. BeanPostProcessor.postProcessBeforeInitialization()
wrappedBean = applyBeanPostProcessorsBeforeInitialization(wrappedBean, beanName);
}
//5.3 执行init方法
invokeInitMethods(beanName, wrappedBean, mbd);
if (mbd == null || !mbd.isSynthetic()) {
//5.4. BeanPostProcessor.postProcessAfterInitialization
wrappedBean = applyBeanPostProcessorsAfterInitialization(wrappedBean, beanName);
}
return wrappedBean;
}
//5.1 执行aware接口方法
private void invokeAwareMethods(final String beanName, final Object bean) {
if (bean instanceof Aware) {
if (bean instanceof BeanNameAware) {
((BeanNameAware) bean).setBeanName(beanName);
}
if (bean instanceof BeanClassLoaderAware) {
((BeanClassLoaderAware) bean).setBeanClassLoader(getBeanClassLoader());
}
if (bean instanceof BeanFactoryAware) {
((BeanFactoryAware) bean).setBeanFactory(AbstractAutowireCapableBeanFactory.this);
}
}
}
//5.3. 执行各渠道定义的init-method
protected void invokeInitMethods(String beanName, final Object bean, RootBeanDefinition mbd)
{
boolean isInitializingBean = (bean instanceof InitializingBean);
if (isInitializingBean && (mbd == null || !mbd.isExternallyManagedInitMethod("afterPropertiesSet"))) {
//如果实现了InitializingBean接口， 则执行 afterPropertiesSet();
((InitializingBean) bean).afterPropertiesSet();
}
if (mbd != null) {
String initMethodName = mbd.getInitMethodName();
if (initMethodName != null && !(isInitializingBean && "afterPropertiesSet".equals(initMethodName)) &&
!mbd.isExternallyManagedInitMethod(initMethodName)) {
//执行bean定义的 init-method 属性定义的方法
invokeCustomInitMethod(beanName, bean, mbd);
}
}
}
5.6. 注册销毁方法
protected void registerDisposableBeanIfNecessary(String beanName, Object bean, RootBeanDefinition mbd) {
AccessControlContext acc = (System.getSecurityManager() != null ? getAccessControlContext() : null);
// requiresDestruction(bean, mbd)最终调用逻辑
//(bean != null && (bean instanceof DisposableBean || mbd.getDestroyMethodName() != null || hasDestructionAwareBeanPostProcessors()));
if (!mbd.isPrototype() && requiresDestruction(bean, mbd)) {
if (mbd.isSingleton()) {
//单例模式下注册：会处理实现DisposableBean接口 || 配置destroy-method || 声明有DestructionAwareBeanPostProcessors 的bean.
registerDisposableBean(beanName, new DisposableBeanAdapter(bean, beanName, mbd, getBeanPostProcessors(), acc));
}
else {
// A bean with a custom scope...
Scope scope = this.scopes.get(mbd.getScope());
//SimpleThreadScope此方法是空实现， 需要手动设置，执行callback
scope.registerDestructionCallback(beanName, new DisposableBeanAdapter(bean, beanName, mbd, getBeanPostProcessors(), acc));
}
}
}
创建prototype实例
与创建singleton实例的总体流程大致相同，不在赘述。
创建其他scope实例
//org.springframework.beans.factory.support.AbstractBeanFactory
Object scopedInstance = scope.get(beanName, new ObjectFactory<Object>() {
public Object getObject() throws BeansException {
beforePrototypeCreation(beanName);
try {
return createBean(beanName, mbd, args);
}
finally {
afterPrototypeCreation(beanName);
}
}
});
//org.springframework.context.support.SimpleThreadScope
public Object get(String name, ObjectFactory objectFactory) {
Map<String, Object> scope = threadScope.get();
Object object = scope.get(name);
if (object == null) {
object = objectFactory.getObject();
scope.put(name, object);
}
return object;
}
扫一扫
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
