本文介绍如何使用尺度不变特征变换(SIFT)提取图像特征，并构建基于SIFT特征的Bag of Features(BoF)模型。首先从大量图像中提取SIFT特征点并进行聚类，得到视觉词汇表；然后利用该词汇表为特定图像创建BoF描述符。
参考：http://www.codeproject.com/Articles/619039/Bag-of-Features-Descriptor-on-SIFT-Features-with-O

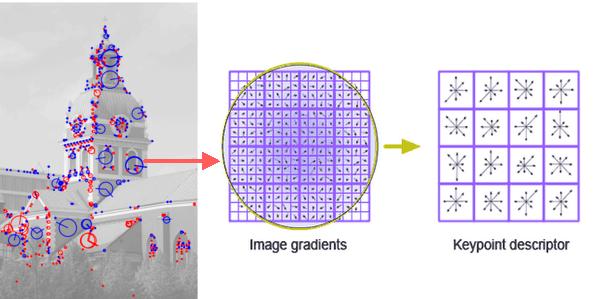

SIFT - Scale Invariant Feature Transform
Bag-of_Features with SIFT
Let's see how can we build BoF with SIFT features.
- 1. Obtain the set of bags of features.
- Select a large set of images.
- Extract the SIFT feature points of all the images in the set and obtain the SIFT descriptor for each feature point that is extracted from each image.
- Cluster the set of feature descriptors for the amount of bags we defined and train the bags with clustered feature descriptors (we can use the K-Means algorithm).
- Obtain the visual vocabulary.
- 2. Obtain the BoF descriptor for given image/video frame.
- Extract SIFT feature points of the given image.
- Obtain SIFT descriptor for each feature point.
- Match the feature descriptors with the vocabulary we created in the first step
- Build the histogram.

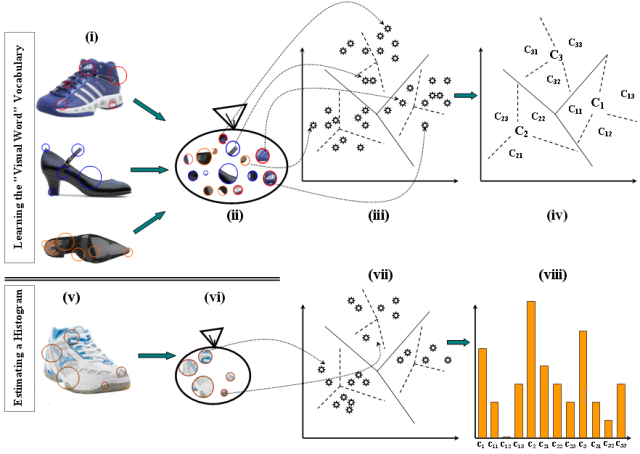

The following image shows the above two steps clearly. (The image taken from http://www.sccs.swarthmore.edu/users/09/btomasi1/tagging-products.html)
