C# WPF Prism框架 对话服务

c# WPF Prism 对话服务

1.登录界面（LoginViewModel.xaml）



 <!--UserrControl标签内添加-->
 <UserControl
    xmlns:p="http://prismlibrary.com/"
    Focusable="True">

    <p:Dialog.WindowStyle>
        <Style TargetType="Window">
            <Setter Property="WindowStyle" Value="ToolWindow" />
            <Setter Property="Width" Value="400" />
            <Setter Property="Height" Value="250" />
            <Setter Property="p:Dialog.WindowStartupLocation" Value="CenterScreen" />
        </Style>
    </p:Dialog.WindowStyle>

    <Grid>
        <StackPanel HorizontalAlignment="Center" VerticalAlignment="Center">
            <WrapPanel Margin="0,0,0,10">
                <Label Content="账号：" />
                <TextBox
                    Width="120"
                    VerticalContentAlignment="Center"
                    Text="{Binding Account}" />
            </WrapPanel>
            <WrapPanel Margin="0,0,0,20">
                <Label Content="密码：" />
                <TextBox
                    Width="120"
                    VerticalContentAlignment="Center"
                    Text="{Binding PassWord}" />
            </WrapPanel>
            <WrapPanel HorizontalAlignment="Center">
                <Button
                    Width="80"
                    Height="30"
                    Command="{Binding LoginCommand}"
                    Content="登录" />
            </WrapPanel>
        </StackPanel>

    </Grid>
</UserControl>

 2.登录界面视图模型（LoginViewModel）

public class LoginViewModel : BindableBase, IDialogAware
{
    public string Title => "登录窗体";

    public event Action<IDialogResult> RequestClose;

    public bool CanCloseDialog() { return true;}
    public void OnDialogClosed(){ }
    public void OnDialogOpened(IDialogParameters parameters){ }

    private string account;
    public string Account
    {
        get { return account; }
        set { SetProperty(ref account, value); }
    }

    private string passWord;
    public string PassWord
    {
        get { return passWord; }
        set { SetProperty(ref passWord, value); }
    }

    public DelegateCommand LoginCommand
    {
        get
        {
            return new DelegateCommand(() =>
            {
                // 登录逻辑
                if(Account == "花花" && PassWord == "123456")
                {
                    DialogParameters parameters = new DialogParameters()
                    {
                        {"account",Account },
                        {"passWord",PassWord },
                    };
                    RequestClose?.Invoke(new DialogResult(ButtonResult.OK,parameters));
                }
            });
        }
    }
}

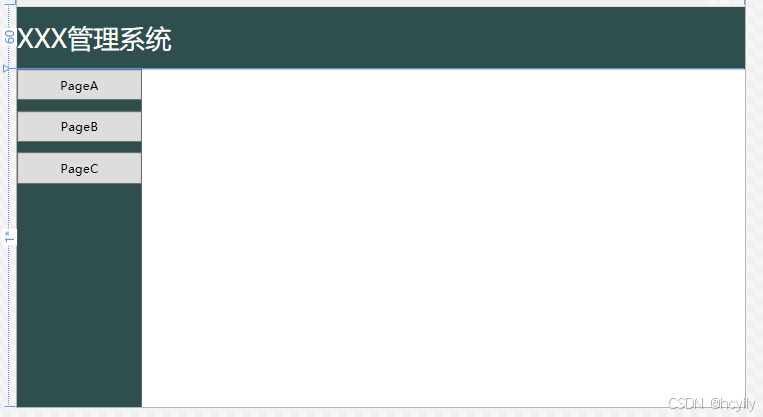

3.主页面视图（MainWindow.xaml）

<Window
    x:Class="对话服务.Views.MainWindow"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:prism="http://prismlibrary.com/"
    Title="{Binding Title}"
    Width="700"
    Height="400"
    prism:ViewModelLocator.AutoWireViewModel="True"
    WindowStartupLocation="CenterScreen">
    <Grid>
        <Grid.RowDefinitions>
            <RowDefinition Height="60" />
            <RowDefinition />
        </Grid.RowDefinitions>

        <Grid Background="#2F4F4F">
            <TextBlock
                VerticalAlignment="Center"
                FontSize="25"
                Foreground="White"
                Text="XXX管理系统" />
        </Grid>

        <Grid Grid.Row="1">
            <Grid.ColumnDefinitions>
                <ColumnDefinition Width="120" />
                <ColumnDefinition />
            </Grid.ColumnDefinitions>

            <StackPanel Background="#2F4F4F">
                <Button
                    Height="30"
                    Command="{Binding TogglePageCommand}"
                    CommandParameter="PageA"
                    Content="PageA" />
                <Button
                    Height="30"
                    Margin="0,10,0,0"
                    Command="{Binding TogglePageCommand}"
                    CommandParameter="PageB"
                    Content="PageB" />
                <Button
                    Height="30"
                    Margin="0,10,0,0"
                    Command="{Binding TogglePageCommand}"
                    CommandParameter="PageC"
                    Content="PageC" />
            </StackPanel>
            <ContentControl Grid.Column="1" prism:RegionManager.RegionName="ContentRegion" />
        </Grid>
    </Grid>
</Window>

4.主页面视图模型 （MainWindowViewModel）

public class MainWindowViewModel : BindableBase
{
    private readonly IRegionManager regionManager;

    public MainWindowViewModel(IRegionManager regionManager)
    {
        this.regionManager = regionManager;
    }

    private string _title = "对话服务";
    public string Title
    {
        get { return _title; }
        set { SetProperty(ref _title, value); }
    }

    public DelegateCommand<string> TogglePageCommand => new DelegateCommand<string>((page) =>
    {
        this.regionManager.RequestNavigate("ContentRegion",page);
    });
}

5.App.xaml.cs

public partial class App
{
    protected override Window CreateShell()
    {
        return Container.Resolve<MainWindow>();
    }

    protected override void OnInitialized()
    {
        // 对话服务本身也受ioc管理
        IDialogService dialogService = Container.Resolve<IDialogService>();//从ico容器中取对话服务
        dialogService.ShowDialog("Login", (dr) =>
        {
            if(dr.Result == ButtonResult.OK)
            {
                if(dr.Parameters.ContainsKey("account") && dr.Parameters.ContainsKey("passWord"))
                {
                    string acc = dr.Parameters.GetValue<string>("account");
                    string pwd = dr.Parameters.GetValue<string>("passWord");
                    base.OnInitialized();
                }
            }
            else  Current.Shutdown();
        });
    }

    protected override void RegisterTypes(IContainerRegistry containerRegistry)
    {
        // 视图注册成可以导航的视图
        // 导航视图模型要求：继承 BindableBase
        containerRegistry.RegisterForNavigation<PageA, PageAViewModel>();
        containerRegistry.RegisterForNavigation<PageB, PageBViewModel>();
        containerRegistry.RegisterForNavigation<PageC, PageCViewModel>();

        // 视图注册成对话框
        // 对话框视图模型要求：必须继承BindableBase, 且实现IDialogAware
        containerRegistry.RegisterDialog<PageAEdit, PageAEditViewModel>();
        containerRegistry.RegisterDialog<Login,LoginViewModel>();
    }
}

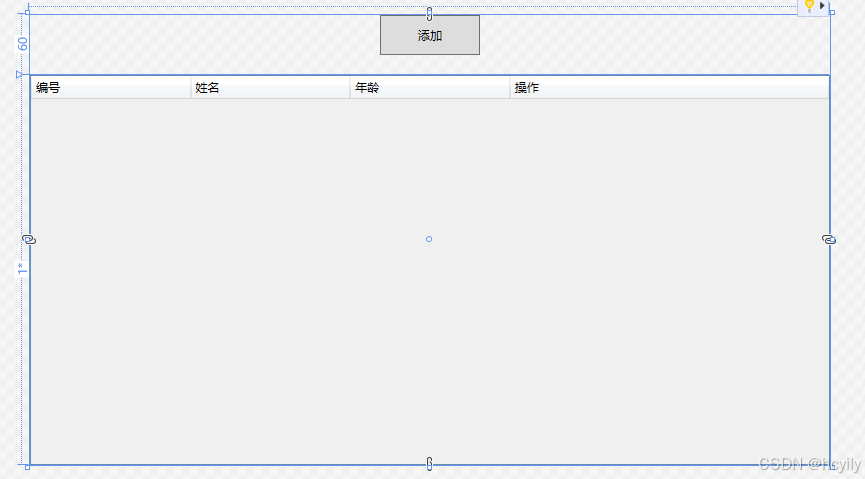

6.页面PageA视图（PageA.xaml）



 <Grid>
     <Grid.RowDefinitions>
         <RowDefinition Height="60" />
         <RowDefinition />
     </Grid.RowDefinitions>

     <StackPanel>
         <Button
             Width="100"
             Height="40"
             Command="{Binding AddCommand}"
             Content="添加" />
     </StackPanel>

     <DataGrid
         Grid.Row="1"
         AutoGenerateColumns="False"
         IsReadOnly="True"
         ItemsSource="{Binding Students}">

         <DataGrid.Columns>
             <DataGridTextColumn
                 Width="*"
                 Binding="{Binding Id}"
                 Header="编号" />
             <DataGridTextColumn
                 Width="*"
                 Binding="{Binding Name}"
                 Header="姓名" />
             <DataGridTextColumn
                 Width="*"
                 Binding="{Binding Age}"
                 Header="年龄" />
             <DataGridTemplateColumn Width="2*" Header="操作">
                 <DataGridTemplateColumn.CellTemplate>
                     <DataTemplate>
                         <WrapPanel>
                             <Button
                                 Width="50"
                                 Margin="0,0,10,0"
                                 Content="删除" />
                             <Button
                                 Width="50"
                                 Margin="0,0,10,0"
                                 Command="{Binding DataContext.EditCommand, RelativeSource={RelativeSource AncestorType=UserControl}}"
                                 CommandParameter="{Binding Id}"
                                 Content="编辑" />
                         </WrapPanel>
                     </DataTemplate>
                 </DataGridTemplateColumn.CellTemplate>
             </DataGridTemplateColumn>
         </DataGrid.Columns>
     </DataGrid>
 </Grid>

7.页面PageA视图模型（PageAViewModel）

 public class PageAViewModel : BindableBase
 {
     private readonly IDialogService dialogService;  //对话服务
     public PageAViewModel(IDialogService dialogService)
     {
         Students = Data.Students;
         this.dialogService = dialogService;
     }

     private List<Student> students;
     public List<Student> Students
     {
         get => students;
         set => SetProperty(ref students, value);
     }

     public DelegateCommand<object> EditCommand
     {
         get
         {
             return new DelegateCommand<object>((id) =>
             {
                 DialogParameters parameters = new DialogParameters() { { "stuId",id} } ;

                 // 参数1：对话框名称
                 // 参数2：向对话框传递的参数
                 // 参数3：对话的回调函数
                 this.dialogService.ShowDialog("PageAEdit", parameters, (dr) =>
                 {
                     if(dr.Result == ButtonResult.OK)
                     {
                         List<Student> stus = new List<Student>();
                         foreach (Student student in Data.Students)
                         {
                             stus.Add(student);
                         }
                         Students = stus;
                     }
                 });
             });
         }
     }

     public DelegateCommand AddCommand
     {
         get
         {
             return new DelegateCommand(() =>
             {
                 this.dialogService.ShowDialog("PageAEdit", null, (dr) =>
                 {
                     if(dr.Result == ButtonResult.OK)
                     {
                         // 重新刷新DataGrid
                         List<Student> stus = new List<Student>();
                         foreach(var student in Data.Students)
                         {
                             stus.Add(student);
                         }
                         Students = stus;
                     }
                 });
             });
         }
     }
 }

8.页面PageA所需数据源Model

 public class Student
 {
     public int Id { get; set; }
     public string Name { get; set; }
     public int Age { get; set; }
 }

 public class Data
 {
     public static List<Student> Students = new List<Student>()
     {
         new Student(){Id=1,Name="张三",Age=18},
         new Student(){Id=2,Name="李四",Age=20},
         new Student(){Id=3,Name="王五",Age=22},
         new Student(){Id=4,Name="赵六",Age=24}
     };
 }

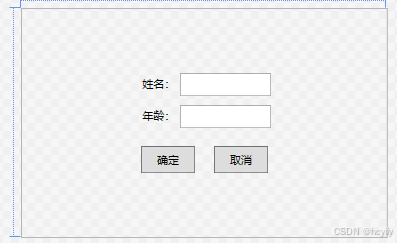

9.页面PageA的编辑（添加）视图（PageAEdit）



<!--UserrControl标签内添加-->
<UserControl
    xmlns:prism="http://prismlibrary.com/">

    <prism:Dialog.WindowStyle>
        <Style TargetType="Window">
            <Setter Property="Width" Value="400" />
            <Setter Property="Height" Value="250" />
            <Setter Property="prism:Dialog.WindowStartupLocation" Value="CenterScreen" />
            <Setter Property="ResizeMode" Value="NoResize" />
        </Style>
    </prism:Dialog.WindowStyle>

    <Grid>
        <StackPanel HorizontalAlignment="Center" VerticalAlignment="Center">
            <WrapPanel Margin="0,0,0,10">
                <Label Content="姓名：" />
                <TextBox
                    Width="100"
                    VerticalContentAlignment="Center"
                    Text="{Binding OneStudent.Name}" />
            </WrapPanel>
            <WrapPanel Margin="0,0,0,20">
                <Label Content="年龄：" />
                <TextBox
                    Width="100"
                    VerticalContentAlignment="Center"
                    Text="{Binding OneStudent.Age}" />
            </WrapPanel>

            <WrapPanel HorizontalAlignment="Center">
                <Button
                    Width="60"
                    Height="30"
                    Margin="0,0,20,0"
                    Command="{Binding OKCancelCommand}"
                    CommandParameter="OK"
                    Content="确定" />
                <Button
                    Width="60"
                    Height="30"
                    Command="{Binding OKCancelCommand}"
                    CommandParameter="Cancel"
                    Content="取消" />
            </WrapPanel>
        </StackPanel>
    </Grid>
</UserControl>

10.编辑（添加）页面的视图模型（PageAEditViewModel）

public class PageAEditViewModel : BindableBase, IDialogAware
{
    //对话框的标题
    public string Title => "编辑";

    //请求关闭的事件：关闭对话框时执行的事件
    public event Action<IDialogResult> RequestClose;

    #region IDialogAware接口
    //控制对话框是否能关闭
    public bool CanCloseDialog(){ return true;}

    //对话框关闭时执行（两种情况：关闭 取消）
    public void OnDialogClosed(){  }

    //对话框打开时执行
    public void OnDialogOpened(IDialogParameters parameters)
    {
        if (parameters.ContainsKey("stuId"))
        {
            IsAdd = false;
            StuId = parameters.GetValue<int>("stuId");
            OneStudent = Data.Students.AsQueryable().Where(s => s.Id == StuId).FirstOrDefault();
        }
        else IsAdd = true;
    }
    #endregion

    private Student oneStudent = new Student();
    public Student OneStudent
    {
        get { return oneStudent; }
        set { SetProperty(ref oneStudent, value); }
    }

    private int stuId;
    public int StuId
    {
        get { return stuId; }
        set { SetProperty(ref stuId, value); }
    }

    private bool isAdd;
    public bool IsAdd
    {
        get { return isAdd; }
        set { SetProperty(ref isAdd, value); }
    }

    public DelegateCommand<string> OKCancelCommand
    {
        get
        {
            return new DelegateCommand<string>((flag) =>
            {
                if (IsAdd) // 添加
                {
                    if(flag == "OK")// 确定
                    {
                        Student lastStudent = Data.Students[Data.Students.Count - 1];
                        Student stu = new Student()
                        {
                             Id = lastStudent.Id + 1,
                             Name = OneStudent.Name,
                             Age = OneStudent.Age,
                        };
                        Data.Students.Add(stu);
                        RequestClose?.Invoke(new DialogResult(ButtonResult.OK));
                        return;
                    }
                    RequestClose?.Invoke(new DialogResult(ButtonResult.Cancel));
                }
                else  // 编辑
                {
                    if(flag == "OK")
                    {
                        int index = Data.Students.FindIndex((s) => { return s.Id == StuId; });
                        Data.Students[index] = OneStudent;
                        RequestClose?.Invoke(new DialogResult(ButtonResult.OK));
                        return;
                    }
                    RequestClose?.Invoke(new DialogResult(ButtonResult.Cancel));
                }
            });
        }
    }
}

11.页面PageB 和页面PageC的视图

 <Grid>
     <Label Content="页面B" />
 </Grid>



 <Grid>
     <Label Content="页面C" />
 </Grid>
