用户态协议栈-基于netmap的UDP实现

UD什么时网络协议栈？

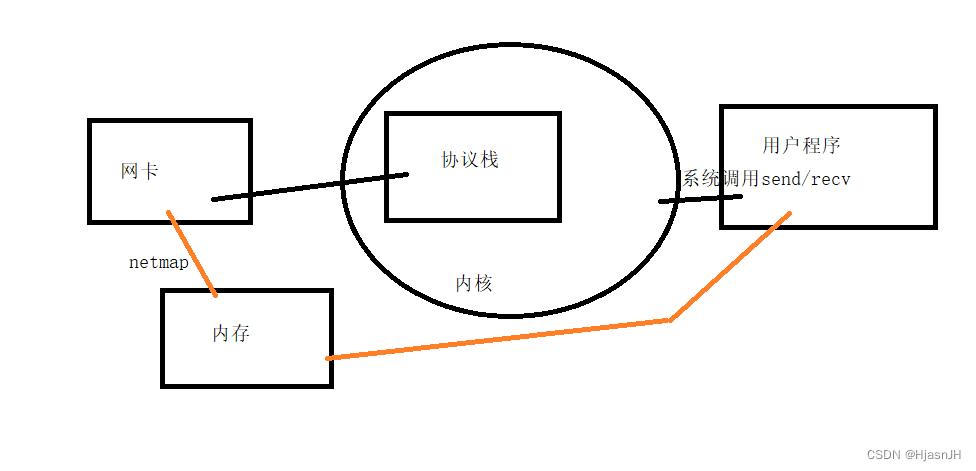

我们知道，数据流从网络到用户态应用程序，需要经历的阶段，如下图黑色线部分

就是从网卡拷贝到内核，再从内核拷贝到用户态程序，这其中会经历两次拷贝。如果时大量客户端C10M时，就会造成性能的瓶颈。

所以，就有了用户态协议栈的诞生，也就是说，原本内核完成了协议栈的功能，被移动到用户程序，那此时，用户程序如何从网卡取数据呢？

有很多种实现方式，比如通过netmap，将网卡的数据映射到内存，则用户态协议栈只需要从内存中解析并实现协议栈的功能，则可以实现用户态的协议栈的应用程序。减少了两次拷贝的开销。

这也就是实现了零拷贝，因为网卡到内存的数据，是直接通过DMA技术来实现，绕过了CPU。

如何将网卡数据映射到内存？

这里使用netmap的开源软件，https://github.com/luigirizzo/netmap

如何安装和编译，这个软件依赖了内核，所以，首先要找到自己的系统内核版本：

https://github.com/luigirizzo/netmap比如我的 3.10.0-1160.62.1.el7.x86_64，上谷歌搜索，找到下面的这个包，然后安装对应的内核的rpm包kernel-devel-3.10.0-1160.62.1.el7.x86_64.rpm，然后通过.configure,再make和make install

就能成功安装netmap，这里只是大概的讲解，基本上网上都能搜索到，还有最好把网卡改名位eth0

编译完成后，就能发现有netmap.ko 的文件。

启动内核模块，insmod netmap.ko

netmap的代码实现

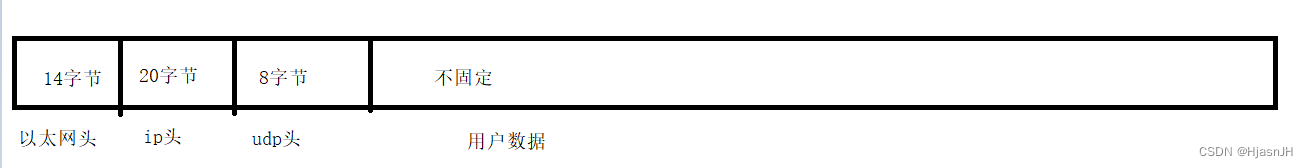

首先，我们先要了解一包网络数据是怎么组成的。

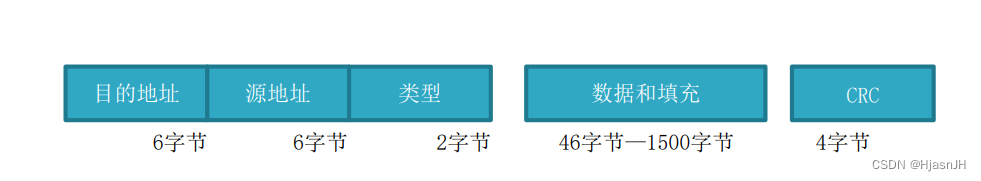

以太网头的组成：

 对应的数据结构定义：

---

#define ETH_ALEN	6
struct ethhdr {
	unsigned char h_dest[ETH_ALEN];
	unsigned char h_source[ETH_ALEN];
	unsigned short h_proto;
};

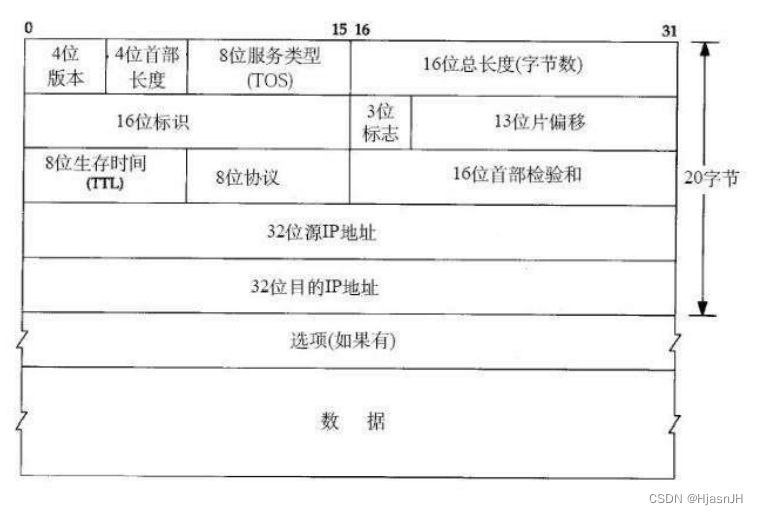

 IP头定义

 代码实现：

struct iphdr {
	unsigned char version;
	unsigned char tos;
	unsigned short tot_len;
	unsigned short id;
	unsigned short flag_off;
	unsigned char ttl;
	unsigned char protocol;
	unsigned short check;
	unsigned int saddr;
	unsigned int daddr;
};

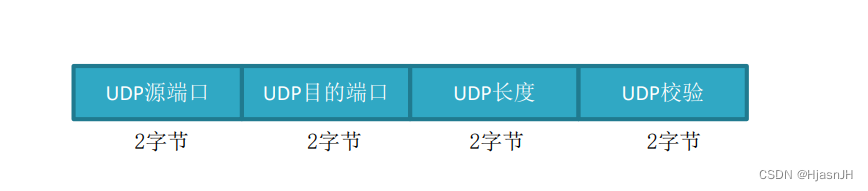

UDP头

struct udphdr {
    unsigned short source;
    unsigned short dest;
    unsigned short len;
    unsigned short check;
};

剩下的就是整个UDP包

struct udppkt {
	struct ethhdr eh;
	struct iphdr ip;
	struct udphdr udp;
	unsigned char body[0];
};

其中用到了柔性数组，body[0]，这是在工程中如果作为结构体通信的常用技术手段，为啥这里不用指针，因为指针与指向的地址的内存不连续。这里应该很好理解。

然后，我们来看怎么通过netmap实现对数据包的解析。

主程序实现

int main()
{
	struct ethhdr* eh;
	struct pollfd pfd = { 0 };
	struct nm_pkthdr h;
	unsigned char* stream = NULL;

	struct nm_desc* nmr = nm_open("netmap:eth0", NULL, 0, NULL);
	if (nmr == NULL) {
		printf("Error open\n");
		return -1;
	}

	pfd.fd = nmr->fd;
	pfd.events = POLLIN;
	while (1) {
		int ret = poll(&pfd, 1, -1);
		if (ret < 0) continue;

		if (pfd.revents & POLLIN) {
			stream = nm_nextpkt(nmr, &h);
			eh = (struct ethhdr*)stream;

			if (ntohs(eh->h_proto) == PROTO_IP) {

				struct udppkt* udp = (struct udppkt*)stream;
				if (udp->ip.protocol == PROTO_UDP) {

					struct in_addr addr;
					addr.s_addr = udp->ip.saddr;

					int udp_length = ntohs(udp->udp.len);
					printf("%s:%d:length:%d, ip_len:%d --> ", inet_ntoa(addr), udp->udp.source,
						udp_length, ntohs(udp->ip.tot_len));

					printf("udp --> ");
					for (int i = 0; i < udp_length - 8; i++)
					{
						printf("%c", udp->body[i]);
					}
					printf("\n");
				}
			}
		}
	}
}

从程序看上，首先，通过nm_open("netmap:eth0", NULL, 0, NULL)获取nm_desc的对象

然后poll等待对应的fd上有数据，stream = nm_nextpkt(nmr, &h);

nm_nextpkt，可见，netmap应该是为我们的UDP数据获取了一块类似内存池的分配机制，我们只要直接从其中取出数据既可。

eh = (struct ethhdr*)stream;

从取出的stream中获取到以太网头，然后匹配对应的协议，如果是IP协议才处理

struct udppkt* udp = (struct udppkt*)stream;

然后转换为UDP包，然后解析出对应的协议。

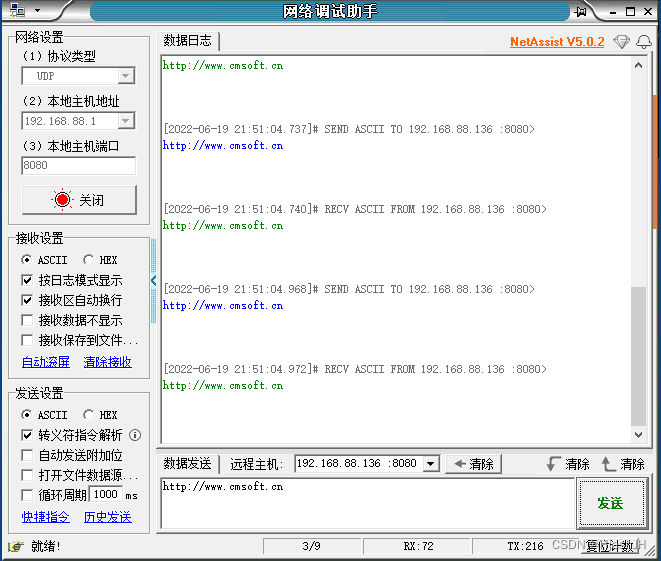

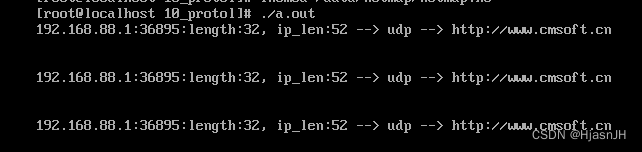

测试结果：

 这简单了获取了udp的数据包。并打印出来，其实还是有bug的，没有处理arp和ICMP协议，会导致中间发了一会就收不到。

完整的实现代码

#include <stdio.h>
#include <unistd.h>
#include <string.h>
#include <stdlib.h>

#include <sys/poll.h>
#include <arpa/inet.h>


#define NETMAP_WITH_LIBS

#include <net/netmap_user.h>
#pragma pack(1)



#define ETH_ALEN	6
#define PROTO_IP	0x0800
#define PROTO_ARP	0x0806

#define PROTO_UDP	17
#define PROTO_ICMP	1
#define PROTO_IGMP	2

struct ethhdr {
	unsigned char h_dest[ETH_ALEN];
	unsigned char h_source[ETH_ALEN];
	unsigned short h_proto;
};

struct iphdr {
	unsigned char version;
	unsigned char tos;
	unsigned short tot_len;
	unsigned short id;
	unsigned short flag_off;
	unsigned char ttl;
	unsigned char protocol;
	unsigned short check;
	unsigned int saddr;
	unsigned int daddr;
};

struct udphdr {
	unsigned short source;
	unsigned short dest;
	unsigned short len;
	unsigned short check;
};


struct udppkt {
	struct ethhdr eh;
	struct iphdr ip;
	struct udphdr udp;
	unsigned char body[128];
};


struct arphdr {
	unsigned short h_type;
	unsigned short h_proto;
	unsigned char h_addrlen;
	unsigned char protolen;
	unsigned short oper;
	unsigned char smac[ETH_ALEN];
	unsigned int sip;
	unsigned char dmac[ETH_ALEN];
	unsigned int dip;
};

struct arppkt {
	struct ethhdr eh;
	struct arphdr arp;
};


struct icmphdr {
	unsigned char type;
	unsigned char code;
	unsigned short check;
	unsigned short identifier;
	unsigned short seq;
	unsigned char data[32];
};

struct icmppkt {
	struct ethhdr eh;
	struct iphdr ip;
	struct icmphdr icmp;
};

void print_mac(unsigned char *mac) {
	int i = 0;
	for (i = 0;i < ETH_ALEN-1;i ++) {
		printf("%02x:", mac[i]);
	}
	printf("%02x", mac[i]);
}

void print_ip(unsigned char *ip) {
	int i = 0;

	for (i = 0;i < 3;i ++) {
		printf("%d.", ip[i]);
	}
	printf("%d", ip[i]);
}


void print_arp(struct arppkt *arp) {
	print_mac(arp->eh.h_dest);
	printf(" ");

	print_mac(arp->eh.h_source);
	printf(" ");

	printf("0x%04x ", ntohs(arp->eh.h_proto));
	printf("  ");

}

int str2mac(char *mac, char *str) {

	char *p = str;
	unsigned char value = 0x0;
	int i = 0;

	while (p != '\0') {

		if (*p == ':') {
			mac[i++] = value;
			value = 0x0;
		} else {

			unsigned char temp = *p;
			if (temp <= '9' && temp >= '0') {
				temp -= '0';
			} else if (temp <= 'f' && temp >= 'a') {
				temp -= 'a';
				temp += 10;
			} else if (temp <= 'F' && temp >= 'A') {
				temp -= 'A';
				temp += 10;
			} else {
				break;
			}
			value <<= 4;
			value |= temp;
		}
		p ++;
	}

	mac[i] = value;

	return 0;
}

void echo_arp_pkt(struct arppkt *arp, struct arppkt *arp_rt, char *hmac) {

	memcpy(arp_rt, arp, sizeof(struct arppkt));

	memcpy(arp_rt->eh.h_dest, arp->eh.h_source, ETH_ALEN);
	str2mac(arp_rt->eh.h_source, hmac);
	arp_rt->eh.h_proto = arp->eh.h_proto;

	arp_rt->arp.h_addrlen = 6;
	arp_rt->arp.protolen = 4;
	arp_rt->arp.oper = htons(2);

	str2mac(arp_rt->arp.smac, hmac);
	arp_rt->arp.sip = arp->arp.dip;

	memcpy(arp_rt->arp.dmac, arp->arp.smac, ETH_ALEN);
	arp_rt->arp.dip = arp->arp.sip;

}


void echo_udp_pkt(struct udppkt *udp, struct udppkt *udp_rt) {

	memcpy(udp_rt, udp, sizeof(struct udppkt));

	memcpy(udp_rt->eh.h_dest, udp->eh.h_source, ETH_ALEN);
	memcpy(udp_rt->eh.h_source, udp->eh.h_dest, ETH_ALEN);

	udp_rt->ip.saddr = udp->ip.daddr;
	udp_rt->ip.daddr = udp->ip.saddr;

	udp_rt->udp.source = udp->udp.dest;
	udp_rt->udp.dest = udp->udp.source;

}

unsigned short in_cksum(unsigned short *addr, int len)
{
	register int nleft = len;
	register unsigned short *w = addr;
	register int sum = 0;
	unsigned short answer = 0;

	while (nleft > 1)  {
		sum += *w++;
		nleft -= 2;
	}

	if (nleft == 1) {
		*(u_char *)(&answer) = *(u_char *)w ;
		sum += answer;
	}

	sum = (sum >> 16) + (sum & 0xffff);
	sum += (sum >> 16);
	answer = ~sum;

	return (answer);

}


void echo_icmp_pkt(struct icmppkt *icmp, struct icmppkt *icmp_rt) {

	memcpy(icmp_rt, icmp, sizeof(struct icmppkt));

	icmp_rt->icmp.type = 0x0; //
	icmp_rt->icmp.code = 0x0; //
	icmp_rt->icmp.check = 0x0;

	icmp_rt->ip.saddr = icmp->ip.daddr;
	icmp_rt->ip.daddr = icmp->ip.saddr;

	memcpy(icmp_rt->eh.h_dest, icmp->eh.h_source, ETH_ALEN);
	memcpy(icmp_rt->eh.h_source, icmp->eh.h_dest, ETH_ALEN);

	icmp_rt->icmp.check = in_cksum((unsigned short*)&icmp_rt->icmp, sizeof(struct icmphdr));

}


int main() {

	struct ethhdr *eh;
	struct pollfd pfd = {0};
	struct nm_pkthdr h;
	unsigned char *stream = NULL;

	struct nm_desc *nmr = nm_open("netmap:eth0", NULL, 0, NULL);
	if (nmr == NULL) {
		printf("Error open\n");
		return -1;
	}

	pfd.fd = nmr->fd;
	pfd.events = POLLIN;

	while (1) {
		int ret = poll(&pfd, 1, -1);
		if (ret < 0) continue;

		if (pfd.revents & POLLIN) {
			stream = nm_nextpkt(nmr, &h);
			eh = (struct ethhdr*)stream;

			if (ntohs(eh->h_proto) == PROTO_IP) {

				struct udppkt *udp = (struct udppkt*)stream;
				if (udp->ip.protocol == PROTO_UDP) {

					struct in_addr addr;
					addr.s_addr = udp->ip.saddr;

					int udp_length = ntohs(udp->udp.len);
					printf("%s:%d:length:%d, ip_len:%d --> ", inet_ntoa(addr), udp->udp.source,
						udp_length, ntohs(udp->ip.tot_len));

					udp->body[udp_length-8] = '\0';
					printf("udp --> %s\n", udp->body);
#if 1
					struct udppkt udp_rt;
					echo_udp_pkt(udp, &udp_rt);
					nm_inject(nmr, &udp_rt, sizeof(struct udppkt));
#endif
#if 0
				} else if (udp->ip.protocol == PROTO_ICMP) {

					struct icmppkt *icmp = (struct icmppkt*)stream;

					printf("icmp ---------- --> %d, %x\n", icmp->icmp.type, icmp->icmp.check);
					if (icmp->icmp.type == 0x08) {
						struct icmppkt icmp_rt = {0};
						echo_icmp_pkt(icmp, &icmp_rt);

						//printf("icmp check %x\n", icmp_rt.icmp.check);
						nm_inject(nmr, &icmp_rt, sizeof(struct icmppkt));
					}
#endif
				} else if (udp->ip.protocol == PROTO_IGMP) {

				} else {
					printf("other ip packet");
				}
#if 0
			}  else if (ntohs(eh->h_proto) == PROTO_ARP) {

				struct arppkt *arp = (struct arppkt *)stream;
				struct arppkt arp_rt;

				if (arp->arp.dip == inet_addr("192.168.2.217")) {
					echo_arp_pkt(arp, &arp_rt, "00:50:56:33:1c:ca");
					nm_inject(nmr, &arp_rt, sizeof(struct arppkt));
				}
#endif
			}
		}
	}
}
