配置了华为路由器AR1、AR2、AR3、AR4和AR5的GRE隧道，设置了隧道两端的IP地址，启用并配置了OSPF路由协议，用于实现网络间的通信。AR6配置了多个接口的IP地址。

摘要生成于 C知道 ，由 DeepSeek-R1 满血版支持， 前往体验 >

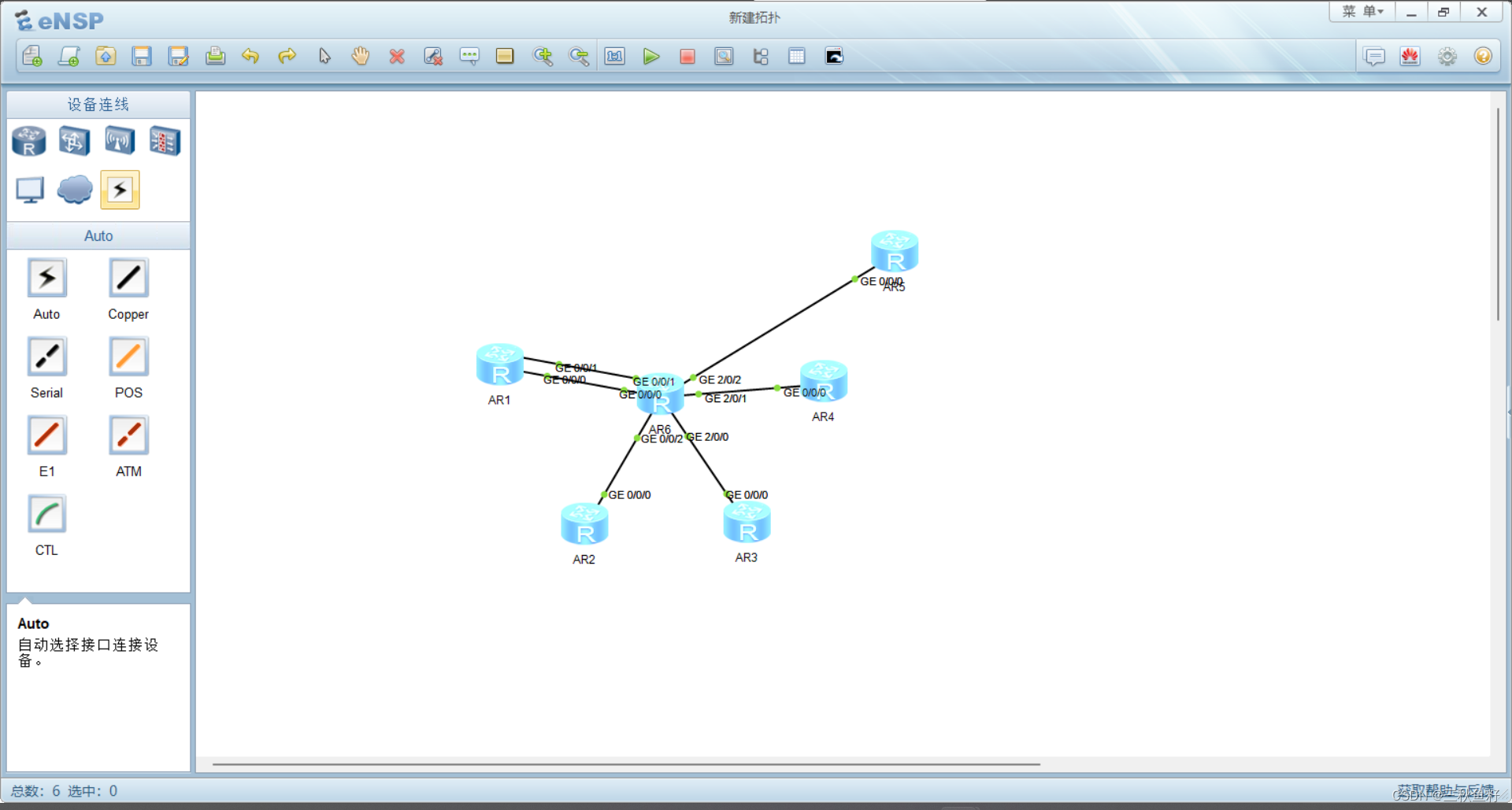

实验拓扑图如下

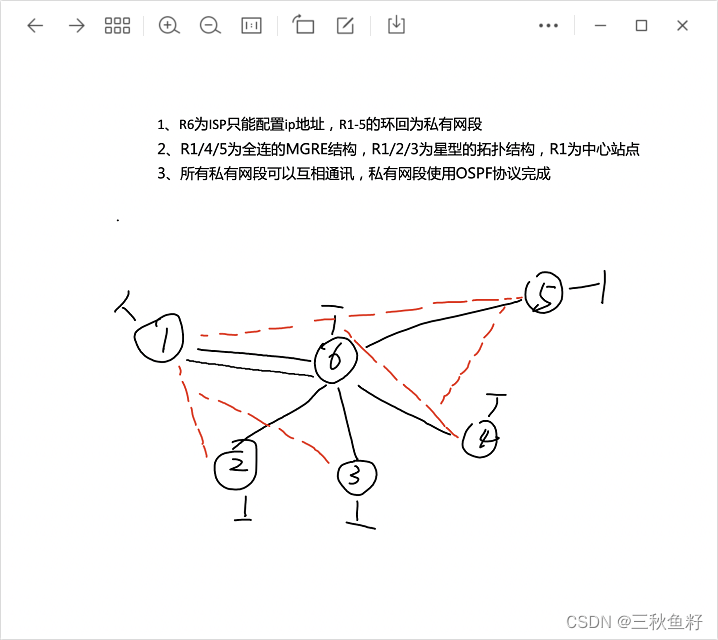

实验要求



路由器配置

AR1

Enter system view, return user view with Ctrl+Z.
[Huawei]int
[Huawei]interface t
[Huawei]interface Tunnel 0/0/1
[Huawei-Tunnel0/0/1]ip add 192.168.7.1 255.255.255.0
[Huawei-Tunnel0/0/1]t
[Huawei-Tunnel0/0/1]tu
[Huawei-Tunnel0/0/1]tunnel-protocol g
[Huawei-Tunnel0/0/1]tunnel-protocol gre p
[Huawei-Tunnel0/0/1]tunnel-protocol gre p2mp
[Huawei-Tunnel0/0/1]so
[Huawei-Tunnel0/0/1]source 61.0.0.1
Jan  4 2023 19:07:13-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[0]:The line protocol
 IP on the interface Tunnel0/0/1 has entered the UP state.
[Huawei-Tunnel0/0/1]
[Huawei-Tunnel0/0/1]nh
[Huawei-Tunnel0/0/1]nhrp n
[Huawei-Tunnel0/0/1]nhrp network-id 200
[Huawei-Tunnel0/0/1]nh
[Huawei-Tunnel0/0/1]nhrp en
[Huawei-Tunnel0/0/1]nhrp entry 192.168.7.2 46.0.0.1  r
[Huawei-Tunnel0/0/1]nhrp entry 192.168.7.2 46.0.0.1  register
[Huawei-Tunnel0/0/1]nh
[Huawei-Tunnel0/0/1]nhrp en
[Huawei-Tunnel0/0/1]nhrp entry 192.168.7.3 56.0.0.1 r
[Huawei-Tunnel0/0/1]nhrp entry 192.168.7.3 56.0.0.1 register
[Huawei-Tunnel0/0/1]nhr
[Huawei-Tunnel0/0/1]nhrp ent
[Huawei-Tunnel0/0/1]nhrp entry m
[Huawei-Tunnel0/0/1]nhrp entry multicast
[Huawei-Tunnel0/0/1]nhrp entry multicast d
[Huawei-Tunnel0/0/1]
[Huawei-Tunnel0/0/1]nhrp entry multicast d
[Huawei-Tunnel0/0/1]nhrp entry multicast dynamic
[Huawei-Tunnel0/0/1]q
[Huawei]s
[Huawei]os
[Huawei]ospf1
        ^
Error: Unrecognized command found at '^' position.
[Huawei]ospf 1
[Huawei-ospf-1]ro
[Huawei-ospf-1]route-i
[Huawei-ospf-1]q
[Huawei]ospf 1 r
[Huawei]ospf 1 router-id 1.1.1.1
Info: The configuration succeeded. You need to restart the OSPF process to valid
ate the new router ID.
[Huawei-ospf-1]ar
[Huawei-ospf-1]area 0.0.0.0
[Huawei-ospf-1-area-0.0.0.0]ne
[Huawei-ospf-1-area-0.0.0.0]network 192.168.1.0 0.0.0.255
[Huawei-ospf-1-area-0.0.0.0]network 192.168.6.0 0.0.0.255
[Huawei-ospf-1-area-0.0.0.0]network 192.168.7.0 0.0.0.255
[Huawei-ospf-1-area-0.0.0.0]q
[Huawei-ospf-1]q
[Huawei]q
<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]int t
[Huawei]int Tunnel 0/0/0
[Huawei-Tunnel0/0/0]ospf n
[Huawei-Tunnel0/0/0]ospf network-type b
[Huawei-Tunnel0/0/0]ospf network-type broadcast
[Huawei-Tunnel0/0/0]int
[Huawei-Tunnel0/0/0]int
[Huawei-Tunnel0/0/0]int t
[Huawei-Tunnel0/0/0]q
[Huawei]int
[Huawei]interface
[Huawei]interface t
[Huawei]interface Tunnel 0/0/1
[Huawei-Tunnel0/0/1]n
[Huawei-Tunnel0/0/1]ne
[Huawei-Tunnel0/0/1]ne
[Huawei-Tunnel0/0/1]net
[Huawei-Tunnel0/0/1]osp
[Huawei-Tunnel0/0/1]ospf n
[Huawei-Tunnel0/0/1]ospf network-type b
[Huawei-Tunnel0/0/1]ospf network-type broadcast
[Huawei-Tunnel0/0/1]q

AR2

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]int
[Huawei]interface g0/0/0
[Huawei-GigabitEthernet0/0/0]ip add 26.0.0.1 24
Jan  4 2023 18:41:47-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[0]:The line protocol
 IP on the interface GigabitEthernet0/0/0 has entered the UP state.
[Huawei-GigabitEthernet0/0/0]q
[Huawei]int lo0
[Huawei-LoopBack0]ip add 192.168.2.1 24
[Huawei-LoopBack0]

  Please check whether system data has been changed, and save data in time

  Configuration console time out, please press any key to log on

<Huawei>sys
<Huawei>system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]ip ro
[Huawei]ip route-
[Huawei]ip route-static 0.0.0.0 0 26.0.0.2
[Huawei]int
[Huawei]interface t
[Huawei]interface Tunnel 0/0/0
[Huawei-Tunnel0/0/0]ip add 192.168.6.2 255.255.255.0
[Huawei-Tunnel0/0/0]t
[Huawei-Tunnel0/0/0]tcp
[Huawei-Tunnel0/0/0]test-aaa
[Huawei-Tunnel0/0/0]tu
[Huawei-Tunnel0/0/0]tunnel-protocol g
[Huawei-Tunnel0/0/0]tunnel-protocol gre p
[Huawei-Tunnel0/0/0]tunnel-protocol gre p2mp
[Huawei-Tunnel0/0/0]sou
[Huawei-Tunnel0/0/0]source
[Huawei-Tunnel0/0/0]source g
[Huawei-Tunnel0/0/0]source GigabitEthernet 0/0/0
Jan  4 2023 19:02:48-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[0]:The line protocol
 IP on the interface Tunnel0/0/0 has entered the UP state.
[Huawei-Tunnel0/0/0]
[Huawei-Tunnel0/0/0]nh
[Huawei-Tunnel0/0/0]nhrp n
[Huawei-Tunnel0/0/0]nhrp network-id 100
[Huawei-Tunnel0/0/0]nh
[Huawei-Tunnel0/0/0]nhrp ebt
[Huawei-Tunnel0/0/0]nhrp ent
[Huawei-Tunnel0/0/0]nhrp entry 192.168.6.1 16.0.0.1 re
[Huawei-Tunnel0/0/0]nhrp entry 192.168.6.1 16.0.0.1 register
[Huawei-Tunnel0/0/0]

  Please check whether system data has been changed, and save data in time

  Configuration console time out, please press any key to log on

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]osp
[Huawei]ospf ro
[Huawei]ospf router-id 2.2.2.2
[Huawei-ospf-1]ar
[Huawei-ospf-1]area0.0.0.0
               ^
Error: Unrecognized command found at '^' position.
[Huawei-ospf-1]area 0.0.0.0
[Huawei-ospf-1-area-0.0.0.0]ne
[Huawei-ospf-1-area-0.0.0.0]network 192.168.2.0 0.0.0.255
[Huawei-ospf-1-area-0.0.0.0]network 192.168.6.0 0.0.0.255
[Huawei-ospf-1-area-0.0.0.0]

  Please check whether system data has been changed, and save data in time

  Configuration console time out, please press any key to log on

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]
[Huawei]int
[Huawei]interface t
[Huawei]interface Tunnel 0/0/0
[Huawei-Tunnel0/0/0]os
[Huawei-Tunnel0/0/0]ospf n
[Huawei-Tunnel0/0/0]ospf network-type b
[Huawei-Tunnel0/0/0]ospf network-type broadcast
[Huawei-Tunnel0/0/0]os
[Huawei-Tunnel0/0/0]ospf dr
[Huawei-Tunnel0/0/0]ospf dr-priority 0
[Huawei-Tunnel0/0/0]

AR3

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]int
[Huawei]interface g0/0/0
[Huawei-GigabitEthernet0/0/0]ip add 36.0.0.1 24
Jan  4 2023 18:43:17-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[0]:The line protocol
 IP on the interface GigabitEthernet0/0/0 has entered the UP state.
[Huawei-GigabitEthernet0/0/0]q
[Huawei]int lo0
[Huawei-LoopBack0]ip add 192.168.3.1 24
[Huawei-LoopBack0]q
[Huawei]

  Please check whether system data has been changed, and save data in time

  Configuration console time out, please press any key to log on

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]ip ro
[Huawei]ip route-
[Huawei]ip route-static 0.0.0.0 0 36.0.0.2
[Huawei]

  Please check whether system data has been changed, and save data in time

  Configuration console time out, please press any key to log on

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]int t
[Huawei]int Tunnel 0/0/0
[Huawei-Tunnel0/0/0]ip add 192.168.6.3 255.255.255.0
[Huawei-Tunnel0/0/0]tu
[Huawei-Tunnel0/0/0]tunnel-protocol g
[Huawei-Tunnel0/0/0]tunnel-protocol gre p
[Huawei-Tunnel0/0/0]tunnel-protocol gre p2mp
[Huawei-Tunnel0/0/0]sou
[Huawei-Tunnel0/0/0]source gi
[Huawei-Tunnel0/0/0]source GigabitEthernet 0/0/0
Jan  4 2023 19:05:08-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[0]:The line protocol
 IP on the interface Tunnel0/0/0 has entered the UP state.
[Huawei-Tunnel0/0/0]
[Huawei-Tunnel0/0/0]nh
[Huawei-Tunnel0/0/0]nhrp n
[Huawei-Tunnel0/0/0]nhrp network-id 100
[Huawei-Tunnel0/0/0]nh
[Huawei-Tunnel0/0/0]nhrp e
[Huawei-Tunnel0/0/0]nhrp entry 192.168.6.1 16.0.0.1 r
[Huawei-Tunnel0/0/0]nhrp entry 192.168.6.1 16.0.0.1 register
[Huawei-Tunnel0/0/0]

  Please check whether system data has been changed, and save data in time

  Configuration console time out, please press any key to log on

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]osp
[Huawei]ospf ro
[Huawei]ospf router-id 3.3.3.3
[Huawei-ospf-1]ar
[Huawei-ospf-1]area 0.0.0.0
[Huawei-ospf-1-area-0.0.0.0]net
[Huawei-ospf-1-area-0.0.0.0]network 192.168.3.0 0.0.0.255
[Huawei-ospf-1-area-0.0.0.0]network 192.168.6.0 0.0.0.255
[Huawei-ospf-1-area-0.0.0.0]q
[Huawei-ospf-1]q
[Huawei]int
[Huawei]interface t
[Huawei]interface Tunnel 0/0/0
[Huawei-Tunnel0/0/0]os
[Huawei-Tunnel0/0/0]ospf n
[Huawei-Tunnel0/0/0]ospf network-type b
[Huawei-Tunnel0/0/0]ospf network-type broadcast
[Huawei-Tunnel0/0/0]os
[Huawei-Tunnel0/0/0]ospf dr
[Huawei-Tunnel0/0/0]ospf dr-priority 0
[Huawei-Tunnel0/0/0]

AR4

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]int
[Huawei]interface g0/0/0
[Huawei-GigabitEthernet0/0/0]ip add 46.0.0.1 24
Jan  4 2023 18:44:22-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[0]:The line protocol
 IP on the interface GigabitEthernet0/0/0 has entered the UP state.
[Huawei-GigabitEthernet0/0/0]q
[Huawei]int lo0
[Huawei-LoopBack0]ip add 192.168.4.1 24
[Huawei-LoopBack0]

  Please check whether system data has been changed, and save data in time

  Configuration console time out, please press any key to log on

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]ip ro
[Huawei]ip route
[Huawei]ip route-static 0.0.0.0 0 46.0.0.2
[Huawei]ip route-static 0.0.0.0 0 56.0.0.2
[Huawei]

  Please check whether system data has been changed, and save data in time

  Configuration console time out, please press any key to log on

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]int t
[Huawei]int Tunnel 0/0/1
[Huawei-Tunnel0/0/1]ip add 192.168.7.2 255.255.255.0
[Huawei-Tunnel0/0/1]tu
[Huawei-Tunnel0/0/1]tunnel-protocol g
[Huawei-Tunnel0/0/1]tunnel-protocol gre p
[Huawei-Tunnel0/0/1]tunnel-protocol gre p2mp
[Huawei-Tunnel0/0/1]so
[Huawei-Tunnel0/0/1]source 46.0.0.1
Jan  4 2023 19:10:17-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[0]:The line protocol
 IP on the interface Tunnel0/0/1 has entered the UP state.
[Huawei-Tunnel0/0/1]
[Huawei-Tunnel0/0/1]nh
[Huawei-Tunnel0/0/1]nhrp en
[Huawei-Tunnel0/0/1]nhrp entry m
[Huawei-Tunnel0/0/1]nhrp entry multicast d
[Huawei-Tunnel0/0/1]nhrp entry multicast dynamic
[Huawei-Tunnel0/0/1]nh
[Huawei-Tunnel0/0/1]nhrp n
[Huawei-Tunnel0/0/1]nhrp network-id 100
[Huawei-Tunnel0/0/1]nh
[Huawei-Tunnel0/0/1]nhrp e
[Huawei-Tunnel0/0/1]nhrp entry 192.168.7.2 56.0.0.1 r
[Huawei-Tunnel0/0/1]nhrp entry 192.168.7.2 56.0.0.1 register
[Huawei-Tunnel0/0/1]

  Please check whether system data has been changed, and save data in time

  Configuration console time out, please press any key to log on

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]osp
[Huawei]ospf r
[Huawei]ospf router-id 4.4.4.4
[Huawei-ospf-1]ar
[Huawei-ospf-1]area 0.0.0.0
[Huawei-ospf-1-area-0.0.0.0]net
[Huawei-ospf-1-area-0.0.0.0]network 192.168.4.0 0.0.0.255
[Huawei-ospf-1-area-0.0.0.0]network 192.168.7.0 0.0.0.255
[Huawei-ospf-1-area-0.0.0.0]q
[Huawei-ospf-1]q
[Huawei]q
<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]int
[Huawei]interface t
[Huawei]interface Tunnel 0/0/1
[Huawei-Tunnel0/0/1]ospf ne
[Huawei-Tunnel0/0/1]ospf network-type b
[Huawei-Tunnel0/0/1]ospf network-type broadcast
[Huawei-Tunnel0/0/1]

AR5

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]int
[Huawei]interface g0/0/0
[Huawei-GigabitEthernet0/0/0]ip add 56.0.0.1 24
Jan  4 2023 18:45:08-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[0]:The line protocol
 IP on the interface GigabitEthernet0/0/0 has entered the UP state.
[Huawei-GigabitEthernet0/0/0]int lo0
[Huawei-LoopBack0]ip add162.168.5.1 24
                     ^
Error: Unrecognized command found at '^' position.
[Huawei-LoopBack0]ip add 192.168.5.1 24
[Huawei-LoopBack0]

  Please check whether system data has been changed, and save data in time

  Configuration console time out, please press any key to log on

<Huawei>nt
<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]int t
[Huawei]int Tunnel 0/0/1
[Huawei-Tunnel0/0/1]ip add 192.168.7.3 255.255.255.0
[Huawei-Tunnel0/0/1]tu
[Huawei-Tunnel0/0/1]tunnel-protocol g
[Huawei-Tunnel0/0/1]tunnel-protocol gre p
[Huawei-Tunnel0/0/1]tunnel-protocol gre p2mp
[Huawei-Tunnel0/0/1]so
[Huawei-Tunnel0/0/1]source 56.0.0.1
Jan  4 2023 19:12:19-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[0]:The line protocol
 IP on the interface Tunnel0/0/1 has entered the UP state.
[Huawei-Tunnel0/0/1]
[Huawei-Tunnel0/0/1]osp
[Huawei-Tunnel0/0/1]ospf n
[Huawei-Tunnel0/0/1]ospf network-type b
[Huawei-Tunnel0/0/1]ospf network-type broadcast
[Huawei-Tunnel0/0/1]nhrp
[Huawei-Tunnel0/0/1]nhrp en
[Huawei-Tunnel0/0/1]nhrp entry m
[Huawei-Tunnel0/0/1]nhrp entry multicast d
[Huawei-Tunnel0/0/1]nhrp entry multicast dynamic
[Huawei-Tunnel0/0/1]nh
[Huawei-Tunnel0/0/1]nhrp n
[Huawei-Tunnel0/0/1]nhrp network-id 100
[Huawei-Tunnel0/0/1]

  Please check whether system data has been changed, and save data in time

  Configuration console time out, please press any key to log on

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]osp
[Huawei]ospf 1
[Huawei]ospf 1 r
[Huawei]ospf 1 router-id 5.5.5.5
[Huawei-ospf-1]ar
[Huawei-ospf-1]area 0.0.0.0
[Huawei-ospf-1-area-0.0.0.0]net
[Huawei-ospf-1-area-0.0.0.0]network 192.168.5.0 0.0.0.255
[Huawei-ospf-1-area-0.0.0.0]network 192.168.7.0 0.0.0.255
[Huawei-ospf-1-area-0.0.0.0]q
[Huawei-ospf-1]q
[Huawei]int
[Huawei]interface t
[Huawei]interface Tunnel 0/0/1
[Huawei-Tunnel0/0/1]os
[Huawei-Tunnel0/0/1]ospf n
[Huawei-Tunnel0/0/1]ospf network-type b
[Huawei-Tunnel0/0/1]ospf network-type broadcast
[Huawei-Tunnel0/0/1]

AR6

Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]int
[Huawei]interface g0/0/0
[Huawei-GigabitEthernet0/0/0]ip add 16.0.0.2 24
Jan  4 2023 18:46:43-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[0]:The line protocol
 IP on the interface GigabitEthernet0/0/0 has entered the UP state.
[Huawei-GigabitEthernet0/0/0]int
[Huawei-GigabitEthernet0/0/0]q
[Huawei]int
[Huawei]interface g0/0/1
[Huawei-GigabitEthernet0/0/1]ip add 61.0.0.2 24
Jan  4 2023 18:47:09-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[1]:The line protocol
 IP on the interface GigabitEthernet0/0/1 has entered the UP state.
[Huawei-GigabitEthernet0/0/1]q
[Huawei]int
[Huawei]interface g2/0/2
[Huawei-GigabitEthernet2/0/2]ip add 26.0.0.2 24
[Huawei-GigabitEthernet2/0/2]
Jan  4 2023 18:48:06-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[2]:The line protocol
 IP on the interface GigabitEthernet2/0/2 has entered the UP state.
[Huawei-GigabitEthernet2/0/2]q
[Huawei]int
[Huawei]interface g2/0/1
[Huawei-GigabitEthernet2/0/1]ip add 36.0.0.2 24
[Huawei-GigabitEthernet2/0/1]
Jan  4 2023 18:48:56-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[3]:The line protocol
 IP on the interface GigabitEthernet2/0/1 has entered the UP state.
[Huawei-GigabitEthernet2/0/1]q

[Huawei]int
[Huawei]interface 2/0/0
                  ^
Error: Wrong parameter found at '^' position.
[Huawei]interface g2/0/0
[Huawei-GigabitEthernet2/0/0]ip add 46.0.0.2 24
[Huawei-GigabitEthernet2/0/0]
Jan  4 2023 18:52:14-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[4]:The line protocol
 IP on the interface GigabitEthernet2/0/0 has entered the UP state.
[Huawei-GigabitEthernet2/0/0]q
[Huawei]int
[Huawei]interface g0/0/2
[Huawei-GigabitEthernet0/0/2]ip add 56.0.0.2 24
[Huawei-GigabitEthernet0/0/2]
Jan  4 2023 18:52:50-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[5]:The line protocol
 IP on the interface GigabitEthernet0/0/2 has entered the UP state.
[Huawei-GigabitEthernet0/0/2]int lo0
[Huawei-LoopBack0]ip add 6.6.6.6 24
[Huawei-LoopBack0]

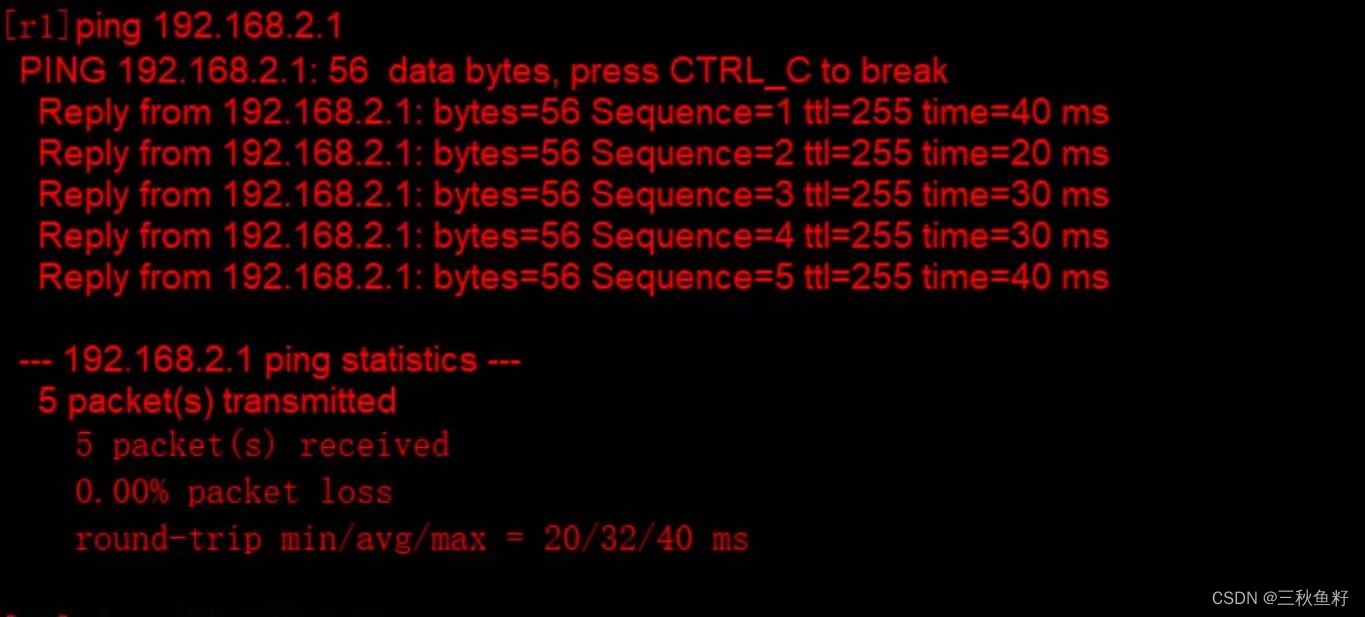

实验完成，开始对结果进行测试





三秋鱼籽
关注
Cisco--MGRE实验
weixin_43774199的博客
11-24 230
eNSP实验---MGRE环境下的OSPF实验
Lappy_6246的博客
07-10 419
1.R6为ISP只能配置IP地址，R1-R5的环回为私有网段。2.R1/4/5为全连的MGRE结构，R1/2/3为星型的拓扑结构，R1为中心站点。3.所有私有网段可以互相通讯，私有网段使用OSPF完成。
关于华为ensp一些报错处理分享及基础命令
热门推荐
所爱的博客
08-31 7万+
1.Error: Unrecognized command found at '^' position. 这里会发现在输入sys按TAb键时不会自动补全，那我们这是就应该反应过来，肯定是哪里有问题了，比如输入system-view时报错，你注意看是<>还是[]了吗，[]时输入system-view是错误的，也不会自动补全，解决方法是ctrl+z，其实他下面也有提示 后来我发现是视图的原因 eNSP有种视图模式 : 用户视图 | 系统视图 | 接口视图 ...
华为设备 命令行的错误提示
weixin_48776593的博客
01-30 6258
(error:误差,)（found:找到,）（position:定位,（command:控制,）（wrong:不合适,（parameter:范围,
关于action nat easy ip报错 ensp配置
x2911552589的博客
04-14 401
把改成就好了。
Error:Incomplete command found at ‘^‘ position.
一起coding，一起嗨。
03-30 2万+
华为eNSP,启动后输入命令sys,报错Error:Incomplete command found at '^' position.如何处理？
2021-06-09
m0_56229717的博客
06-09 613
R1 The device is running! <Huawei>sys Enter system view, return user view with Ctrl+Z. [Huawei]sysname r1 [r1]interf [r1]interface g [r1]interface GigabitEthernet 0/0/0 [r1-GigabitEthernet0/0/0]ip add 12.1.1.1 24 Jun 9 2021 18:1...
IP地址的配置与运用，全网通
weixin_74812127的博客
11-13 1369
学习hcia'的第三天
HCIP-MGRE实验作业
08-02
MGRE实验
eNSP-MGRE实验
qq_41166436的博客
07-25 544
实验要求： 实验过程： 1.实际TOPO图 每个路由器拥有一个环回接口，IP地址为1.1.1.1、2.2.2.2依次类推。 每个路由器接口，如R2 R3之间的接口为R2：23.1.1.2/24 R3：23.1.1.3/24 以此类推。 直连路由器之间进行PING，测试通过，每条直连路线接通。 对R1进行MGRE配置： 图中配置问题： ip地址后修改为100.1.1.1。 source项错误，实际应为source 14.1.1.1。 图为R3配置MGRE图，R2操作相同..
ENSP软件在命令行输入命令一直报错
qq_45322943的博客
03-09 2万+
The device is running! inter ^ Error: Unrecognized command found at ‘^’ position. sys Enter system view, return user view with Ctrl+Z. [Huawei]inter ^ Error:Incomplete command found at ‘^’ position. [...
【无标题】
m0_74812084的博客
11-14 312
【代码】【无标题】
华为、华三、思科、锐捷交换机路由器设备命令行常见错误信息
小木的博客
05-28 3173
使用CLI命令行界面，如果输入错误，系统将会向用户报告错误信息。 知己知彼，方能百战不殆。下面是小木为大家收集整理的几大厂商常见的命令行错误提示。
H12-811考试题库21-30题
lwljh134的博客
11-29 1461
H12-811
2021-05-20
m0_56229717的博客
05-20 1058
题目要求 拓扑图 R1 on the interface GigabitEthernet0/0/1 has entered the UP state. [r1-GigabitEthernet0/0/1] Please check whether system data has been changed, and save data in time Configuration console time...
作业11.18
zhuqifan0412的博客
11-18 465
作业
eNSP设备命令常见错误
一起coding，一起嗨。
03-31 2058
英文错误信息错误原因没有查找到命令没有查找到关键字参数类型错参数值越界输入命令不完整输入参数太多输入命令不明确。
ospf综合实验-hcip
最新发布
05-13
这说明用户可能正在处理一个涉及多区域OSPF、路由汇总、MGRE、以及多进程重发布的综合实验。 接下来，我需要整理出OSPF综合实验的常见内容，这可能包括拓扑设计、地址规划、区域划分、特殊区域配置、路由优化（如...
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
