本文深入解析InceptionNet的发展历程，从V1到V4版本的改进，以及如何在TensorFlow中实现V3版本。探讨了InceptionModule的设计理念，包括1x1卷积的高效性和Hebbian原理的应用，以及如何构建稀疏结构来提高模型效率。
一、InceptionNet介绍
Google Inception Net首次出现在ILSVRC 2014的比赛中，以较大的优势获得了第一名，那届比赛中的Inception Net通常被称为Inception V1，它最大的特点是控制了计算量和参数量的同时，获得了非常好的分类性能--top-5错误率6.67%。Inception V1有22层深，比AlexNet的8层或者VGGNet的19层还要深，但其计算量只有15亿次浮点运算，只有500万的参数量。Inception V1降低参数量的目的有两点，第一，参数越大模型越庞大，需要供模型学习的数据量就越大，而目前高质量的数据非常昂贵。第二，参数越多，耗费的计算资源也会更大。Inception V1参数少但效果好的原因除了模型层数更深、表达能力更强外，还有两点：一是去除了最后的全连接层，用全局平均池化层(即将图片尺寸变为1x1）来取代它。二是Inception V1中精心设计的Inception Module提高了参数的利用率。这两点都借鉴了NIN论文中的思想。Inception Module如下：
从图中我们可以看出Inception Module一共有四个分支：第一个分支对输入进行1x1卷积，1x1的卷积可以跨通道组织信息，提高网络的表达能力，同时对输出通道升维和降维。可以看到Inception Module的4个分支都用到了1x1卷积，来进行低成本的跨通道的特征变换。第二个分支先使用了1x1卷积，然后连接3x3卷积，相当于进行了两次特征变换。第三个分支，先是1x1卷积，然后连接5x5卷积，第四个分支，先是3x3的最大池化，然后直接使用1x1的卷积。我们可以看到，每个分支都使用了1x1的卷积。这事因为它的性价比很好，用很小的计算量就能增加一层特征变换和非线性化。Inception Module的四个分支在最后通过一个聚合操作合并（在输出通道数这个维度上聚合）。这个网络可以让网络的深度和宽度高效的扩充，提升准确率且不至于过拟合。
人脑神经元的连接是稀疏的，因此研究者认为大型神经网络的合理的连接方式应该也是稀疏的。稀疏结构是非常适合神经网络的一种结构。尤其是对非常大型、非常深的神经网络，可以减轻过拟合并降低计算量。卷积网络就是稀疏连接的，Inception Module的主要目标就是找到最优的稀疏结构单元。这里要说到Hebbian原理：神经反射活动的持续与重复会导致神经元连接稳定性的持久提升，当两个神经元细胞A和B距离很近，并且A参与了对B重复、持续的兴奋，那么某些代谢变化会导致A将作为能使B兴奋的细胞。在Provable Bounds for Learning Some Deep Representations提出，如果数据集的概率分布可以被一个很大很稀疏的神经网络所表达，那么构筑这个网络的最佳方法是逐层构筑网络：将上一层高度相关的节点聚类，并将聚类出来的每一个小簇连接到一起。
因此，根据Hebbian原理，一个好的稀疏结构，我们应该把相关性高的一簇神经元节点连接在一起。在普通的数据集中，需要对神经元节点聚类，但是在图片数据中，天然的就是临近区域的数据相关性高，因此相邻的像素点被卷积操作连接在一起，我们可能有多个卷积核，在同一空间位置但在不同通道的卷积核的输出结果相关性较高。因此，一个1x1的卷积就可以很自然地把这些相关性很高的、在同一个空间位置但是不同通道的特征连接在一起，这就是1x1卷积被频繁应用的原因。而3x3，5x5的卷积所连接的节点的相关性也很高。增加多样性，所以，在Inception Module中使用很多这样的卷积，将相关性很高的节点连接在一起，构建出了很高效的符合Hebbian原理的稀疏结构。
二、InceptionNet的版本
在Inception Module中，通常1x1卷积的比例最高，3x3卷积和5x5卷积稍低。在整个网络中，会有多个堆叠的Inception Module，我们希望靠后的Inception Module 可以捕捉更高阶的抽象特征，因此靠后的Inception Module的卷积的空间集中度应该逐渐降低，这样可以捕获更大面积的特征，因此，越靠后的Inception Module中，大面积卷积核的占比应该越多。
Inception Net有22层深，除了最后一层的输出，其中间节点的分类效果也很好。在网络中，使用到了辅助分类节点，即将中间某一层的输出用作分类，并按一个较小的权重（0.4）加到最终的分类结果中，相当于做了模型融合，同时给网络增加了反向传播的梯度信号，也提供了额外的正则化。下面我们看看InceptionNet的版本：
v1是2014年提出的，在ImageNet错误率为6.67%。2015年v2版本学习了VGGNet，用两个3x3的卷积代替5x5的大卷积，还提出了著名的Batch Normalization，可以让大型卷积网络的训练速度加快很多倍，同时收敛后的准确率也可以得到大幅提高。BN会对每一个mini-batch数据的内部进行标准化处理，是输出规范化到N(0,1)的正太分布，减少内部神经元分布的改变。使用BN可以让训练时间大大缩短，性能提高，在某种意义上起到了正则化的作用。v2还进行了一些其他调整，增大学习速率并加快学习衰减速度以使用BN规范化后的数据；去除dropout并减轻L2正则；去除LRN；更彻底地对训练样本进行shuffle；减少数据增强过程中对数据的光学畸变。v3版本的主要有两方面的改造，一是引入了Factorization into small convolutions的思想，将一个较大的二维卷积拆解成两个较小的一维卷积，比如讲7x7拆成了1x7和7x1.一方面节约了大量参数，加速运算并减轻了过拟合，还增加了一层非线性扩展模型表达能力。这种拆分比对称地拆为几个相同的小卷积效果更好，可以处理更多、更丰富的空间特征，增加特征多样性。另一方面，v3优化了Inception Module的结构，现在有35x35、7x17和8x8三种不同的结构，只在网络的后部出现，前部还是普通的卷积层。v3除了在Inception Module中使用分支，还在分支中使用了分支。v4主要是结合了ResNet。在2016年提出。
三、TensorFlow实现InceptionNet V3

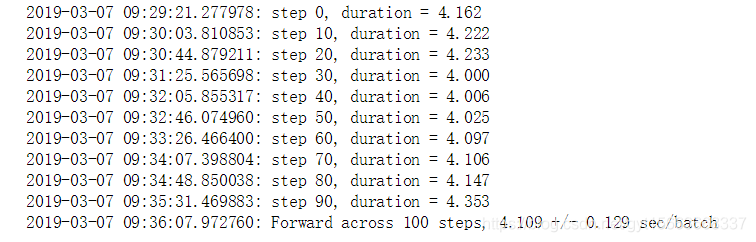

我们依然是对前向过程的评测，并没有实际使用数据训练。
import tensorflow as tf
import math
slim = tf.contrib.slim # 辅助设计网咯
truc_normal = lambda stddev: tf.truncted_normal_initializer(0.0, stddev) # 产生截断的正态分布
# 生成网络中经常用到的函数的默认参数。
def inception_v3_arg_scope(weight_decay=0.00004, stddev=0.1, batch_norm_var_collection='moving_vars'):
"""
设置L2正则的默认参数：
权重衰减率：weight_decay=0.00004
标准差：stddev=0.1
batch_norm_var_collection='moving_vars'
"""
# 批量归一化（BN）的参数字典
batch_norm_parm = {
'decay': 0.9997,
'epsilon': 0.001,
'updates_collections': tf.GraphKeys.UPDATE_OPS,
'variables_collections': {
'beta': None,
'gamma': None,
'moving_mean': [batch_norm_var_collection],
'moving_variance': [batch_norm_var_collection]
}
}
# slim.arg_scope给函数的参数自动赋予某些默认值
with slim.arg_scope([slim.conv2d, slim.fully_connected], weights_regularizer=slim.l2_regularizer(weight_decay)):
with slim.arg_scope([slim.conv2d],
weights_initializer=tf.truncated_normal_initializer(stddev=stddev), # 权重初始化
activation_fn=tf.nn.relu, # 激活函数
normalizer_fn=slim.batch_norm, # 标准化
normalizer_params=batch_norm_parm) as sc: # 标准化器的参数
return sc
# 生成网络的卷积部分
def inception_v3_base(inputs, scope=None):
"""
inputs: 输入的图片数据的tensor
scope：包含了函数默认参数的环境
"""
end_point = {} # 保存某些关键节点
with tf.variable_scope(scope, 'InceptionV3', [inputs]):
# 首先，正常的卷积层
with slim.arg_scope([slim.conv2d, slim.max_pool2d, slim.avg_pool2d], stride=1, padding='VALID'): # 为函数设置参数
# 创建网络，第一参数：输入tensor，第二：输出的通道数，第三：卷积核尺寸，第四：步长，第五：填充模式
net = slim.conv2d(inputs, 32, [3, 3], stride=2, scope='Conv2d_1a_3x3')
net = slim.conv2d(net, 32, [3, 3], scope='Conv2d_2d_3x3')
net = slim.conv2d(net, 64, [3, 3], padding='SAME', scope='Conv2d_2b_3x3')
net = slim.max_pool2d(net, [3, 3], stride=2, scope='MaxPool_3a_3x3')
net = slim.conv2d(net, 80, [1, 1], scope='Conv2d_3b_1x1')
net = slim.conv2d(net, 192, [3, 3], scope='Conv2d_4a_3x3')
net = slim.max_pool2d(net, [3, 3], stride=2, scope='MaxPool_5a_3x3')
with slim.arg_scope([slim.conv2d, slim.max_pool2d, slim.avg_pool2d], stride=1, padding='SAME'):
# 第一个Inception 模块组, 256通道
# 第一个Inception Module
with tf.variable_scope('Mixe_5b'):
with tf.variable_scope('Branch_0'):
branch_0 = slim.conv2d(net, 64, [1, 1], scope='Conv2d_0a_1x1')
with tf.variable_scope('Branch_1'):
branch_1 = slim.conv2d(net, 48, [1, 1], scope='Conv2d_0a_1x1')
branch_1 = slim.conv2d(branch_1, 64, [5, 5], scope='Conv2d_0b_5x5')
with tf.variable_scope('Branch_2'):
branch_2 = slim.conv2d(net, 64, [1, 1], scope='Conv2d_0a_1x1')
branch_2 = slim.conv2d(branch_2, 96, [3, 3], scope='Conv2d_0b_3x3')
branch_2 = slim.conv2d(branch_2, 96, [3, 3], scope='Conv2d_0c_3x3')
with tf.variable_scope('Branch_3'):
branch_3 = slim.avg_pool2d(net, [3, 3], scope='AvgPool_0a_3x3')
branch_3 = slim.conv2d(branch_3, 32, [1, 1], scope='Conv2d_0b_1x1')
net = tf.concat([branch_0, branch_1, branch_2, branch_3], 3)
# 第二个Inception Module
with tf.variable_scope('Mixed_5c'):
with tf.variable_scope('Branch_0'):
branch_0 = slim.conv2d(net, 64, [1, 1], scope='Conv2d_0a_1x1')
with tf.variable_scope('Branch_1'):
branch_1 = slim.conv2d(net, 48, [1, 1], scope='Conv2d_0b_1x1')
branch_1 = slim.conv2d(branch_1, 64, [5, 5], scope='Conv_1_0c_5x5')
with tf.variable_scope('Branch_2'):
branch_2 = slim.conv2d(net, 64, [1, 1], scope='Conv2d_0a_1x1')
branch_2 = slim.conv2d(branch_2, 96, [3, 3], scope='Conv2d_0b_3x3')
branch_2 = slim.conv2d(branch_2, 96, [3, 3], scope='Conv2d_0c_3x3')
with tf.variable_scope('Branch_3'):
branch_3 = slim.avg_pool2d(net, [3, 3], scope='AvgPool_0a_3x3')
branch_3 = slim.conv2d(branch_3, 64, [1, 1], scope='Conv2d_0b_1x1')
net = tf.concat([branch_0, branch_1, branch_2, branch_3], 3)
# 第三个Inception Module
with tf.variable_scope('Mixed_5d'):
with tf.variable_scope('Branch_0'):
branch_0 = slim.conv2d(net, 64, [1, 1], scope='Conv2d_0a_1x1')
with tf.variable_scope('Branch_1'):
branch_1 = slim.conv2d(net, 48, [1, 1], scope='Conv2d_0b_1x1')
branch_1 = slim.conv2d(branch_1, 64, [5, 5], scope='Conv_1_0c_5x5')
with tf.variable_scope('Branch_2'):
branch_2 = slim.conv2d(net, 64, [1, 1], scope='Conv2d_0a_1x1')
branch_2 = slim.conv2d(branch_2, 96, [3, 3], scope='Conv2d_0b_3x3')
branch_2 = slim.conv2d(branch_2, 96, [3, 3], scope='Conv2d_0c_3x3')
with tf.variable_scope('Branch_3'):
branch_3 = slim.avg_pool2d(net, [3, 3], scope='AvgPool_0a_3x3')
branch_3 = slim.conv2d(branch_3, 64, [1, 1], scope='Conv2d_0b_1x1')
net = tf.concat([branch_0, branch_1, branch_2, branch_3], 3)
# 第二个Inception模块： 768
# 第一个Inception Module
with tf.variable_scope('Mixed_6a'):
with tf.variable_scope('Branch_0'):
branch_0 = slim.conv2d(net, 384, [3, 3], stride=2, padding='VALID', scope='Conv2d_1a_1x1')
with tf.variable_scope('Branch_1'):
branch_1 = slim.conv2d(net, 64, [1, 1], scope='Conv2d_0a_1x1')
branch_1 = slim.conv2d(branch_1, 96, [3, 3], scope='Conv2d_0b_3x3')
branch_1 = slim.conv2d(branch_1, 96, [3, 3], stride=2, padding='VALID', scope='Conv2d_1a_1x1')
with tf.variable_scope('Branch_2'):
branch_2 = slim.max_pool2d(net, [3, 3], stride=2, padding='VALID', scope='MaxPool_1a_3x3')
net = tf.concat([branch_0, branch_1, branch_2], 3)
# 第二个Inception Module
with tf.variable_scope('Mixed_6b'):
with tf.variable_scope('Branch_0'):
branch_0 = slim.conv2d(net, 192, [1, 1], scope='Conv2d_0a_1x1')
with tf.variable_scope('Branch_1'):
branch_1 = slim.conv2d(net, 128, [1, 1], scope='Conv2d_0a_1x1')
branch_1 = slim.conv2d(branch_1, 128, [1, 7], scope='Conv2d_0b_1x7')
branch_1 = slim.conv2d(branch_1, 192, [7, 1], scope='Conv2d_0c_7x1')
with tf.variable_scope('Branch_2'):
branch_2 = slim.conv2d(net, 128, [1, 1], scope='Conv2d_0a_1x1')
branch_2 = slim.conv2d(branch_2, 128, [7, 1], scope='Conv2d_0b_7x1')
branch_2 = slim.conv2d(branch_2, 128, [1, 7], scope='Conv2d_0c_1x7')
branch_2 = slim.conv2d(branch_2, 128, [7, 1], scope='Conv2d_0d_7x1')
branch_2 = slim.conv2d(branch_2, 192, [1, 7], scope='Conv2d_0e_1x7')
with tf.variable_scope('Branch_3'):
branch_3 = slim.avg_pool2d(net, [3, 3], scope='AvgPool_0a_3x3')
branch_3 = slim.conv2d(branch_3, 192, [1, 1], scope='Conv2d_0b_1x1')
net = tf.concat([branch_0, branch_1, branch_2, branch_3], 3)
# 第三个Inception Module
with tf.variable_scope('Mixed_6c'):
with tf.variable_scope('Branch_0'):
branch_0 = slim.conv2d(net, 192, [1, 1], scope='Conv2d_0a_1x1')
with tf.variable_scope('Branch_1'):
branch_1 = slim.conv2d(net, 160, [1, 1], scope='Conv2d_0a_1x1')
branch_1 = slim.conv2d(branch_1, 160, [1, 7], scope='Conv2d_0b_1x7')
branch_1 = slim.conv2d(branch_1, 192, [7, 1], scope='Conv2d_0c_7x1')
with tf.variable_scope('Branch_2'):
branch_2 = slim.conv2d(net, 160, [1, 1], scope='Conv2d_0a_1x1')
branch_2 = slim.conv2d(branch_2, 160, [7, 1], scope='Conv2d_0b_7x1')
branch_2 = slim.conv2d(branch_2, 160, [1, 7], scope='Conv2d_0c_1x7')
branch_2 = slim.conv2d(branch_2, 160, [7, 1], scope='Conv2d_0d_7x1')
branch_2 = slim.conv2d(branch_2, 192, [1, 7], scope='Conv2d_0e_1x7')
with tf.variable_scope('Branch_3'):
branch_3 = slim.avg_pool2d(net, [3, 3], scope='AvgPool_0a_3x3')
branch_3 = slim.conv2d(branch_3, 192, [1, 1], scope='Conv2d_0b_1x1')
net = tf.concat([branch_0, branch_1, branch_2, branch_3], 3)
# 第四个Inception Module
with tf.variable_scope('Mixed_6d'):
with tf.variable_scope('Branch_0'):
branch_0 = slim.conv2d(net, 192, [1, 1], scope='Conv2d_0a_1x1')
with tf.variable_scope('Branch_1'):
branch_1 = slim.conv2d(net, 160, [1, 1], scope='Conv2d_0a_1x1')
branch_1 = slim.conv2d(branch_1, 160, [1, 7], scope='Conv2d_0b_1x7')
branch_1 = slim.conv2d(branch_1, 192, [7, 1], scope='Conv2d_0c_7x1')
with tf.variable_scope('Branch_2'):
branch_2 = slim.conv2d(net, 160, [1, 1], scope='Conv2d_0a_1x1')
branch_2 = slim.conv2d(branch_2, 160, [7, 1], scope='Conv2d_0b_7x1')
branch_2 = slim.conv2d(branch_2, 160, [1, 7], scope='Conv2d_0c_1x7')
branch_2 = slim.conv2d(branch_2, 160, [7, 1], scope='Conv2d_0d_7x1')
branch_2 = slim.conv2d(branch_2, 192, [1, 7], scope='Conv2d_0e_1x7')
with tf.variable_scope('Branch_3'):
branch_3 = slim.avg_pool2d(net, [3, 3], scope='AvgPool_0a_3x3')
branch_3 = slim.conv2d(branch_3, 192, [1, 1], scope='Conv2d_0b_1x1')
net = tf.concat([branch_0, branch_1, branch_2, branch_3], 3)
# 第五个Inception Module
with tf.variable_scope('Mixed_6e'):
with tf.variable_scope('Branch_0'):
branch_0 = slim.conv2d(net, 192, [1, 1], scope='Conv2d_0a_1x1')
with tf.variable_scope('Branch_1'):
branch_1 = slim.conv2d(net, 192, [1, 1], scope='Conv2d_0a_1x1')
branch_1 = slim.conv2d(branch_1, 192, [1, 7], scope='Conv2d_0b_1x7')
branch_1 = slim.conv2d(branch_1, 192, [7, 1], scope='Conv2d_0c_7x1')
with tf.variable_scope('Branch_2'):
branch_2 = slim.conv2d(net, 192, [1, 1], scope='Conv2d_0a_1x1')
branch_2 = slim.conv2d(branch_2, 192, [7, 1], scope='Conv2d_0b_7x1')
branch_2 = slim.conv2d(branch_2, 192, [1, 7], scope='Conv2d_0c_1x7')
branch_2 = slim.conv2d(branch_2, 192, [7, 1], scope='Conv2d_0d_7x1')
branch_2 = slim.conv2d(branch_2, 192, [1, 7], scope='Conv2d_0e_1x7')
with tf.variable_scope('Branch_3'):
branch_3 = slim.avg_pool2d(net, [3, 3], scope='AvgPool_0a_3x3')
branch_3 = slim.conv2d(branch_3, 192, [1, 1], scope='Conv2d_0b_1x1')
net = tf.concat([branch_0, branch_1, branch_2, branch_3], 3)
end_point['Mixed_6e'] = net
# 第三个Inception模块
# 第一个Inception Module
with tf.variable_scope('Mixed_7a'):
with tf.variable_scope('Branch_0'):
branch_0 = slim.conv2d(net, 192, [1, 1], scope='Conv2d_0a_1x1')
branch_0 = slim.conv2d(branch_0, 320, [3, 3], stride=2, padding='VALID', scope='Conv2d_1a_3x3')
with tf.variable_scope('Branch_1'):
branch_1 = slim.conv2d(net, 192, [1, 1], scope='Conv2d_0a_1x1')
branch_1 = slim.conv2d(branch_1, 192, [1, 7], scope='Conv2d_0b_1x7')
branch_1 = slim.conv2d(branch_1, 192, [7, 1], scope='Conv2d_0c_7x1')
branch_1 = slim.conv2d(branch_1, 192, [3, 3], stride=2, padding='VALID', scope='Conv2s_1a_3x3')
with tf.variable_scope('Branch_2'):
branch_2 = slim.max_pool2d(net, [3, 3], stride=2, padding='VALID', scope='MaxPool_1a_3x3')
net = tf.concat([branch_0, branch_1, branch_2], 3)
# 第二个Inception Module
with tf.variable_scope('Mixed_7b'):
with tf.variable_scope('Branch_0'):
branch_0 = slim.conv2d(net, 320, [1, 1], scope='Conv2d_0a_1x1')
with tf.variable_scope('Branch_1'):
branch_1 = slim.conv2d(net, 384, [1, 1], scope='Conv2d_0a_1x1')
branch_1 = tf.concat(
[slim.conv2d(branch_1, 384, [1, 3], scope='Conv2d_0b_1x3'),
slim.conv2d(branch_1, 384, [3, 1], scope='Conv2d_0c_3x1')], 3)
with tf.variable_scope('Branch_2'):
branch_2 = slim.conv2d(net, 448, [1, 1], scope='Conv2d_0a_1x1')
branch_2 = slim.conv2d(branch_2, 384, [3, 3], scope='Conv2d_0b_3x3')
branch_2 = tf.concat([slim.conv2d(branch_2, 384, [1, 3], scope='Conv2d_0c_1x3'),
slim.conv2d(branch_2, 384, [3, 1], scope='Conv2d_0d_3x1')], 3)
with tf.variable_scope('Branch_3'):
branch_3 = slim.avg_pool2d(net, [3, 3], scope='AvgPool_0a_3x3')
branch_3 = slim.conv2d(branch_3, 192, [1, 1], scope='Conv2d_0b_1x1')
net = tf.concat([branch_0, branch_1, branch_2, branch_3], 3)
# 第三个Inception Module
with tf.variable_scope('Mixed_7c'):
with tf.variable_scope('Branch_0'):
branch_0 = slim.conv2d(net, 320, [1, 1], scope='Conv2d_0a_1x1')
with tf.variable_scope('Branch_1'):
branch_1 = slim.conv2d(net, 384, [1, 1], scope='Conv2d_0a_1x1')
branch_1 = tf.concat(
[slim.conv2d(branch_1, 384, [1, 3], scope='Conv2d_0b_1x3'),
slim.conv2d(branch_1, 384, [3, 1], scope='Conv2d_0c_3x1')], 3)
with tf.variable_scope('Branch_2'):
branch_2 = slim.conv2d(net, 448, [1, 1], scope='Conv2d_0a_1x1')
branch_2 = slim.conv2d(branch_2, 384, [3, 3], scope='Conv2d_0b_3x3')
branch_2 = tf.concat([slim.conv2d(branch_2, 384, [1, 3], scope='Conv2d_0c_1x3'),
slim.conv2d(branch_2, 384, [3, 1], scope='Conv2d_0d_3x1')], 3)
with tf.variable_scope('Branch_3'):
branch_3 = slim.avg_pool2d(net, [3, 3], scope='AvgPool_0a_3x3')
branch_3 = slim.conv2d(branch_3, 192, [1, 1], scope='Conv2d_0b_1x1')
net = tf.concat([branch_0, branch_1, branch_2, branch_3], 3)
return net, end_point
# 全局平局池化，softmax，Auxiliary Logits
def inception_v3(inputs, # 输入张量
num_classes=1000, # 需要分类的数量
is_training=True, # 标志是否是训练过程
dropout_keep_prob=0.8, # Dropout保留的比例
prediction_fn=slim.softmax, # 用来进行分类的函数
spatial_squeeze=True, # 是否对输出进行squeeze操作
reuse=tf.AUTO_REUSE, # 是否会对网络和Variable进行重复使用
scope='InceptionV3' # 包含了函数默认参数的环境
):
with tf.variable_scope(scope, 'InceptionV3', [inputs, num_classes], reuse=reuse) as scope:
with slim.arg_scope([slim.batch_norm, slim.dropout], is_training=is_training):
# 获取网络的输出
net, end_points = inception_v3_base(inputs, scope=scope)
# Auxiliary Logits
with slim.arg_scope([slim.conv2d, slim.max_pool2d, slim.avg_pool2d], stride=1, padding='SAME'):
# 获取Mixed_6e
aux_logits = end_points['Mixed_6e']
with tf.variable_scope('AuxLogits'):
aux_logits = slim.avg_pool2d(aux_logits, [5, 5], stride=3, padding='VALID', scope='AvgPool_1a_5x5')
aux_logits = slim.conv2d(aux_logits, 128, [1, 1], scope='Conv2d_1b_1x1')
aux_logits = slim.conv2d(aux_logits, 768, [5, 5], weights_initializer=tf.truncated_normal_initializer(0.01), padding='VALID', scope='Conv_2a_5x5')
aux_logits = slim.conv2d(aux_logits, num_classes, [1, 1], activation_fn=None, normalizer_fn=None, weights_initializer=tf.truncated_normal_initializer(0.001), scope='Conv_2b_1x1')
if spatial_squeeze:
aux_logits = tf.squeeze(aux_logits, [1, 2], name='SpatialSqueeze')
end_points['AuxLogits'] = aux_logits
# 分类预测
with tf.variable_scope('Logits'):
net = slim.avg_pool2d(net, [8, 8], padding='VALID', scope='AvgPool_1a_8x8')
net = slim.dropout(net, keep_prob=dropout_keep_prob, scope='Dropout_1b')
end_points['PreLogits'] = net
logits = slim.conv2d(net, num_classes, [1, 1], activation_fn=None, normalizer_fn=None, scope='Conv2d_1c_1x1')
if spatial_squeeze:
logits = tf.squeeze(logits, [1, 2], name='SpatialSqueeze')
end_points['Logits'] = logits
end_points['Predictions'] = prediction_fn(logits, scope='Predictions')
return logits, end_points
import time
from datetime import datetime
# 评估每轮计算时间
def time_tensorflow_run(session, target, info_string):
num_steps_burn_in = 10 # 预热轮数
total_duration = 0.0 # 总时间
total_duration_squared = 0.0 # 平方和
for i in range(num_batches + num_steps_burn_in):
start_time = time.time()
_ = session.run(target)
duration = time.time() - start_time
if i >= num_steps_burn_in:
if not i % 10:
print('%s: step %d, duration = %.3f' % (datetime.now(), i - num_steps_burn_in, duration))
total_duration += duration
total_duration_squared += duration * duration
mn = total_duration / num_batches
vr = total_duration_squared / num_batches - mn * mn
sd = math.sqrt(vr)
print('%s: %s across %d steps, %.3f +/- %.3f sec/batch' % (datetime.now(), info_string, num_batches, mn, sd))
batch_size = 32
height, width = 299, 299
inputs = tf.random_uniform((batch_size, height, width, 3))
with slim.arg_scope(inception_v3_arg_scope()):
logits, end_points = inception_v3(inputs, is_training=False)
init = tf.global_variables_initializer()
sess = tf.Session()
sess.run(init)
num_batches = 100
time_tensorflow_run(sess, logits, "Forward")
扫一扫
834
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
