2018_ubicomp Wistep: device-free step counting with wifi signals

本文探讨了利用WiFi信号进行步频计数的方法,通过选取子载波和肢体速度,实现在两个室内环境下对50名志愿者进行无设备步频计数,准确率达到90.2%和87.59%。研究中使用了Butterworth带通滤波器去除噪音,并配置了特定的采样率。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

本文研究WiFi信号来估计步频计数的问题

*step counting: selecting subcarriers and limb speed

*50volunteers

*two indoor environments

*90.2% and 87.59%, respectively

*device-free

FMCW bandwidth:1.79GHz

WiFi bandwidth:20 or 40MHz

*****************************************************************

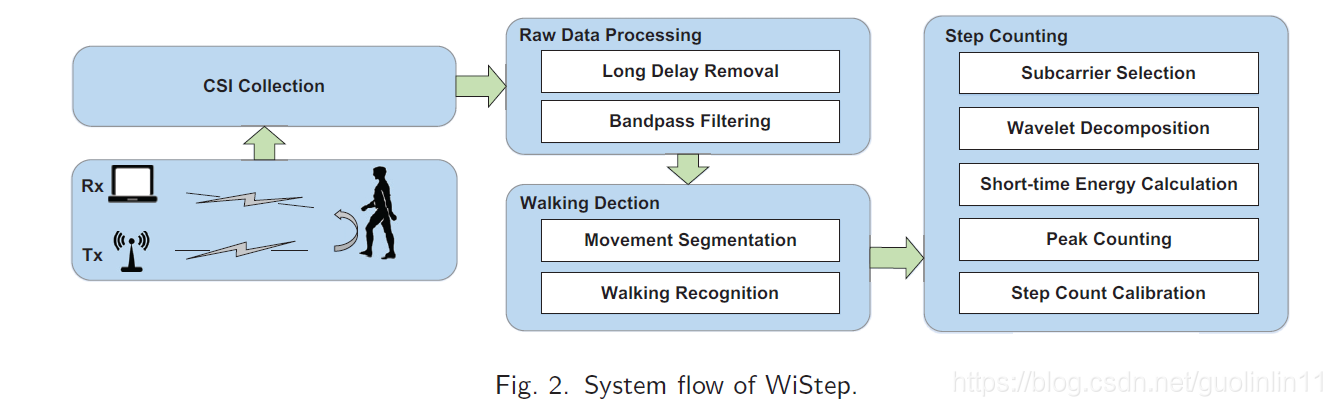

分为两步:walking detection, step counting



butterworth bandpass filter:带通滤波主要获取一定频率范围内的信号,具体来说就是移除高频的噪音和低频的呼吸以及心跳

收发设备的配置:

transmitter with one directional antenna(这个就是限制啊)

receiver with 3 omni-directional antennal

sampling packet:1000Hz(发包率有点高)

##Considering human activities in traditional indoor environment introduce frequencies of no more than 300Hz in CSI amplitudes(CARM), thus WiStep is configured with a sampling rate of 1000Hz that is larger than the Nyquist sampling rate##

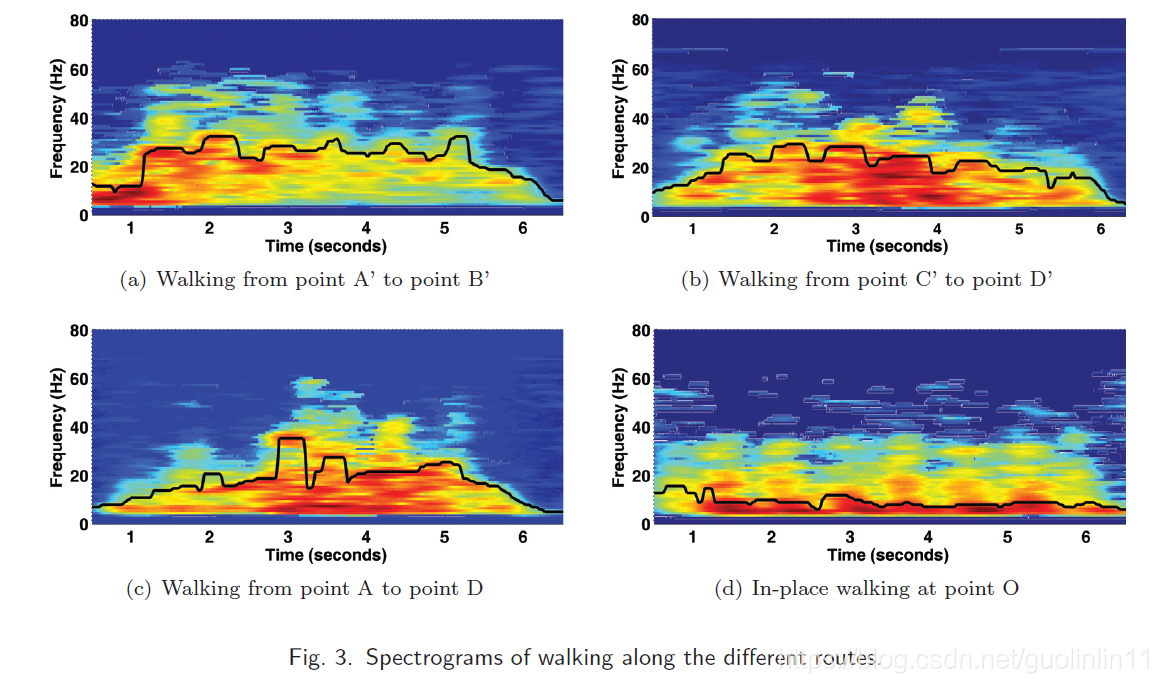

上述图展示了躯干部份与腿部分对信号反射产生的频率不同。

参考的文献:

[1]WifiU: gait recognition using wifi signal, 2016

[2]CARM: understanding and modeling of wifi signal based human activity recognition,2015

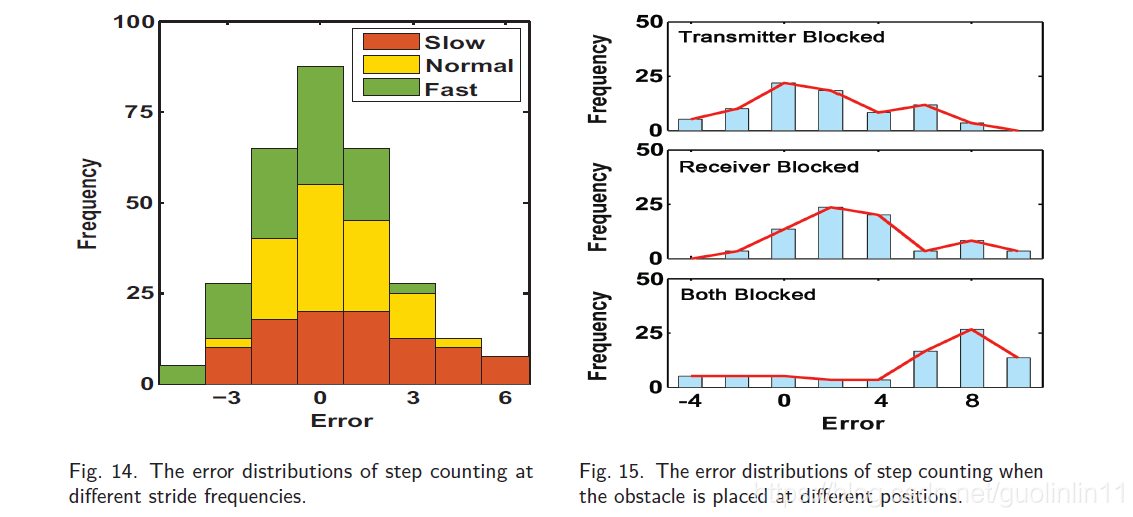

evaluation metrics:



***************************************************************

acceleration and deceleration phases:加减速阶段

step counting=count walking steps

accelerometers

gyroscopes

sensory data:感知数据

light condition, power consuming, and personal privacy

stem from
